Supermicro SuperServer SYS-222FT-HEA-LCC

Favorite

Compara

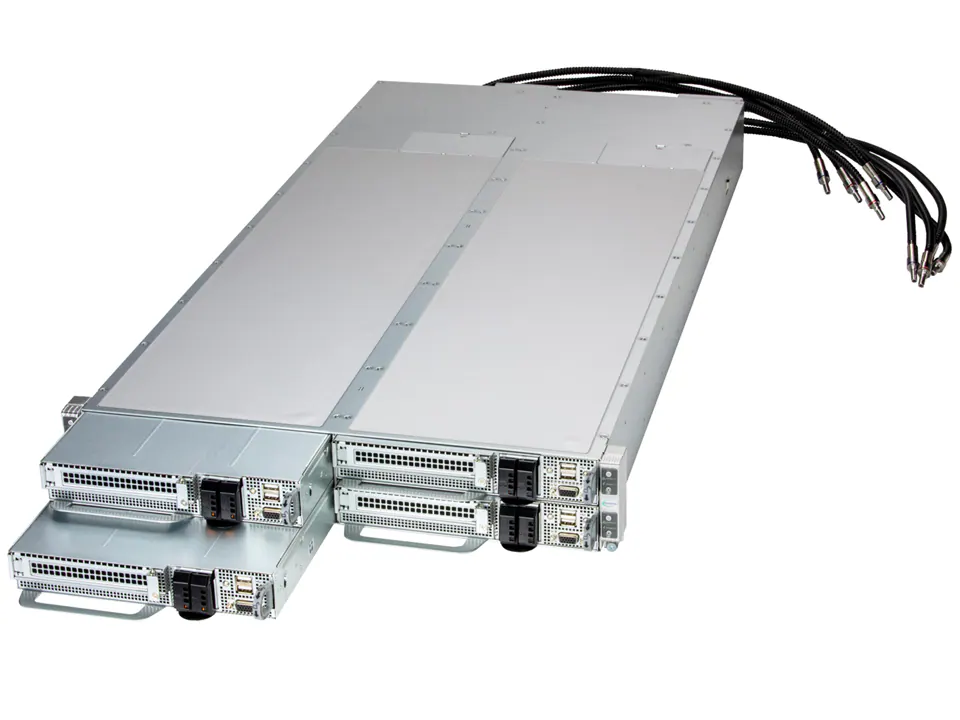

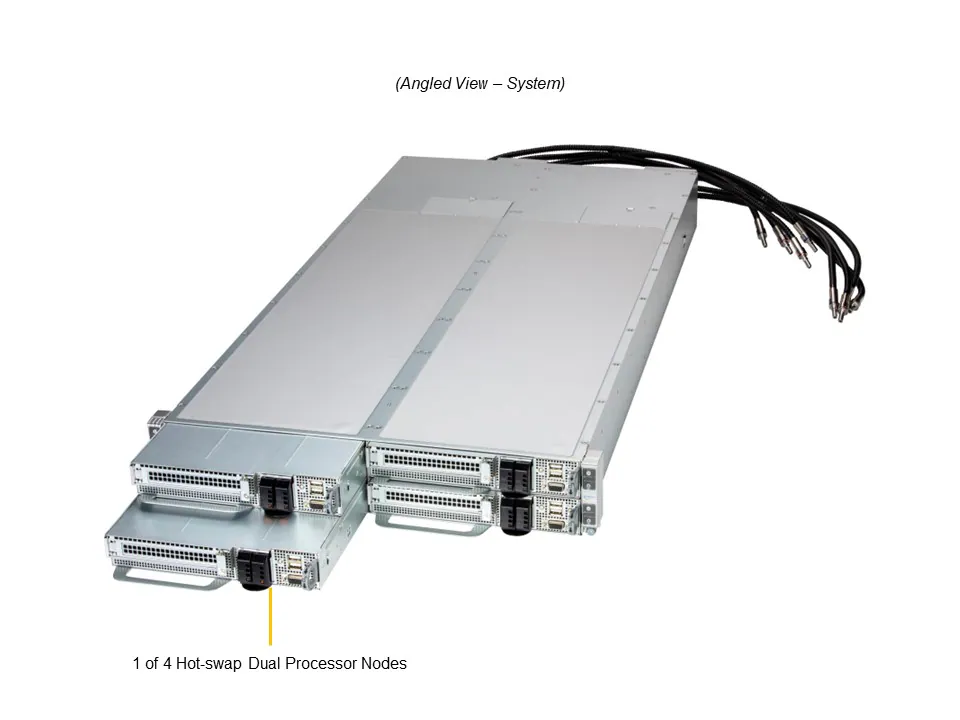

2U 4-Node FlexTwin™ with liquid cooling (complete rack and onsite service are required)

Pretul afisat contine TVA (21%).

SuperServer SYS-222FT-HEA-LCC

2U 4-Node FlexTwin™ with liquid cooling (complete rack and onsite service are required)

Key Features

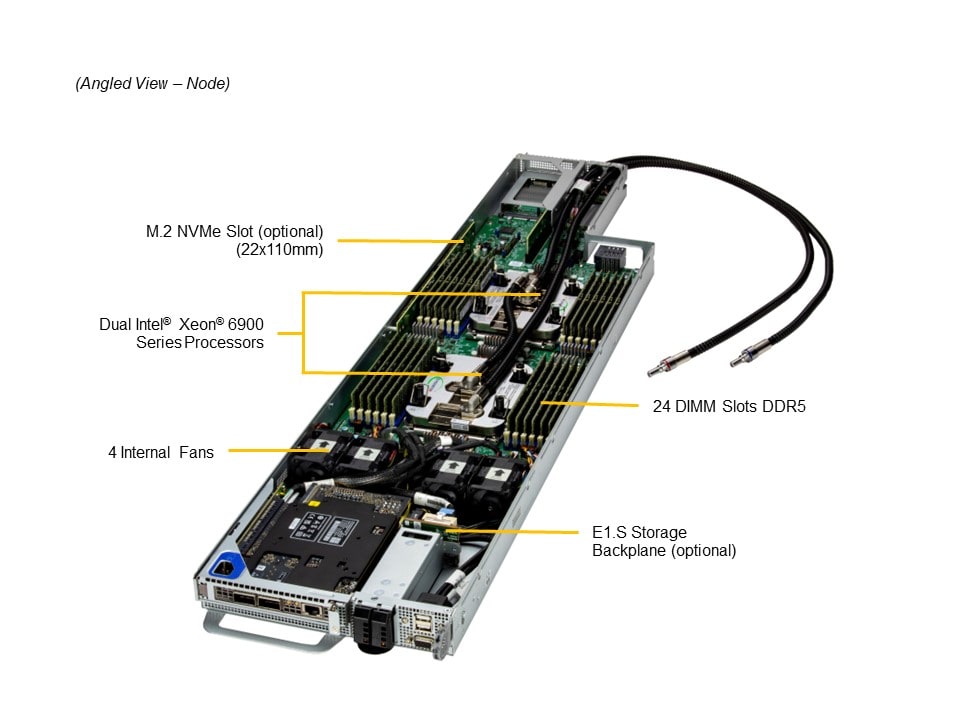

Dual Intel® Xeon® 6900 Series Processors with P-cores up to 500W with liquid cooling (Up to 61% heat capture)
Up to 24 DIMMs supporting up to 6TB 6400MT/s DDR5 RDIMM or 3TB 8800MT/s DDR5 MRDIMM
Flexible networking with up to 1 OCP 3.0 compatible AIOM slots
Optional 1 PCIe 5.0 x16 FHHL slot + Default 1 PCIe 5.0 x16 LP slot
Optional 2 E1.S Slots + Optional 2 M.2 NVME drive Slots
4 Redundant Up to 3200W Titanium Level Power Supplies

Specifications

Product SKUs
SuperServer SYS-222FT-HEA-LCC
Motherboard

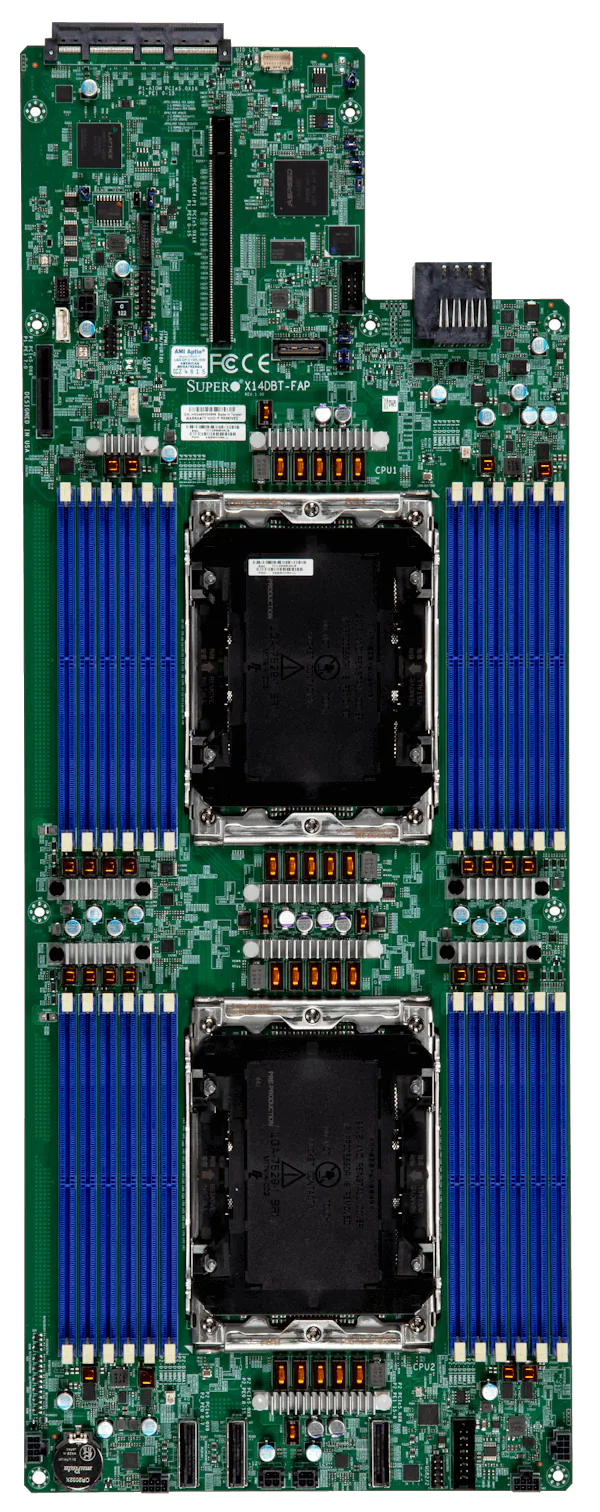

Super X14DBT-FAP
Processor (per Node)
CPU	Dual Socket BR (LGA-7529) Intel® Xeon® 6900 series processors with P-cores
Core Count	Up to 128C/256T; Up to 504MB Cache per CPU
Note	Supports up to 500W TDP CPUs (Liquid Cooled)
System Memory (per Node)
Memory	Slot Count: 24 DIMM slots Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM Max Memory (1DPC): Up to 3TB 8800MT/s ECC DDR5 MRDIMM
Memory Voltage	1.1V
On-Board Devices (per Node)
NVMe	NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)
Network Connectivity	Via AIOM
Input / Output (per Node)
LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	2 USB 2.0 Type-A ports(front)
Video	1 VGA port(Front)
System BIOS
BIOS Type	AMI 64MB SPI Flash
Management
Software	Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI/APM Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown
PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory.
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment
SuperServer SYS-222FT-HEA-LCC
Super X14DBT-FAP
Chassis
Form Factor	2U Rackmount
Model	CSE-F214EC-000NP
Dimensions and Weight
Height	3.46″ (88 mm)
Width	17.67″ (449 mm)
Depth	36.08″ (916.6 mm)
Package	11.54″ (H) x 27.6″ (W) x 50.63″ (D)
Weight	Gross Weight: 129 lbs (58.51 kg) Net Weight: 105 lbs (47.63 kg)
Available Color	Silver

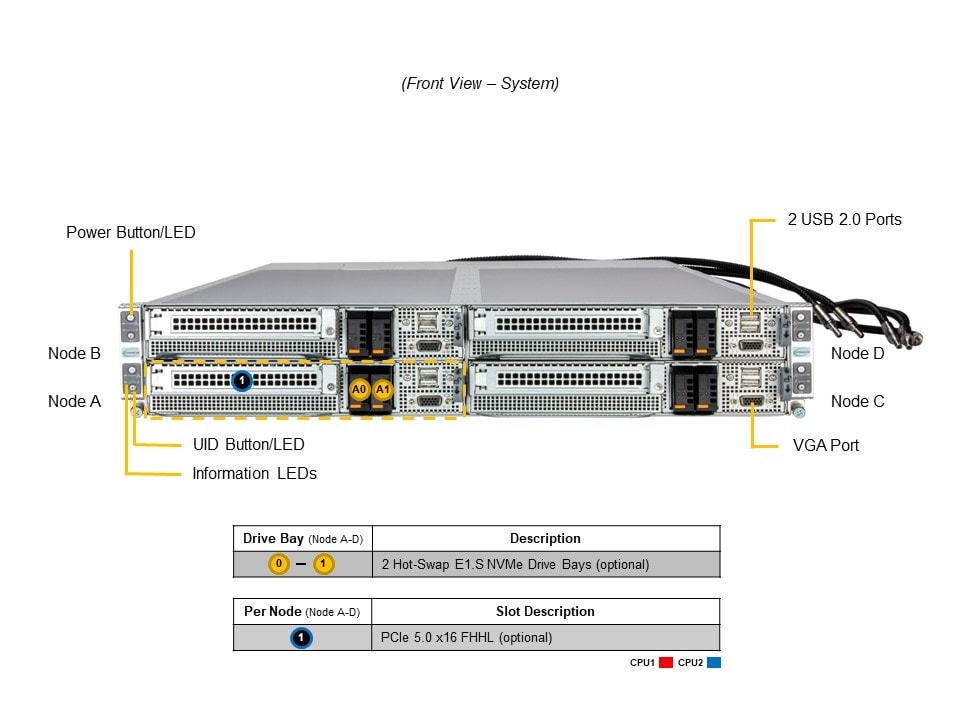

Front Panel
Buttons	Power On/Off button UID button
LED	HDD activity LED Network activity LEDs Power status LED Universal Information (UID) LED
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration	Default1 PCIe 5.0 x16 LP slot 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) 1 PCIe 5.0 x16 LP slot 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) Option A1 PCIe 5.0 x16 LP slot 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)1 PCIe 5.0 x16 FHHL slot 1 PCIe 5.0 x16 LP slot 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) 1 PCIe 5.0 x16 FHHL slot (Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
M.2	2 M.2 NVMe slots (M-key 22110(default); optional configuration)
Drive Bays / Storage (per Node)
Drive Bays Configuration	Option A: Total 2 bays2 front hot-swap E1.S NVMe* drive bays 2 front hot-swap E1.S NVMe* drive bays (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2	2 M.2 PCIe 5.0 x4 NVMe slots (M-key 22110(default); optional configuration) View M.2 Options
System Cooling
Fans	Up to 16x 31K RPM Counter Rotating 40x40x56mm Fan(s)
Air Shroud	4 Air Shrouds
Liquid Cooling	Direct to Chip (D2C) Cold Plate

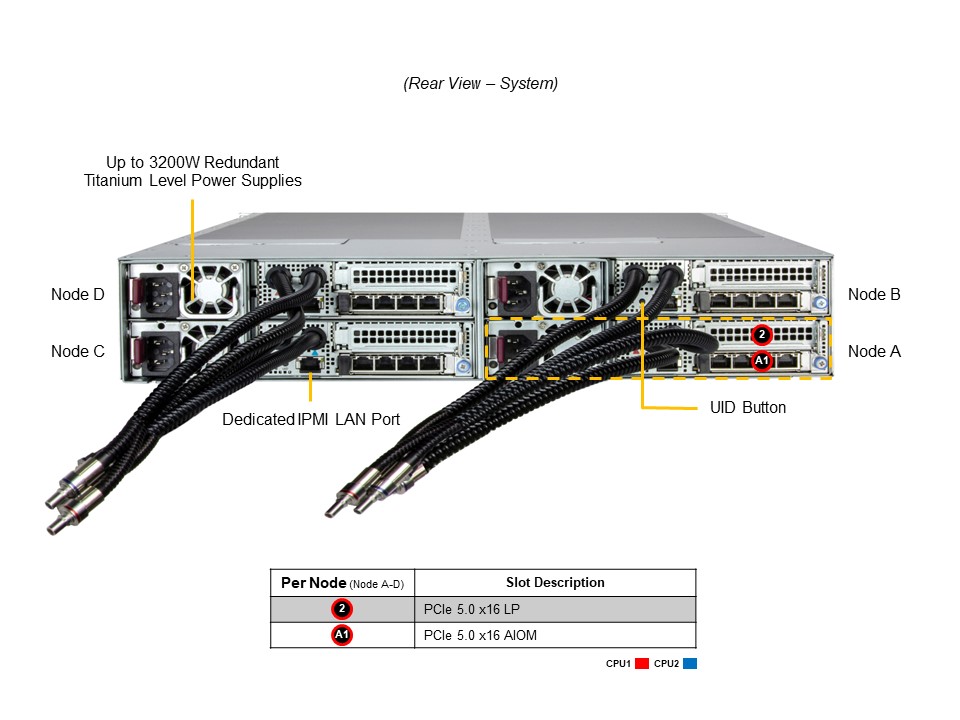

Power Supply
4x 3200W 4x 2000W 4x 2000W 4x 3200W 4x 3200W Redundant (2 + 2) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 185 mm Input1000W: 100-127Vac / 50-60Hz 2900W: 200-207Vac / 50-60Hz 3000W: 207-220Vac / 50-60Hz 3200W: 220-240Vac / 50-60Hz 3200W: 0240Vdc / 50-60Hz (for CQC only) +12VMax: 82A / Min: 0A (100Vac-127Vac)Max: 237.7A / Min: 0A (200Vac-207Vac)Max: 245.9A / Min: 0A (207Vac-220Vac)Max: 262.3A / Min: 0A (220Vac-240Vac) 12V SBMax: 3A / Min: 0A Output TypeBackplanes (gold finger) 4x 2000W 4x 2000W Redundant (2 + 2) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 203 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vdc 2000W: 220-240Vac 2000W: 230-240Vac 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for China only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Max: 3.5A Output TypeBackplanes (gold finger) 4x 2000W 4x 2000W Redundant (2 + 2) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 203 mm Input2000W: 200-277Vac / 50-60Hz +12VMax: 166A / Min: 0A (200Vac-277Vac) 12V SBMax: 3.5A / Min: 0A Output TypeBackplanes (gold finger) Certification Titanium Level
Dimension (WxHxL)	73.5 x 40 x 185 mm
Input	1000W: 100-127Vac / 50-60Hz 2900W: 200-207Vac / 50-60Hz 3000W: 207-220Vac / 50-60Hz 3200W: 220-240Vac / 50-60Hz 3200W: 0240Vdc / 50-60Hz (for CQC only)
+12V	Max: 82A / Min: 0A (100Vac-127Vac)Max: 237.7A / Min: 0A (200Vac-207Vac)Max: 245.9A / Min: 0A (207Vac-220Vac)Max: 262.3A / Min: 0A (220Vac-240Vac)
12V SB	Max: 3A / Min: 0A
Output Type	Backplanes (gold finger)
Dimension (WxHxL)	73.5 x 40 x 203 mm
Input	1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vdc 2000W: 220-240Vac 2000W: 230-240Vac 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for China only)
+12V	Max: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac)
12V SB	Max: 3.5A / Min: 0A Max: 3.5A
Input	2000W: 200-277Vac / 50-60Hz
+12V	Max: 166A / Min: 0A (200Vac-277Vac)
12V SB	Max: 3.5A / Min: 0A
Certification	Titanium Level
Operating Environment
ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing)
4x 3200W 4x 2000W 4x 2000W 4x 3200W 4x 3200W Redundant (2 + 2) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 185 mm Input1000W: 100-127Vac / 50-60Hz 2900W: 200-207Vac / 50-60Hz 3000W: 207-220Vac / 50-60Hz 3200W: 220-240Vac / 50-60Hz 3200W: 0240Vdc / 50-60Hz (for CQC only) +12VMax: 82A / Min: 0A (100Vac-127Vac)Max: 237.7A / Min: 0A (200Vac-207Vac)Max: 245.9A / Min: 0A (207Vac-220Vac)Max: 262.3A / Min: 0A (220Vac-240Vac) 12V SBMax: 3A / Min: 0A Output TypeBackplanes (gold finger) 4x 2000W 4x 2000W Redundant (2 + 2) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 203 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vdc 2000W: 220-240Vac 2000W: 230-240Vac 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for China only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Max: 3.5A Output TypeBackplanes (gold finger) 4x 2000W 4x 2000W Redundant (2 + 2) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 203 mm Input2000W: 200-277Vac / 50-60Hz +12VMax: 166A / Min: 0A (200Vac-277Vac) 12V SBMax: 3.5A / Min: 0A Output TypeBackplanes (gold finger) Certification Titanium Level
Optional Parts List
