Supermicro SuperServer SYS-620BT-HNC8R

Favorite
Compara

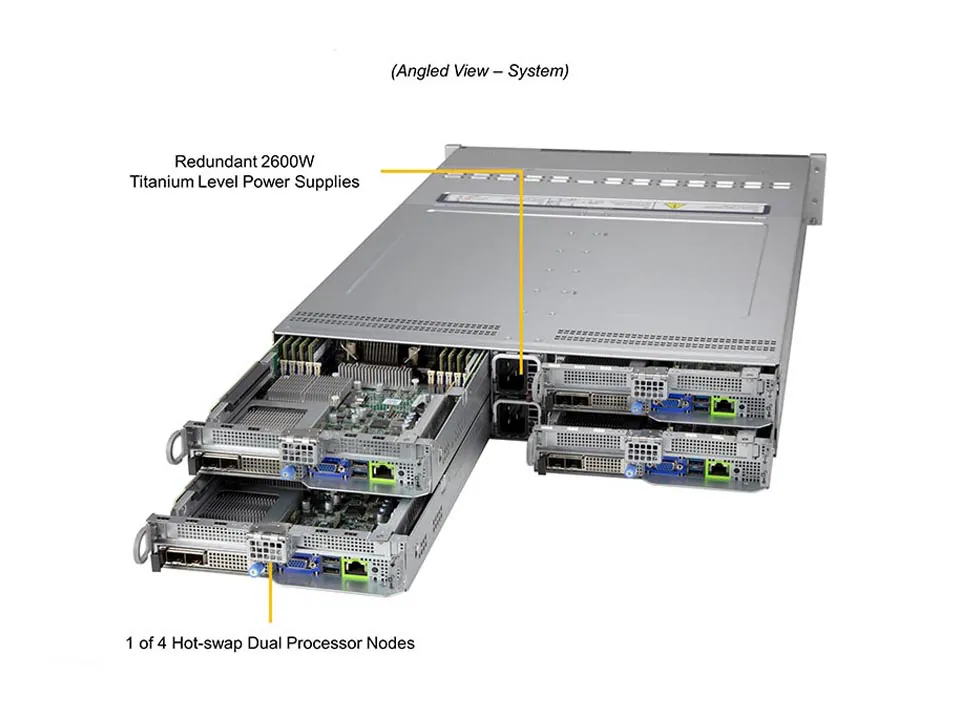

2U BigTwin with 3 3.5″ NVMe/SAS/SATA drives per node

Pretul afisat contine TVA (21%).

SuperServer SYS-620BT-HNC8R

2U BigTwin with 3 3.5″ NVMe/SAS/SATA drives per node

Key Features

  1. Socket P+ (LGA 4189) support 3rd Gen Intel® Xeon® Scalable processors
  2. Intel® C621A
  3. 20 DIMM Slots (16 DIMM Slots + 4 Intel® Optane™ Persistent Memory Slots)
  4. 2 PCIe 4.0 x16 (LP) slot; Tool-less supportOptional HW RAID Boot Controller via AOC-SMG3-2M2-B (NVMe Only)Internal PCIe 3.0 for 2 x4 M.2 NVMe/SATA support onboard
  5. 2 PCIe 4.0 x16 (LP) slot;
  6. Tool-less support
  7. Optional HW RAID Boot Controller via AOC-SMG3-2M2-B (NVMe Only)
  8. Internal PCIe 3.0 for 2 x4 M.2 NVMe/SATA support onboard
  9. Network connectivity via AIOM (OCP 3.0 compliant)
  10. 3 Hot-swap 3.5″ drive bays; 3 PCIe 4.0 NVMe/SAS/SATA 3.5″ drives
  11. 4 cooling fans per 2U enclosure, 14.9K RPM; Shared Cooling Design
  12. 2600W Redundant Power Supplies Titanium Level (96%+); Shared Power Design
  13. Built-in SAS3 Support via Broadcom 3808; IT Mode

Specifications

Product SKUs
  • SuperServer SYS-620BT-HNC8R

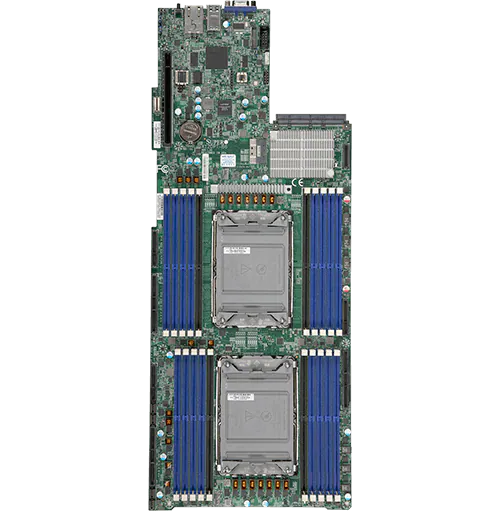

Motherboard
  • Super X12DPT-B6
Processor (per Node)
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 32C/64T; Up to 48MB Cache per CPU
Note
  • Supports up to 185W TDP CPUs (Air Cooled)

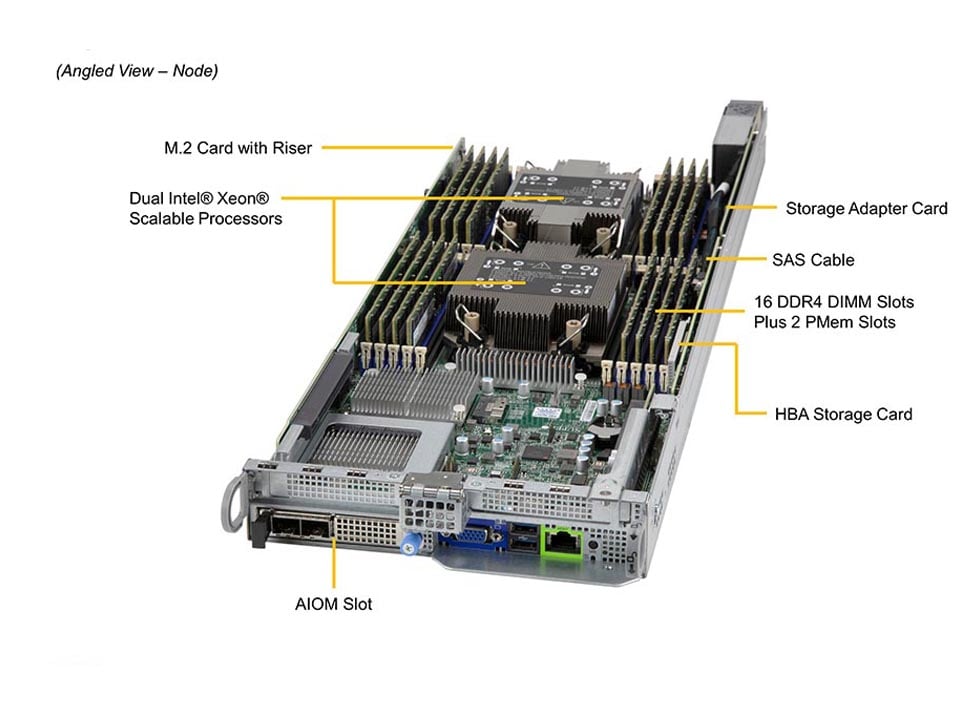

System Memory (per Node)
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM
  • Supports Intel® Optane™ persistent memory 200 series
Memory Voltage
  • 1.2V
On-Board Devices (per Node)
SAS
  • SAS (12Gbps) via Broadcom® 3808; (IT mode)
Network Connectivity
  • Via AIOM

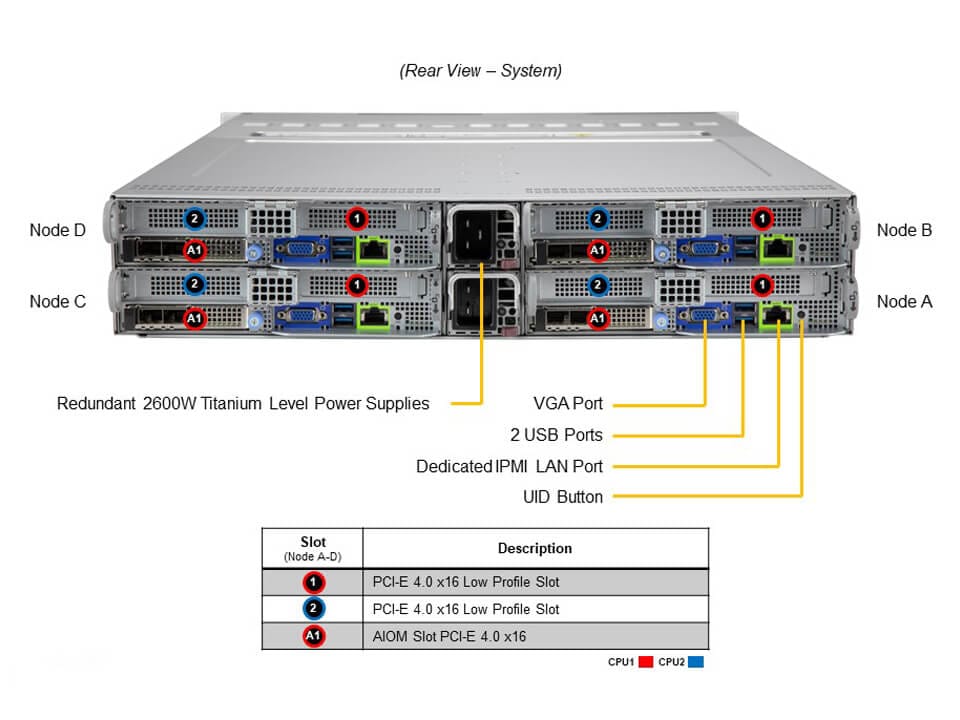

Input / Output (per Node)
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 Type-A ports(Rear)
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 32MB Flash ROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 7+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory.
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • SuperServer SYS-620BT-HNC8R
  • Super X12DPT-B6
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-827BQ-000NP
Dimensions and Weight
Height
  • 3.47″ (88 mm)
Width
  • 17.68″ (449 mm)
Depth
  • 30.5″ (774 mm)
Package
  • 9.76″ (H) x 24.65″ (W) x 45.28″ (D)
Weight
  • Gross Weight: 96.6 lbs (43.8 kg)
  • Net Weight: 66.1 lbs (30 kg)
Available Color
  • Black

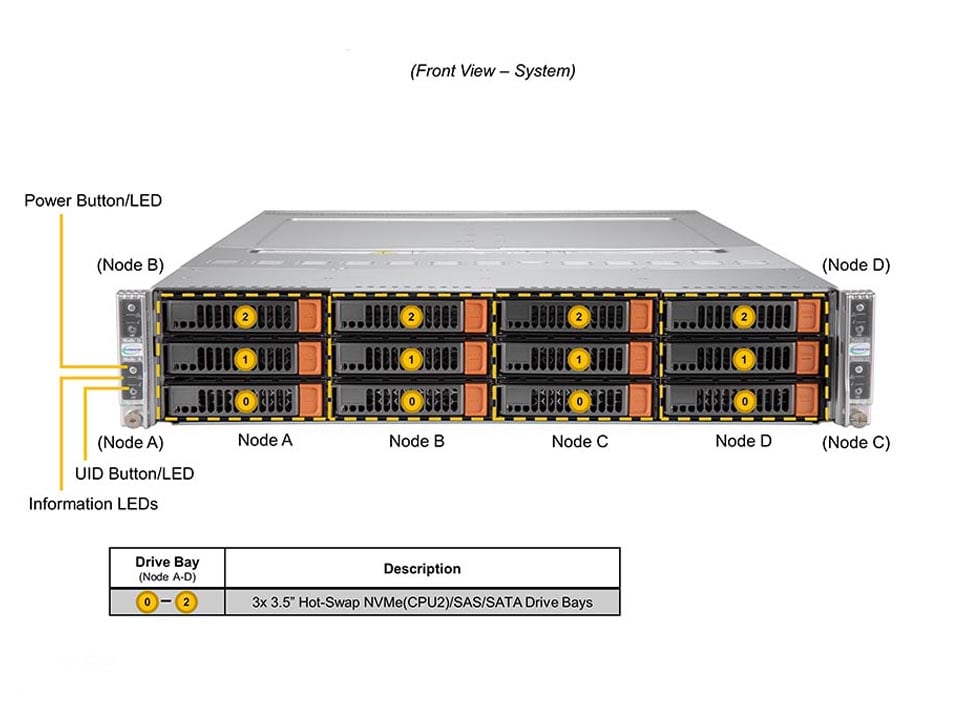

Front Panel
Buttons
  • Power On/Off button
  • UID button
LED
  • HDD activity LED
  • Network activity LEDs
  • Power status LED
  • Universal Information (UID) LED
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration
  • Default2 PCIe 4.0 x16 LP slots
  • 2 PCIe 4.0 x16 LP slots
Drive Bays / Storage (per Node)
Drive Bays Configuration
  • Default: Total 3 bays3 front hot-swap 3.5″ PCIe 4.0 NVMe/SAS/SATA drive bays
  • 3 front hot-swap 3.5″ PCIe 4.0 NVMe/SAS/SATA drive bays
M.2
  • 2 M.2 PCIe 3.0 x4 NVMe/SATA slots (M-key 2280(default); VROC required for RAID)
  • View M.2 Options
System Cooling
Fans
  • Up to 4x 14.9K RPM Heavy Duty 8cm Fan(s)
Air Shroud
  • 4 Air Shrouds
Power Supply
  • 2x 2600W 2x 2600W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)45 x 40 x 480 mm Total Output Powerfor CQC only Input220-240Vdc (CQC only)208-240Vac 2600W: 208-240Vac / 50-60Hz 2600W: 220-240Vdc / 50-60Hz (for CQC only) +12VMax: 216.6A Max: 216.6A / Min: 0A Max: 216.6A / Min: 0A (208Vac-240Vac) 12V SBMax: 4.5A / Min: 0A Output TypeBackplanes (connector)
Dimension (WxHxL)
  • 45 x 40 x 480 mm
Total Output Power
  • for CQC only
Input
  • 220-240Vdc (CQC only)208-240Vac 2600W: 208-240Vac / 50-60Hz 2600W: 220-240Vdc / 50-60Hz (for CQC only)
+12V
  • Max: 216.6A Max: 216.6A / Min: 0A Max: 216.6A / Min: 0A (208Vac-240Vac)
12V SB
  • Max: 4.5A / Min: 0A
Output Type
  • Backplanes (connector)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
  • 2x 2600W 2x 2600W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)45 x 40 x 480 mm Total Output Powerfor CQC only Input220-240Vdc (CQC only)208-240Vac 2600W: 208-240Vac / 50-60Hz 2600W: 220-240Vdc / 50-60Hz (for CQC only) +12VMax: 216.6A Max: 216.6A / Min: 0A Max: 216.6A / Min: 0A (208Vac-240Vac) 12V SBMax: 4.5A / Min: 0A Output TypeBackplanes (connector)
Optional Parts List
SKU: sys-620bt-hnc8r Categorii: , , ,
Product SKUs
  • SuperServer SYS-620BT-HNC8R
Motherboard
  • Super X12DPT-B6
Processor (per Node)
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 32C/64T; Up to 48MB Cache per CPU
Note
  • Supports up to 185W TDP CPUs (Air Cooled)
System Memory (per Node)
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM
  • Supports Intel® Optaneâ„¢ persistent memory 200 series
Memory Voltage
  • 1.2V
On-Board Devices (per Node)
SAS
  • SAS (12Gbps) via Broadcom® 3808; (IT mode)
Network Connectivity
  • Via AIOM
Input / Output (per Node)
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 Type-A ports(Rear)
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 32MB Flash ROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 7+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory.
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • SuperServer SYS-620BT-HNC8R
  • Super X12DPT-B6
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-827BQ-000NP
Dimensions and Weight
Height
  • 3.47″ (88 mm)
Width
  • 17.68″ (449 mm)
Depth
  • 30.5″ (774 mm)
Package
  • 9.76″ (H) x 24.65″ (W) x 45.28″ (D)
Weight
  • Gross Weight: 96.6 lbs (43.8 kg)
  • Net Weight: 66.1 lbs (30 kg)
Available Color
  • Black
Front Panel
Buttons
  • Power On/Off button
  • UID button
LED
  • HDD activity LED
  • Network activity LEDs
  • Power status LED
  • Universal Information (UID) LED
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration
  • Default2 PCIe 4.0 x16 LP slots
  • 2 PCIe 4.0 x16 LP slots
Drive Bays / Storage (per Node)
Drive Bays Configuration
  • Default: Total 3 bays3 front hot-swap 3.5″ PCIe 4.0 NVMe/SAS/SATA drive bays
  • 3 front hot-swap 3.5″ PCIe 4.0 NVMe/SAS/SATA drive bays
M.2
  • 2 M.2 PCIe 3.0 x4 NVMe/SATA slots (M-key 2280(default); VROC required for RAID)
  • View M.2 Options
System Cooling
Fans
  • Up to 4x 14.9K RPM Heavy Duty 8cm Fan(s)
Air Shroud
  • 4 Air Shrouds
Power Supply
  • 2x 2600W 2x 2600W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)45 x 40 x 480 mm Total Output Powerfor CQC only Input220-240Vdc (CQC only)208-240Vac 2600W: 208-240Vac / 50-60Hz 2600W: 220-240Vdc / 50-60Hz (for CQC only) +12VMax: 216.6A Max: 216.6A / Min: 0A Max: 216.6A / Min: 0A (208Vac-240Vac) 12V SBMax: 4.5A / Min: 0A Output TypeBackplanes (connector)
Dimension (WxHxL)
  • 45 x 40 x 480 mm
Total Output Power
  • for CQC only
Input
  • 220-240Vdc (CQC only)208-240Vac 2600W: 208-240Vac / 50-60Hz 2600W: 220-240Vdc / 50-60Hz (for CQC only)
+12V
  • Max: 216.6A Max: 216.6A / Min: 0A Max: 216.6A / Min: 0A (208Vac-240Vac)
12V SB
  • Max: 4.5A / Min: 0A
Output Type
  • Backplanes (connector)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
  • 2x 2600W 2x 2600W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)45 x 40 x 480 mm Total Output Powerfor CQC only Input220-240Vdc (CQC only)208-240Vac 2600W: 208-240Vac / 50-60Hz 2600W: 220-240Vdc / 50-60Hz (for CQC only) +12VMax: 216.6A Max: 216.6A / Min: 0A Max: 216.6A / Min: 0A (208Vac-240Vac) 12V SBMax: 4.5A / Min: 0A Output TypeBackplanes (connector)
