Supermicro SuperServer SYS-622BT-DNC8R

Favorite

Compara

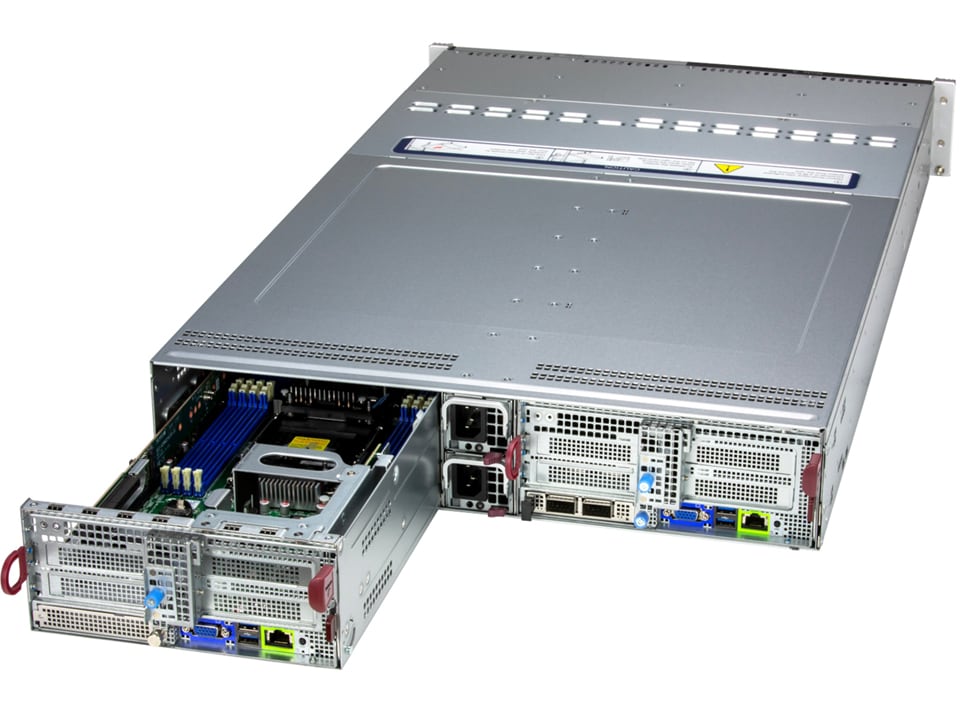

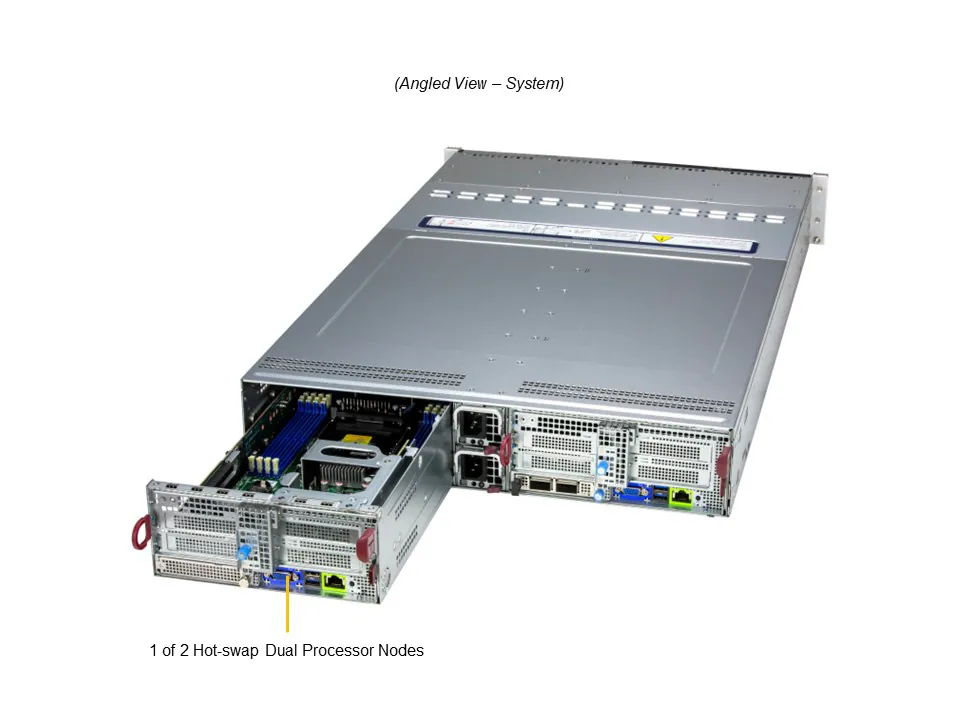

2U 2-Node BigTwin with 6 hot-swap 3.5″ NVMe/SAS/SATA drives per node

Pretul afisat contine TVA (21%).

SuperServer SYS-622BT-DNC8R

2U 2-Node BigTwin with 6 hot-swap 3.5″ NVMe/SAS/SATA drives per node

Key Features

Dual Socket E2 Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores up to 250W with air cooling or 350W with liquid coolingSingle CPU configurations supported while maintaining all expansion slot functionality; see Option A for drive support limitations
Dual Socket E2 Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores up to 250W with air cooling or 350W with liquid cooling
Single CPU configurations supported while maintaining all expansion slot functionality; see Option A for drive support limitations
Up to 16 DIMMs supporting up to 4TB DDR5-6400 in 1DPC
Flexible networking with OCP 3.0 AIOM slot
Up to 2 PCIe 5.0 x8 LP + 1 PCIe 5.0 x16 LP slotsInternal PCIe 5.0 for 2x NVMe M.2 support onboardOptional 4 NVMe M.2 support onboard with built-in HW RAID1 via SCC-A2NM2241GH-B1
Up to 2 PCIe 5.0 x8 LP + 1 PCIe 5.0 x16 LP slots
Internal PCIe 5.0 for 2x NVMe M.2 support onboard
Optional 4 NVMe M.2 support onboard with built-in HW RAID1 via SCC-A2NM2241GH-B1
Up to 6 front hot-swap 3.5″ NVMe/SAS drive bays

Specifications

Product SKUs
SuperServer SYS-622BT-DNC8R
Motherboard

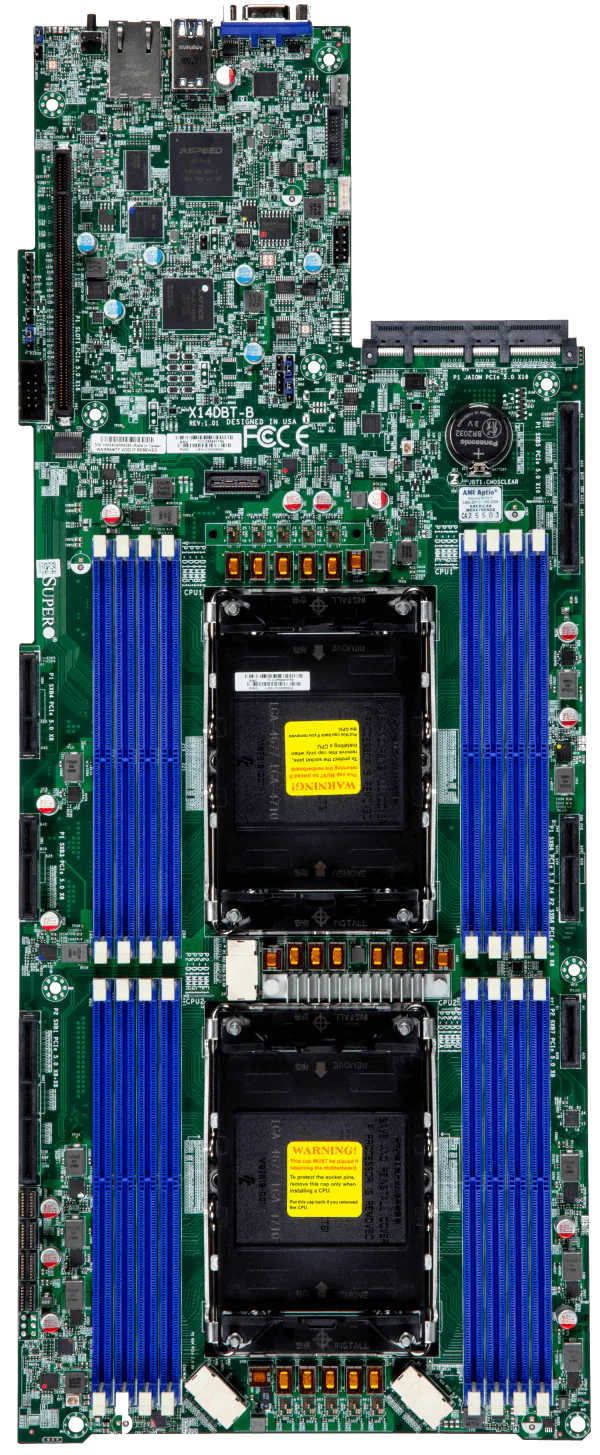

Super X14DBT-B

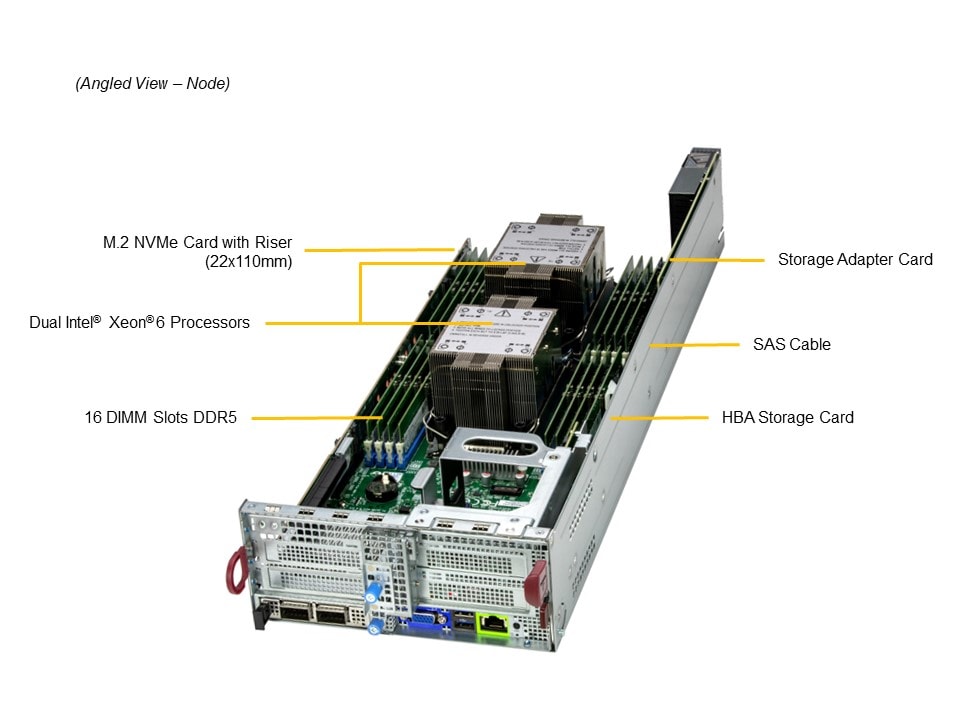

Processor (per Node)
CPU	Dual Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores
Core Count	P-cores: Up to 86C/172T; Up to 336MB Cache per CPU E-cores: Up to 144C/144T; Up to 108MB Cache per CPU
Note	Supports up to 350W TDP CPUs (Air Cooled)* Supports up to 350W TDP CPUs (Liquid Cooled) *Air Cooled CPUs with TDP over 205W only supported under specific conditions. Contact a Supermicro representative for details.
System Memory (per Node)
Memory	Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM
Memory Voltage	1.1V
On-Board Devices (per Node)
SAS	SAS (12Gbps) via Broadcom® 3808; (IT mode)
Network Connectivity	Via AIOM
Input / Output (per Node)
LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	2 USB 3.0 Gen2 Type-A ports(Rear)
Video	1 VGA port
System BIOS
BIOS Type	AMI 32MB Flash ROM
Management
Software	SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	ACPI/APM Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown
PC Health Monitoring
CPU	8+4 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory.
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment
SuperServer SYS-622BT-DNC8R
Super X14DBT-B
Chassis
Form Factor	2U Rackmount
Model	CSE-827BD2-R2K22P
Dimensions and Weight
Height	3.47″ (88 mm)
Width	17.68″ (449 mm)
Depth	30.5″ (774 mm)
Package	9.76″ (H) x 24.65″ (W) x 45.28″ (D)
Weight	Gross Weight: 80.7 lbs (36.6 kg) Net Weight: 55.1 lbs (25 kg)
Available Color	Black front & silver body

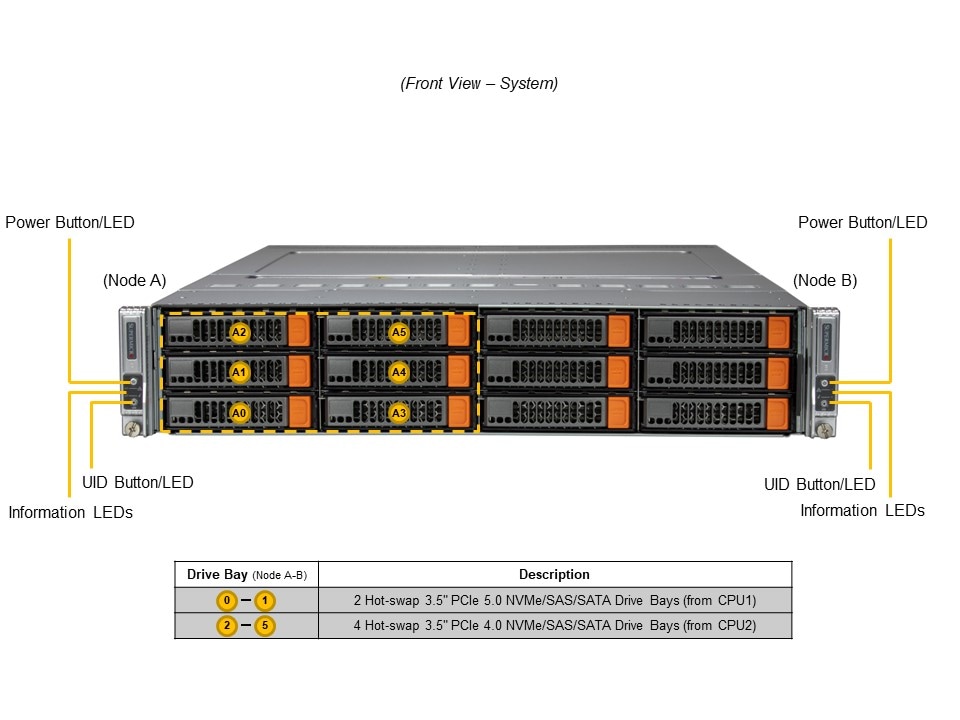

Front Panel
Buttons	Power On/Off button UID button
LED	HDD activity LED Network activity LEDs Power status LED Universal Information (UID) LED

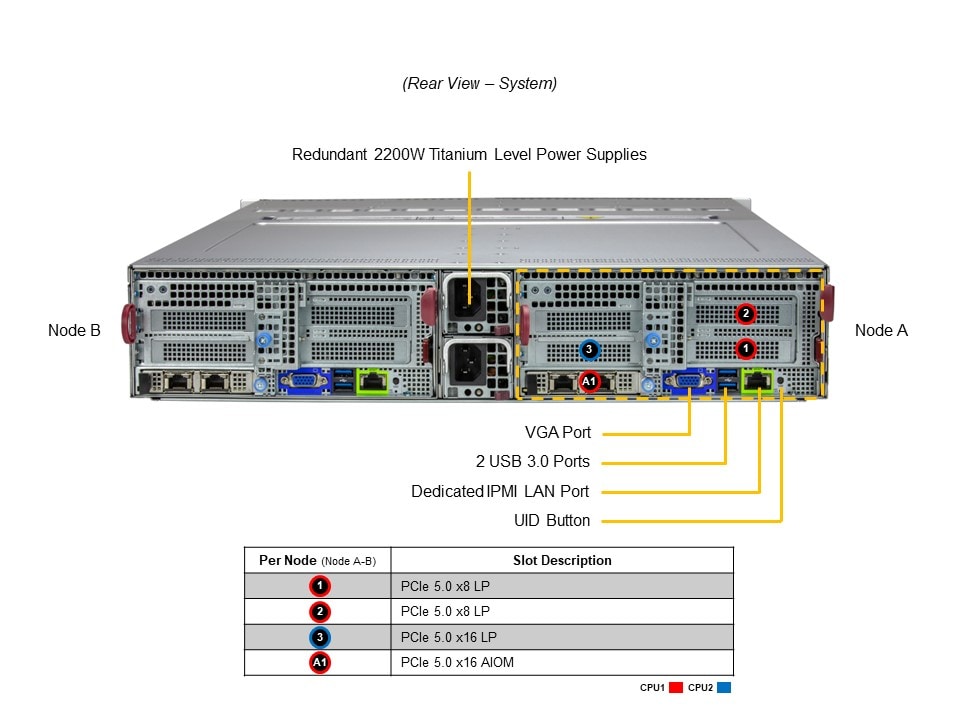

Expansion Slots (per Node)
PCI-Express (PCIe) Configuration	Default2 PCIe 5.0 x8 LP slots 1 PCIe 5.0 x16 LP slot 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) 2 PCIe 5.0 x8 LP slots 1 PCIe 5.0 x16 LP slot 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) Option A1 PCIe 4.0 x16 FHFL slot 1 PCIe 5.0 x16 LP slot 1 PCIe 4.0 x16 FHFL slot 1 PCIe 5.0 x16 LP slot
Drive Bays / Storage (per Node)
Drive Bays Configuration	Default: Total 6 bays2 front hot-swap 3.5″ PCIe 5.0 NVMe/SAS drive bays 4 front hot-swap 3.5″ PCIe 4.0 NVMe/SAS drive bays 2 front hot-swap 3.5″ PCIe 5.0 NVMe/SAS drive bays 4 front hot-swap 3.5″ PCIe 4.0 NVMe/SAS drive bays
M.2	2 M.2 PCIe 5.0 x4 NVMe slots (M-key 22110(default); VROC required for RAID) View M.2 Options
System Cooling
Fans	Up to 4x 14.9K RPM Heavy Duty 80x80x38mm Fan(s)
Air Shroud	2 Air Shrouds
Liquid Cooling	Direct to Chip (D2C) Cold Plate (optional)
Power Supply
2x 2200W 2x 2200W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)45 x 40 x 480 mm Total Output Powerfor CCC only Input1200W: 100-127Vac 1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac 1800W: 200-220Vac / 50-60Hz 1800W: 200-220Vdc / 50-60Hz (for CQC only)1980W: 220-230Vac 1980W: 220-230Vac / 50-60Hz 1980W: 220-230Vdc / 50-60Hz (for CQC only)2090W: 230-240Vac 2090W: 230-240Vdc (for CCC only)2090W: 180-220Vac (for UL/cUL only)2090W: 230-240Vac / 50-60Hz 2090W: 230-240Vdc / 50-60Hz (for CQC only)2200W: 220-240Vac (for UL/cUL only) +12VMax: 100A / Min: 0A (100-127Vac)Max: 100A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200-220Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 150A / Min: 0A (200Vdc-220Vdc) (for CQC only)Max: 165A / Min: 0A (220-230Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 165A / Min: 0A (220Vdc-230Vdc) (for CQC only)Max: 174.17A / Min: 0A (230-240Vac)Max: 174.17A / Min: 0A (230-240Vdc, CCC only)Max: 174.17A / Min: 0A (180-220Vac, UL/cUL only)Max: 174.17A / Min: 0A (230Vac-240Vac)Max: 174.17A / Min: 0A (230Vdc-240Vdc) (For CQC only)Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for UL/cUL only)Max: 183.33A / Min: 0A (220-240Vac, UL/cUL only)Max: 183.33A / Min: 0A (230Vdc-240Vdc) (for UL/cUL only) 12V SBMax: 2.1A / Min: 0A Output TypeBackplanes (connector)
Dimension (WxHxL)	45 x 40 x 480 mm
Total Output Power	for CCC only
Input	1200W: 100-127Vac 1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac 1800W: 200-220Vac / 50-60Hz 1800W: 200-220Vdc / 50-60Hz (for CQC only)1980W: 220-230Vac 1980W: 220-230Vac / 50-60Hz 1980W: 220-230Vdc / 50-60Hz (for CQC only)2090W: 230-240Vac 2090W: 230-240Vdc (for CCC only)2090W: 180-220Vac (for UL/cUL only)2090W: 230-240Vac / 50-60Hz 2090W: 230-240Vdc / 50-60Hz (for CQC only)2200W: 220-240Vac (for UL/cUL only)
+12V	Max: 100A / Min: 0A (100-127Vac)Max: 100A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200-220Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 150A / Min: 0A (200Vdc-220Vdc) (for CQC only)Max: 165A / Min: 0A (220-230Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 165A / Min: 0A (220Vdc-230Vdc) (for CQC only)Max: 174.17A / Min: 0A (230-240Vac)Max: 174.17A / Min: 0A (230-240Vdc, CCC only)Max: 174.17A / Min: 0A (180-220Vac, UL/cUL only)Max: 174.17A / Min: 0A (230Vac-240Vac)Max: 174.17A / Min: 0A (230Vdc-240Vdc) (For CQC only)Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for UL/cUL only)Max: 183.33A / Min: 0A (220-240Vac, UL/cUL only)Max: 183.33A / Min: 0A (230Vdc-240Vdc) (for UL/cUL only)
12V SB	Max: 2.1A / Min: 0A
Output Type	Backplanes (connector)
Operating Environment
ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing)
2x 2200W 2x 2200W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)45 x 40 x 480 mm Total Output Powerfor CCC only Input1200W: 100-127Vac 1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac 1800W: 200-220Vac / 50-60Hz 1800W: 200-220Vdc / 50-60Hz (for CQC only)1980W: 220-230Vac 1980W: 220-230Vac / 50-60Hz 1980W: 220-230Vdc / 50-60Hz (for CQC only)2090W: 230-240Vac 2090W: 230-240Vdc (for CCC only)2090W: 180-220Vac (for UL/cUL only)2090W: 230-240Vac / 50-60Hz 2090W: 230-240Vdc / 50-60Hz (for CQC only)2200W: 220-240Vac (for UL/cUL only) +12VMax: 100A / Min: 0A (100-127Vac)Max: 100A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200-220Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 150A / Min: 0A (200Vdc-220Vdc) (for CQC only)Max: 165A / Min: 0A (220-230Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 165A / Min: 0A (220Vdc-230Vdc) (for CQC only)Max: 174.17A / Min: 0A (230-240Vac)Max: 174.17A / Min: 0A (230-240Vdc, CCC only)Max: 174.17A / Min: 0A (180-220Vac, UL/cUL only)Max: 174.17A / Min: 0A (230Vac-240Vac)Max: 174.17A / Min: 0A (230Vdc-240Vdc) (For CQC only)Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for UL/cUL only)Max: 183.33A / Min: 0A (220-240Vac, UL/cUL only)Max: 183.33A / Min: 0A (230Vdc-240Vdc) (for UL/cUL only) 12V SBMax: 2.1A / Min: 0A Output TypeBackplanes (connector)
Optional Parts List
