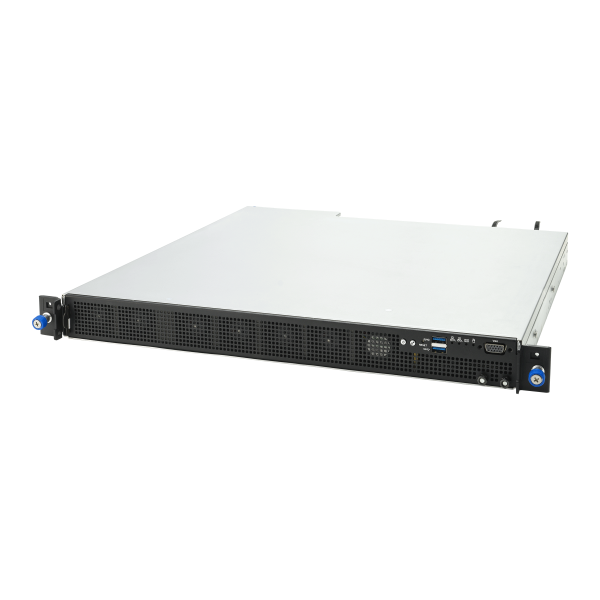

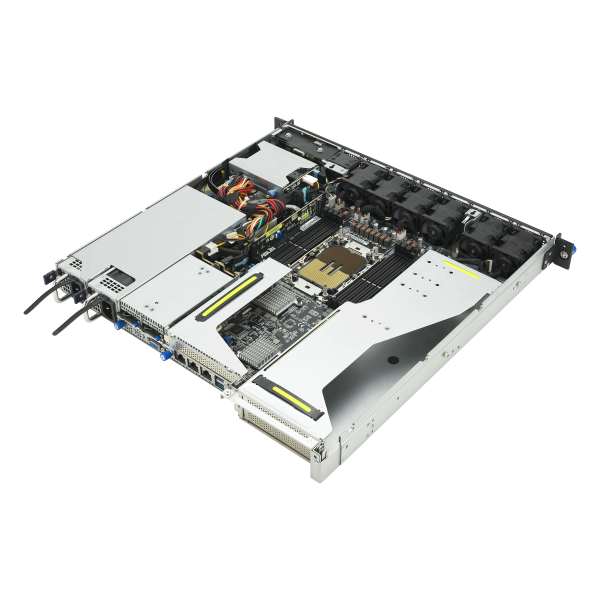

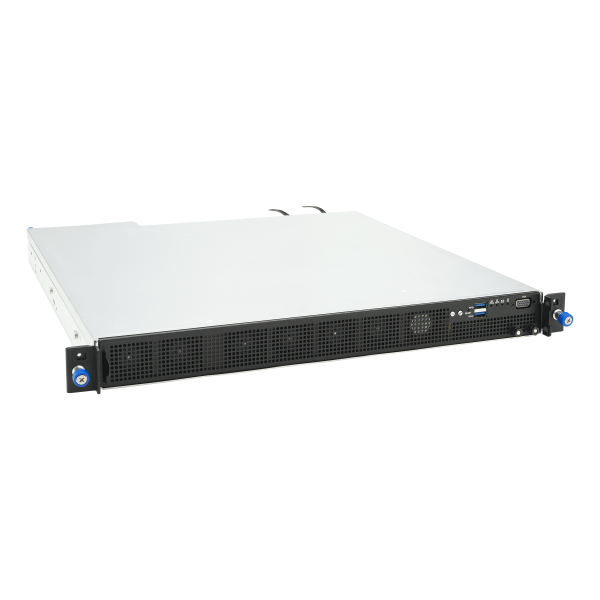

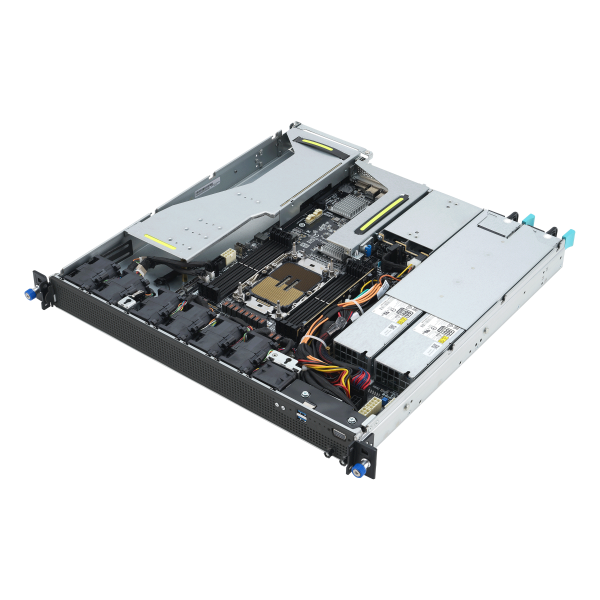

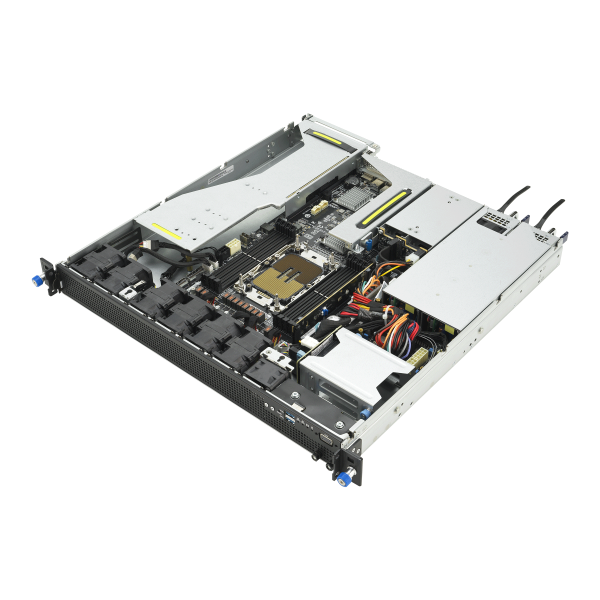

ASUS EG500-E11-RS2-R

Favorite

Compara

1U Intel single-socket compact edge server with rear I/O access, 1 FHHL card, 2 FHFL cards, redundant AC PSU and 2 M.2

Pretul afisat contine TVA (21%).

EG500-E11-RS2-R

1U Intel single-socket compact edge server with rear I/O access, 1 FHHL card, 2 FHFL cards, redundant AC PSU and 2 M.2

Key Features

Powered by 5th Gen Intel® Xeon® Scalable processors unleash up to 21%-greater general-purpose performance per watt, significantly improving AI inference and training
Short-depth chassis and rear access design for space-limited edge environments
Scalable expansion, with support for 1 FHHL card, 2 FHFL cards for GPUs, 2 internal SATA with short PSU and optional two E1.S SSDs
Redundant AC PSU for datacenter or server room environments

Specifications

Processor / System Bus	1x Socket E (LGA 4677) Intel®Xeon® Processor Scalable Family(Air cool with EVAC Up to 350W) *Refer to support page for more information
Core Logic	Intel® C741 Chipset
Memory	8 x DIMM slots (8-channel,1 DIMM per channel) 4th:DDR5 4800 MHz RDIMM/3DS RDIMM (1DPC) 5th:DDR5 5600 MHz RDIMM/3DS RDIMM (1DPC) Maximum 2048GB * Refer to support page for more information
Expansion Slots	Up to 3 slots 1 x PCIe G5 x16 link (FHHL)+2 x PCIe G5 x16 link (FHFL)
Storage	2x E1.S + 2x 2.5” Int. SATA for 650W/Short PSU 2x E1.S for 1300W/Long PSU 2x M.2 (22110/2280, Gen5 x4 Link) E1.S is optional and only supported for E1.S SKU, cannot be purchased separately Internal SATA SSD is optional for 650W PSU/ short PSU and only for internal bay SKU, cannot be purchased separately
Networking	2 x X710 10G LAN Ports+ 1 x Dedicated management port
Graphic	Up to 3 GPU cards Please find the latest GPU support from https://servers.asus.com/support/gpu

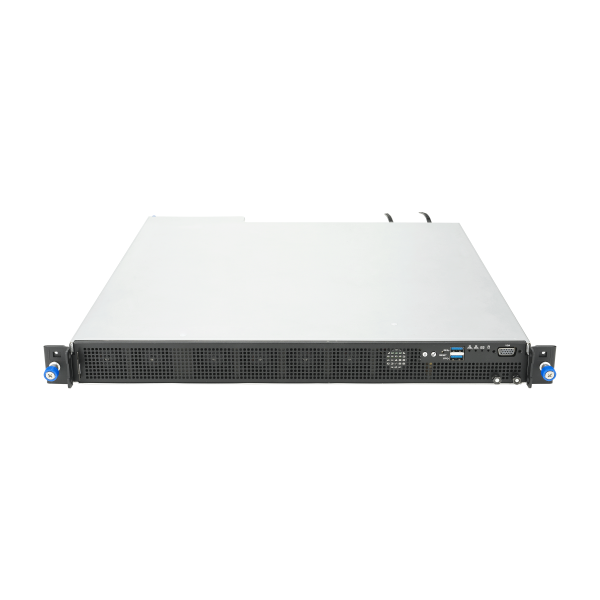

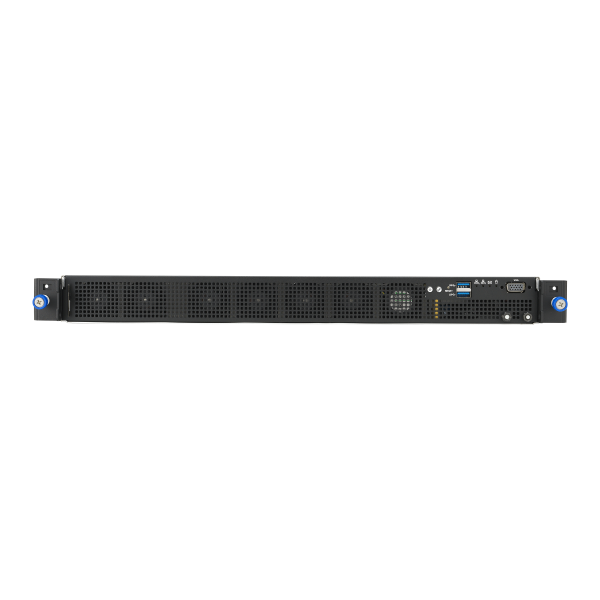

Front I/O Ports	2 x USB 3.2 Gen1 ports 1 x VGA port

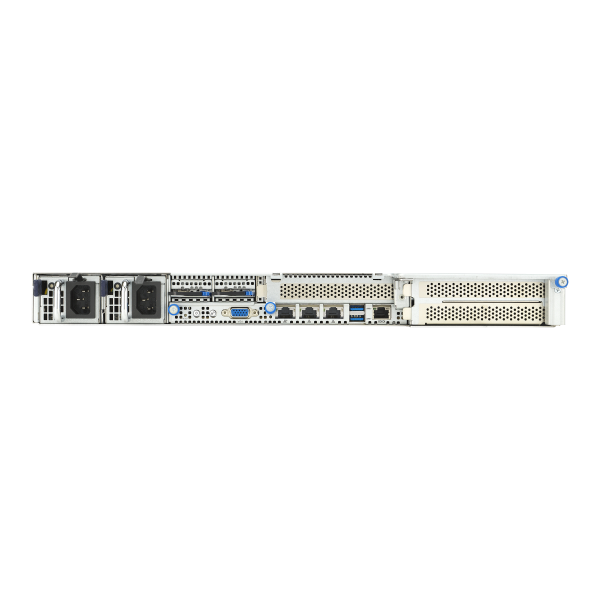

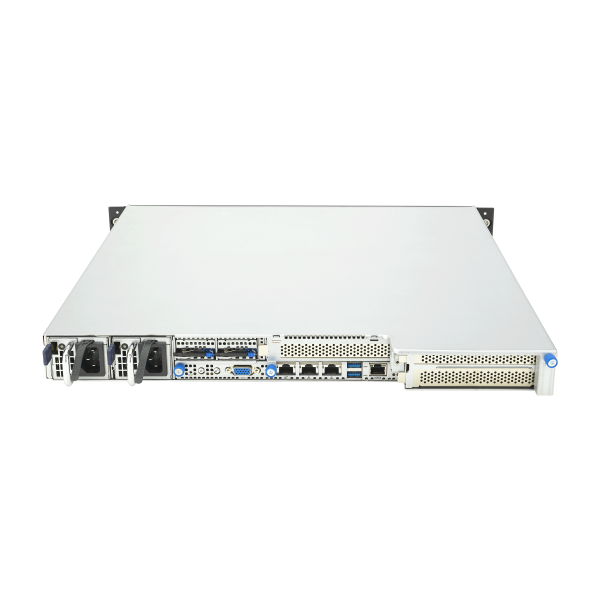

Rear I/O Ports	1 x VGA port 2 x USB 3.2 Gen1 ports 2 x RJ-45 10G LAN port 1 x RJ-45 Mgmt LAN port 1 x RJ-45 Console port
Switch/LED	Front Switch/LED: 1 x Power Switch w/ LED 1 x Location Switch w/ LED 1 x Message LED 1 x reset button Rear Switch/LED: 1 x Power Switch (w/ LED) 1 x Location Switch (w/ LED) 1 x Message LED 2 x LAN LED 1 x HDD LED 1 x reset button
OS Support	Please find the latest OS support from https://servers.asus.com/support/os
Management Solution	ASUS Control Center Enterprise (Optional) On-Board ASMB11-iKVM for KVM-over-IP
Dimensions	430mm x 438.5mm x 43.7mm  (D x W x H) 16.93″ x 17.26″ x 1.72″  (D x W x H) 399mm x 438.5mm x 43.7mm  (D x W x H)  Ear to rear wall 15.71″ x 17.26″ x 1.72″  (D x W x H)
Form Factor	1U
Weight	Net Weight Kg (CPU, DRAM & HDD not included): 15kg (approximate) Gross Weight Kg (CPU, DRAM & HDD not included, Packing include): 17 kg (approximate)
Power Supply	1+1 Redundant AC PSU 650W 50.5MM SLIM Platinum Power Supply 1300W 50.5MM SLIM Platinum Power Supply Titanium Power Supply is planning. Different PSU may not swap for each other directly, please contact ASUS Technical Support for more detail.
Note	Certain high TDP CPUs and GPU card may be supported only with specific conditions. Please contact ASUS Technical Support for additional information and Thermal solution about specialized system optimization.
Environment	Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 60℃ Non operation humidity: 20% ~ 90% ( Non condensing) Note:Operating Temperature based on configurations
FRU Part List	90SB0BV0-M1XBN0   MB (Z13PP-U8) 90SC0NI0-M0XBN1   PCIe Riser (RE16LX2-R1PE) 90SC0NJ0-M0XBN1   PCIe Riser (RE16LX1-R1PE) 90SC0NN0-M0XBN1   PDB_1300W PSU (PDB-R1PE) 90SC0QW0-M0XBN1   PDB_650W&800W PSU (PDB-R1PE/S) 90SC0NS0-M0XBN1   FPB (FPB-R1PE) 90SC0PL0-M0XBN1   M.2 Riser (M.2-R1PE) 90SKS000-M96AN0   4056 FAN 90SKS000-M97AN0   4028 FAN 90SKH000-MQLAN0   2.5″_HDD TOOLLESS ASY//MOQ:10 90SKS000-M98AN0   EG500-E11 1U EVAC 90SKP000-M0CAN0   EG500-E11/ACBEL 1300W AC FORWARD/SLIM 50.5mm 90SKP000-M0FAN0   EG500-E11/GOSPOWER 650W AC FORWARD/SLIM 50.5mm 90SKR000-M0HAN0   EG500-E11/FRICTION RAIL KIT 1.0M 90SKR000-M0IAN0   EG500-E11/BALL-BEARING RAIL KIT 1U & 2U/FULL-EXTENDED

SKU: eg500-e11-rs2-r Categorii: ASUS, BRAND, Edge Servers, Server&Storage, Servers

Processor / System Bus	1x Socket E (LGA 4677) Intel®Xeon® Processor Scalable Family(Air cool with EVAC Up to 350W) *Refer to support page for more information
Core Logic	Intel® C741 Chipset
Memory	8 x DIMM slots (8-channel,1 DIMM per channel) 4th:DDR5 4800 MHz RDIMM/3DS RDIMM (1DPC) 5th:DDR5 5600 MHz RDIMM/3DS RDIMM (1DPC) Maximum 2048GB * Refer to support page for more information
Expansion Slots	Up to 3 slots 1 x PCIe G5 x16 link (FHHL)+2 x PCIe G5 x16 link (FHFL)
Storage	2x E1.S + 2x 2.5” Int. SATA for 650W/Short PSU 2x E1.S for 1300W/Long PSU 2x M.2 (22110/2280, Gen5 x4 Link) E1.S is optional and only supported for E1.S SKU, cannot be purchased separately Internal SATA SSD is optional for 650W PSU/ short PSU and only for internal bay SKU, cannot be purchased separately
Networking	2 x X710 10G LAN Ports+ 1 x Dedicated management port
Graphic	Up to 3 GPU cards Please find the latest GPU support from https://servers.asus.com/support/gpu
Front I/O Ports	2 x USB 3.2 Gen1 ports 1 x VGA port
Rear I/O Ports	1 x VGA port 2 x USB 3.2 Gen1 ports 2 x RJ-45 10G LAN port 1 x RJ-45 Mgmt LAN port 1 x RJ-45 Console port
Switch/LED	Front Switch/LED: 1 x Power Switch w/ LED 1 x Location Switch w/ LED 1 x Message LED 1 x reset button Rear Switch/LED: 1 x Power Switch (w/ LED) 1 x Location Switch (w/ LED) 1 x Message LED 2 x LAN LED 1 x HDD LED 1 x reset button
OS Support	Please find the latest OS support from https://servers.asus.com/support/os
Management Solution	ASUS Control Center Enterprise (Optional) On-Board ASMB11-iKVM for KVM-over-IP
Dimensions	430mm x 438.5mm x 43.7mm  (D x W x H) 16.93″ x 17.26″ x 1.72″  (D x W x H) 399mm x 438.5mm x 43.7mm  (D x W x H)  Ear to rear wall 15.71″ x 17.26″ x 1.72″  (D x W x H)
Form Factor	1U
Weight	Net Weight Kg (CPU, DRAM & HDD not included): 15kg (approximate) Gross Weight Kg (CPU, DRAM & HDD not included, Packing include): 17 kg (approximate)
Power Supply	1+1 Redundant AC PSU 650W 50.5MM SLIM Platinum Power Supply 1300W 50.5MM SLIM Platinum Power Supply Titanium Power Supply is planning. Different PSU may not swap for each other directly, please contact ASUS Technical Support for more detail.
Note	Certain high TDP CPUs and GPU card may be supported only with specific conditions. Please contact ASUS Technical Support for additional information and Thermal solution about specialized system optimization.
Environment	Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 60℃ Non operation humidity: 20% ~ 90% ( Non condensing) Note:Operating Temperature based on configurations
FRU Part List	90SB0BV0-M1XBN0   MB (Z13PP-U8) 90SC0NI0-M0XBN1   PCIe Riser (RE16LX2-R1PE) 90SC0NJ0-M0XBN1   PCIe Riser (RE16LX1-R1PE) 90SC0NN0-M0XBN1   PDB_1300W PSU (PDB-R1PE) 90SC0QW0-M0XBN1   PDB_650W&800W PSU (PDB-R1PE/S) 90SC0NS0-M0XBN1   FPB (FPB-R1PE) 90SC0PL0-M0XBN1   M.2 Riser (M.2-R1PE) 90SKS000-M96AN0   4056 FAN 90SKS000-M97AN0   4028 FAN 90SKH000-MQLAN0   2.5″_HDD TOOLLESS ASY//MOQ:10 90SKS000-M98AN0   EG500-E11 1U EVAC 90SKP000-M0CAN0   EG500-E11/ACBEL 1300W AC FORWARD/SLIM 50.5mm 90SKP000-M0FAN0   EG500-E11/GOSPOWER 650W AC FORWARD/SLIM 50.5mm 90SKR000-M0HAN0   EG500-E11/FRICTION RAIL KIT 1.0M 90SKR000-M0IAN0   EG500-E11/BALL-BEARING RAIL KIT 1U & 2U/FULL-EXTENDED
