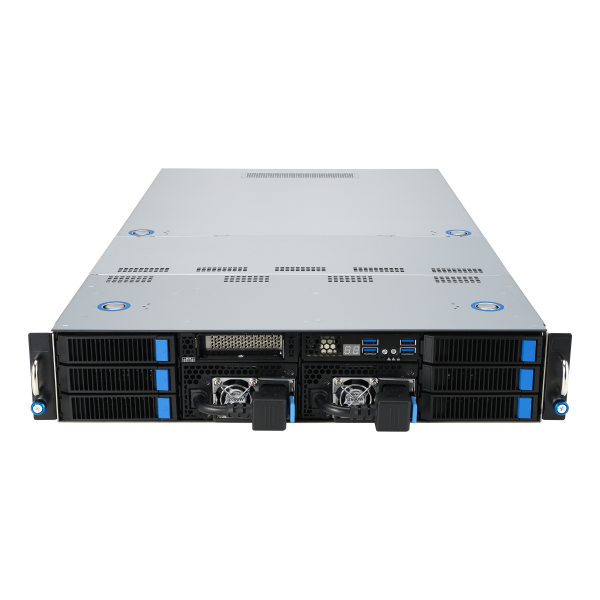

ASUS ESC4000-E11
ASUS ESC4000-E11 - imagine 2
ASUS ESC4000-E11 - imagine 3
ASUS ESC4000-E11 - imagine 4
ASUS ESC4000-E11 - imagine 5
ASUS ESC4000-E11 - imagine 6
ASUS ESC4000-E11 - imagine 7
ASUS ESC4000-E11 - imagine 8
ASUS ESC4000-E11 - imagine 9
, , , , Configureaza acest server →

ASUS ESC4000-E11

Favorite
Compara

2U dual-socket GPU server powered by 5th Gen Intel Xeon Scalable processors that supports four dual-slot GPUs, 16 DIMM, six NVMe, two 2600W Titanium power supplies and ASUS ASMB11-iKVM

Pretul afisat contine TVA (21%).

ESC4000-E11

2U dual-socket GPU server powered by 5th Gen Intel Xeon Scalable processors that supports four dual-slot GPUs, 16 DIMM, six NVMe, two 2600W Titanium power supplies and ASUS ASMB11-iKVM

Key Features

  • Powerful performance: Powered by 5th Gen Intel® Xeon® Scalable processors unleash up to 21%-greater general-purpose performance per watt, significantly improving AI inference and training
  • AI and HPC workloads ready: Up to four dual-slot active or passive GPUs, and NVIDIA NVLink® bridge support to enable performance scaling
  • Power-efficient system design: Independent CPU and GPU airflow tunnels for thermal optimization and support for up to two 2600W Titanium redundant power supplies for uninterrupted operation
  • Scale-up storage and expansion design: A total of six bays in combination of Tri-Mode NVMe/SATA/SAS drives on the front panel and 10 PCIe 5.0 slots for higher bandwidth and system upgrade
  • Flexible networking module design: PCIe 5.0 slot in rear panel for faster connectivity
  • Enhanced IT-infrastructure management: ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Center IT management software and hardware-level Root-of-Trust solution

Specifications

Processor / System Bus
  • 2 x Socket
  • 4th Gen Intel® Xeon® Scalable processors (Up to 350W)
  • 5th Gen Intel® Xeon® Scalable processors (Up to 350W)
Core Logic
  • Intel® C741 Chipset
Memory
  • Total Slots:
  • 16 (8 channels per CPU, 8 DIMM per CPU)
  • Capacity:
  • Maximum up to 4TB per CPU socket
  • Memory Type:
  • 4th: DDR5 4800 MHz RDIMM/3DS RDIMM (1DPC)
  • 5th: DDR5 5600/4800 MHz RDIMM/3DS RDIMM (1DPC)
  • 512GB, 256GB, 128GB Intel® Optane™ persistent memory 300 series
Expansion Slots
  • Rear:
  • 4 x PCIe x16 slots (Gen5 x16 link, FH, FL) for dual-slot GPU cards or
  • 8 x PCIe x16 slots (Gen5 x8 link, FH,FL) for single-slot GPU cards
  • -2 x PCIe x16 slots (Gen5 x16 link, FH, HL)
  • Front:
  • 1 x PCIe x8 slot (Gen4 x8 link, LP, HL)
Storage
  • 2 x 2.5†& 4 x 3.5“ Hot-swap Storage Bays
  • SKU1:
  • 2 x 2.5†SATA/SAS*/NVMe +
  • 2 x 3.5†SATA/SAS*/NVMe + 2 x 3.5†SATA/SAS*
  • SKU2: Build to order
  • 2 x 2.5†SATA/SAS*/NVMe +
  • 4 x 3.5†SATA/SAS*/NVMe (Occupy 1 x PCIe x8 link )
  • *SAS support required a HBA/RAID card.
  • **For SKU1 additional 2 x NVMe support required a RAID card.
  • 1 x M.2 socket (Gen3 x4 link PCIe mode, up to 2280)
Networking
  • 2 x 1 Gigabit LAN ports (Intel I350 Controller)
  • 1 x Management Port
Multi-GPU Support
  • Please find the latest GPU support from https://servers.asus.com/support/gpu
Front I/O Ports
  • 4 x USB 3.2 Gen1 ports

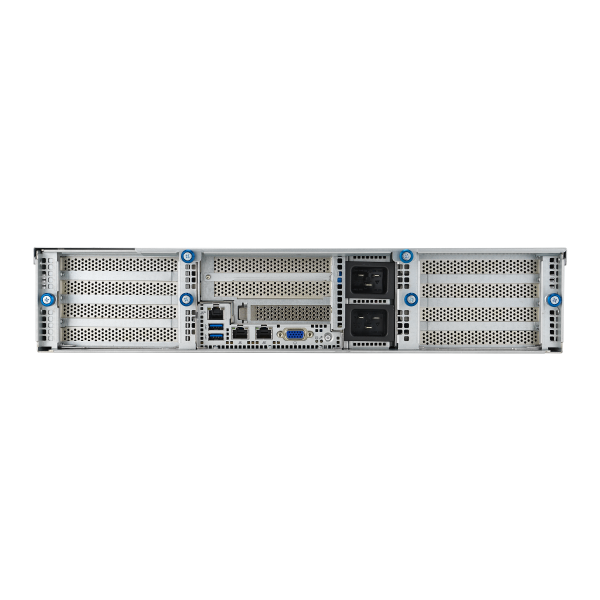

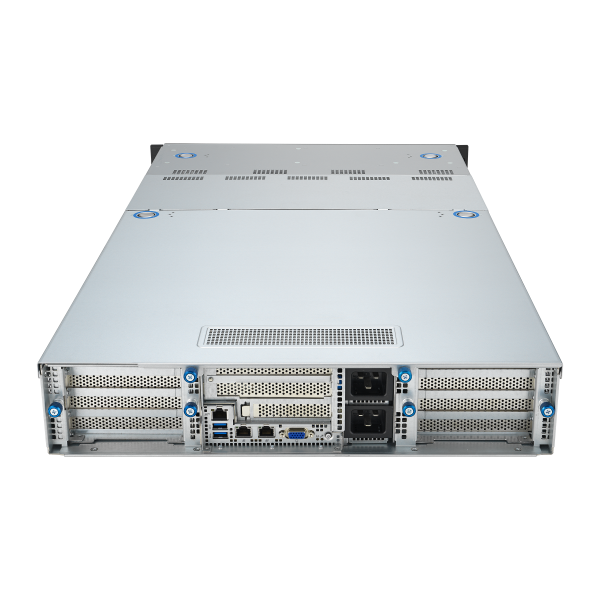

Rear I/O Ports
  • 2 x USB 3.2 Gen1 ports
  • 2 x Gigabit LAN ports (RJ45)
  • 1 x MAnagement port (RJ45)
  • 1 x VGA port
Switch/LED
  • Front :
  • 1 x Power Button/LED
  • 1 x Location Button/LED
  • 1 x Message LED
  • 1 x Q-Code/Port 80 LED
  • 2 x LAN LED
  • Rear :
  • 1 x Power Button/LED
  • 1 x Location LED
  • 1 x Message LED
OS Support
  • Windows Server
  • RedHat® Enterprise Linux
  • SuSE® Linux Enterprise Server
  • CentOS
  • Ubuntu
  • Vmware
  • *Please find the latest OS support from https://servers.asus.com/support/os​
Management Solution
  • ASUS Control Center
  • ASUS ASMB11-iKVM (on-board)
Regulatory Compliance
  • BSMI, CE, RCM, FCC(Class A)
Dimensions
  • 800mm x 439.5mm x 88.9mm (2U)
  • 31.50″ x 17.30″ x 3.50″
Weight
  • Net Weight: 26 Kg
  • Gross Weight: 36.8 Kg
Power Supply
  • 1+1 Redundant 2600W 80 PLUS Titanium CRPS-R Power Supply
  • *2600W PSU supports 1+1 redundant with GPU card power consumption ≦ 300W
Environment
  • Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃
  • Non operation humidity: 20% ~ 90% ( Non condensing)
FRU Part List
  • 90SB0AZ0-M0XBN1   MB (Z13PG-D16 V2)
  • 90SC0LJ0-M1XBN1   Rear PCIe Riser (RF16LX2-C2PG)
  • 90SC0P90-M0XBN1   GPU Left Riser (RF16LX4-D-C2PF V2)
  • 90SC0PA0-M0XBN1   GPU Right Riser (RF16RX4-D-C2PF V2)
  • 90SC0PB0-M0XBN1   Front PCIe Riser (RF8R-C2PF V2)
  • 90SC0PE0-M0XBN1   SSD BP (BP3LE32G-35-C2PG)
  • 90SK0000-MPNBN0    ESC4000 SERIES GPU POWER CABLE KIT/12+4P TO 6P*2/L=220MM (4IN1)//GPU POWER CABLE FOR H100/H100 NVL/ ADA series /L40/L40S
  • 90SKS000-M2LAN0   6P TO 6+2P GPU CABLE KIT; 220MM
  • 90SKS000-M78AN0   6P TO 6+2P GPU CABLE KIT; 350MM
  • 90SKS000-MJXAN0   9540 RAID CABLE KIT/SUPPORT NVME/SATA/SAS
  • 90SKS000-M7DAN0   PIKE CARD CABLE KIT
  • 90SKS000-M4EAN0   CPU CARRIER KIT
  • 90SKS000-M41AN0   6056 FAN
  • 90SK0000-MWEAN0   8038 FAN/Delta
  • 90SKH000-MPRBN0   3.5″ HDD TRAY TOOLLESS V3
  • 90SKS000-M4MAN0   ESC4000-E11/INTEL EGS 2U STD
  • 90SKP000-M4CAN0   2600W TITANIUM RPSU-R//GOSPOWER/G1302-2600WRA (185MM)
  • 90SKR000-M07AN0   1.5U FULL EXTENSION SLIDE RAIL KIT
SKU: esc4000-e11 Categorii: , , , ,
