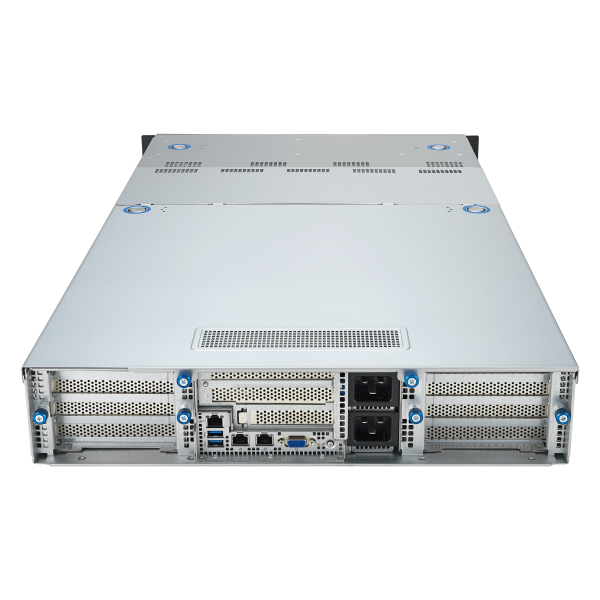

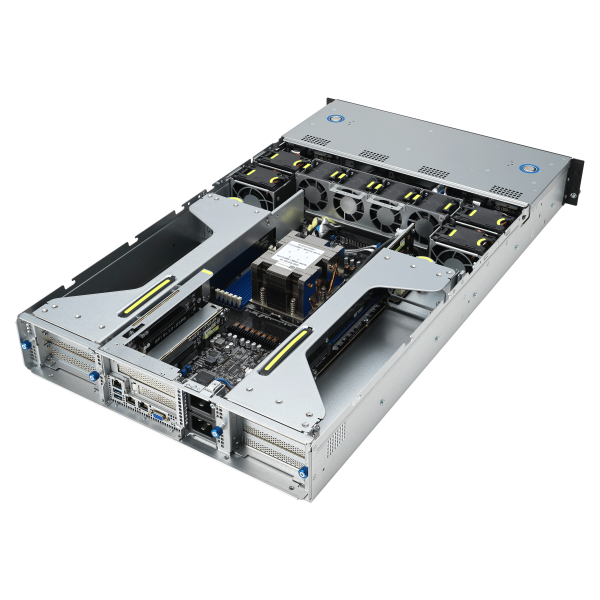

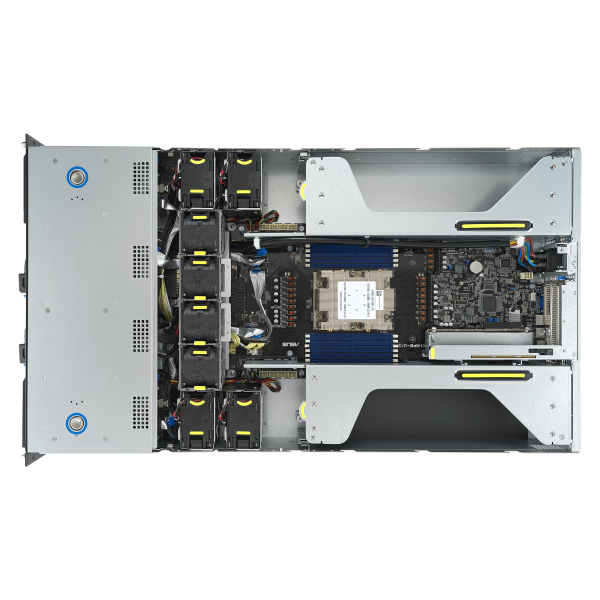

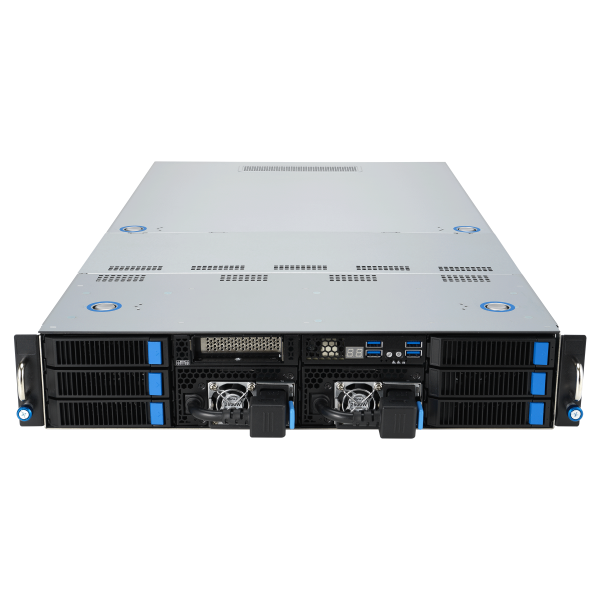

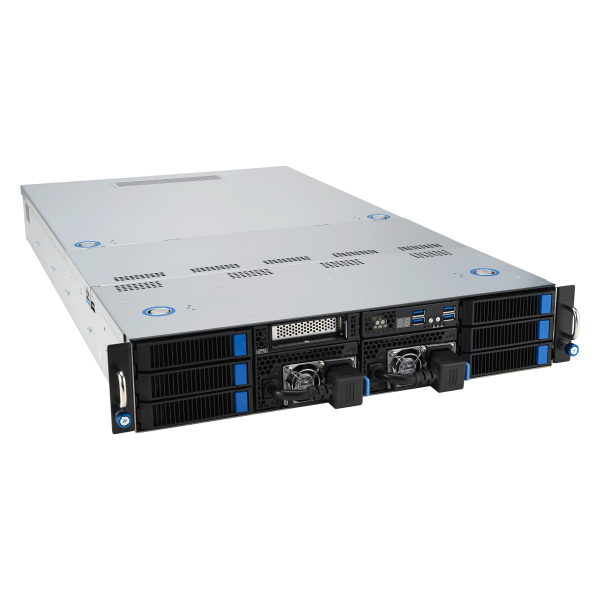

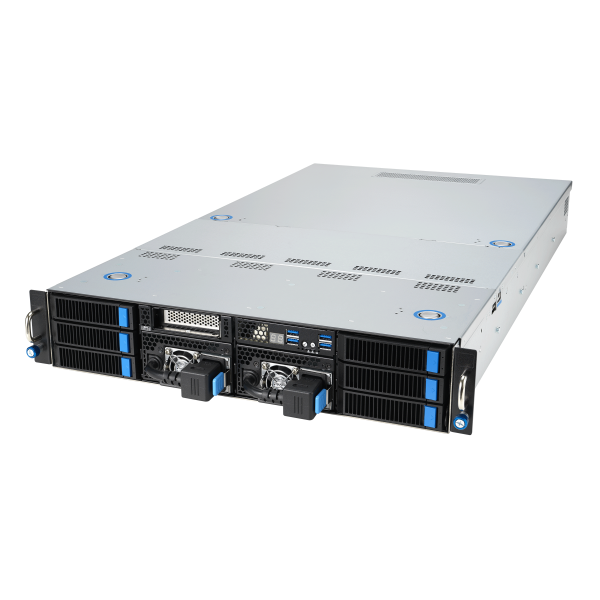

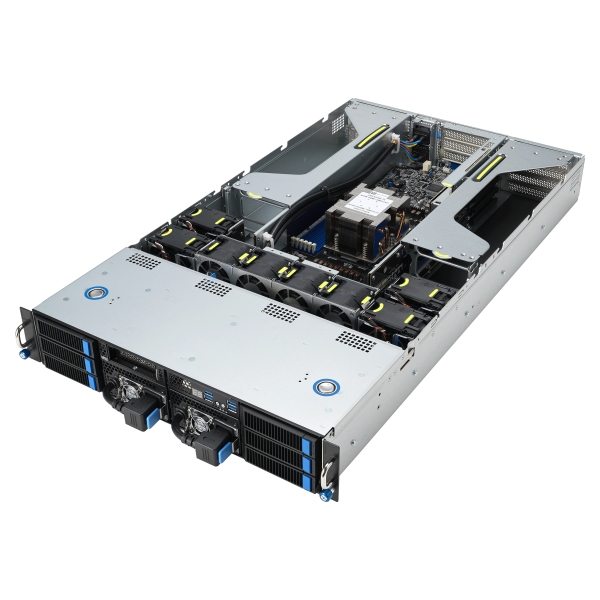

ASUS ESC4000A-E12

Favorite

Compara

AMD EPYC™ 9004/9005 single-processor 2U GPU server that supports four dual-slot GPUs, up to 12 DIMM, 8 PCIe 5.0 slots, six NVMe, OCP 3.0 and ASMB11-iKVM *Turin BIOS can be flashed only if your Server build model is from May 2025, if not sure please contact ASUS support team for further advice.

Pretul afisat contine TVA (21%).

ESC4000A-E12

Key Features

Powerful performance: Powered by AMD EPYC 9004/9005 processors with 128 Zen 4c cores, 12-channel, up to 4800 MHz DDR5 and support for a maximum TDP of up to 400 watts per socket
AI and HPC workloads ready: Up to four dual-slot active or passive GPUs, NVIDIA NVLink® bridge, and NVIDIA Bluefield DPU support to enable performance scaling
Power-efficient system design: Independent CPU and GPU airflow tunnels for thermal optimization and support for up to two 2600W Titanium redundant power supplies for uninterrupted operation
Scale-up storage and expansion design: A total of six bays in combination of Tri-Mode NVMe/SATA/SAS drives on the front panel and eight PCIe 5.0 slots for higher bandwidth and system upgrade
Flexible networking module design: Optional OCP 3.0 module with PCIe 5.0 slot in rear panel for faster connectivity
Enhanced IT-infrastructure management: ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Center IT management software and hardware-level Root-of-Trust solution

Specifications

Processor / System Bus	1 x Socket SP5 (LGA 6096) AMD EPYC™ 9004 / 9005 series (up to 400W) 4th Generation AMD EPYC Processorswith AMD 3D V-Cache technology
Memory	Total Slots : 12 (12-channel) Capacity : Maximum up to 3TB RDIMM Memory Type : DDR5 4800/4400 RDIMM/RDIMM 3DS Memory Size : 64GB, 32GB, 16GB RDIMM 256GB, 128GB  3DS RDIMM * Refer to support page for more information
Expansion Slots	Rear: -4 x PCIe x16 slots (Gen5 x16 link, FH, FL) for dual-slot GPU cards or 8 x PCIe x16 slots (Gen5 x8 link, FH,FL) for single-slot GPU cards -1 x PCIe x16 slots (Gen5 x16 link, FH, HL) -1 x PCIe x16 slot (Gen5 x16/x8 link, FH, HL) or OCP socket option or M.2 riser module -1 x PCIe x8 slot (Gen5 x0/x8 link, LP, HL) Front: 1 x PCIe x8 slot (Gen5 x8 link, LP, HL) Only for SKU1
Storage	Storage Controller : CPU Integrated Optional kits: ASUS PIKE II 3008 8-port SAS 12Gb/s HBA card ASUS PIKE II 3108 8-port SAS HW 12Gb/s RAID card Broadcom MegaRAID 9540-8i Broadcom MegaRAID 9560-16i
Networking	2 x GbE LAN ports (Intel I350 Controller) 1 x Management Port
Multi-GPU Support	Please find the latest GPU support from https://servers.asus.com/support/gpu

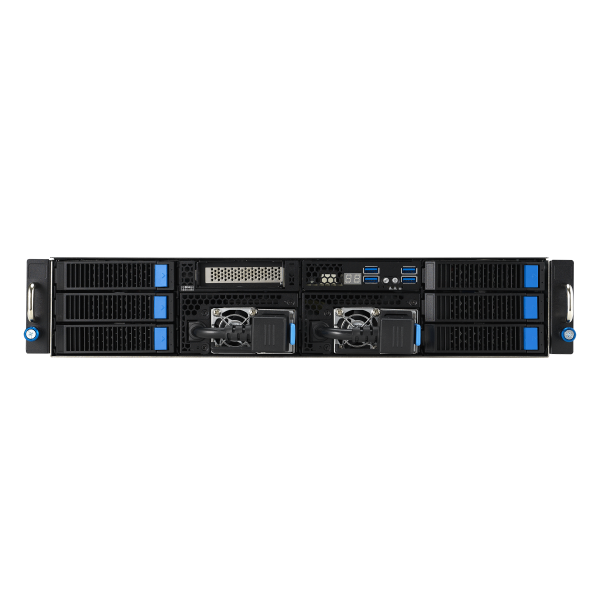

Front I/O Ports	1 x Q-code/port-80 LED 4 x USB 3.2 Gen1 ports

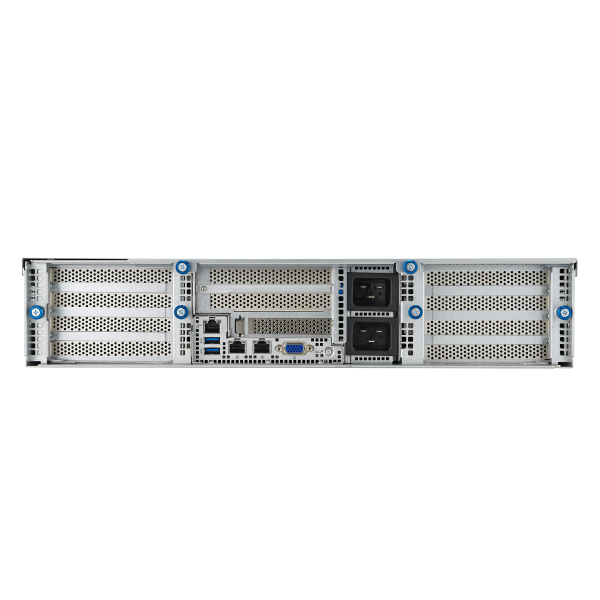

Rear I/O Ports	2 x USB 3.2 Gen1 ports 2 x Gigabit LAN ports  1 x MAnagement port  1 x VGA port
Switch/LED	Front : 1 x Power Button/LED 1 x Location Button/LED 1 x Message LED 1 x Q-Code/Port 80 LED 2 x LAN LED Rear : 1 x Power Button/LED 1 x Location LED 1 x Message LED
OS Support	Please find the latest OS support from https://servers.asus.com/support/os
Management Solution	ASUS Control Center ASUS ASMB11-iKVM (on-board)
Regulatory Compliance	BSMI, CE, RCM, FCC(Class A)
Dimensions	800mm x 439.5mm x 88.9mm (2U) 31.50″ x 17.30″ x 3.50″
Weight	Net Weight: 24 Kg Gross Weight: 34.8 Kg
Power Supply	1+1 Redundant 2600W 80 PLUS Titanium CRPS-R Power Supply *2600W PSU supports 1+1 redundant with GPU card power consumption ≦ 300W
Environment	Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing)
FRU Part List	90SK0000-MPNBN0    ESC4000 SERIES GPU POWER CABLE KIT/12+4P TO 6P*2/L=220MM (4IN1)//GPU POWER CABLE FOR H100/H100 NVL/ ADA series /L40/L40S 90SKS000-M2LAN0   6P TO 6+2P GPU CABLE KIT; 220MM 90SKS000-M78AN0   6P TO 6+2P GPU CABLE KIT; 350MM 90SKS000-MJXAN0   9540 RAID CABLE KIT/SUPPORT NVME/SATA/SAS 90SKS000-M2JAN0   9560 RAID CABLE KIT/SUPPORT NVME/SATA/SAS 90SKS000-M7DAN0   PIKE CARD CABLE KIT 90SKS000-M4LAN0   AMD SP5 2U STD HS 90SKS000-M23AN0   R2P-B CABLE ARM 90SKS000-M41AN0   6056 FAN 90SK0000-MWEAN0   8038 FAN/Delta 90SKH000-MPRBN0   3.5″ HDD TRAY TOOLLESS V3 90SKS000-M4MAN0   ESC4000-E11/INTEL EGS 2U STD 90SKP000-M4CAN0   2600W TITANIUM RPSU-R//GOSPOWER/G1302-2600WRA (185MM) 90SKR000-M07AN0   1.5U FULL EXTENSION SLIDE RAIL KIT 90SKS000-M4CAN0   ESC4000A-E12//OCP RISER MODULE 90SKS000-M4DAN0   ESC4000A-E12//M.2 RISER MODULE

SKU: esc4000a-e12 Categorii: ASUS, BRAND, GPU Servers, Server&Storage, Servers

Processor / System Bus	1 x Socket SP5 (LGA 6096) AMD EPYC™ 9004 / 9005 series (up to 400W) 4th Generation AMD EPYC Processorswith AMD 3D V-Cache technology
Memory	Total Slots : 12 (12-channel) Capacity : Maximum up to 3TB RDIMM Memory Type : DDR5 4800/4400 RDIMM/RDIMM 3DS Memory Size : 64GB, 32GB, 16GB RDIMM 256GB, 128GB  3DS RDIMM * Refer to support page for more information
Expansion Slots	Rear: -4 x PCIe x16 slots (Gen5 x16 link, FH, FL) for dual-slot GPU cards or 8 x PCIe x16 slots (Gen5 x8 link, FH,FL) for single-slot GPU cards -1 x PCIe x16 slots (Gen5 x16 link, FH, HL) -1 x PCIe x16 slot (Gen5 x16/x8 link, FH, HL) or OCP socket option or M.2 riser module -1 x PCIe x8 slot (Gen5 x0/x8 link, LP, HL) Front: 1 x PCIe x8 slot (Gen5 x8 link, LP, HL) Only for SKU1
Storage	Storage Controller : CPU Integrated Optional kits: ASUS PIKE II 3008 8-port SAS 12Gb/s HBA card ASUS PIKE II 3108 8-port SAS HW 12Gb/s RAID card Broadcom MegaRAID 9540-8i Broadcom MegaRAID 9560-16i
Networking	2 x GbE LAN ports (Intel I350 Controller) 1 x Management Port
Multi-GPU Support	Please find the latest GPU support from https://servers.asus.com/support/gpu
Front I/O Ports	1 x Q-code/port-80 LED 4 x USB 3.2 Gen1 ports
Rear I/O Ports	2 x USB 3.2 Gen1 ports 2 x Gigabit LAN ports  1 x MAnagement port  1 x VGA port
Switch/LED	Front : 1 x Power Button/LED 1 x Location Button/LED 1 x Message LED 1 x Q-Code/Port 80 LED 2 x LAN LED Rear : 1 x Power Button/LED 1 x Location LED 1 x Message LED
OS Support	Please find the latest OS support from https://servers.asus.com/support/os
Management Solution	ASUS Control Center ASUS ASMB11-iKVM (on-board)
Regulatory Compliance	BSMI, CE, RCM, FCC(Class A)
Dimensions	800mm x 439.5mm x 88.9mm (2U) 31.50″ x 17.30″ x 3.50″
Weight	Net Weight: 24 Kg Gross Weight: 34.8 Kg
Power Supply	1+1 Redundant 2600W 80 PLUS Titanium CRPS-R Power Supply *2600W PSU supports 1+1 redundant with GPU card power consumption ≦ 300W
Environment	Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing)
FRU Part List	90SK0000-MPNBN0    ESC4000 SERIES GPU POWER CABLE KIT/12+4P TO 6P*2/L=220MM (4IN1)//GPU POWER CABLE FOR H100/H100 NVL/ ADA series /L40/L40S 90SKS000-M2LAN0   6P TO 6+2P GPU CABLE KIT; 220MM 90SKS000-M78AN0   6P TO 6+2P GPU CABLE KIT; 350MM 90SKS000-MJXAN0   9540 RAID CABLE KIT/SUPPORT NVME/SATA/SAS 90SKS000-M2JAN0   9560 RAID CABLE KIT/SUPPORT NVME/SATA/SAS 90SKS000-M7DAN0   PIKE CARD CABLE KIT 90SKS000-M4LAN0   AMD SP5 2U STD HS 90SKS000-M23AN0   R2P-B CABLE ARM 90SKS000-M41AN0   6056 FAN 90SK0000-MWEAN0   8038 FAN/Delta 90SKH000-MPRBN0   3.5″ HDD TRAY TOOLLESS V3 90SKS000-M4MAN0   ESC4000-E11/INTEL EGS 2U STD 90SKP000-M4CAN0   2600W TITANIUM RPSU-R//GOSPOWER/G1302-2600WRA (185MM) 90SKR000-M07AN0   1.5U FULL EXTENSION SLIDE RAIL KIT 90SKS000-M4CAN0   ESC4000A-E12//OCP RISER MODULE 90SKS000-M4DAN0   ESC4000A-E12//M.2 RISER MODULE
