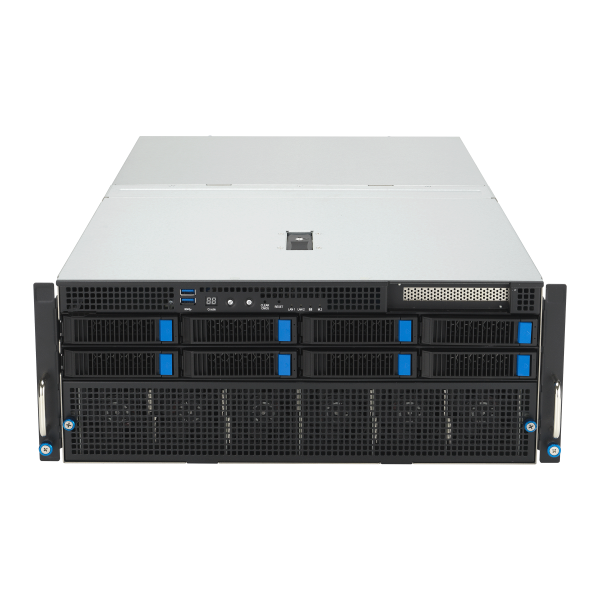

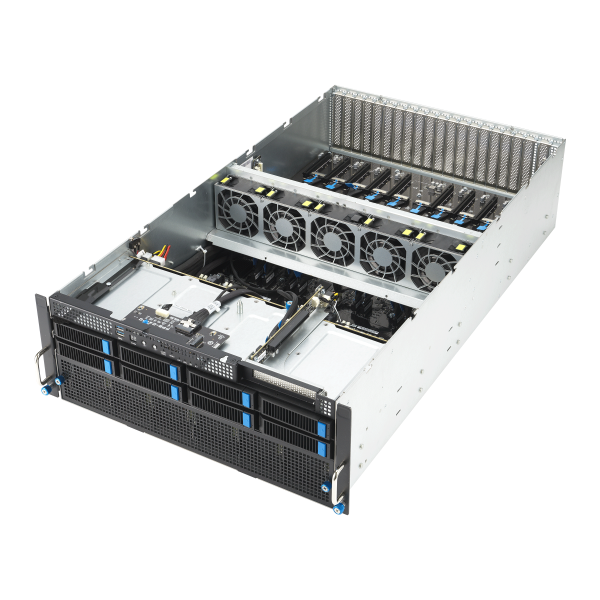

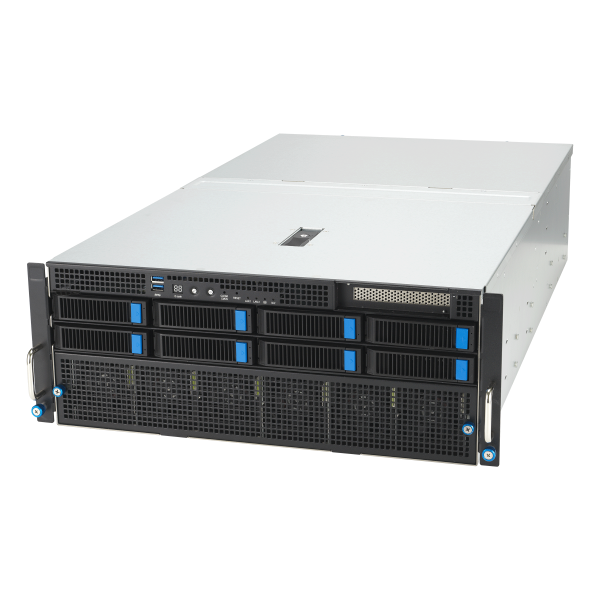

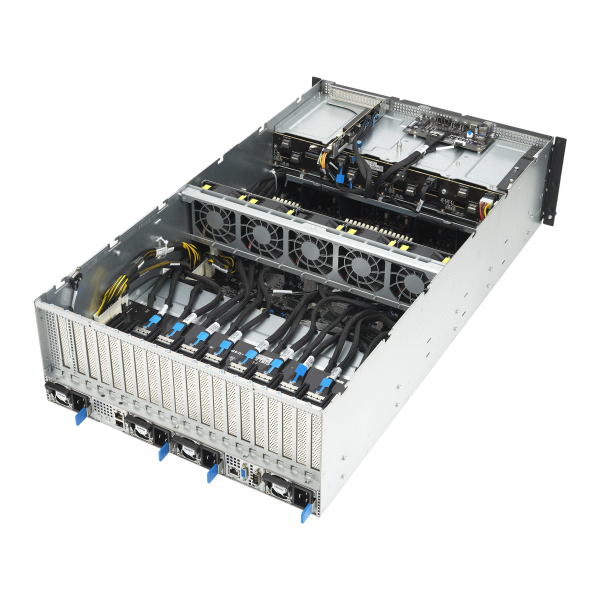

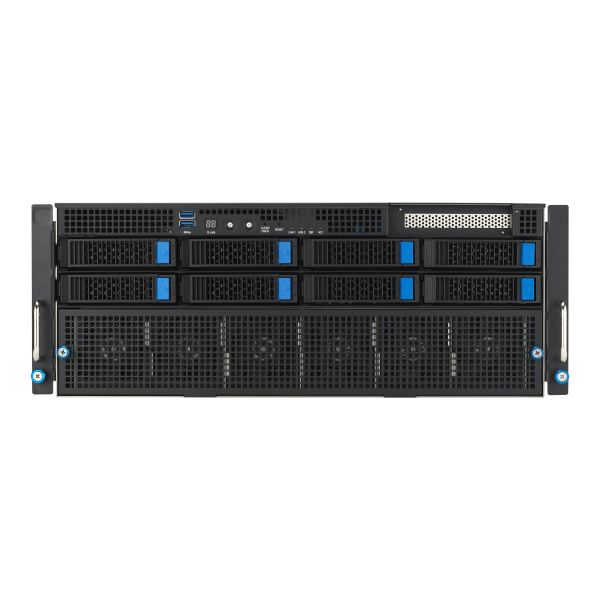

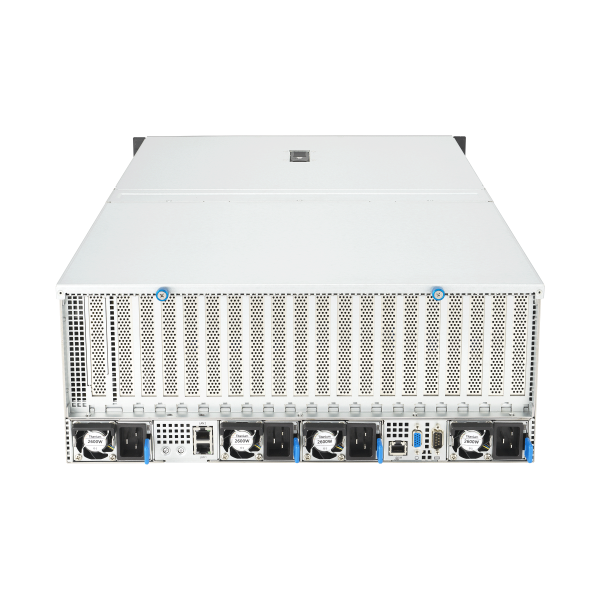

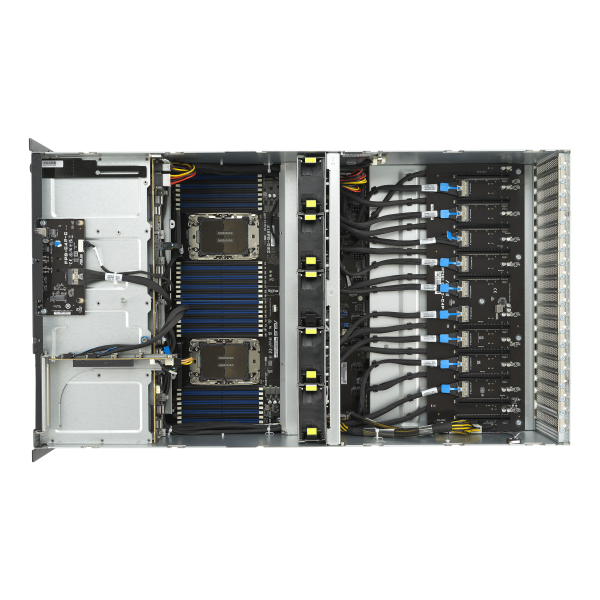

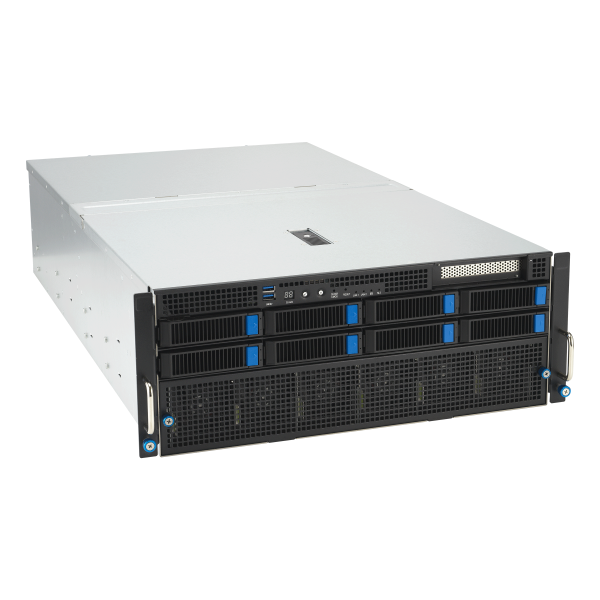

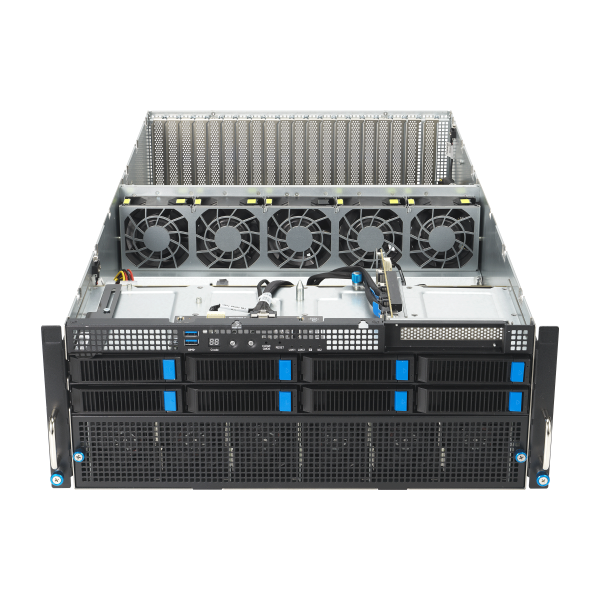

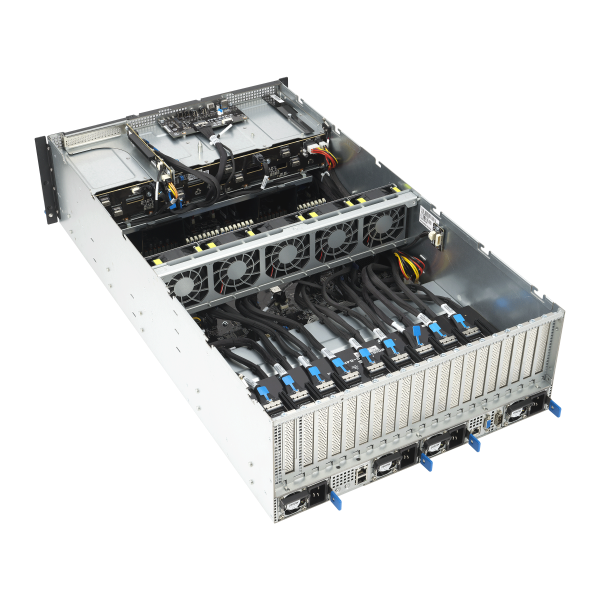

ASUS ESC8000-E11
ASUS ESC8000-E11 - imagine 2
ASUS ESC8000-E11 - imagine 3
ASUS ESC8000-E11 - imagine 4
ASUS ESC8000-E11 - imagine 5
ASUS ESC8000-E11 - imagine 6
ASUS ESC8000-E11 - imagine 7
ASUS ESC8000-E11 - imagine 8
ASUS ESC8000-E11 - imagine 9
ASUS ESC8000-E11 - imagine 10
, , , , Configureaza acest server →

ASUS ESC8000-E11

Favorite
Compara

4U dual-socket GPU server powered by 5th Gen Intel Xeon Scalable processors that supports eight dual-slot GPUs, 32 DIMM, 11 PCIe 5.0, dual NVMe, four 3000W Titanium power supplies, OCP 3.0, and ASUS ASMB11-iKVM

Pretul afisat contine TVA (21%).

ESC8000-E11

4U dual-socket GPU server powered by 5th Gen Intel Xeon Scalable processors that supports eight dual-slot GPUs, 32 DIMM, 11 PCIe 5.0, dual NVMe, four 3000W Titanium power supplies, OCP 3.0, and ASUS ASMB11-iKVM

Key Features

  • Powerful performance: Powered by 5th Gen Intel® Xeon® Scalable processors unleash up to 21%-greater general-purpose performance per watt, significantly improving AI inference and training
  • AI and HPC workloads ready: Up to eight dual-slot active or passive GPUs, NVIDIA NVLink® bridge, and NVIDIA Bluefield DPU support to enable performance scaling
  • Power-efficient system design: Independent CPU and GPU airflow tunnels for thermal optimization and support for up to four 3000W Titanium redundant power supplies for uninterrupted operation
  • Cooling solutions: Enhanced air cooling based on CPU TDP for versatile workloads
  • Scale-up storage and expansion design: A total of eight bays in combination of Tri-Mode NVMe/SATA/SAS drives on the front panel and 11 PCIe 5.0 slots for higher bandwidth and system upgrade
  • Flexible networking module design: Optional OCP 3.0 module with PCIe 5.0 slot in rear panel for faster connectivity
  • Enhanced IT-infrastructure management: ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Center IT management software and hardware-level Root-of-Trust solution
  • NVIDIA-Certified Systems™ – OVX Servers: Optimized for NVIDIA OVX™ L40S Server with 8 GPUs configuration

Specifications

Processor / System Bus
  • 2 x Socket
  • 4th Intel® Xeon® Processor Scalable Family (Up to 350W)
  • 5th Intel® Xeon® Processor Scalable Family (Up to 350W)
Memory
  • Total Slots:
  • 32 (8 channel per CPU, 16 DIMM per CPU)
  • Capacity:
  • Maximum up to 4TB per CPU socket
  • Memory Type:
  • 4th: DDR5 4400 RDIMM/ 3DS RDIMM (2DPC)
  • 5th: DDR5 4400 RDIMM/ 3DS RDIMM (2DPC)
  • Memory Size:
  • 64GB, 32GB, 16GB RDIMM
  • 256GB, 128GB RDIMM 3DS
  • * Refer to support page for more information
Expansion Slots
  • 8 x PCIe slots (Gen5 x16 link, FH,FL) for dual-slot GPU cards
  • SKU-1 (3PCIe)
  • Front: 1 x PCIe slot (Gen5 x8 link ,LP,HL) for HBA/RAID cards
  • Rear: 1 x PCIe slot (Gen5 x16 link) for NIC
  •           1 x PCIe slot (Gen5 x8 link) for NIC
  • SKU-2 (2PCIe + 2NVMe)
  • Front: 1 x PCIe slot (Gen5 x8 link ,LP,HL) for HBA/RAID cards
  • Rear:  1 x PCIe slot (Gen5 x16 link) for NIC
  • SKU-3 (1PCIe + 1OCP3.0 + 2NVMe)(optional)
  • Front: 1 x PCIe slot (Gen5 x8 link ,LP,HL) for HBA/RAID cards
  • Rear:  1 x OCP3.0 NIC socket (Gen5 x16 link)
Storage
  • Optional Kits:
  • -Broadcom MegaRAID 9560-16i
  • -Broadcom MegaRAID 9540-8i
  • -ASUS PIKE II 3008 8-port HBA Card
  • -ASUS PIKE II 3108 8-port HW RAID Card
Networking
  • 2 x 10GbE LAN ports (RJ45, X710-AT2)
  • or 2 x Gigabit LAN ports (RJ45, I350-AM2)
  • 1 x Management Port
Multi-GPU Support
  • Please find the latest GPU support from https://servers.asus.com/support/gpu
Front I/O Ports
  • 2 x USB 3.2 Gen1 ports
  • 1 x VGA port
Rear I/O Ports
  • 1 x COM port
  • 2 x 10GbE/1GbE LAN ports (RJ45, build for order)
  • 1 x Management port (RJ45)
Switch/LED
  • Front :
  • 1 x Power Button w/LED
  • 1 x Location Button w/LED
  • 1 x Message LED
  • 1 x Q-Code/Port 80 LED
  • 1 x Clear CMOS Switch
  • 1 x Reset Switch
  • 1 x M.2 LED
  • Rear :
  • 1 x Power Button w/LED
  • 1 x Location Button w/LED
OS Support
  • Please find the latest OS support from https://servers.asus.com/support/os
Management Solution
  • ASUS Control Center Enterprise (in-band)
  • ASMB11-iKVM for (out-of-band/BMC AST2600)
Regulatory Compliance
  • BSMI, CB, CE, FCC(Class A), RCM
Dimensions
  • 800mm x 440mm x 174.5 mm
Form Factor
  • 4U
Weight
  • Net Weight: 27 Kg.
  • Gross Weight: 52 Kg.
Power Supply
  • 2+2 Redundant 2600W/3000W 80 PLUS Titanium Power Supply
  • 2+1 Redundant 3000W 80 PLUS Titanium Power Supply
  • Rating: 220-240 Vac, 15.5A(x4), 50-60 Hz
Environment
  • Operation temperature: 10℃ ~ 35℃
  • Non operation temperature: -40℃ ~ 70℃
  • Non operation humidity: 20% ~ 90% ( Non condensing)
FRU Part List
  • Z13PG-D32:90SB0B50-M1XBN6
  • BP8LE-35-C4P-C:90SC0KL0-M0XBN2
  • FPB-C4P-C:90SC0KN0-M0XBN1
  • RG16L-OCP-C4P-C:90SC0KP0-M0XBN2
  • CB-1G-C4P-C:90SC0KR0-M0XBN2
  • CB-10G-C4P-C:90SC0KS0-M0XBN1
  • FAN-C4P-C:90SC0LW0-M0XBN2
  • PCIE16X10-C4P-C:90SC0M60-M0XBN2
  • GPU POWER CABLE:90SKS000-M28BN0
  • RAID CABLE KIT:90SKS000-M2PAN0
  • PIKE RAID CABLE KIT:90SKS000-M2QAN0
  • GPU CABLE KIT:90SKS000-M2RAN0
  • SKU1 MCIO CABLE KIT:90SKS000-M5FAN0
  • SKU2 MCIO CABLE KIT:90SKS000-M5GAN0
  • C4P-B CABLE ARM:90SK0000-MNQAN0
  • CPU CARRIER KIT:90SKS000-M4EAN0
  • 6056 FAN:90SKS000-M45AN0
  • 8038 FAN:90SKS000-M4GAN0
  • FRONT BEZEL:90SK0000-MPTBN0
  • HDD TRAY:90SKH000-MPRBN0
  • HEATSINK: 90SKS000-M4JAN0
  • 3000W PSU:90SKP000-M36AN0
  • 2600W PSU:90SKP000-M46AN0​
  • RAIL KIT: 90SK0000-MM9AN0
