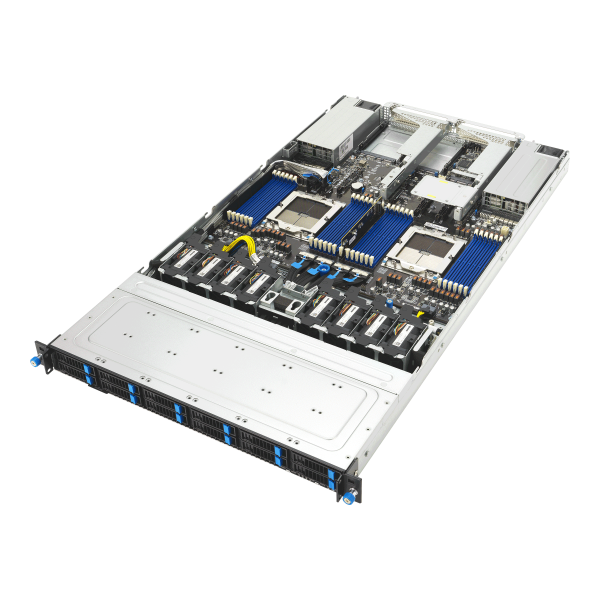

ASUS RS700A-E13-RS12U

Favorite
Compara

AMD EPYC™ 9005 dual-processor 1U server that supports up to 24 DIMM, twelve NVMe/SATA/SAS support storage, two PCIe® 5.0 slots and two OCP 3.0, and offers supports for a maximum TDP of up to 400W watts.

Pretul afisat contine TVA (21%).

RS700A-E13-RS12U

AMD EPYC™ 9005 dual-processor 1U server that supports up to 24 DIMM, twelve NVMe/SATA/SAS support storage, two PCIe® 5.0 slots and two OCP 3.0, and offers supports for a maximum TDP of up to 400W watts.

Key Features

  • Performance computing for multi-tasking: Dual AMD EPYC 9005 processors with 192 Zen 5 cores, 400W TDP, and 12-channel DDR5 memory up to 6000MHz deliver exceptional performance for demanding workloads.
  • Scalable storage and expansion: Modular DC-MHS architecture supports up to four front-mounted NVMe/SATA/SAS support drives and four PCIe 5.0 slots for seamless storage and system expansion.
  • Flexible networking: Four PCIe 5.0 expansion slots (two OCP 3.0, two PCIe) for scalable, high-speed networking and efficient data transfer.
  • Advanced memory support: Supports up to 24 DDR5 RDIMMs, running at up to 6000MHz (1DPC), ensuring high bandwidth and energy efficiency across a broad spectrum of applications.
  • Tool-less, easy-maintenance design: Features tool-less access, including a top cover handle and optimized DC-SCM/OCP3.0 card for downtime decreased and easy maintenance.
  • Enhanced security: PFR FPGA as Root-of-Trust solution with TPM 2.0 for hardware security and regular firmware updates to address vulnerabilities.

Specifications

Processor / System Bus
  • 2 x Socket SP5 (LGA 6096P)
  • AMD EPYC™ 9005 processors (Up to TDP 400W)
  • *TDP support by configuration.
Generation
  • E13
Memory
  • Total Slots :
  • 24 (12-channel per CPU, 1 DIMM per CPU)
  • Capacity :
  • Total Maximum up to 3072GB
  • Memory Type :
  • DDR5 6400/5600 RDIMM/ 3DS RDIMM
  • Memory Size :
  • 128GB, 96GB, 64GB, 32GB RDIMM
  • 128GB, 96GB, 64GB, 32GB 3DS RDIMM
  • * Refer to www.asus.com/support for more information
Expansion Slots
  • Total 4 expansion slots
  • 2 x PCIE Gen5 x16 (FHHL)
  • 2 x OCP3.0 Gen5 x16 (SFF)

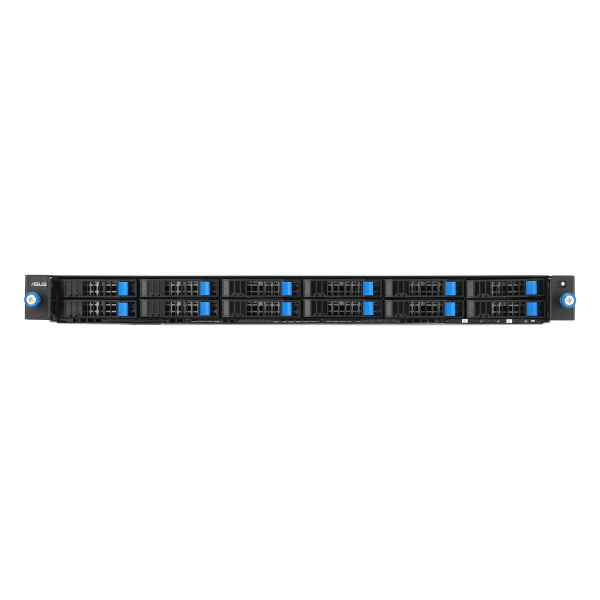

Drive Bays
  • 12 x 2.5″ hot-swap drive bays
  • -Config 1: 12NVMe
  • -Config 2: 4SATA/SAS* + 8NVME/SATA/SAS*
  • *HBA/ RAID card is required to support SAS hard drives
System Fan
  • 8
Networking
  • 1 x Management Port
Graphic
  • Aspeed AST2600 64MB

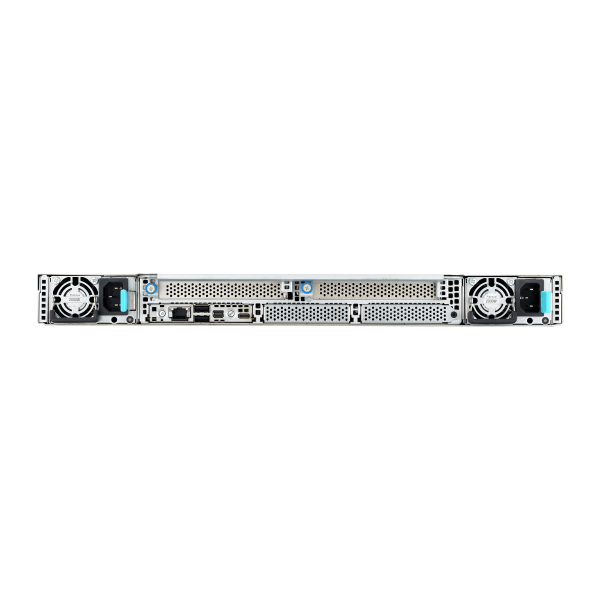

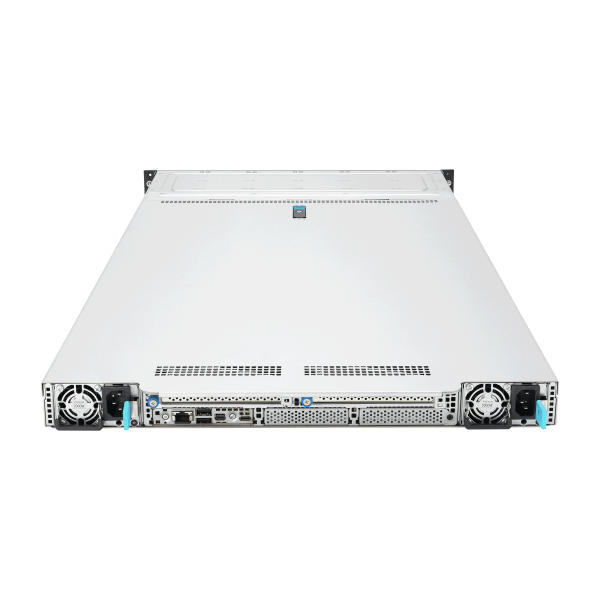

Rear I/O Ports
  • 2 x USB 3.2 Gen1 ports
  • 1 x Mini-DP port
  • 1 x RJ-45 Management LAN port
  • 1 x Debug port
Switch/LED
  • Front Switch/LED:
  • 1 x Power Switch w/ LED
  • 1 x Reset Switch
  • 1 x Location Switch w/ LED
  • 1 x HDD Access LED
  • 1 x Message LED
  • Rear Switch/LED:
  • 1 x Power Switch w/ LED
  • 1 x Location Switch w/LED
  • 1 x Message LED
OS Support
  • Please find the latest OS support from https://servers.asus.com/support/os
Management Solution
  • On-Board ASMB12-iKVM for KVM-over-IP
  • ASUS Control Center Enterprise (Classic C)(Optional)
Regulatory Compliance
  • BSMI, CE, CB, RCM, FCC(Class A), ISED
Dimensions
  • 821.7(L) x 483(W) x 43.2(H) mm
  • 32.35(L) x 19(W) x 1.7(H) inch
Form Factor
  • 1U
Weight
  • Net Weight : 13.81KG
  • Gross Weight : 16.71KG
Power Supply
  • 1+1 Redundant 2000W 80 PLUS Titanium/Platinum PSU
  • Rating: 100-127V~/220-240V~, 12A/10A (x2), 50/60Hz
Environment
  • Operation temperature: 10℃ ~ 35℃
  • Non operation temperature: -40℃ ~ 60℃
  • Non operation humidity: 20% ~ 90% (Non condensing)
Optional Items
  • Security:
  • Dual BMC Module (default)
  • TPM Module (MUST bundle with ASUS server while placing order if required.)
  • Accessory:
  • 1U Front Bezel
  • 1U Height Full Extension Ball bearing Type Rail Kit
  • Cable arm (Please consult sales if required.)
Note
  • *SAS support only from SAS HBA/RAID Card
CPU Heatsink/ Cooler
  • 2 x 1U EVAC Heatsink
FRU Part List
  • Motherboard: 90SB0D10-M1XBN0
  • Front Panel Board: 90SC0D70-M1XBN1
  • Backplane: 90SC0TA0-M0XBN1
  • Riser Card: 90SC0SP0-M0XBN1
  • DC-SCM Board: 90SC0SI0-M2XBN1
  • NVMe Cable (BAY1-2): 90SKS000-MPSAN0
  • NVMe Cable (BAY3-4): 90SKS000-MPRAN0
  • NVMe Cable (BAY5-6): 90SKS000-MPIAN0
  • NVMe Cable (BAY7-8 OR BAY9-10): 90SKS000-MPGAN0
  • NVMe Cable (BAY11-12): 90SKS000-MPQAN0
  • SATA/SAS Cable (BAY1-8): 90SKS000-MPTAN0
  • SATA/SAS Cable (BAY9-12): 90SKS000-MPUAN0
  • 2.5″ NARROW HDD Tray:90SKH000-MNGBN0
  • 1U CPU EVAC: 90SKS000-MQ0AN0
  • PSU CRPS 2000W TITANIUM: 90SKS000-MJVAN0
  • 1U Full Extension Slide Rail: 90SKR000-M0AAN0
  • R2P-B Cable Arm: 90SKS000-M23AN0
SKU: rs700a-e13-rs12u Categorii: , , , ,
