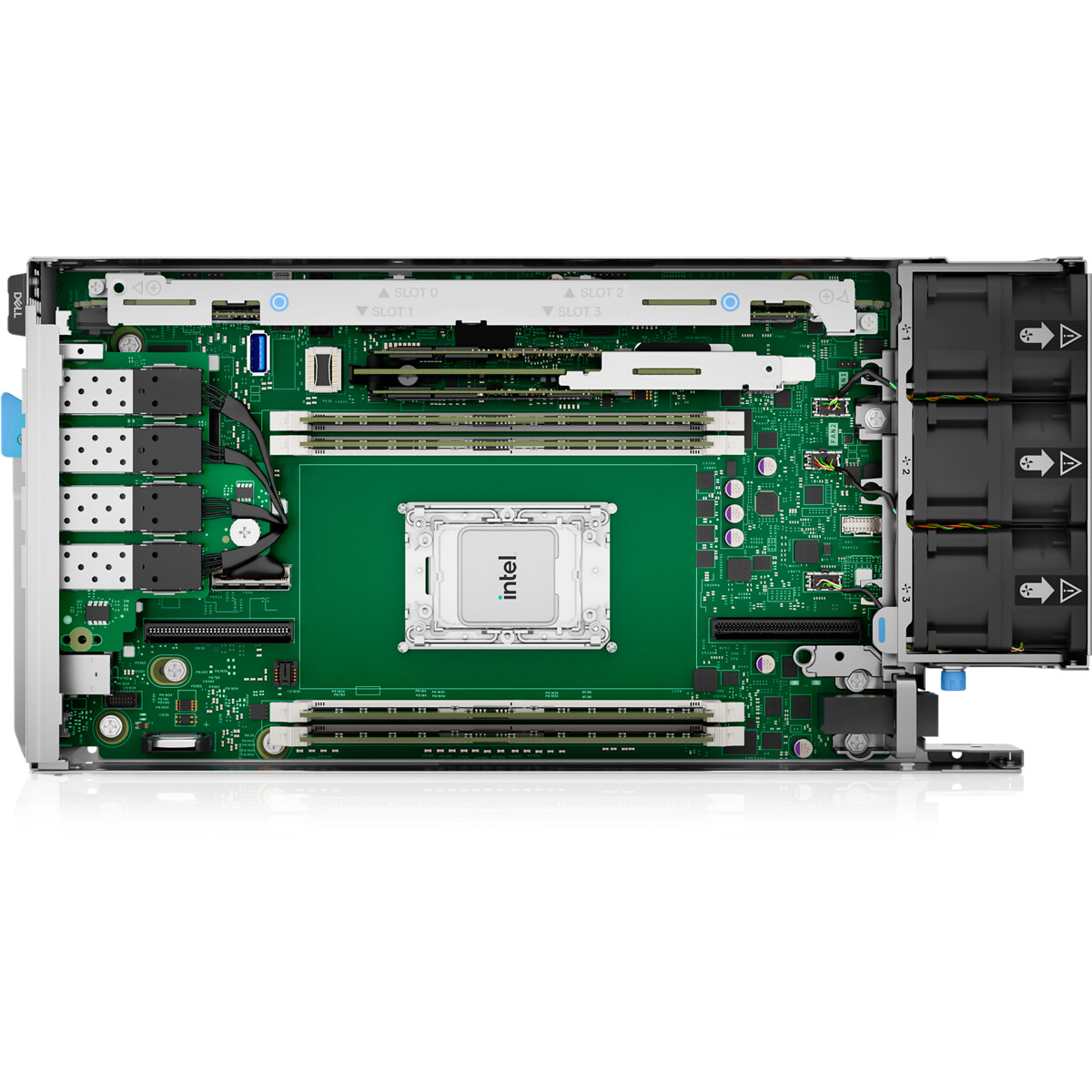

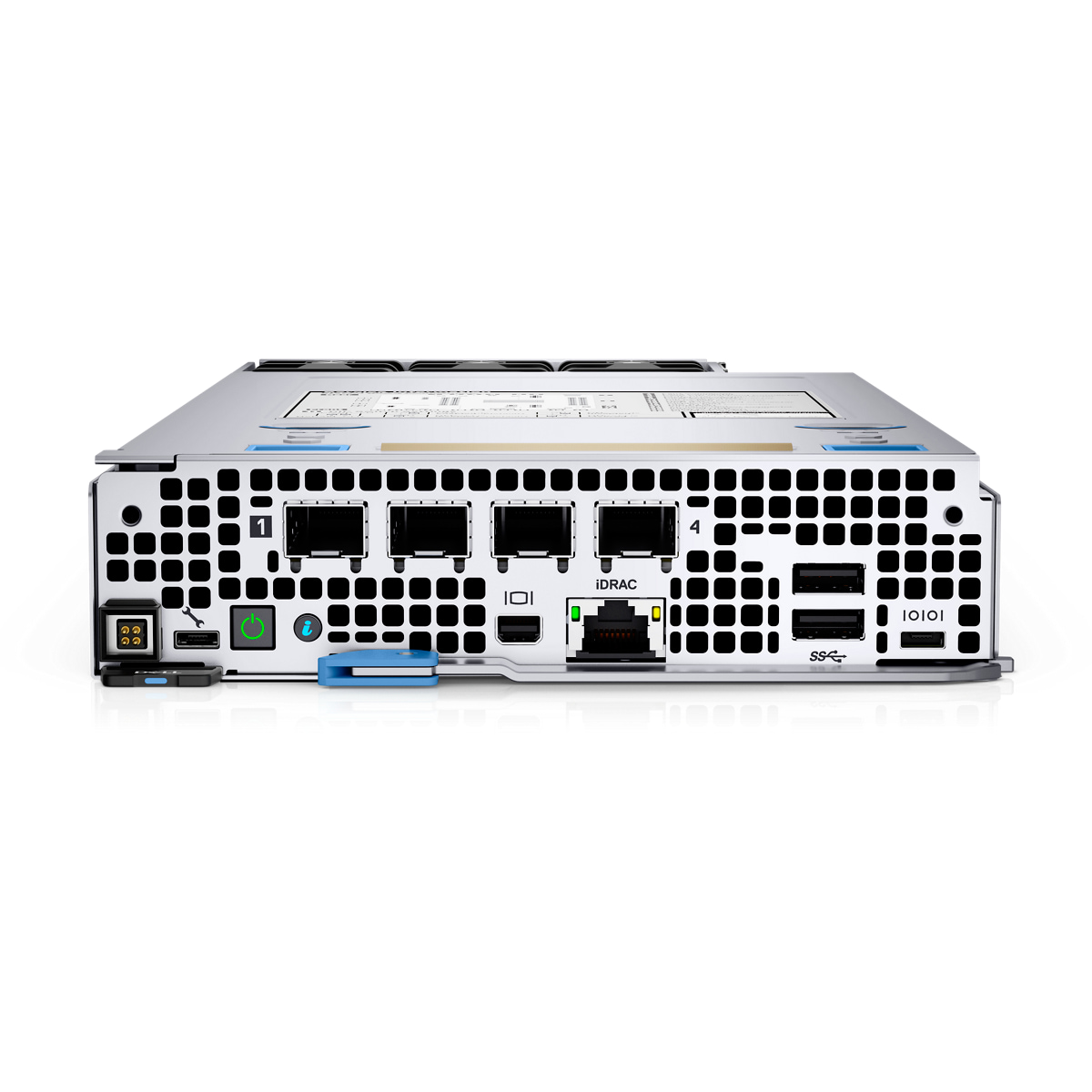

Dell PowerEdge XR4510c
Short-depth, high-density 1U server sled that enables scalability at the edge; for use in the XR4000z or XR4000r chassis.
PowerEdge XR4510c
Short-depth, high-density 1U server sled that enables scalability at the edge; for use in the XR4000z or XR4000r chassis.
Key Features
Designed and optimized for the edge
Short-depth, high-density 1U server sled that enables scalability at the edge; for use in the XR4000z or XR4000r chassis.
Specifications
| Processor | 1 x 3rd Generation Intel®Xeon®D Scalable processor with up to 20 cores |
| Operating System | Canonical®Ubuntu®Server LTS Microsoft®Windows Server®with Hyper-V Red Hat®Enterprise Linux SUSE®Linux Enterprise Server VMware®ESXi® |
| Memory | DIMM Speed Up to 2933 MT/s Memory Type RDIMM and LRDIMM Memory Module Slots 4 x DDR4 DIMM slots Maximum RAM Supports RDIMM 256 GB max, LRDIMM 512 GB max |
| Storage | 4 x M.2 NVMe SSDs on M.2 riser module |
| Storage Controllers | Internal Boot Boot Optimized Storage Subsystem (BOSS-N1): 2 x M.2 SSDs 480 GB or 960 GB |
| Security | Cryptographically signed firmware Secure Boot Secure Erase Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
| Management | Embedded / At-the-Server iDRAC9 iDRAC Direct iDRAC RESTful API with Redfish iDRAC Service Module Consoles OpenManage Enterprise OpenManage Power Manager plugin OpenManage Service plugin OpenManage Update Manager plugin Mobility OpenManage Mobile Tools Dell System Update Dell Repository Manager Enterprise Catalogs iDRAC RESTful API with Redfish IPMI RACADM CLI OpenManage Integrations BMC Truesight Microsoft®System Center OpenManage Integration with ServiceNow Red Hat®Ansible®Modules Terraform Providers VMware®vCenter™ and vRealize Operations Manager |
| Power Supplies | 1800W Platinum 200-240 VAC or 240 HVDC 1400W Platinum 100-240 VAC or 240 HVDC 1100 W DC / -48 (-60) V With up to 3 Standard (STD) cabled cooling fans with reverse and normal air-flow in XR4510c and XR4520c sleds |
| Ports | Network Options 4 x 25GbE SFP (max 100 Gb) 4 x 10GbE SFP (max 50 Gb) Front Ports 1 x iDRAC Direct (Micro-AB USB) port 2 x USB 3.0 1 x Serial port 1 x Mini-DisplayPort 1 x RJ45 iDRAC9 ethernet port Internal Ports 1 x USB 3.0 |
| Chassis | XR4000r and XR4000z |
| Bezel | Security bezel on XR4000r and XR4000z |
| Form Factor | Up to 4 independent, 1U single-width, 1-processor server sled in a XR4000r chassis Up to 2 independent, 2U single-width, 1-processor server sled in a XR4000z chassis |
| Dimensions & Weight | Height 1.62 inches (41.25 mm) Width 6.58 inches (167.2 mm) Depth 13.48 inches (342.5 mm) Weight 5.42 pound (2.46 kg) |
| Recommended Support | Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region. |
| Regulatory | Product Safety and Environmental Datasheets Dell Regulatory Compliance Home Page Dell and the Environment |
| Processor | 1 x 3rd Generation Intel®Xeon®D Scalable processor with up to 20 cores |
| Operating System | Canonical®Ubuntu®Server LTS Microsoft®Windows Server®with Hyper-V Red Hat®Enterprise Linux SUSE®Linux Enterprise Server VMware®ESXi® |
| Memory | DIMM Speed Up to 2933 MT/s Memory Type RDIMM and LRDIMM Memory Module Slots 4 x DDR4 DIMM slots Maximum RAM Supports RDIMM 256 GB max, LRDIMM 512 GB max |
| Storage | 4 x M.2 NVMe SSDs on M.2 riser module |
| Storage Controllers | Internal Boot Boot Optimized Storage Subsystem (BOSS-N1): 2 x M.2 SSDs 480 GB or 960 GB |
| Security | Cryptographically signed firmware Secure Boot Secure Erase Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
| Management | Embedded / At-the-Server iDRAC9 iDRAC Direct iDRAC RESTful API with Redfish iDRAC Service Module Consoles OpenManage Enterprise OpenManage Power Manager plugin OpenManage Service plugin OpenManage Update Manager plugin Mobility OpenManage Mobile Tools Dell System Update Dell Repository Manager Enterprise Catalogs iDRAC RESTful API with Redfish IPMI RACADM CLI OpenManage Integrations BMC Truesight Microsoft®System Center OpenManage Integration with ServiceNow Red Hat®Ansible®Modules Terraform Providers VMware®vCenter™ and vRealize Operations Manager |
| Power Supplies | 1800W Platinum 200-240 VAC or 240 HVDC 1400W Platinum 100-240 VAC or 240 HVDC 1100 W DC / -48 (-60) V With up to 3 Standard (STD) cabled cooling fans with reverse and normal air-flow in XR4510c and XR4520c sleds |
| Ports | Network Options 4 x 25GbE SFP (max 100 Gb) 4 x 10GbE SFP (max 50 Gb) Front Ports 1 x iDRAC Direct (Micro-AB USB) port 2 x USB 3.0 1 x Serial port 1 x Mini-DisplayPort 1 x RJ45 iDRAC9 ethernet port Internal Ports 1 x USB 3.0 |
| Chassis | XR4000r and XR4000z |
| Bezel | Security bezel on XR4000r and XR4000z |
| Form Factor | Up to 4 independent, 1U single-width, 1-processor server sled in a XR4000r chassis Up to 2 independent, 2U single-width, 1-processor server sled in a XR4000z chassis |
| Dimensions & Weight | Height 1.62 inches (41.25 mm) Width 6.58 inches (167.2 mm) Depth 13.48 inches (342.5 mm) Weight 5.42 pound (2.46 kg) |
| Recommended Support | Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region. |
| Regulatory | Product Safety and Environmental Datasheets Dell Regulatory Compliance Home Page Dell and the Environment |
