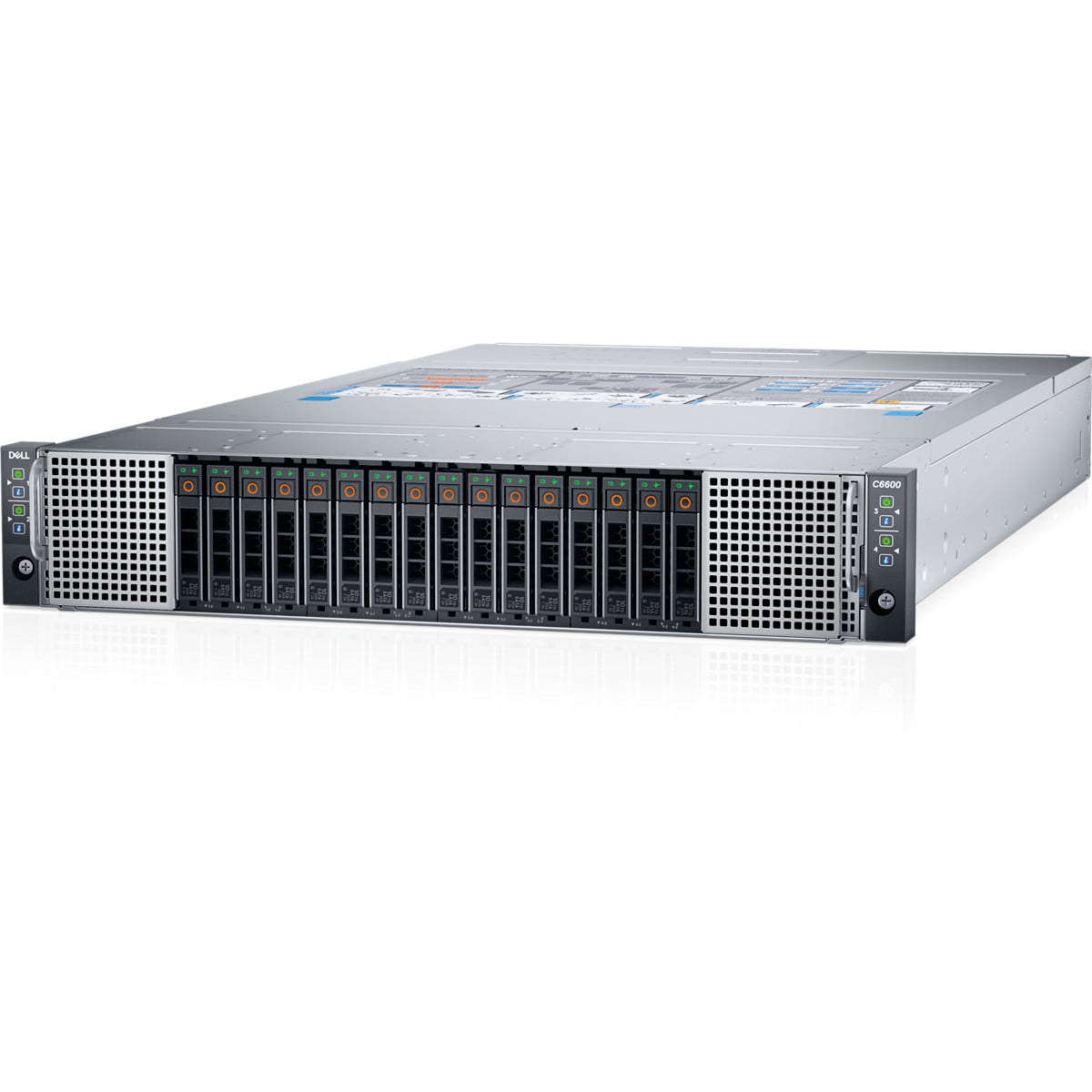

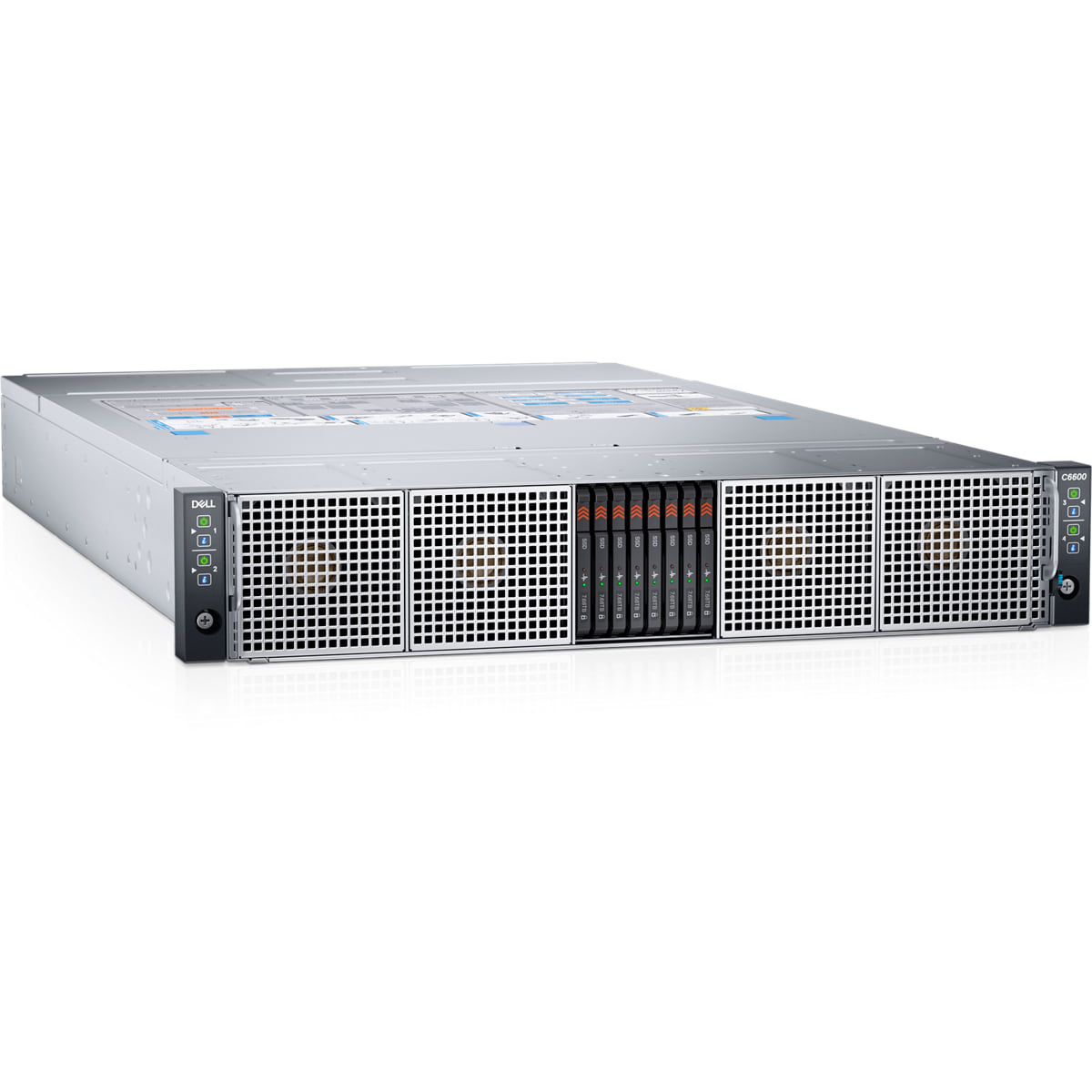

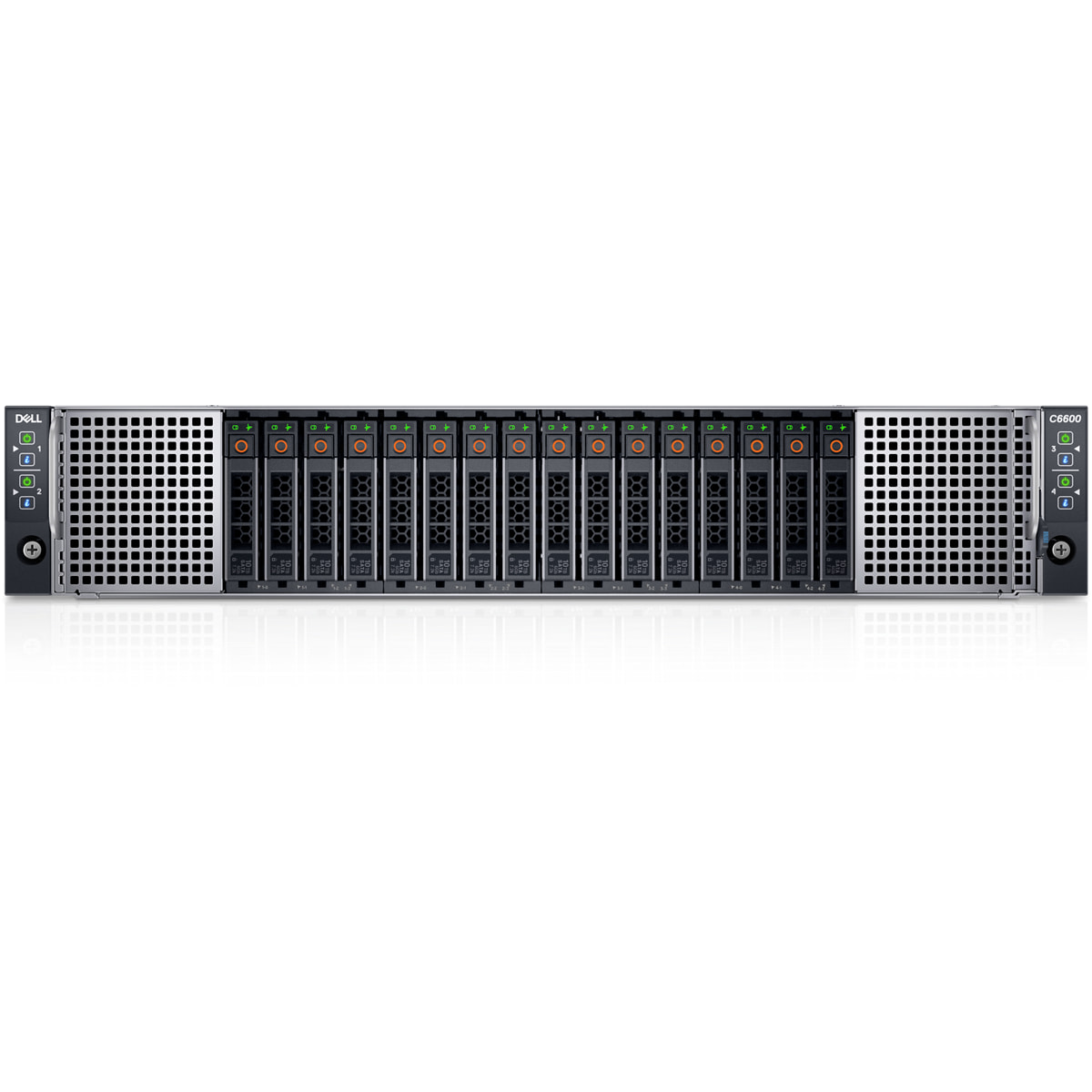

Dell PowerEdge C6620
Density optimized scalable infrastructure to meet compute intensive needs without expanding cost or space requirements.
PowerEdge C6620
Density optimized scalable infrastructure to meet compute intensive needs without expanding cost or space requirements.
Key Features
Scale your business without taking up additional space thanks to this density-optimized solution.
Density optimized scalable infrastructure to meet compute intensive needs without expanding cost or space requirements.
Specifications
| Processor | Up to two 4th and 5th Generation Intel®Xeon®Scalable processors with up to 64 cores Note: EMR CPU support up to 64 cores and SPR CPU support up to 56 cores. |
| Operating System | Canonical®Ubuntu®Server LTS Microsoft®Windows Server®with Hyper-V RedHat®Enterprise Linux SUSE®Linux Enterprise Server VMware®ESXi®/vSAN |
| Chipset | Intel®C741 chipset |
| Accelerators | One 75 W (low-profile, Half-height) GPUs |
| Memory | DIMM Speed Up to 5600 MT/s Memory Type RDIMM Memory Module Slots 16 DDR5 DIMM slots Maximum RAM RDIMM 4 TB |
| Storage | Front Bays Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) drives max 61 TB Diskless with no backplane |
| Storage Controllers | Internal Controllers PERC H965i, PERC H755, H355 Software RAID S160 Internal Boot Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs 480 GB or 960 GB uSD card Internal 12 Gbps SAS HBAs (non-RAID) Internal HBA355i |
| Security | Cryptographically signed firmware Data at Rest Encryption (SEDs with local or external key mgmt) Secure Boot Secured Component Verification (Hardware integrity check) Secure Erase Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
| Management | Embedded / At-the-Server iDRAC9 iDRAC Direct iDRAC RESTful API with Redfish iDRAC Service Module Consoles CloudIQ for PowerEdge plugin OpenManage Enterprise OpenManage Enterprise Integration for VMware®vCenter™ OpenManage Integration for Microsoft®System Center OpenManage Integration with Windows Admin Center OpenManage Power Manager plugin OpenManage Service plugin OpenManage Update Manager plugin Mobility OpenManage Mobile Tools Dell System Update Dell Repository Manager Enterprise Catalogs iDRAC RESTful API with Redfish IPMI RACADM CLI OpenManage Integrations BMC Truesight Microsoft®System Center OpenManage Integration with ServiceNow RedHat®Ansible®Modules Terraform Providers VMware®vCenter™and vRealize Operations Manager |
| Power Supplies | 3200W 277 VAC or 336 VDC redundant, hot swap 2800W Titanium 200-240 VAC or 240 VDC redundant, hot swap 2400W Platinum 100-240 VAC or 240 VDC redundant, hot swap 1800W Titanium 200-240 VAC or 240 VDC redundant, hot swap Up to 4 cold swap fans |
| Ports | Network Options 1 x OCP 3.0 (optional) 1 x 1GbE LOM Rear Ports 1 x USB 3.0 1 x iDRAC or NIC port 1 x iDRAC Direct (Micro-AB USB) port 1 x Mini-DisplayPort Internal Ports 1 x USB 3.0 (optional) |
| Slots | PCIe 2 x PCIe Gen5 slots: 1 x16 Gen5 (x16 PCIe) Low-profile, Half-length (slot 1 optional) 1 x16 Gen5 (x8 + x8 PCIe) Low-profile, Half-length for SNAP I/O module (slot 1 optional) 1 x16 Gen5 (x16 PCIe) Low-profile, Half-length (slot 2 optional) 1 x16 Gen4 (x8 PCIe) Low-profile, Half-length (slot 2 optional) |
| Form Factor | Up to 4 independent hot-swappable 2-socket C6620 sleds in a 2U C6600 chassis |
| Dimensions & Weight | Height 40.0 mm (1.57 inches) Width 174.4 mm (6.86 inches) Depth 549.7 mm (21.64 inches) Weight 5.1 kg (11.2 lbs) |
| Recommended Support | Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region. |
| Regulatory | Product Safety and Environmental Datasheets Dell Regulatory Compliance Home Page Dell and the Environment |
| Processor | Up to two 4th and 5th Generation Intel®Xeon®Scalable processors with up to 64 cores Note: EMR CPU support up to 64 cores and SPR CPU support up to 56 cores. |
| Operating System | Canonical®Ubuntu®Server LTS Microsoft®Windows Server®with Hyper-V RedHat®Enterprise Linux SUSE®Linux Enterprise Server VMware®ESXi®/vSAN |
| Chipset | Intel®C741 chipset |
| Accelerators | One 75 W (low-profile, Half-height) GPUs |
| Memory | DIMM Speed Up to 5600 MT/s Memory Type RDIMM Memory Module Slots 16 DDR5 DIMM slots Maximum RAM RDIMM 4 TB |
| Storage | Front Bays Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) drives max 61 TB Diskless with no backplane |
| Storage Controllers | Internal Controllers PERC H965i, PERC H755, H355 Software RAID S160 Internal Boot Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs 480 GB or 960 GB uSD card Internal 12 Gbps SAS HBAs (non-RAID) Internal HBA355i |
| Security | Cryptographically signed firmware Data at Rest Encryption (SEDs with local or external key mgmt) Secure Boot Secured Component Verification (Hardware integrity check) Secure Erase Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
| Management | Embedded / At-the-Server iDRAC9 iDRAC Direct iDRAC RESTful API with Redfish iDRAC Service Module Consoles CloudIQ for PowerEdge plugin OpenManage Enterprise OpenManage Enterprise Integration for VMware®vCenter™ OpenManage Integration for Microsoft®System Center OpenManage Integration with Windows Admin Center OpenManage Power Manager plugin OpenManage Service plugin OpenManage Update Manager plugin Mobility OpenManage Mobile Tools Dell System Update Dell Repository Manager Enterprise Catalogs iDRAC RESTful API with Redfish IPMI RACADM CLI OpenManage Integrations BMC Truesight Microsoft®System Center OpenManage Integration with ServiceNow RedHat®Ansible®Modules Terraform Providers VMware®vCenter™and vRealize Operations Manager |
| Power Supplies | 3200W 277 VAC or 336 VDC redundant, hot swap 2800W Titanium 200-240 VAC or 240 VDC redundant, hot swap 2400W Platinum 100-240 VAC or 240 VDC redundant, hot swap 1800W Titanium 200-240 VAC or 240 VDC redundant, hot swap Up to 4 cold swap fans |
| Ports | Network Options 1 x OCP 3.0 (optional) 1 x 1GbE LOM Rear Ports 1 x USB 3.0 1 x iDRAC or NIC port 1 x iDRAC Direct (Micro-AB USB) port 1 x Mini-DisplayPort Internal Ports 1 x USB 3.0 (optional) |
| Slots | PCIe 2 x PCIe Gen5 slots: 1 x16 Gen5 (x16 PCIe) Low-profile, Half-length (slot 1 optional) 1 x16 Gen5 (x8 + x8 PCIe) Low-profile, Half-length for SNAP I/O module (slot 1 optional) 1 x16 Gen5 (x16 PCIe) Low-profile, Half-length (slot 2 optional) 1 x16 Gen4 (x8 PCIe) Low-profile, Half-length (slot 2 optional) |
| Form Factor | Up to 4 independent hot-swappable 2-socket C6620 sleds in a 2U C6600 chassis |
| Dimensions & Weight | Height 40.0 mm (1.57 inches) Width 174.4 mm (6.86 inches) Depth 549.7 mm (21.64 inches) Weight 5.1 kg (11.2 lbs) |
| Recommended Support | Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region. |
| Regulatory | Product Safety and Environmental Datasheets Dell Regulatory Compliance Home Page Dell and the Environment |
