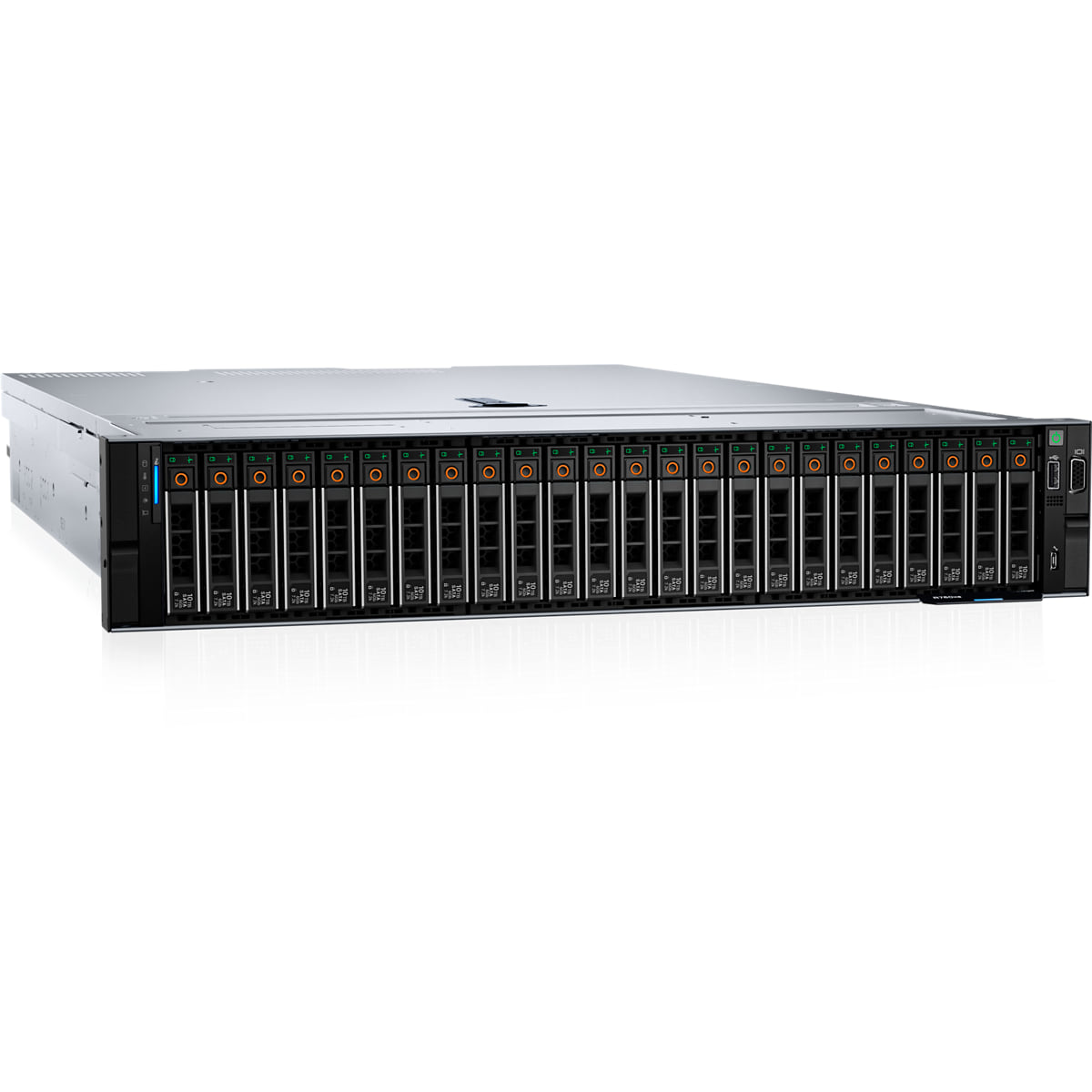

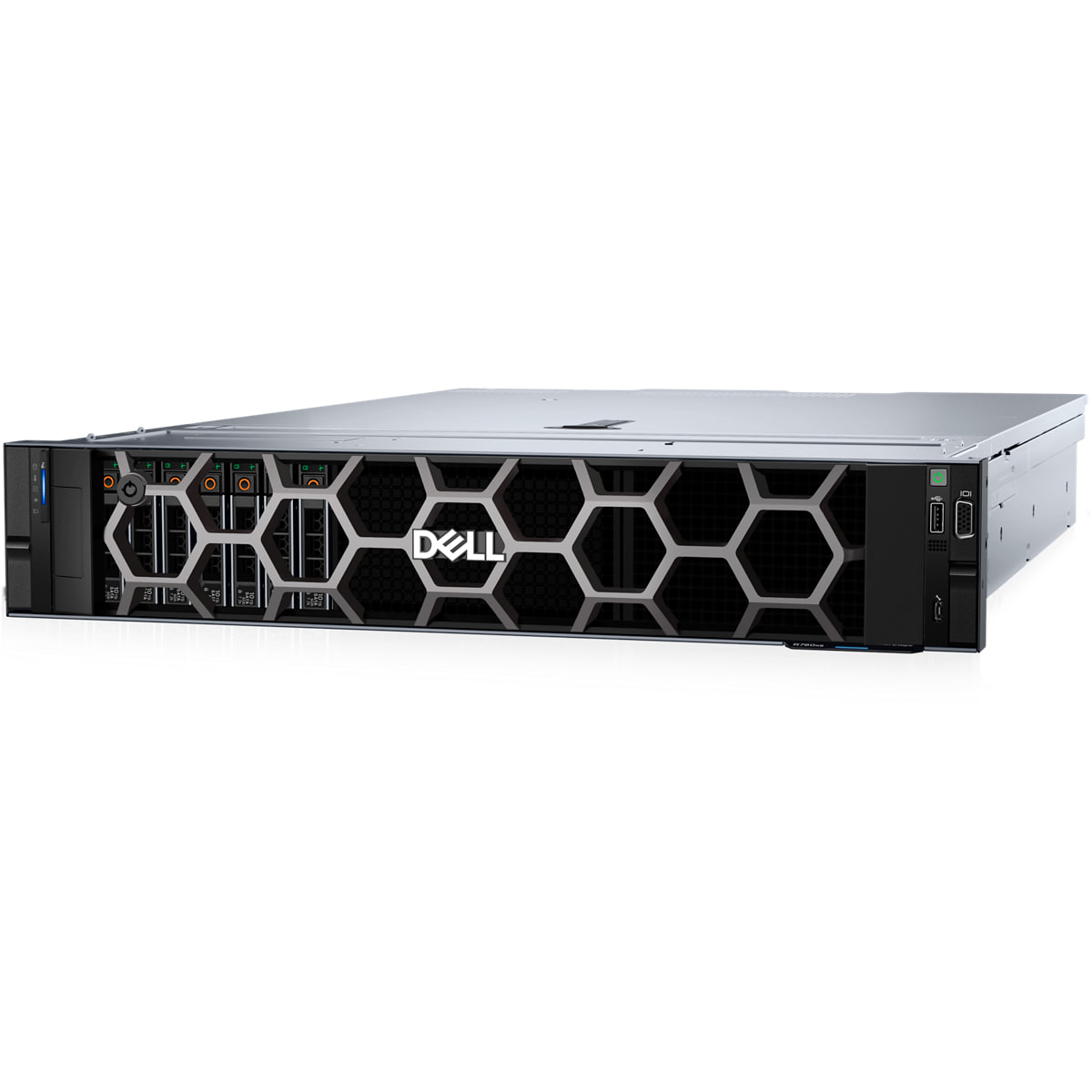

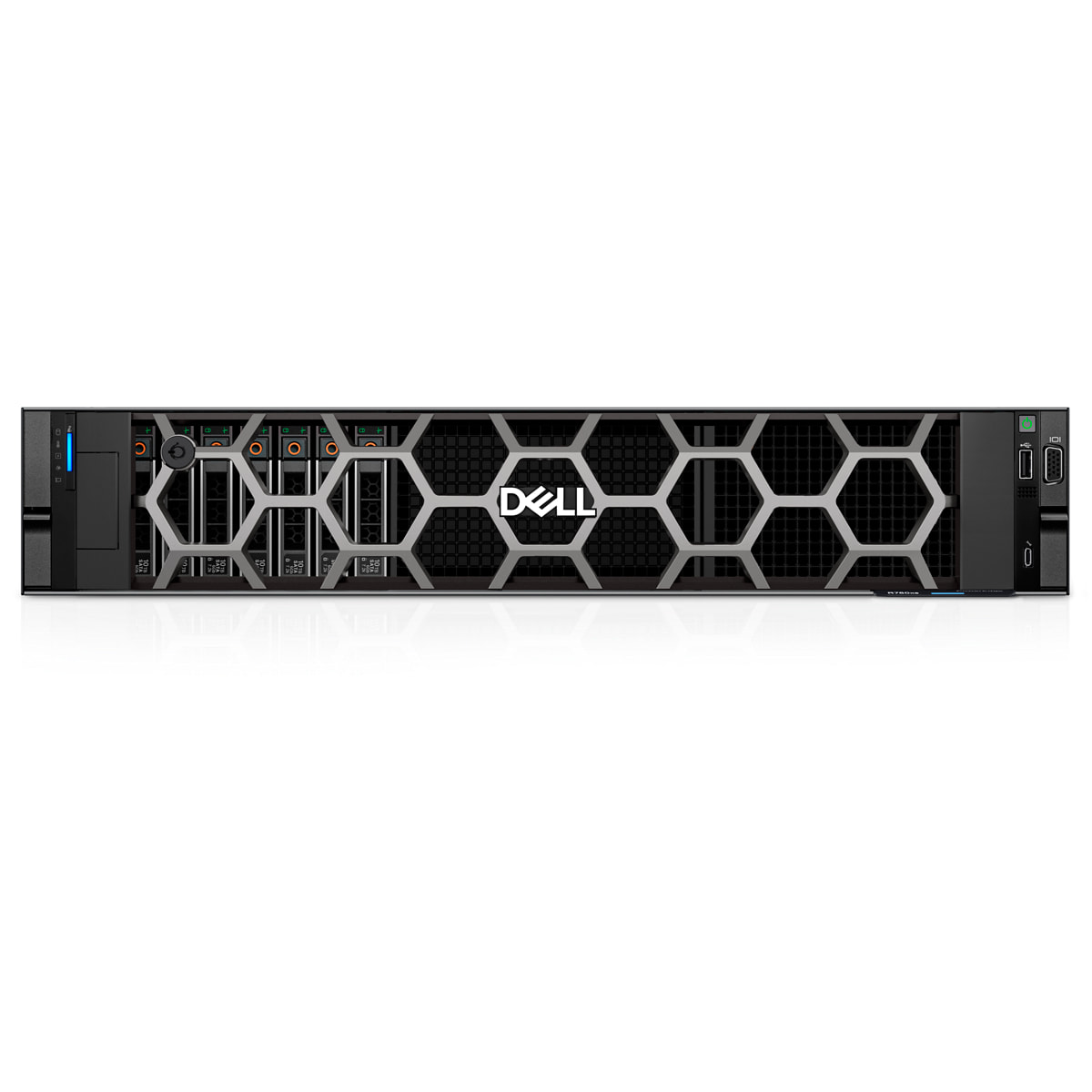

Dell PowerEdge R760xs
The Dell PowerEdge R760xs is the best choice for the right balance in performance in an air-cooled chassis for the most popular IT applications.
PowerEdge R760xs
The Dell PowerEdge R760xs is the best choice for the right balance in performance in an air-cooled chassis for the most popular IT applications.
Key Features
The perfect blend of performance and density
The Dell PowerEdge R760xs is the best choice for the right balance in performance in an air-cooled chassis for the most popular IT applications.
Specifications
| Processor | Up to 2 x 5th generation Intel® Xeon® Scalable processors with up to 28 cores and 4th generation Intel® Xeon® Scalable processors with up to 32 cores per processor |
| Operating System | Microsoft®Windows Server®with Hyper-V RedHat®Enterprise Linux SUSE®Linux Enterprise Server VMware®vSAN/ESXi® Canonical®Ubuntu®Server LTS |
| Chipset | Intel®C741 Chipset |
| Accelerators | 2 x 75 W SW, LP |
| Memory | DIMM Speed Up to 5200 MT/s Memory Type RDIMM Memory Module Slots 16 DDR5 DIMM slots Maximum RAM 1.5 TB |
| Storage | Front Bay Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 160 TB Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 121.6 TB Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) + 8 x 2.5-inch NVMe (HDD/SSD) max 244.48 TB Rear Bay Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB |
| Storage Controllers | Internal Controllers PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i External Controllers HBA355e Software RAID S160 Internal Boot Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 NVMe SSDs USB |
| Security | Cryptographically signed firmware Data at Rest Encryption (SEDs with local or external key mgmt) Secure Boot Secure Erase Secured Component Verification (Hardware integrity check) Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
| Management | Embedded / At-the-Server iDRAC9 iDRAC Direct iDRAC RESTful API with Redfish iDRAC Service Module Quick Sync 2 wireless module Consoles CloudIQ for PowerEdge plug in OpenManage Enterprise OpenManage Enterprise Integration for VMware®vCenter™ OpenManage Integration for Microsoft®System Center OpenManage Integration with Windows Admin Center OpenManage Power Manager plugin OpenManage Service plugin OpenManage Update Manager plugin Mobility OpenManage Mobile Tools Dell Repository Manager Dell System Update Enterprise Catalogs iDRAC RESTful API with Redfish IPMI RACADM CLI OpenManage Integrations BMC Truesight Microsoft®System Center OpenManage Integration with ServiceNow RedHat®Ansible®Modules Terraform Providers VMware®vCenter™and vRealize Operations Manager |
| Power Supplies | Power Supplies 1800 W Titanium 200—240 VAC or 240 VDC, hot swap redundant 1400 W Titanium 100—240 VAC or 240 VDC, hot swap redundant 1400 W Platinum 100—240 VAC or 240 VDC, hot swap redundant 1400 W Titanium 277 VAC or HVDC (HVDC stands for High-Voltage DC, with 336V DC), hot swap redundant 1100 W Titanium 100—240 VAC or 240 VDC, hot swap redundant 1100 W -(48V — 60V) DC, hot swap redundant 800 W Platinum 100—240 VAC or 240 VDC, hot swap redundant 700 W Titanium 200—240 VAC or 240 VDC, hot swap redundant 600 W Platinum 100—240 VAC or 240 VDC, hot swap redundant Fans Standard (STD) fans, High performance SLVR fans or High performance GOLD fans Up to 6 hot swappable fans |
| Ports | Network Options 2 x 1GbE LOM card (optional) 1 x OCP card 3.0 (optional) Note: The system allows either LOM card or an OCP card to be installed in the system. Front Ports 1 x iDRAC Direct (Micro-AB USB) port 1 x USB 2.0 1 x VGA Rear Ports 1 x Dedicated iDRAC Ethernet port 1 x USB 2.0 1 x USB 3.0 1 x Serial (optional) 1 x VGA Internal Ports 1 x USB 3.0 (optional) |
| Slots | PCIe 1 CPU configuration: Up to 2 PCIe slots (1 x16 Gen4, 1 x8 Gen4) or up to 4 PCIe slots (1 x16 Gen4, 2 x8 Gen5, 1 x8 Gen4) 2 CPU configuration: Up to 4 PCIe slots (3 x16 Gen4, 1 x8 Gen4) or up to 4 PCIe slots (1 x16 Gen4, 2 x8 Gen5, 1 x8 Gen4) or up to 6 PCIe slots (3 x16 Gen4, 1 x8 Gen4, 2 x16 Gen5) Video 1 x VGA |
| Bezel | Optional LCD bezel or security bezel |
| Form Factor | 2U rack server |
| Dimensions & Weight | Height 3.41 inches (86.8 mm) Width 18.97 inches (482 mm) Depth 27.85 inches (707.78 mm) – without bezel 28.4 inches (721.62 mm) – with bezel Weight Max 63.0 lbs. (28.6 kg) |
| Rack Support | ReadyRails™ II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks ReadyRails static rails for 4-post and 2-post racks |
| Recommended Support | Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region. |
| Regulatory | Product Safety and Environmental Datasheets Dell Regulatory Compliance Home Page Dell and the Environment |
| Processor | Up to 2 x 5th generation Intel® Xeon® Scalable processors with up to 28 cores and 4th generation Intel® Xeon® Scalable processors with up to 32 cores per processor |
| Operating System | Microsoft®Windows Server®with Hyper-V RedHat®Enterprise Linux SUSE®Linux Enterprise Server VMware®vSAN/ESXi® Canonical®Ubuntu®Server LTS |
| Chipset | Intel®C741 Chipset |
| Accelerators | 2 x 75 W SW, LP |
| Memory | DIMM Speed Up to 5200 MT/s Memory Type RDIMM Memory Module Slots 16 DDR5 DIMM slots Maximum RAM 1.5 TB |
| Storage | Front Bay Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 160 TB Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 121.6 TB Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) + 8 x 2.5-inch NVMe (HDD/SSD) max 244.48 TB Rear Bay Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB |
| Storage Controllers | Internal Controllers PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i External Controllers HBA355e Software RAID S160 Internal Boot Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 NVMe SSDs USB |
| Security | Cryptographically signed firmware Data at Rest Encryption (SEDs with local or external key mgmt) Secure Boot Secure Erase Secured Component Verification (Hardware integrity check) Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
| Management | Embedded / At-the-Server iDRAC9 iDRAC Direct iDRAC RESTful API with Redfish iDRAC Service Module Quick Sync 2 wireless module Consoles CloudIQ for PowerEdge plug in OpenManage Enterprise OpenManage Enterprise Integration for VMware®vCenter™ OpenManage Integration for Microsoft®System Center OpenManage Integration with Windows Admin Center OpenManage Power Manager plugin OpenManage Service plugin OpenManage Update Manager plugin Mobility OpenManage Mobile Tools Dell Repository Manager Dell System Update Enterprise Catalogs iDRAC RESTful API with Redfish IPMI RACADM CLI OpenManage Integrations BMC Truesight Microsoft®System Center OpenManage Integration with ServiceNow RedHat®Ansible®Modules Terraform Providers VMware®vCenter™and vRealize Operations Manager |
| Power Supplies | Power Supplies 1800 W Titanium 200—240 VAC or 240 VDC, hot swap redundant 1400 W Titanium 100—240 VAC or 240 VDC, hot swap redundant 1400 W Platinum 100—240 VAC or 240 VDC, hot swap redundant 1400 W Titanium 277 VAC or HVDC (HVDC stands for High-Voltage DC, with 336V DC), hot swap redundant 1100 W Titanium 100—240 VAC or 240 VDC, hot swap redundant 1100 W -(48V — 60V) DC, hot swap redundant 800 W Platinum 100—240 VAC or 240 VDC, hot swap redundant 700 W Titanium 200—240 VAC or 240 VDC, hot swap redundant 600 W Platinum 100—240 VAC or 240 VDC, hot swap redundant Fans Standard (STD) fans, High performance SLVR fans or High performance GOLD fans Up to 6 hot swappable fans |
| Ports | Network Options 2 x 1GbE LOM card (optional) 1 x OCP card 3.0 (optional) Note: The system allows either LOM card or an OCP card to be installed in the system. Front Ports 1 x iDRAC Direct (Micro-AB USB) port 1 x USB 2.0 1 x VGA Rear Ports 1 x Dedicated iDRAC Ethernet port 1 x USB 2.0 1 x USB 3.0 1 x Serial (optional) 1 x VGA Internal Ports 1 x USB 3.0 (optional) |
| Slots | PCIe 1 CPU configuration: Up to 2 PCIe slots (1 x16 Gen4, 1 x8 Gen4) or up to 4 PCIe slots (1 x16 Gen4, 2 x8 Gen5, 1 x8 Gen4) 2 CPU configuration: Up to 4 PCIe slots (3 x16 Gen4, 1 x8 Gen4) or up to 4 PCIe slots (1 x16 Gen4, 2 x8 Gen5, 1 x8 Gen4) or up to 6 PCIe slots (3 x16 Gen4, 1 x8 Gen4, 2 x16 Gen5) Video 1 x VGA |
| Bezel | Optional LCD bezel or security bezel |
| Form Factor | 2U rack server |
| Dimensions & Weight | Height 3.41 inches (86.8 mm) Width 18.97 inches (482 mm) Depth 27.85 inches (707.78 mm) – without bezel 28.4 inches (721.62 mm) – with bezel Weight Max 63.0 lbs. (28.6 kg) |
| Rack Support | ReadyRailsâ„¢ II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks ReadyRails static rails for 4-post and 2-post racks |
| Recommended Support | Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region. |
| Regulatory | Product Safety and Environmental Datasheets Dell Regulatory Compliance Home Page Dell and the Environment |
