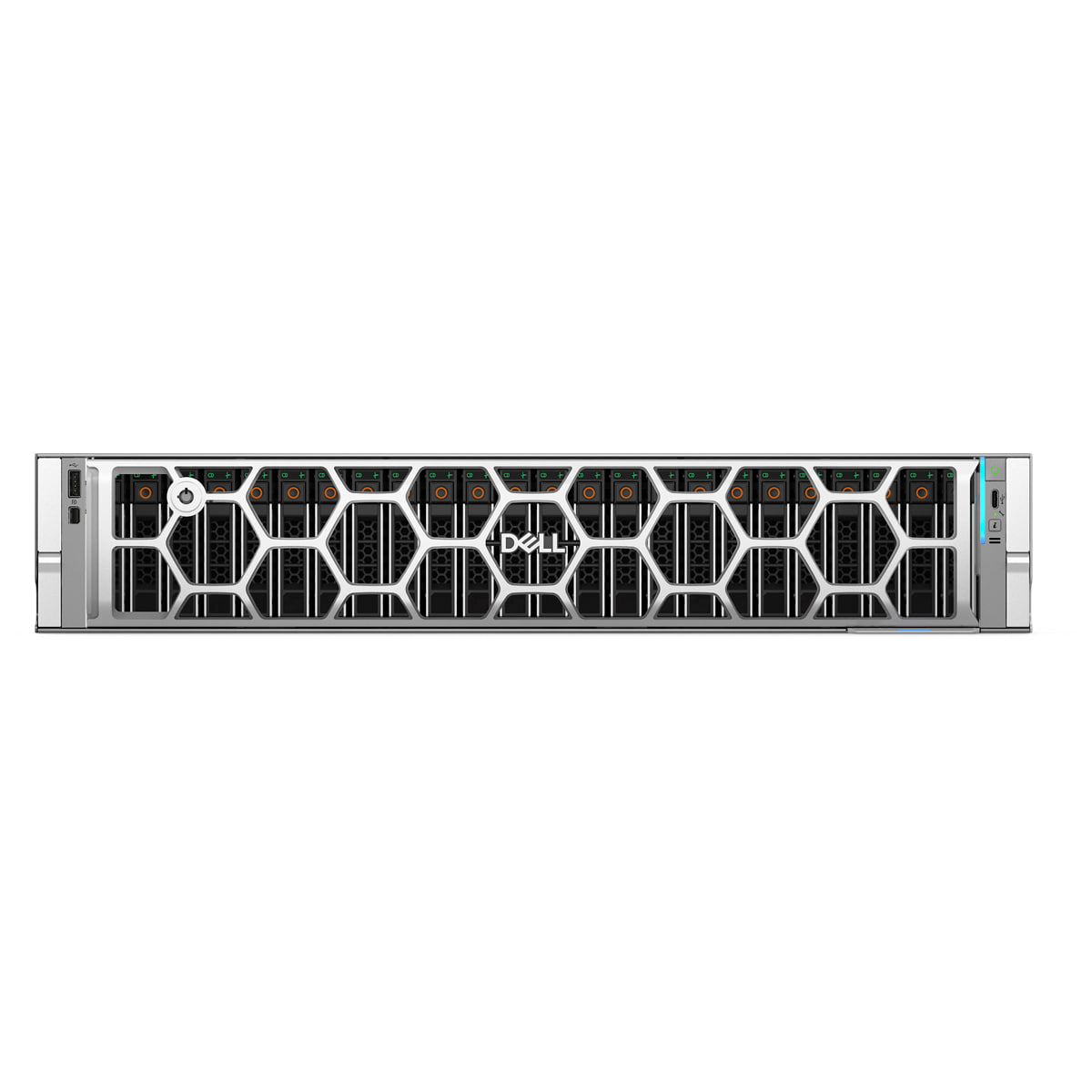

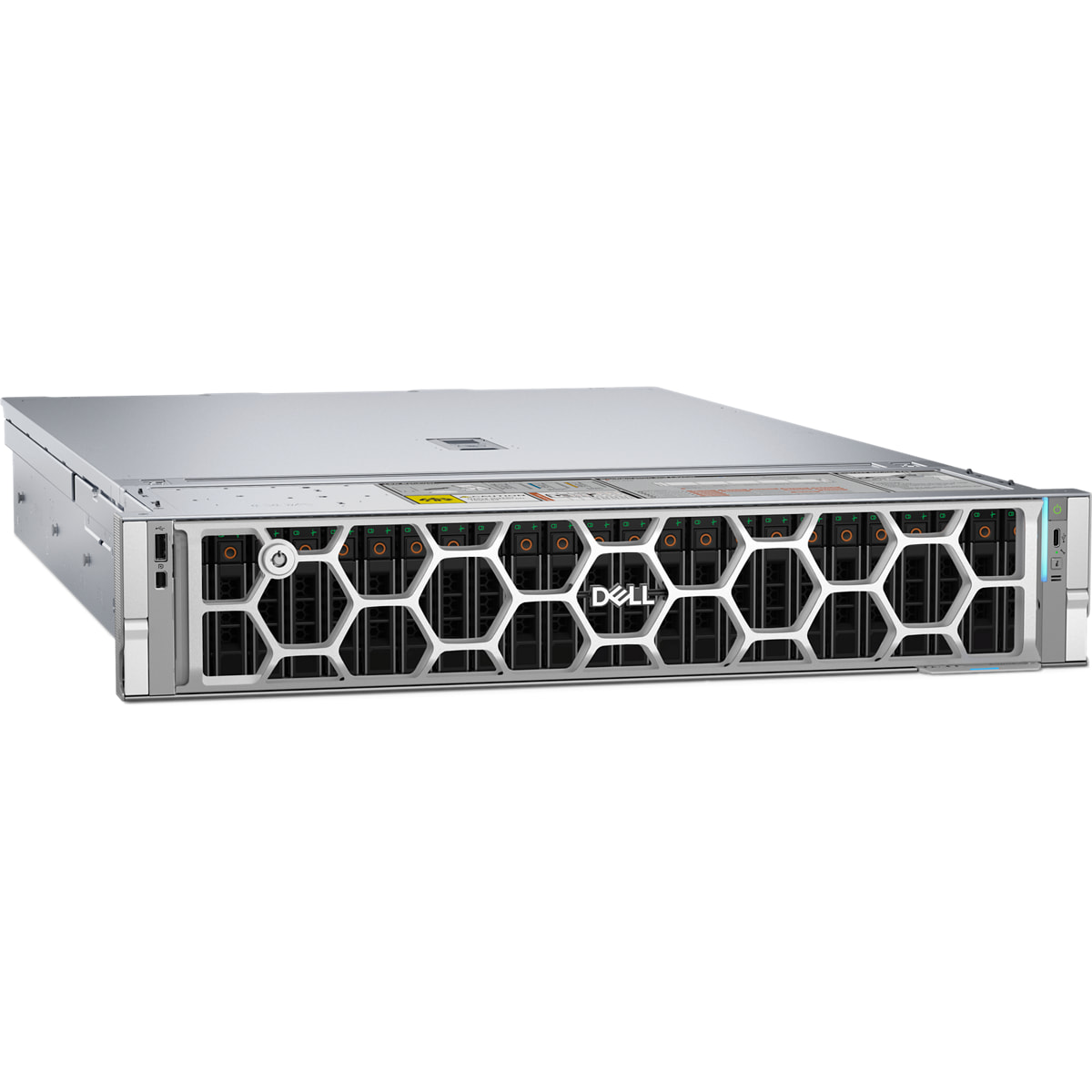

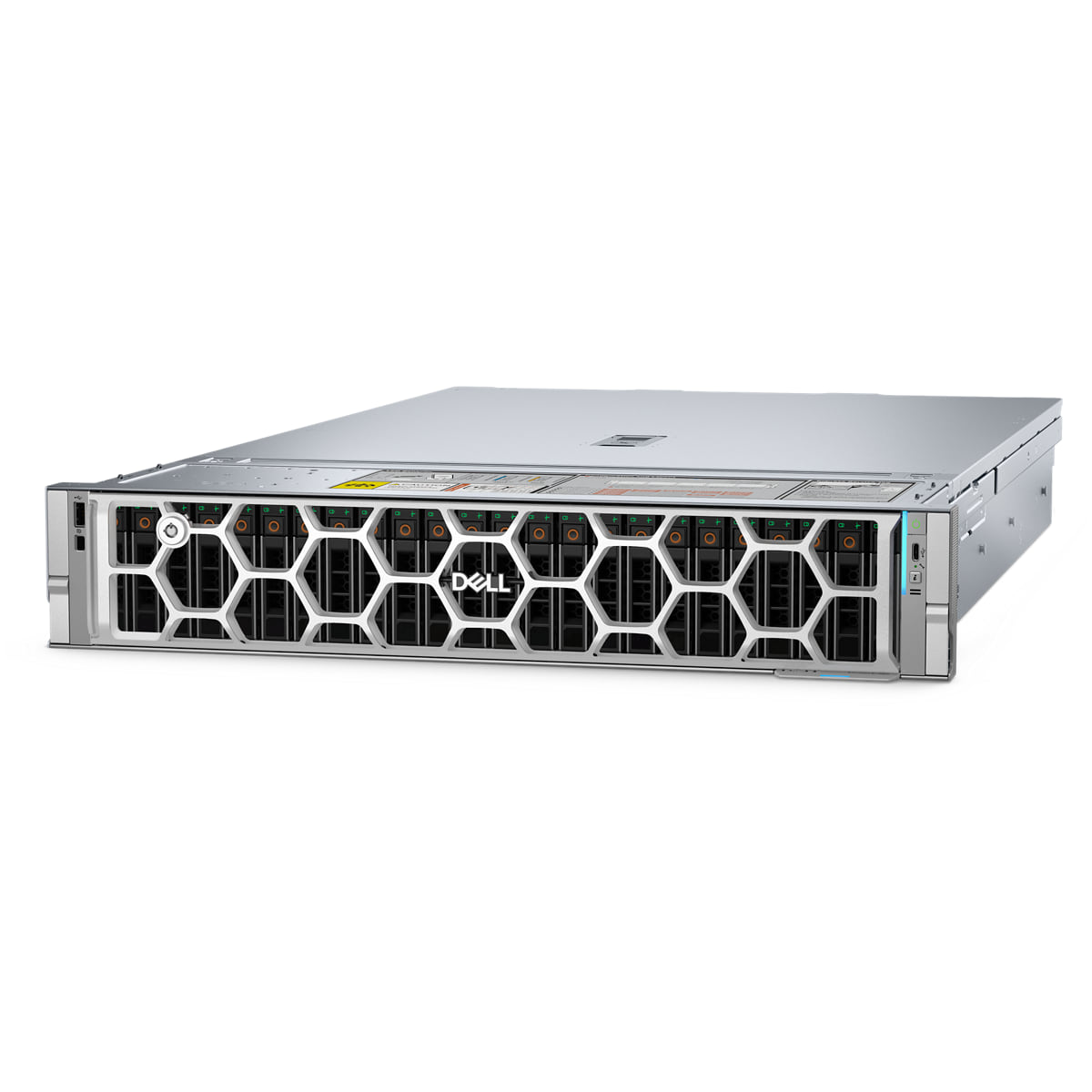

Dell PowerEdge R7725xd
Purpose built for your data center, this highly scalable storage dense server delivers outstanding storage and networking performance.
PowerEdge R7725xd
Purpose built for your data center, this highly scalable storage dense server delivers outstanding storage and networking performance.
Key Features
Breakthrough storage performance that scales
Purpose built for your data center, this highly scalable storage dense server delivers outstanding storage and networking performance.
Specifications
| Processor | Two 5thGeneration AMD EPYCTM9005 Series processors with up to 192cores per processor |
| Operating System | Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V RedHat Enterprise Linux VMware ESXi |
| Chipset | AMD chipset |
| Accelerators | N/A |
| Memory | DIMM Speed Up to 6400 MT/s Memory Type RDIMM Memory Module Slots 24 DDR5 DIMM slot Maximum RAM RDIMM 3 TB |
| Storage | Front Bays 24 x 2.5-inch U.2 Gen5 NVMe (SSD) Mid Bay N/A Rear Bay N/A |
| Storage Controllers | Internal Controllers N/A External Controllers N/A Software RAID N/A Internal Boot Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS) |
| Security | AMD Secure Encrypted Virtualization (SEV) AMD Secure Memory Encryption (SME) Cryptographically signed firmware Data at Rest Encryption (SEDs with local or external key mgmt) Secure Boot Secured Component Verification (Hardware integrity check) Secure Erase Silicon Root of Trust System Lockdown TPM 2.0 FIPS, CC-TCG certified Chassis Intrusion Detection |
| Management | Embedded / At-the-Server iDRAC iDRAC Direct iDRAC RESTful API with Redfish Racadm CLI OpenManage Consoles OpenManage Enterprise (OME) OME Power Manager OME Services OME Update Manager OME APEX AIOps Observability OME Integration for VMware vCenter (with VMware Aria Operations) OME integration for Microsoft System Center OpenManage Integration for Windows Admin Center Mobility N/A Tools IPMI Change Management Dell Repository Manager Dell System Update Enterprise Catalogs Server Update Utility (SUU) OpenManage Integrations RedHat Ansible Collections Terraform Providers |
| Power Supplies | 1500 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant 1800 W Titanium 200-240 VAC or 240 HVDC, hot swap redundant 2400 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant 3200 W Titanium 200-240 VAC or 240 HVDC, hot swap redundant |
| Ports | Front Ports 1 x USB 2.0 Type-A (optional LCP-Secondary KVM) 1 x USB 2.0 Type-C (HOST/BMC Direct) 1 x Mini Displayport (optional LCP-Secondary KVM) Rear Ports 1 x dedicated BMC Ethernet port 2 x USB 3.1 Type-A 1 x VGA Internal Ports 1 x USB 3.1 Type-A (optional) |
| Slots | PCIe Up to fivePCIe slots (x16 connectors) Slot 2: 1 x16 Gen5 Full Height Slot 3: 1 x16 Gen5 Full Height or 1 x16 Gen5 Low Profile Slot 4: 1 x16 Gen5 Full Height Slot 7: 1 x16 Gen5 Full Height Slot 8: 1 x16 Gen5 Full Height Slot 9: 1 x16 Gen5 Low Profile Gen5 PCIe slots 5 OCP network options 1 x OCP NIC 3.0 Gen 3 (optional); 10 GbE Slot 10: 1 x4 Gen3 OCP Embedded NIC 1 Gb dedicated BMC Ethernet port PCIe Add-in Card (AIC) NIC 100 GbE and 400 GbE; NDR VPI (400 GbE) BOSS Slot 6: 1 x4 Gen3 BOSS Video Card N/A |
| Bezel | Optional Metal Bezel |
| Form Factor | 2U rack server |
| Dimensions & Weight | Height 3.42 in. (86.80 mm) Width 18.98 in. (482.00 mm) Depth 31.59 in. (802.40 mm) with bezel 31.55 in. (801.51 mm) without bezel Weight Max 59.41 lb (26.95 kg) |
| Rack Support | ReadyRails II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks. Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks. ReadyRails static rails for 4-post and 2-post racks. |
| Recommended Support | Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region. |
| Processor | Two 5thGeneration AMD EPYCTM9005 Series processors with up to 192cores per processor |
| Operating System | Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V RedHat Enterprise Linux VMware ESXi |
| Chipset | AMD chipset |
| Accelerators | N/A |
| Memory | DIMM Speed Up to 6400 MT/s Memory Type RDIMM Memory Module Slots 24 DDR5 DIMM slot Maximum RAM RDIMM 3 TB |
| Storage | Front Bays 24 x 2.5-inch U.2 Gen5 NVMe (SSD) Mid Bay N/A Rear Bay N/A |
| Storage Controllers | Internal Controllers N/A External Controllers N/A Software RAID N/A Internal Boot Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS) |
| Security | AMD Secure Encrypted Virtualization (SEV) AMD Secure Memory Encryption (SME) Cryptographically signed firmware Data at Rest Encryption (SEDs with local or external key mgmt) Secure Boot Secured Component Verification (Hardware integrity check) Secure Erase Silicon Root of Trust System Lockdown TPM 2.0 FIPS, CC-TCG certified Chassis Intrusion Detection |
| Management | Embedded / At-the-Server iDRAC iDRAC Direct iDRAC RESTful API with Redfish Racadm CLI OpenManage Consoles OpenManage Enterprise (OME) OME Power Manager OME Services OME Update Manager OME APEX AIOps Observability OME Integration for VMware vCenter (with VMware Aria Operations) OME integration for Microsoft System Center OpenManage Integration for Windows Admin Center Mobility N/A Tools IPMI Change Management Dell Repository Manager Dell System Update Enterprise Catalogs Server Update Utility (SUU) OpenManage Integrations RedHat Ansible Collections Terraform Providers |
| Power Supplies | 1500 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant 1800 W Titanium 200-240 VAC or 240 HVDC, hot swap redundant 2400 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant 3200 W Titanium 200-240 VAC or 240 HVDC, hot swap redundant |
| Ports | Front Ports 1 x USB 2.0 Type-A (optional LCP-Secondary KVM) 1 x USB 2.0 Type-C (HOST/BMC Direct) 1 x Mini Displayport (optional LCP-Secondary KVM) Rear Ports 1 x dedicated BMC Ethernet port 2 x USB 3.1 Type-A 1 x VGA Internal Ports 1 x USB 3.1 Type-A (optional) |
| Slots | PCIe Up to fivePCIe slots (x16 connectors) Slot 2: 1 x16 Gen5 Full Height Slot 3: 1 x16 Gen5 Full Height or 1 x16 Gen5 Low Profile Slot 4: 1 x16 Gen5 Full Height Slot 7: 1 x16 Gen5 Full Height Slot 8: 1 x16 Gen5 Full Height Slot 9: 1 x16 Gen5 Low Profile Gen5 PCIe slots 5 OCP network options 1 x OCP NIC 3.0 Gen 3 (optional); 10 GbE Slot 10: 1 x4 Gen3 OCP Embedded NIC 1 Gb dedicated BMC Ethernet port PCIe Add-in Card (AIC) NIC 100 GbE and 400 GbE; NDR VPI (400 GbE) BOSS Slot 6: 1 x4 Gen3 BOSS Video Card N/A |
| Bezel | Optional Metal Bezel |
| Form Factor | 2U rack server |
| Dimensions & Weight | Height 3.42 in. (86.80 mm) Width 18.98 in. (482.00 mm) Depth 31.59 in. (802.40 mm) with bezel 31.55 in. (801.51 mm) without bezel Weight Max 59.41 lb (26.95 kg) |
| Rack Support | ReadyRails II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks. Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks. ReadyRails static rails for 4-post and 2-post racks. |
| Recommended Support | Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region. |
