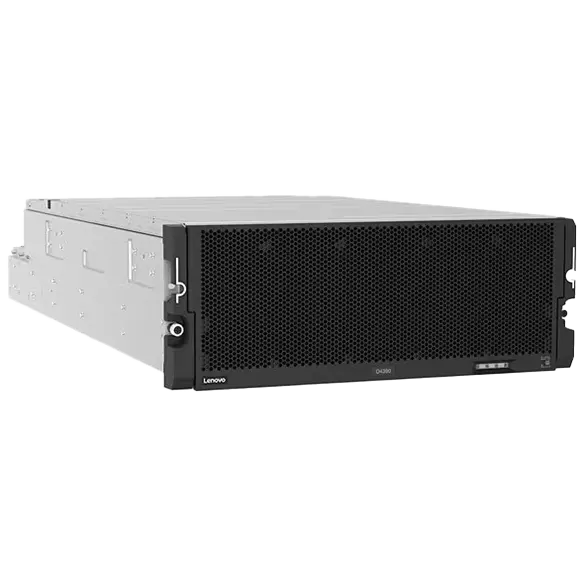

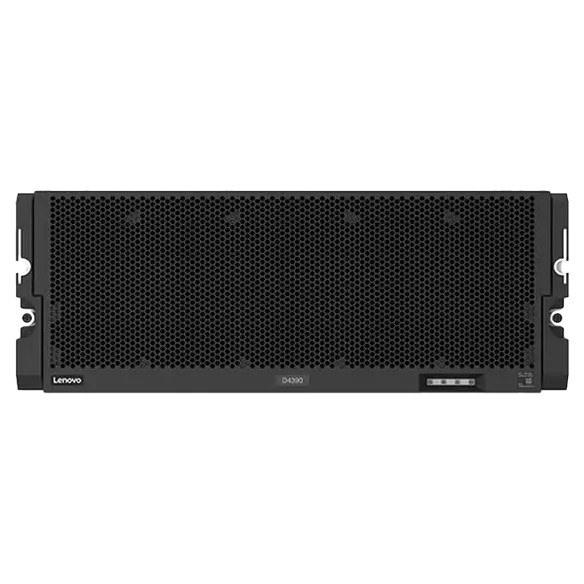

Lenovo ThinkSystem D4390 Direct Attached Storage
Enterprise-class storage that delivers massive scalabilityStorage capacity (per enclosure) up to 2.1PBExpansion modules dual 12/24Gb SAS host connectivityUp to 24TB 7,200rpm NL-SAS HDDs; Up to 800GB SAS SSDs (2.5″ drive in 3.5″ tray)Up to 2x D4390 expansion enclosures per HBA4x 24Gbps Mini-SAS HD (SFF-8644) expansion ports
- Enterprise-class storage that delivers massive scalability
- Storage capacity (per enclosure) up to 2.1PB
- Expansion modules dual 12/24Gb SAS host connectivity
- Up to 24TB 7,200rpm NL-SAS HDDs; Up to 800GB SAS SSDs (2.5″ drive in 3.5″ tray)
- Up to 2x D4390 expansion enclosures per HBA
- 4x 24Gbps Mini-SAS HD (SFF-8644) expansion ports
Specifications
| Form Factor | 4U |
| Dual Expansion Modules | Dual 12/24Gb SAS standard, with active/active failover |
| Supported Drives | 90x hot-swap SAS HDD/SSD drives (12 SAS SSD drives supported per enclosure):Up to 24TB 7,200rpm NL-SAS HDDsUp to 800GB SSDs (2.5″ drive in 3.5″ tray) |
| Storage Capacity (per enclosure) | Up to 2.1PB – 7,200rpm NL SAS HDDsUp to 9.6TB – SAS SSDs |
| Expandability (via Daisy-Chain) | Up to 2x D4390 enclosures per HBA |
| RAID Support | RAID-0, 1, 10, 5, 50, 6, 60 (Host controller-dependent) |
| Host Controllers Supported | ThinkSystem RAID 940-8e PCIe 12Gb AdapterThinkSystem 440-16e SAS/SATA PCIe Gen4 12Gb HBAThinkSystem 440-8e PCIe 12Gb SAS/SATA HBA |
| Power Supplies and Fans | 4x 1200W 80 Plus Titanium (2+2/3+1) hot-swap/redundant power supplies; 5 hot-swap/redundant fans |

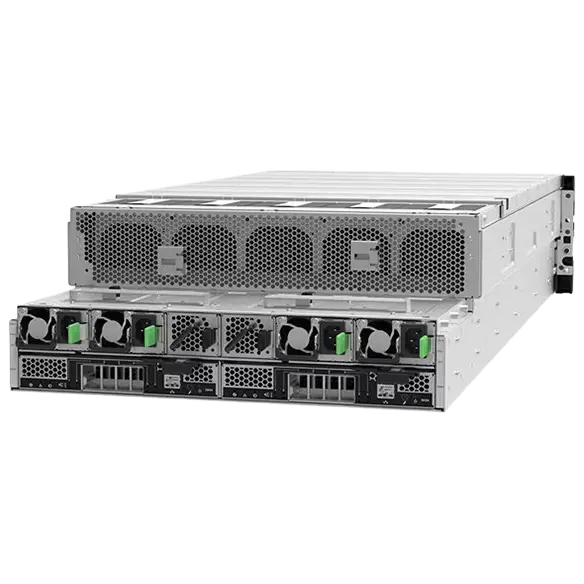

| Back Panel Connectors | Each expansion module (x2) has 4 x 24Gbps Mini-SAS HD (SFF-8644) ports |
| Dimensions (H x W x D) | 175.3mm x 446mm x 1080mm (6.9†x 17.56†x 42.52â€) |
| Weight | Min. 45kg (95lbs) / Max. 118kg (260lbs) |
| Hot-Swap Components | HDDs, SSDs, ESMs, PSUs, 5V DC-DC modules, fans |
| Limited Warranty | 3-year Limited Warranty, 9×5 Next Business Day Onsite (upgradeable) |
