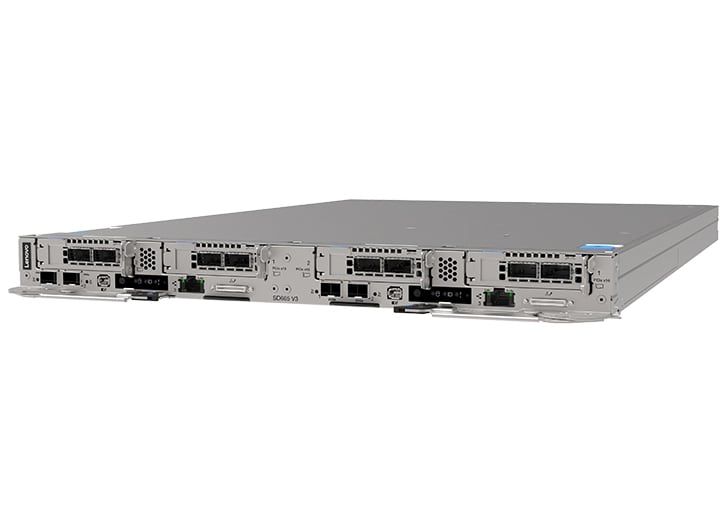

Lenovo ThinkSystem SD665 V3 High-Density Server
, , , Configureaza acest server →

Lenovo ThinkSystem SD665 V3 High-Density Server

Favorite
Compara

Up to 2x 5th Generation AMD EPYC™ Processors, up to 160 cores/400WUp to 24x 128GB TruDDR5 RDIMM slotsUp to four SSDs/NVMe U.2; 1x M.2 local storageSupport for InfiniBandPowered by Lenovo Neptune™ Liquid Cooling technology

Pretul afisat contine TVA (21%).

ThinkSystem SD665 V3 High-Density Server

Up to 2x 5th Generation AMD EPYC™ Processors, up to 160 cores/400WUp to 24x 128GB TruDDR5 RDIMM slotsUp to four SSDs/NVMe U.2; 1x M.2 local storageSupport for InfiniBandPowered by Lenovo Neptune™ Liquid Cooling technology

Key Features

Lenovo Neptune™ technology

The ThinkSystem SD665 V3 with Lenovo Neptune Direct liquid cooling technology uses warm water cooling to remove heat from CPUs and other vital components. Because water provides superior heat removal compared to air, the critical components all operate at lower temperatures, delivering greater performance and density in a quiet, energy-efficient system.

Greater Performance & Density

The newest ThinkSystem SD665 V3 powered by dual 5th Generation AMD EPYC™ processors uses Neptune™ liquid cooling technology, which can run CPUs at a cooler rate than traditional methods. A single rack of ThinkSystem SD665 V3 servers can deliver more than half a petaflop of HPC compute power without using accelerators.

Quiet Efficiency

By using water cooling to maintain optimal component temperatures, the ThinkSystem SD665 V3 operates without fans, which are typically significant energy consumers. Customers who have adopted Neptune™ DWC systems report estimated energy savings of up to 40% through hardware and software optimization. The absence of fans not only reduces energy usage, but also eliminates fan noise, ensuring near-silent operation.

Specifications

Form Factor
  • Full-wide 1U tray (2 nodes per tray)
Chassis
  • DW612S Enclosure (6U)
Processors
  • 2x 5th Generation AMD EPYC™ Processors per node
Memory
  • Up to 3.0TB using 24x 128GB 6400 MHz TruDDR5 RDIMM slots per tray
I/O Expansion
  • Up to 2x PCIe Gen 5 x16 low-profile adapter slots (2x supported without internal storage) per node for NDR InfiniBand. Shared I/O and SocketDirect supported.
Internal Storage
  • Up to 4x 2.5-inch NVMe SSDs (7mm height) or 2x 2.5-inch NVMe SSDs (15mm height) per node Liquid cooled M.2 NVMe SSD for both operating system boot and storage functions
RAID Support
  • OS Software RAID
Network Interfaces
  • 2x 25GbE SFP28 LOM (1Gb, 10Gb or 25Gb capable; supports NC-SI) 1GbE RJ45 (supports NC-SI)
Power Management
  • Rack-level power capping and management via open-source management software Confluent and application-level energy optimization through Energy Aware Runtime (EAR)
Systems Management
  • Systems management using Lenovo HPC & AI Software stack with Lenovo Intelligent Computing Orchestration (LiCO) portal and XClarity Controller (XCC). Supports TPM 2.0 for advanced cryptographic functionality. SMM management module in the enclosure (supports daisy chaining to reduce cabling requirements).
Front Access
  • All adapters and drives are accessible from the front of the server. Front ports include KVM breakout connector and External Diagnostics Handset port for local management.
Rear access
  • 2x RJ45 (LAN) on the SMM management module in the enclosure for XCC with daisy chain support; USB 2.0 for SMM FFDC log collection
Power Supply
  • Up to 9x hot-swap air-cooled power supplies (2400W Platinum, 2600W Titanium) Up to 3x hot-swap direct-water-cooled power supplies (7200W Titanium) Supports up to N+1 redundancy
Cooling Design
  • Direct Water Cooling at the heat source with up to 50°C inlet water temperature
OS Support
  • Red Hat SUSERocky Linux (with LeSI support)Visit lenovopress.com/osig for more information.
Limited Warranty
  • 3-year customer replaceable unit and onsite limited warranty, next business day 9×5, service upgrades available
SKU: thinksystem-sd665-v3-supercomputing-server Categorii: , , ,
Form Factor
  • Full-wide 1U tray (2 nodes per tray)
Chassis
  • DW612S Enclosure (6U)
Processors
  • 2x 5th Generation AMD EPYC™ Processors per node
Memory
  • Up to 3.0TB using 24x 128GB 6400 MHz TruDDR5 RDIMM slots per tray
I/O Expansion
  • Up to 2x PCIe Gen 5 x16 low-profile adapter slots (2x supported without internal storage) per node for NDR InfiniBand. Shared I/O and SocketDirect supported.
Internal Storage
  • Up to 4x 2.5-inch NVMe SSDs (7mm height) or 2x 2.5-inch NVMe SSDs (15mm height) per node Liquid cooled M.2 NVMe SSD for both operating system boot and storage functions
RAID Support
  • OS Software RAID
Network Interfaces
  • 2x 25GbE SFP28 LOM (1Gb, 10Gb or 25Gb capable; supports NC-SI) 1GbE RJ45 (supports NC-SI)
Power Management
  • Rack-level power capping and management via open-source management software Confluent and application-level energy optimization through Energy Aware Runtime (EAR)
Systems Management
  • Systems management using Lenovo HPC & AI Software stack with Lenovo Intelligent Computing Orchestration (LiCO) portal and XClarity Controller (XCC). Supports TPM 2.0 for advanced cryptographic functionality. SMM management module in the enclosure (supports daisy chaining to reduce cabling requirements).
Front Access
  • All adapters and drives are accessible from the front of the server. Front ports include KVM breakout connector and External Diagnostics Handset port for local management.
Rear access
  • 2x RJ45 (LAN) on the SMM management module in the enclosure for XCC with daisy chain support; USB 2.0 for SMM FFDC log collection
Power Supply
  • Up to 9x hot-swap air-cooled power supplies (2400W Platinum, 2600W Titanium) Up to 3x hot-swap direct-water-cooled power supplies (7200W Titanium) Supports up to N+1 redundancy
Cooling Design
  • Direct Water Cooling at the heat source with up to 50°C inlet water temperature
OS Support
  • Red Hat SUSERocky Linux (with LeSI support)Visit lenovopress.com/osig for more information.
Limited Warranty
  • 3-year customer replaceable unit and onsite limited warranty, next business day 9×5, service upgrades available
