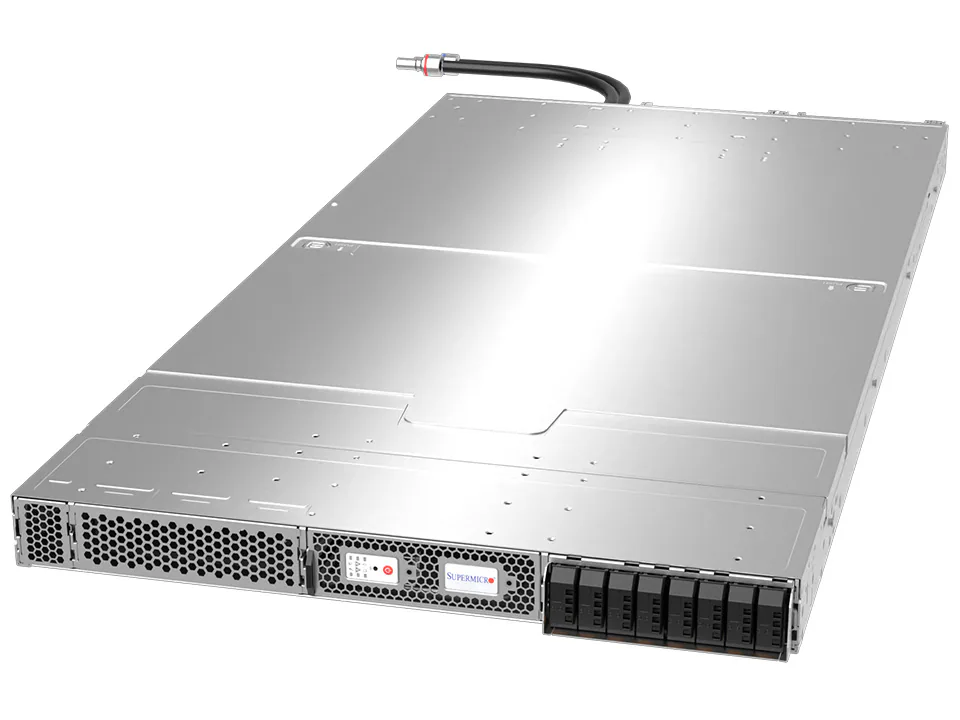

Supermicro SuperServer ARS-111GL-NHR-LCC
Supermicro SuperServer ARS-111GL-NHR-LCC - imagine 2
Supermicro SuperServer ARS-111GL-NHR-LCC - imagine 3
, , ,

Supermicro SuperServer ARS-111GL-NHR-LCC

Favorite
Compara

NVIDIA GH200 Grace Hopper Superchip system with liquid-cooling supporting NVIDIA BlueField-3 or NVIDIA ConnectX-7

Pretul afisat contine TVA (21%).

SuperServer ARS-111GL-NHR-LCC

NVIDIA GH200 Grace Hopper Superchip system with liquid-cooling supporting NVIDIA BlueField-3 or NVIDIA ConnectX-7

Key Features

  1. High density 1U GPU system with Integrated NVIDIA® H100 GPU and liquid cooling
  2. NVIDIA Grace Hopper™ Superchip (Grace CPU and H100 GPU)
  3. NVLink® Chip-2-Chip (C2C) high-bandwidth, low-latency interconnect between CPU and GPU at 900GB/s
  4. Up to 576GB of coherent memory per node including 480GB LPDDR5X and 96GB of HBM3 for LLM applications
  5. 2x PCIe 5.0 x16 slots supporting NVIDIA BlueField®-3 or ConnectX®-7
  6. 7 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control
  7. This system supports two E1.S drives directly from the processor only.

Specifications

Product SKUs
  • ARS-111GL-NHR-LCC
Motherboard

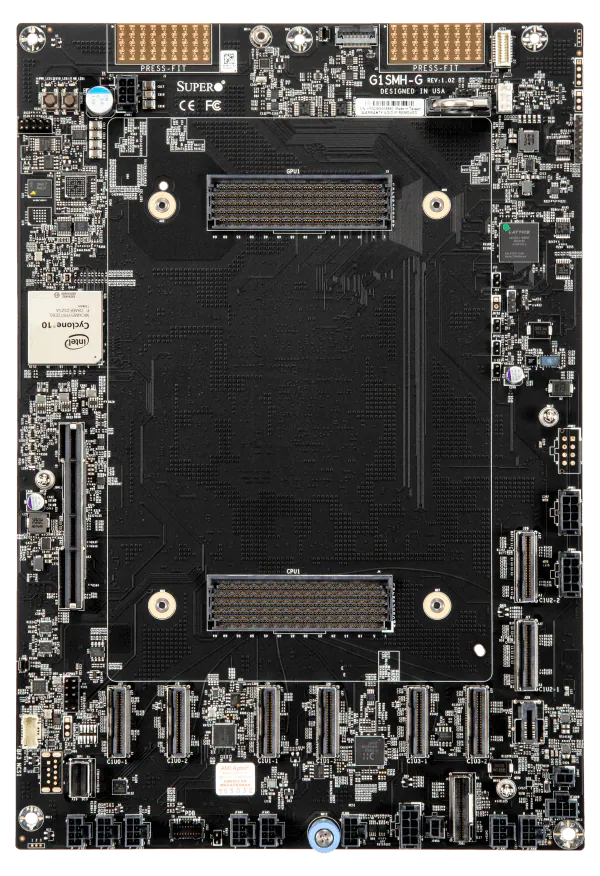

  • Super G1SMH-G
Processor
CPU
  • NVIDIA 72-core NVIDIA Grace CPU on GH200 Grace Hopper™ Superchip
Note
  • Supports up to 1000W TDP CPUs (Liquid Cooled)​
GPU
Max GPU Count
  • 1 onboard GPU
Supported GPU
  • NVIDIA: H100 Tensor Core GPU on GH200 Grace Hopper™ Superchip
CPU-GPU Interconnect
  • NVIDIA NVLink®-C2C
System Memory
Memory
  • Slot Count: Onboard Memory
  • Max Memory: Up to 480GB ECC LPDDR5X
  • Additional GPU Memory: Up to 96GB ECC HBM3
On-Board Devices
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
Video
  • 1 mini-DP port
System BIOS
BIOS Type
  • AMI 64MB SPI Flash EEPROM
Management
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • ARS-111GL-NHR-LCC
  • Super G1SMH-G
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-GP102TS-R000NDFP
Dimensions and Weight
Height
  • 1.75″ (44 mm)
Width
  • 17.33″ (440 mm)
Depth
  • 37″ (940 mm)
Package
  • 9.5″ (H) x 28″ (W) x 48″ (D)
Weight
  • Gross Weight: 65.5 lbs (29.7 kg)
  • Net Weight: 48.5 lbs (22 kg)
Available Color
  • Silver
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default2 PCIe 5.0 x16 FHFL slots
  • 2 PCIe 5.0 x16 FHFL slots
Drive Bays / Storage
Drive Bays Configuration

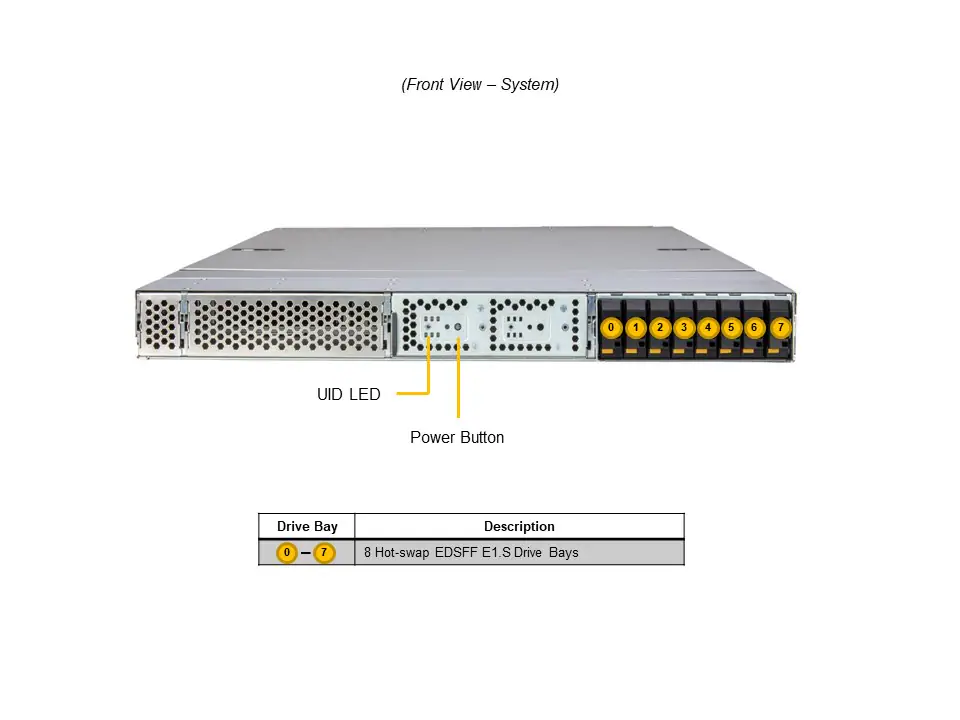

  • Default: Total 8 bays8 front fixed E1.S NVMe drive bays
  • 8 front fixed E1.S NVMe drive bays
M.2
  • 2 M.2 NVMe slots (M-key)
  • View M.2 Options
System Cooling
Fans
  • Up to 7 Removable heavy-duty 4cm Fan(s)
Liquid Cooling
  • Direct to Chip (D2C) Cold Plate (optional)
Power Supply
  • 2x 2000W 2x 2000W Redundant Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 185 mm Input1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for CQC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 73.5 x 40 x 185 mm
Input
  • 1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for CQC only)
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac)
12V SB
  • Max: 3.5A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • 2x 2000W 2x 2000W Redundant Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 185 mm Input1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for CQC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Output TypeBackplanes (gold finger)
