Supermicro SuperServer ARS-121L-DNR-LCC
Supermicro SuperServer ARS-121L-DNR-LCC - imagine 2
Supermicro SuperServer ARS-121L-DNR-LCC - imagine 3
Supermicro SuperServer ARS-121L-DNR-LCC - imagine 4
Supermicro SuperServer ARS-121L-DNR-LCC - imagine 5
Supermicro SuperServer ARS-121L-DNR-LCC - imagine 6
, , ,

Supermicro SuperServer ARS-121L-DNR-LCC

Favorite
Compara

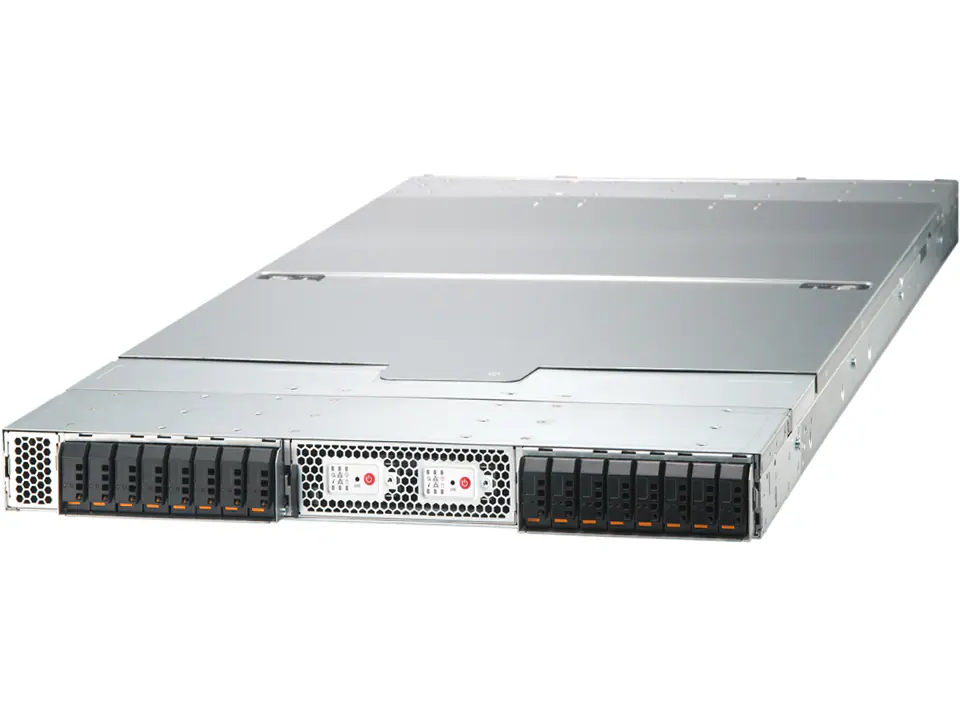

1U 2-Node NVIDIA Grace™ CPU Superchip liquid-cooled system supporting NVIDIA BlueField®-3 or NVIDIA ConnectX®-7 (complete rack and onsite service are required)

Pretul afisat contine TVA (21%).

SuperServer ARS-121L-DNR-LCC

1U 2-Node NVIDIA Grace™ CPU Superchip liquid-cooled system supporting NVIDIA BlueField®-3 or NVIDIA ConnectX®-7 (complete rack and onsite service are required)

Key Features

  1. High density processor(s) NVIDIA 144-core CPUs on a Grace™ CPU Superchip with liquid- cooling
  2. Up to 960GB onboard memory
  3. Up to 2xPCIe 5.0 x16 slots
  4. Up to 2xE1.S NVMe drive bays, 2xM.2 NVMe drive
  5. 2 Redundant 2000W Titanium Level power supplies

Specifications

Product SKUs
  • ARS-121L-DNR-LCC
Motherboard

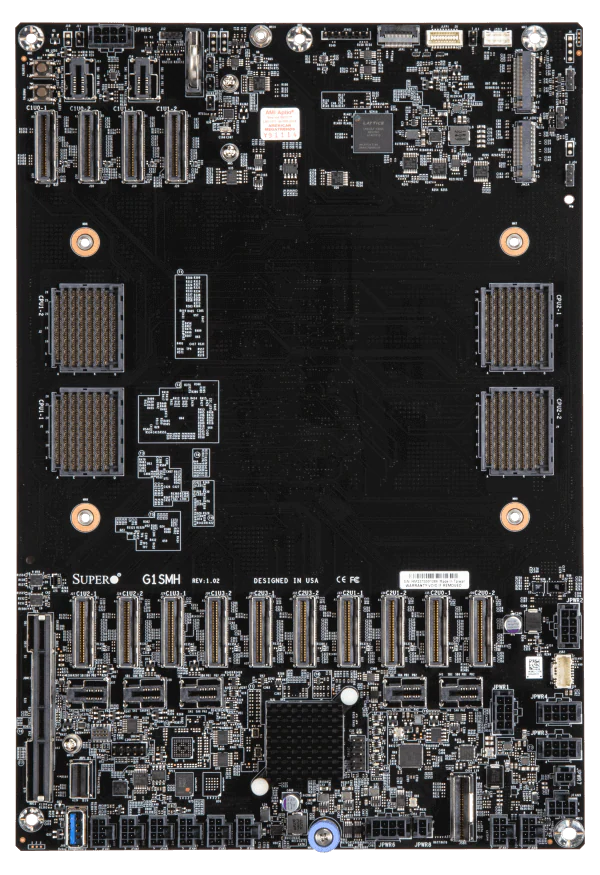

  • Super G1SMH
Processor (per Node)
CPU
  • Single processor(s)
  • NVIDIA Dual 72-core CPUs on a Grace™ CPU Superchip
Note
  • Supports up to 500W TDP CPUs (Liquid Cooled)​
System Memory (per Node)
Memory
  • Slot Count: Onboard Memory
  • Max Memory: Up to 960GB ECC
On-Board Devices (per Node)

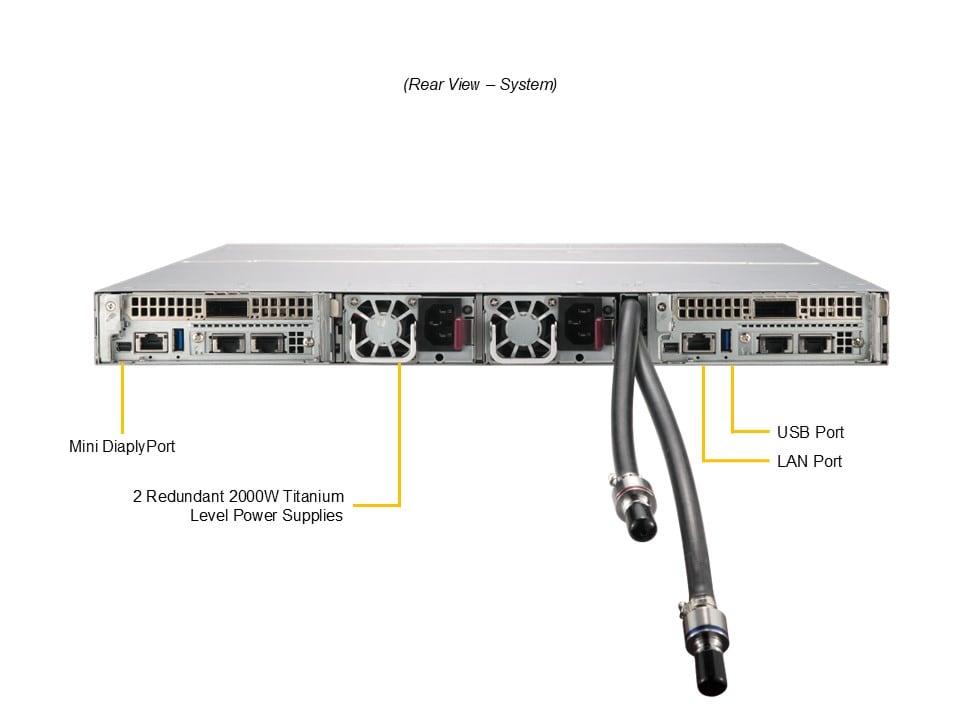

Input / Output (per Node)
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 1 port(Rear)
Video
  • 1 mini-DP port
System BIOS
BIOS Type
  • AMI 64MB SPI Flash EEPROM
Management
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • ARS-121L-DNR-LCC
  • Super G1SMH
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-MG102TS-R000NDFP-2N
Dimensions and Weight
Height
  • 1.7″ (43.6 mm)
Width
  • 17.26″ (438.4 mm)
Depth
  • 35.4″ (900 mm)
Package
  • 9.05″ (H) x 27.36″ (W) x 46.06″ (D)
Weight
  • Gross Weight: 49.21 lbs (22.32 kg)
  • Net Weight: 33.64 lbs (15.26 kg)
Available Color
  • Silver

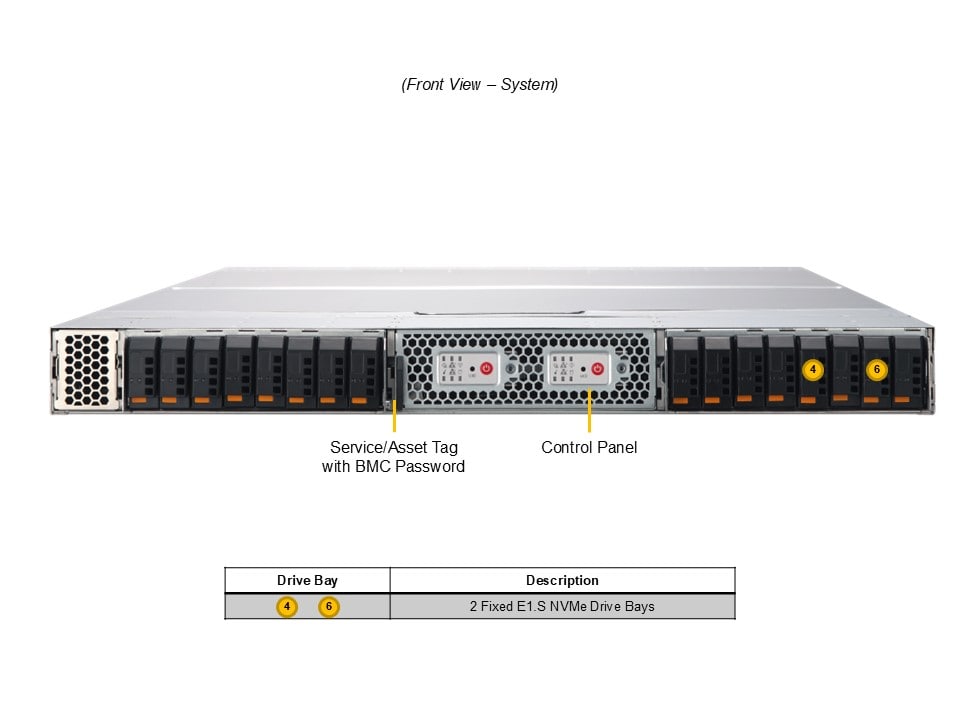

Front Panel
Buttons
  • Power On/Off button
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration
  • Default1 PCIe 5.0 x16 FHFL slot 1 PCIe 5.0 x16 LP slot
  • 1 PCIe 5.0 x16 FHFL slot
  • 1 PCIe 5.0 x16 LP slot
Drive Bays / Storage (per Node)
Drive Bays Configuration

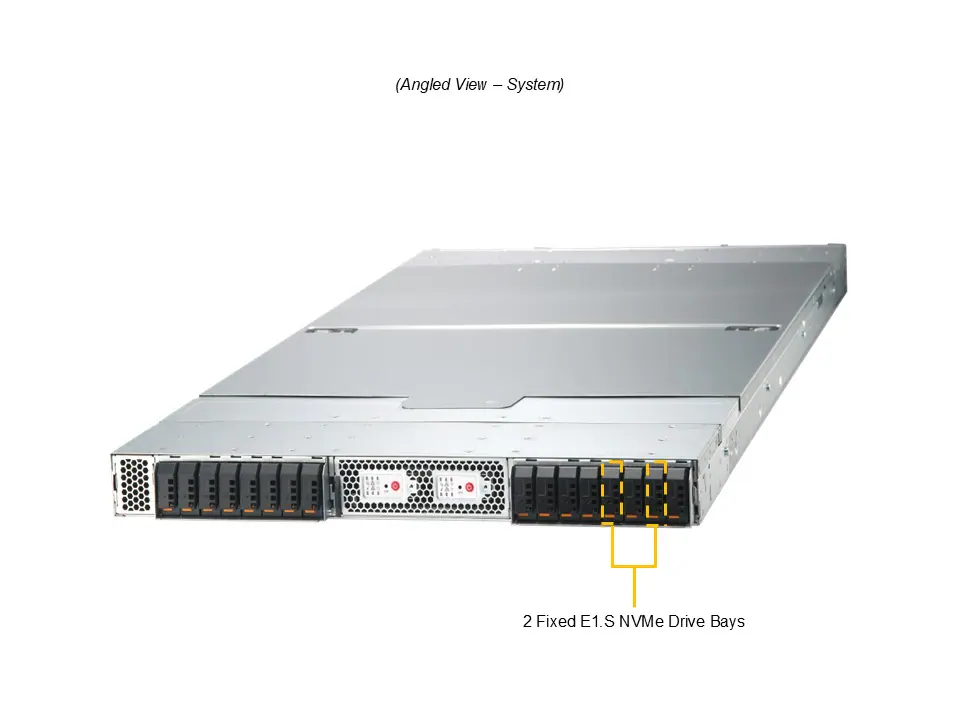

  • Default: Total 2 bays2 front fixed E1.S NVMe drive bays
  • 2 front fixed E1.S NVMe drive bays
M.2
  • 2 M.2 NVMe slots (M-key)
  • View M.2 Options

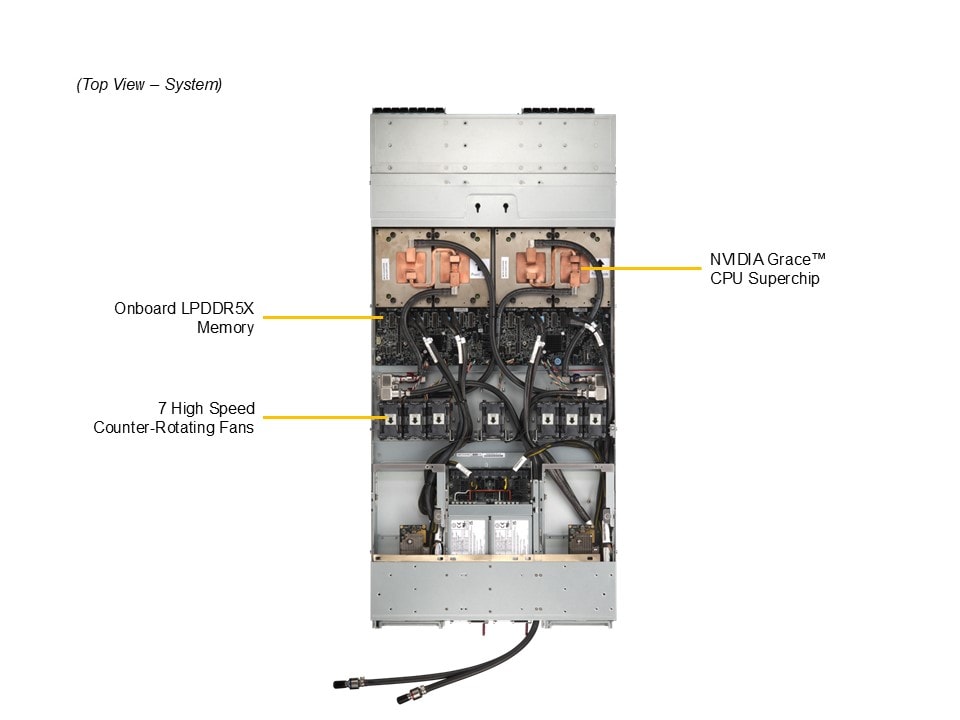

System Cooling
Fans
  • Up to 7 Removable heavy-duty 4cm Fan(s)
Liquid Cooling
  • Direct to Chip (D2C) Cold Plate
Power Supply
  • 2x 2000W 2x 2000W Redundant Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 185 mm Input1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for CQC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 73.5 x 40 x 185 mm
Input
  • 1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for CQC only)
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac)
12V SB
  • Max: 3.5A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • 2x 2000W 2x 2000W Redundant Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 185 mm Input1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for CQC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Output TypeBackplanes (gold finger)
SKU: ars-121l-dnr-lcc Categorii: , , ,
Product SKUs
  • ARS-121L-DNR-LCC
Motherboard
  • Super G1SMH
Processor (per Node)
CPU
  • Single processor(s)
  • NVIDIA Dual 72-core CPUs on a Graceâ„¢ CPU Superchip
Note
  • Supports up to 500W TDP CPUs (Liquid Cooled)​
System Memory (per Node)
Memory
  • Slot Count: Onboard Memory
  • Max Memory: Up to 960GB ECC
On-Board Devices (per Node)
Input / Output (per Node)
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 1 port(Rear)
Video
  • 1 mini-DP port
System BIOS
BIOS Type
  • AMI 64MB SPI Flash EEPROM
Management
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • ARS-121L-DNR-LCC
  • Super G1SMH
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-MG102TS-R000NDFP-2N
Dimensions and Weight
Height
  • 1.7″ (43.6 mm)
Width
  • 17.26″ (438.4 mm)
Depth
  • 35.4″ (900 mm)
Package
  • 9.05″ (H) x 27.36″ (W) x 46.06″ (D)
Weight
  • Gross Weight: 49.21 lbs (22.32 kg)
  • Net Weight: 33.64 lbs (15.26 kg)
Available Color
  • Silver
Front Panel
Buttons
  • Power On/Off button
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration
  • Default1 PCIe 5.0 x16 FHFL slot 1 PCIe 5.0 x16 LP slot
  • 1 PCIe 5.0 x16 FHFL slot
  • 1 PCIe 5.0 x16 LP slot
Drive Bays / Storage (per Node)
Drive Bays Configuration
  • Default: Total 2 bays2 front fixed E1.S NVMe drive bays
  • 2 front fixed E1.S NVMe drive bays
M.2
  • 2 M.2 NVMe slots (M-key)
  • View M.2 Options
System Cooling
Fans
  • Up to 7 Removable heavy-duty 4cm Fan(s)
Liquid Cooling
  • Direct to Chip (D2C) Cold Plate
Power Supply
  • 2x 2000W 2x 2000W Redundant Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 185 mm Input1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for CQC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 73.5 x 40 x 185 mm
Input
  • 1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for CQC only)
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac)
12V SB
  • Max: 3.5A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • 2x 2000W 2x 2000W Redundant Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 185 mm Input1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for CQC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Output TypeBackplanes (gold finger)
