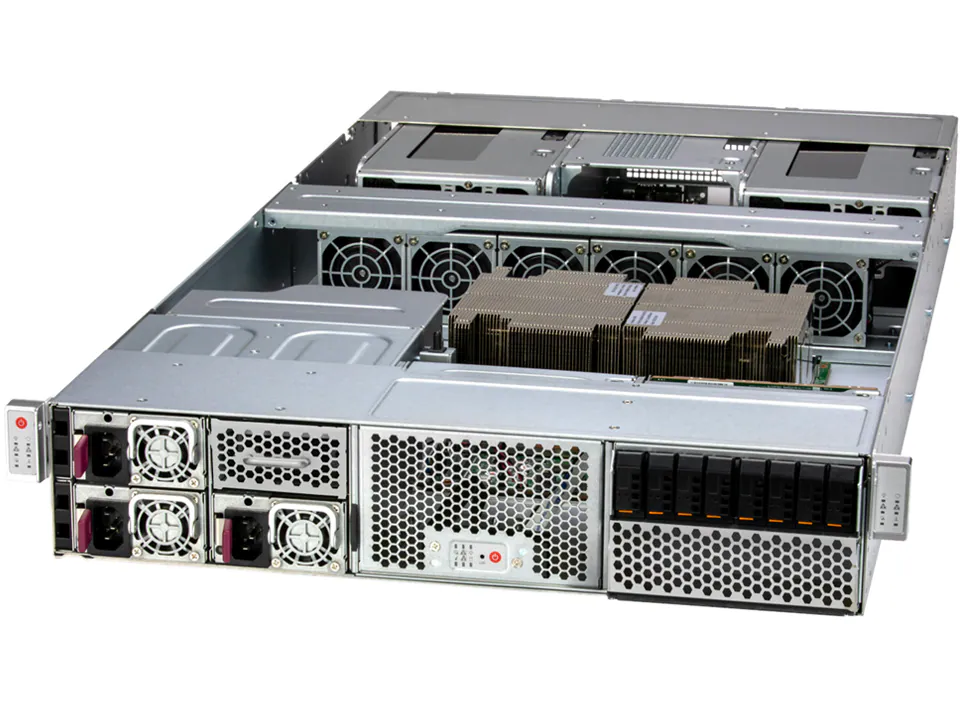

Supermicro SuperServer ARS-221GL-NR
Supermicro SuperServer ARS-221GL-NR - imagine 2
Supermicro SuperServer ARS-221GL-NR - imagine 3
Supermicro SuperServer ARS-221GL-NR - imagine 4
Supermicro SuperServer ARS-221GL-NR - imagine 5
Supermicro SuperServer ARS-221GL-NR - imagine 6
, , ,

Supermicro SuperServer ARS-221GL-NR

Favorite
Compara

DP NVIDIA Grace Superchip system with up to 2 L40S or 2 single non-bridged NVIDIA H100 NVL

Pretul afisat contine TVA (21%).

SuperServer ARS-221GL-NR

DP NVIDIA Grace Superchip system with up to 2 L40S or 2 single non-bridged NVIDIA H100 NVL

Key Features

  1. High density 2U GPU system with up to 2 NVIDIA® PCIe GPUsPCIe-based NVIDIA H100 NVL and NVIDIA L40s
  2. High density 2U GPU system with up to 2 NVIDIA® PCIe GPUs
  3. PCIe-based NVIDIA H100 NVL and NVIDIA L40s
  4. Energy-Efficient NVIDIA Grace™ CPU Superchip with 144 Cores
  5. Up to 960GB ECC LPDDR5X onboard memory option for minimum latency and maximum power efficiency
  6. 5 PCIe 5.0 x16 FHFL Slots
  7. 4 E1.S NVMe Storage Support

Specifications

Product SKUs
  • ARS-221GL-NR

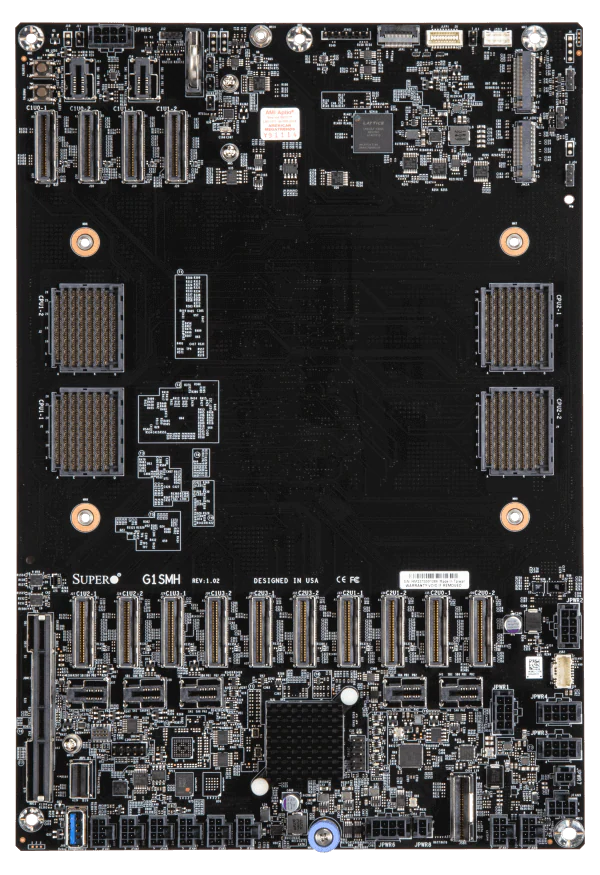

Motherboard
  • Super G1SMH
Processor
CPU
  • Dual processor(s)
  • NVIDIA Dual 72-core CPUs on a Grace™ CPU Superchip
Note
  • Supports up to 600W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 2 double-width GPUs
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • PCIe
System Memory
Memory
  • Slot Count: Onboard Memory
  • Max Memory: Up to 960GB ECC LPDDR5X
On-Board Devices
Network Connectivity
  • 1 RJ45 1GbE
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 Type-A ports(Rear)
Video
  • 1 mini-DP port
TPM
  • 1 TPM Onboard/port 80
System BIOS
BIOS Type
  • AMI 64MB SPI Flash EEPROM
Management
Software
  • Redfish API
  • Supermicro Update Manager (SUM)
  • KVM with dedicated LAN
  • IPMI 2.0
  • Watch Dog
  • OOB Management Package (SFT-OOB-LIC )
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • ARS-221GL-NR
  • Super G1SMH
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-GP201TS-R000NP
Dimensions and Weight
Height
  • 3.46″ (88 mm)
Width
  • 17.25″ (438.4 mm)
Depth
  • 35.43″ (900 mm)
Package
  • 11″ (H) x 22.5″ (W) x 45.5″ (D)
Weight
  • Gross Weight: 86.5 lbs (39.2 kg)
  • Net Weight: 67.5 lbs (30.6 kg)
Available Color
  • Black front & silver body

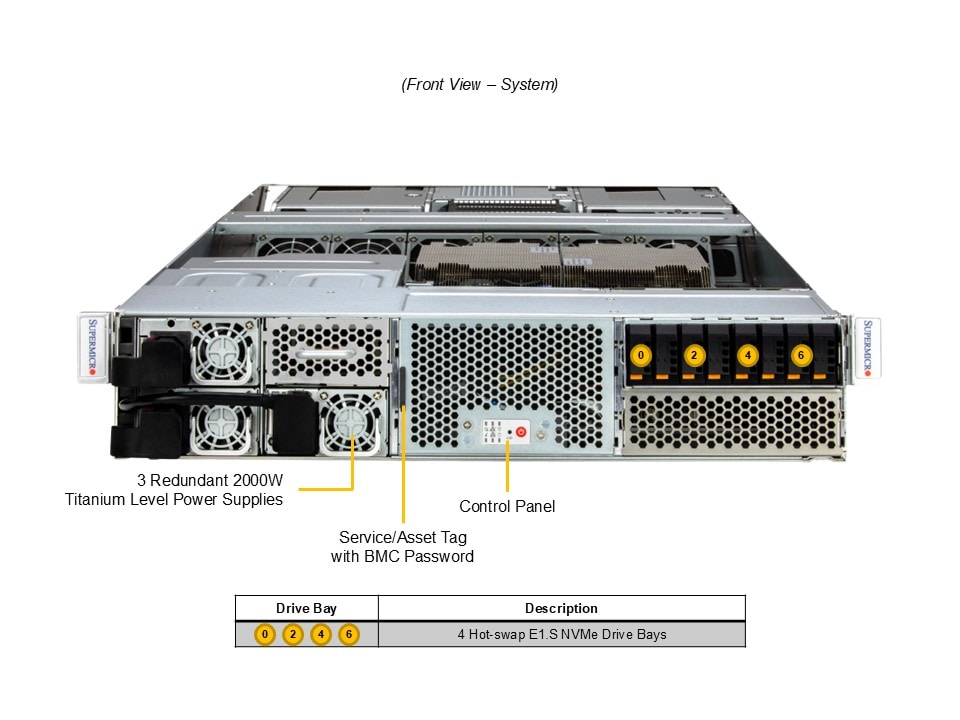

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LED
  • Hard drive activity LED
  • Network activity LEDs
  • Power status LED
  • System Overheat & Power Fail LED

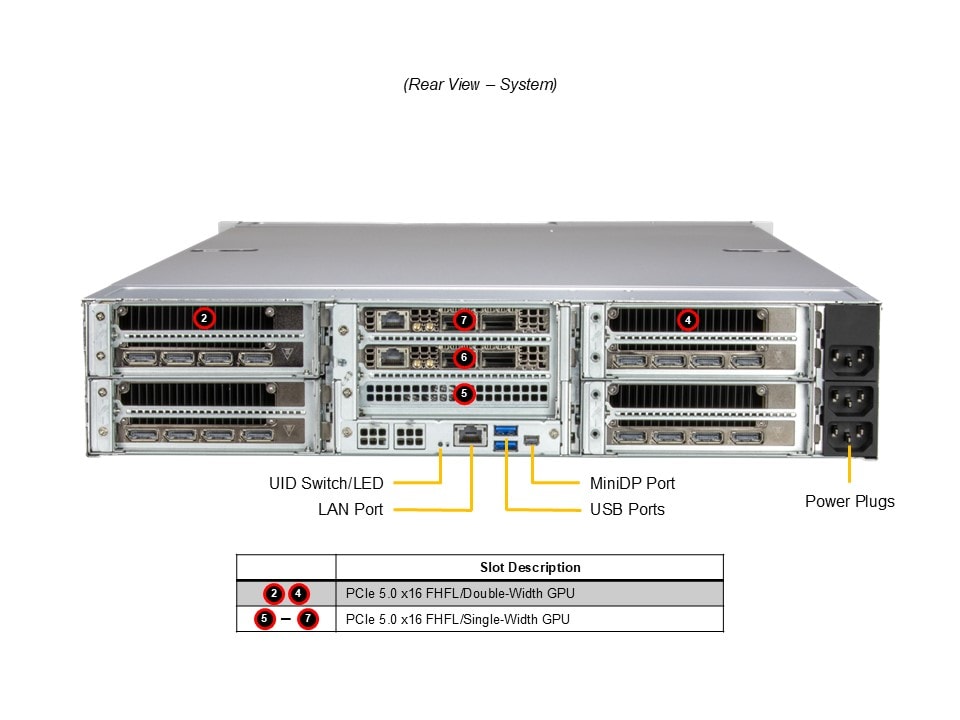

Expansion Slots
PCI-Express (PCIe) Configuration
  • Default3 PCIe 5.0 x16 FHFL slots 2 PCIe 5.0 x16 FHFL double-width slots
  • 3 PCIe 5.0 x16 FHFL slots
  • 2 PCIe 5.0 x16 FHFL double-width slots
Drive Bays / Storage
Drive Bays Configuration

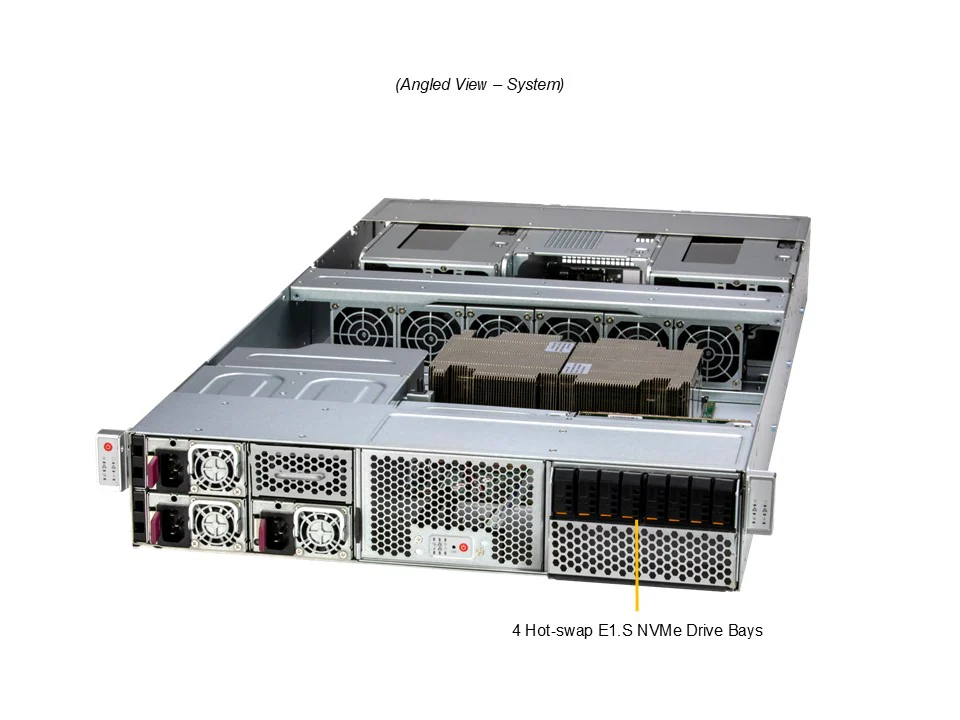

  • Default: Total 4 bays4 front hot-swap E1.S NVMe drive bays
  • 4 front hot-swap E1.S NVMe drive bays
M.2
  • 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 22110)
  • View M.2 Options

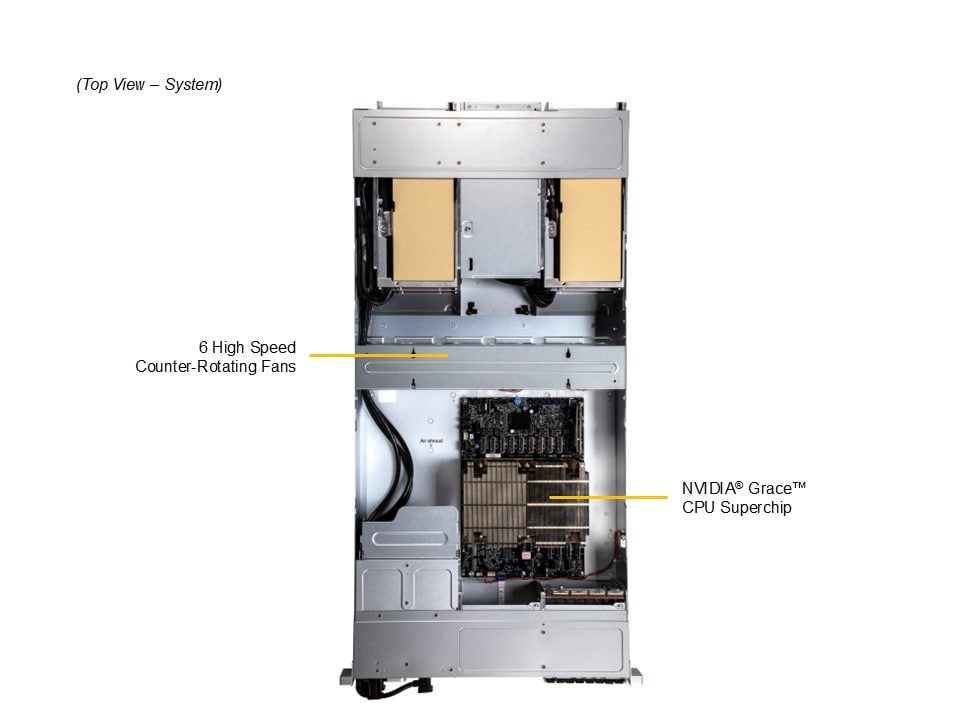

System Cooling
Fans
  • Up to 6 heavy duty fans with optimal fan speed control
Power Supply
  • 3x 2000W 3x 2000W Redundant Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 185 mm
Dimension (WxHxL)
  • 73.5 x 40 x 185 mm
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • 3x 2000W 3x 2000W Redundant Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 185 mm
Optional Parts List
