Supermicro SuperServer AS -4145GH-TNMR

Favorite
Compara

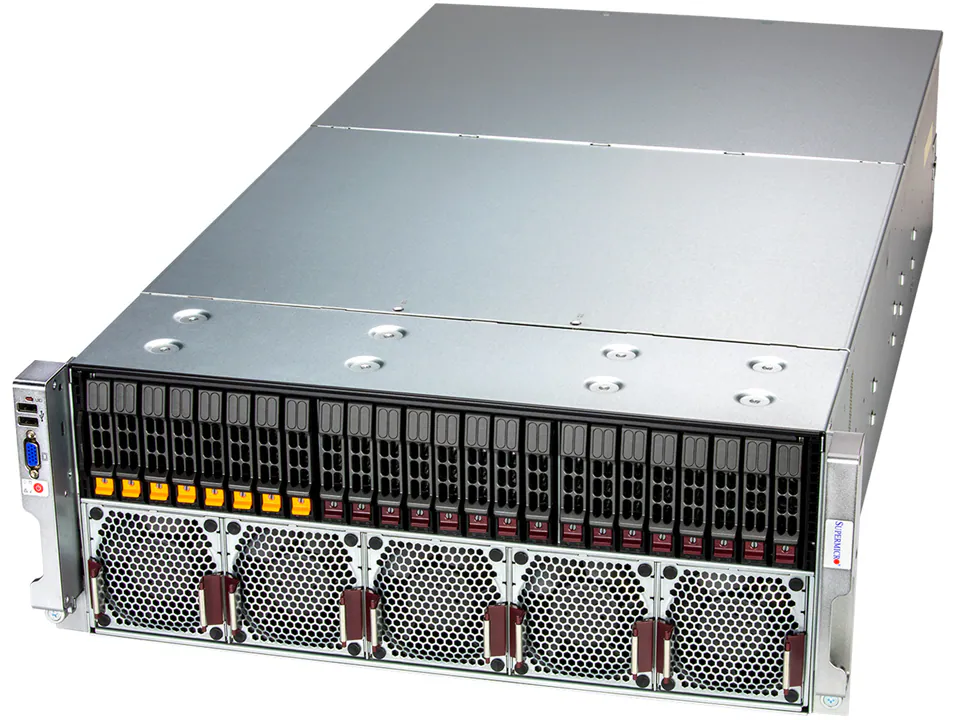

4U System with Quad AMD Instinct™ MI300A Accelerators (onsite service OSNBD is required)

Pretul afisat contine TVA (21%).

SuperServer AS -4145GH-TNMR

4U System with Quad AMD Instinct™ MI300A Accelerators (onsite service OSNBD is required)

Key Features

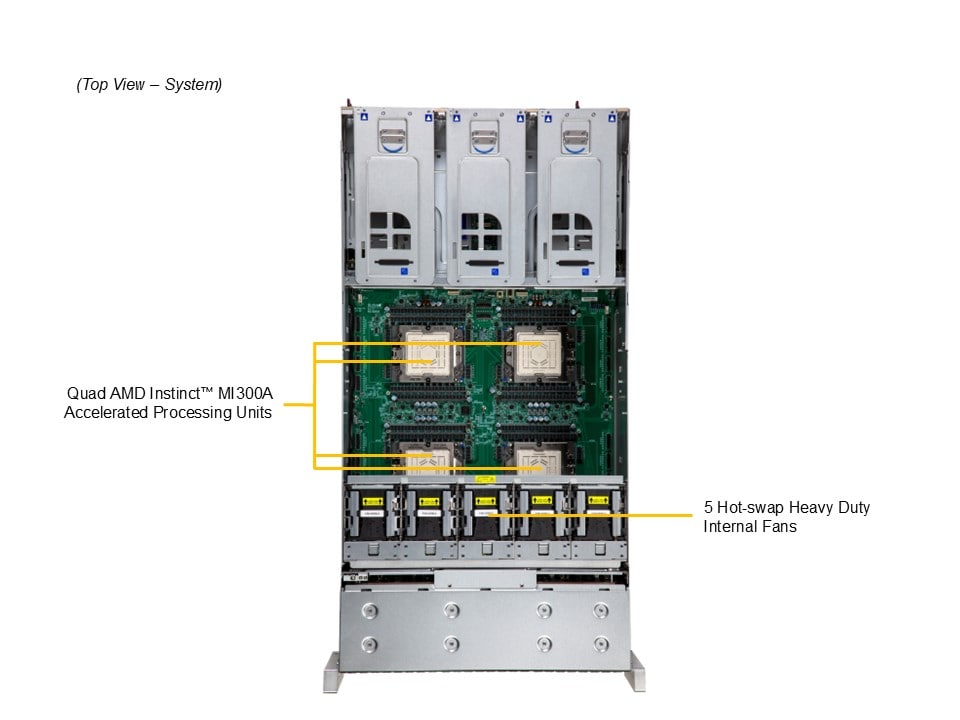

  1. Quad AMD Instinct™ MI300A processors
  2. Onboard 512GB HBM3 unified memory
  3. Optional PCIe configurations up to 8 PCIe x16 slots
  4. Flexible networking options with 2 AIOM networking slot (OCP NIC 3.0 compatible)

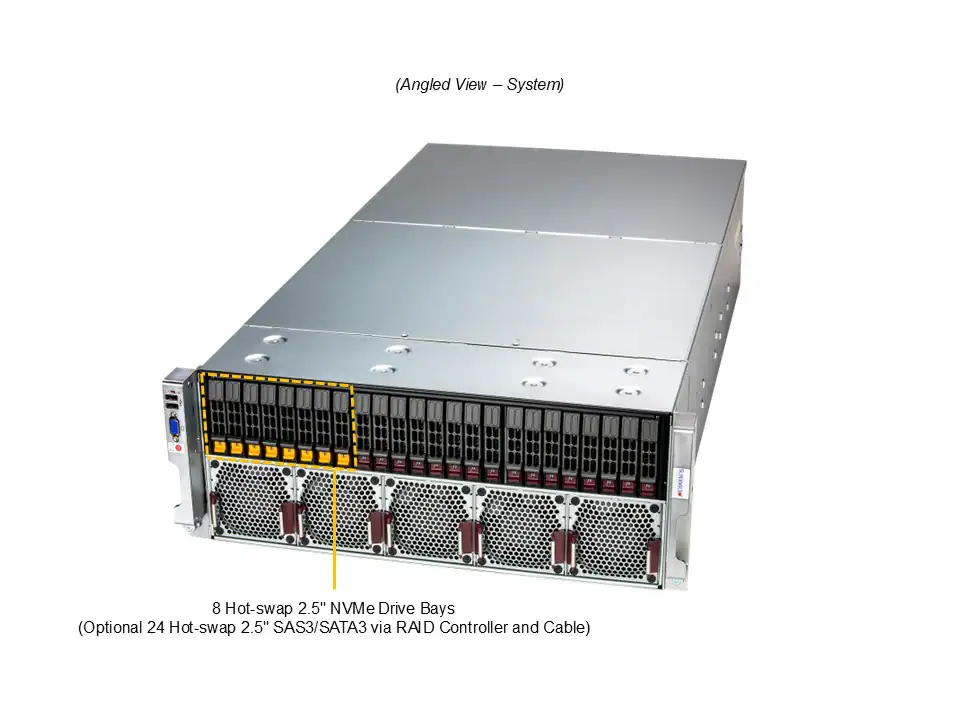

  5. Default 8 2.5″ NVMe drive bays or Optional 24 2.5″ SAS3/SATA3 drive bays via storage add-on card2 Internal NVMe/SATA M.2 slots
  6. Default 8 2.5″ NVMe drive bays or Optional 24 2.5″ SAS3/SATA3 drive bays via storage add-on card
  7. 2 Internal NVMe/SATA M.2 slots
  8. 10 heavy duty fans w/ optimal fan speed control
  9. 4x 2700W redundant Titanium level power supplies

Specifications

Product SKUs
  • A+ Server AS -4145GH-TNMR
Motherboard

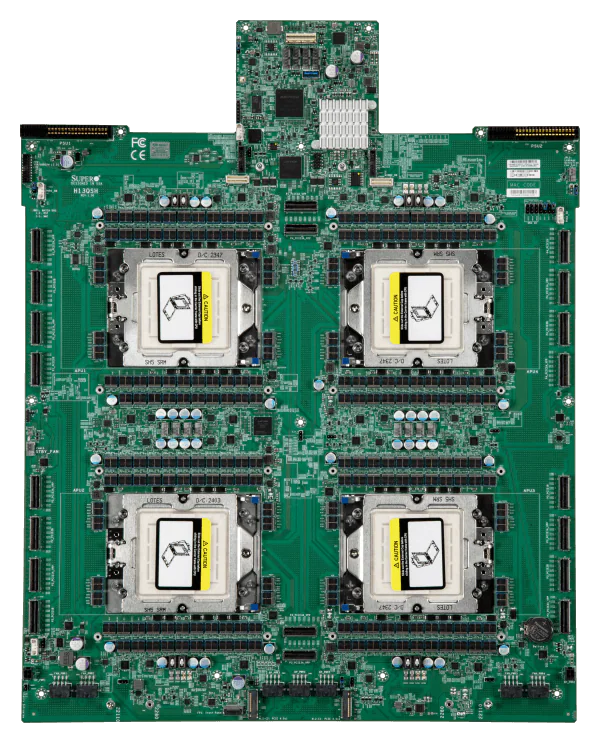

  • Super H13QSH
Processor
CPU
  • Quad Socket SH5
  • AMD Instinct™ MI300A Accelerated Processing Units (APUs)
Note
  • Supports up to 760W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • 4 onboard GPUs
GPU-GPU Interconnect
  • AMD Infinity Fabric™ Link
System Memory
Memory
  • Slot Count: Onboard Memory
  • Max Memory: Up to 512GB ECC HBM3
On-Board Devices
Chipset
  • AMD SH5
Network Connectivity
  • Via AIOM
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports(rear)
  • 2 USB 2.0 ports(front)
Video
  • 1 DisplayPort port
Serial
  • 1 COM port(rear)
System BIOS
BIOS Type
  • AMI 32MB SPI Flash
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • 4+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • A+ Server AS -4145GH-TNMR
  • Super H13QSH
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-418H2TS-R0AWNDP
Dimensions and Weight
Height
  • 7″ (177 mm)
Width
  • 17.3″ (438.4 mm)
Depth
  • 33.4″ (848.7 mm)
Package
  • 15.94″ (H) x 27.32″ (W) x 49.41″ (D)
Weight
  • Gross Weight: 158.07 lbs (71.7 kg)
  • Net Weight: 120.59 lbs (54.7 kg)
Available Color
  • No Paint
Expansion Slots

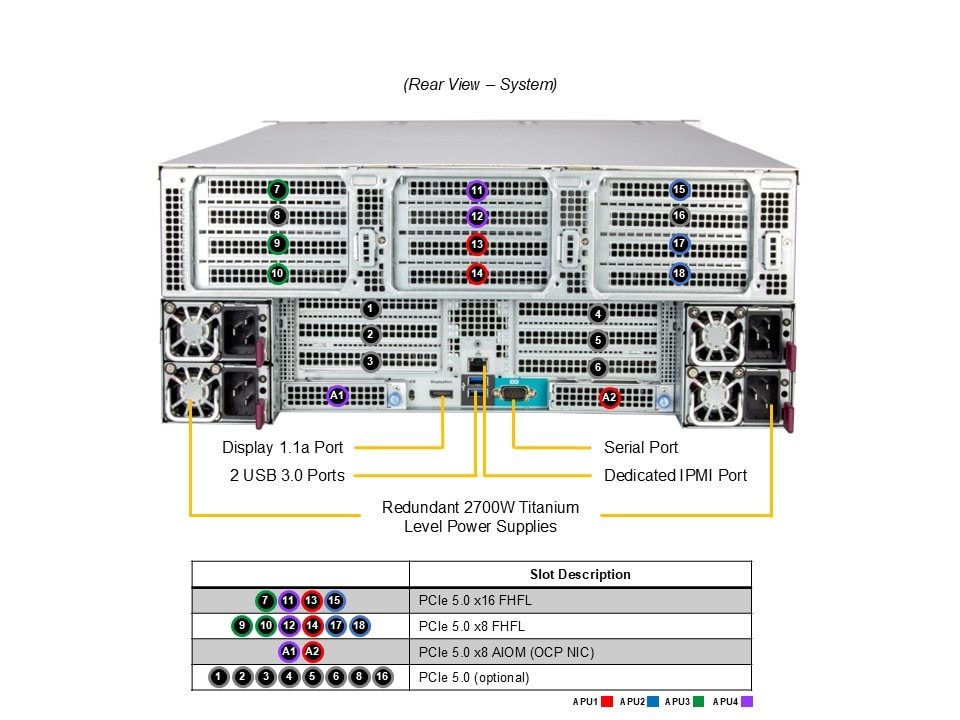

PCI-Express (PCIe) Configuration
  • Default4 PCIe 5.0 x16 FHHL slots 2 PCIe 5.0 x8 FHHL slots
  • 4 PCIe 5.0 x16 FHHL slots
  • 2 PCIe 5.0 x8 FHHL slots
  • Option A*4 PCIe 5.0 x16 FHHL slots 6 PCIe 5.0 x8 FHHL slots 2 PCIe 5.0 x8 AIOM slots (OCP 3.0 compatible)
  • 4 PCIe 5.0 x16 FHHL slots
  • 6 PCIe 5.0 x8 FHHL slots
  • 2 PCIe 5.0 x8 AIOM slots (OCP 3.0 compatible)
  • Option B*6 PCIe 5.0 x16 FHHL slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
  • 6 PCIe 5.0 x16 FHHL slots
  • 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
  • Option C*14 PCIe 5.0 x8 FHHL slots 2 PCIe 5.0 x8 AIOM slots (OCP 3.0 compatible)
  • 14 PCIe 5.0 x8 FHHL slots
  • 2 PCIe 5.0 x8 AIOM slots (OCP 3.0 compatible)
  • Option D*4 PCIe 5.0 x16 FHHL slots 2 PCIe 5.0 x8 FHHL slots 2 PCIe 5.0 x8 AIOM slots (OCP 3.0 compatible)
  • 4 PCIe 5.0 x16 FHHL slots
  • 2 PCIe 5.0 x8 FHHL slots
  • 2 PCIe 5.0 x8 AIOM slots (OCP 3.0 compatible)
  • (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
Drive Bays / Storage
Drive Bays Configuration

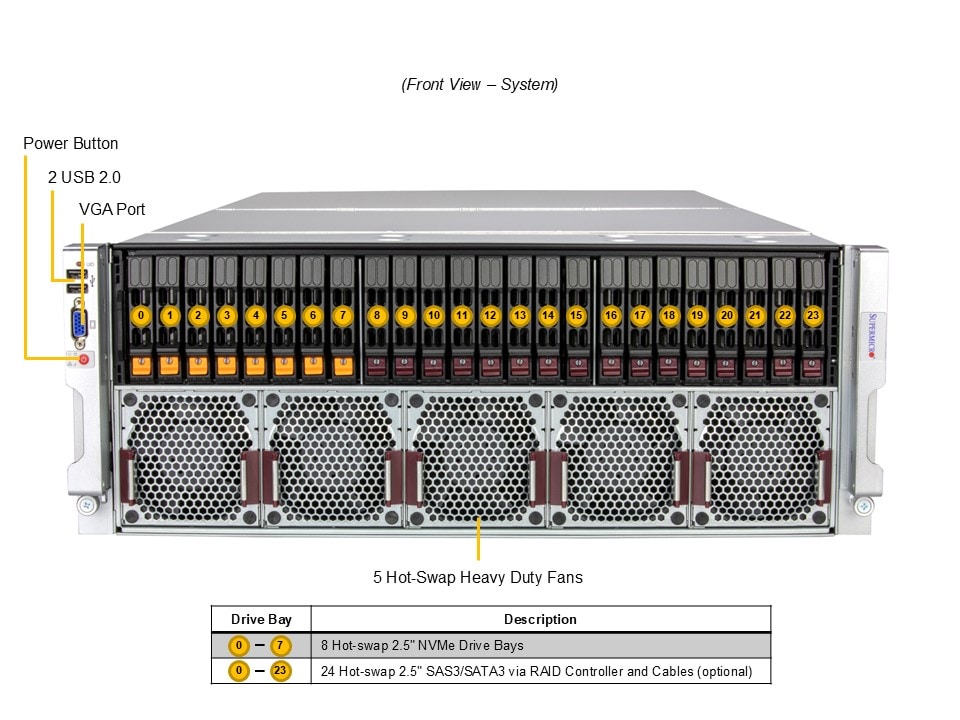

  • Default: Total 8 bays8 front fixed 2.5″ NVMe drive bays
  • 8 front fixed 2.5″ NVMe drive bays
  • Option A: Total 16 bays16 front fixed 2.5″ NVMe drive bays
  • 16 front fixed 2.5″ NVMe drive bays
  • Option B: Total 24 bays24 front fixed 2.5″ SAS*/SATA* drive bays
  • 24 front fixed 2.5″ SAS*/SATA* drive bays
  • (*SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
  • 2 M.2 NVMe slots (M-key 2280/22110)
  • View M.2 Options
System Cooling
Fans
  • Up to 10 Heavy duty counter-rotating 8cm Fan(s)
Air Shroud
  • 1 Air Shroud
Power Supply
  • 4x 2700W 4x 2700W Redundant (3 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 203 mm Input2700W: 200-240Vac 2700W: 200-240Vac / 50-60Hz 2700W: 240-240Vdc / 50-60Hz (for CQC only) +12VMax: 225A / Min: 0A (200Vac-240Vac)Max: 225A / Min: 0A (240Vdc-240Vdc) 12V SBMax: 3.5A / Min: 0A Max: 4A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 73.5 x 40 x 203 mm
Input
  • 2700W: 200-240Vac 2700W: 200-240Vac / 50-60Hz 2700W: 240-240Vdc / 50-60Hz (for CQC only)
+12V
  • Max: 225A / Min: 0A (200Vac-240Vac)Max: 225A / Min: 0A (240Vdc-240Vdc)
12V SB
  • Max: 3.5A / Min: 0A Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
  • 4x 2700W 4x 2700W Redundant (3 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 203 mm Input2700W: 200-240Vac 2700W: 200-240Vac / 50-60Hz 2700W: 240-240Vdc / 50-60Hz (for CQC only) +12VMax: 225A / Min: 0A (200Vac-240Vac)Max: 225A / Min: 0A (240Vdc-240Vdc) 12V SBMax: 3.5A / Min: 0A Max: 4A / Min: 0A Output TypeBackplanes (gold finger)
Optional Parts List
