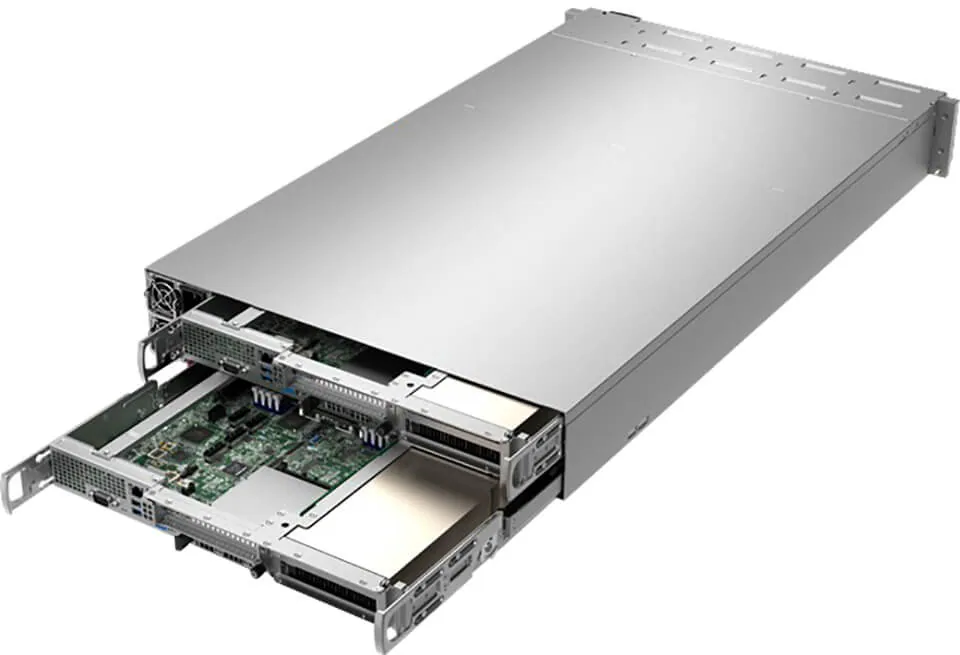

Supermicro SuperServer SYS-210GP-DNR
Supermicro SuperServer SYS-210GP-DNR - imagine 2
Supermicro SuperServer SYS-210GP-DNR - imagine 3
Supermicro SuperServer SYS-210GP-DNR - imagine 4
Supermicro SuperServer SYS-210GP-DNR - imagine 5
, , ,

Supermicro SuperServer SYS-210GP-DNR

Favorite
Compara

2U 2-Node System with UP Intel and Up to 3 GPUs per Node

Pretul afisat contine TVA (21%).

SuperServer SYS-210GP-DNR

2U 2-Node System with UP Intel and Up to 3 GPUs per Node

Key Features

  1. Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processor
  2. Intel® C621A Chipset
  3. 1TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs
  4. 3 PCIe Gen 4.0 x16 FHFL DW
  5. 2 front Hot-swap 2.5″ U.2 NVMe Gen4 drive bays2 M.2 NVMe and SATA for boot drive only
  6. AST2500 BMC

Specifications

Product SKUs
  • SuperServer SYS-210GP-DNR

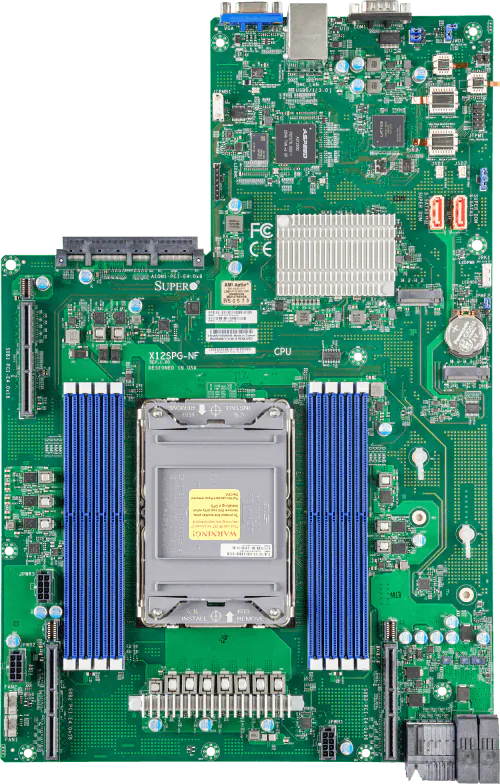

Motherboard
  • Super X12SPG-NF
Processor (per Node)
CPU
  • Single Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
GPU (per Node)
Max GPU Count
  • Up to 3 double-width or 3 single-width GPUs
Supported GPU
  • NVIDIA PCIe: A10, A100, A30, A40, RTX A4000, RTX A4500
CPU-GPU Interconnect
  • PCIe 4.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • PCIe
System Memory (per Node)
Memory
  • Slot Count: 8 DIMM slots
  • Max Memory (2DPC): Up to 1TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Memory Voltage
  • 1.2V
On-Board Devices (per Node)
Network Connectivity
  • Via AIOM
Input / Output (per Node)
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 7 +1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • SuperServer SYS-210GP-DNR
  • Super X12SPG-NF
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-227GTS-R2K63P
Dimensions and Weight
Height
  • 3.47″ (88 mm)
Width
  • 17.6″ (447 mm)

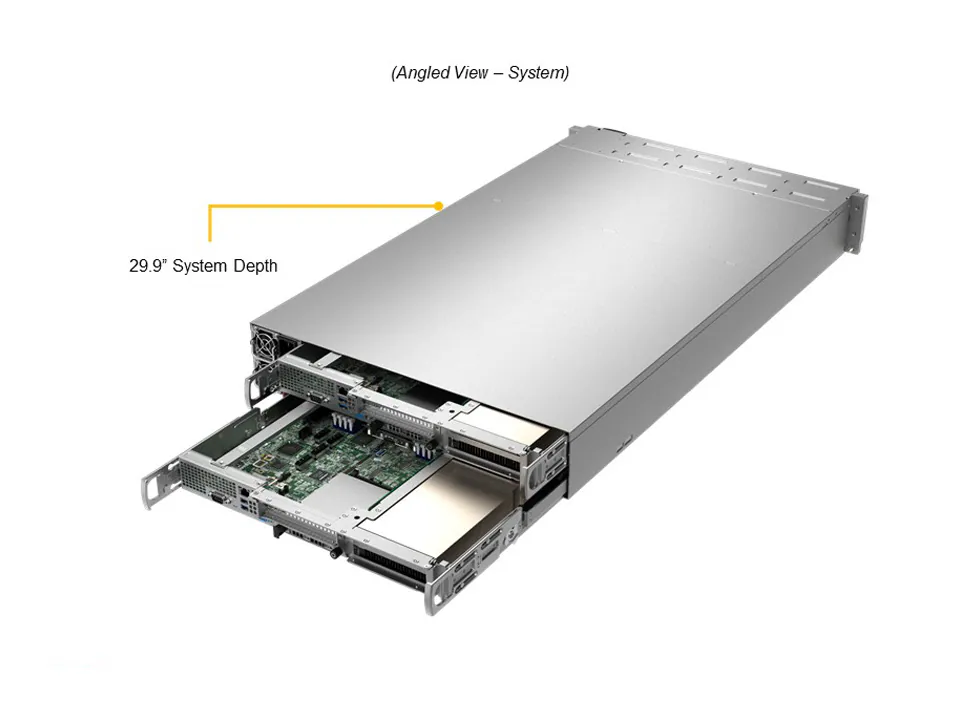

Depth
  • 29.9″ (760 mm)
Package
  • 9.44″ (H) x 23.62″ (W) x 43.3″ (D)
Weight
  • Gross Weight: 60 lbs (27.21 kg)
  • Net Weight: 55 lbs (24.94 kg)
Available Color
  • Black Front & Silver Body

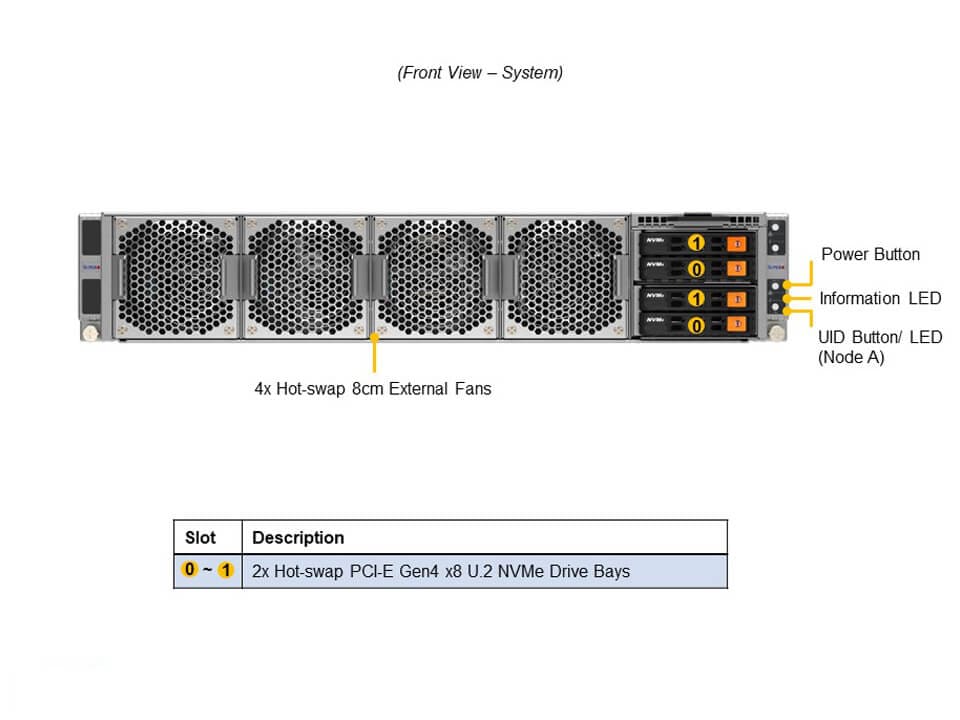

Front Panel
Buttons
  • Power On/Off button
  • System UID button/LED
LED
  • Hard drive activity LED
  • Information LED as manual description
  • Network activity LEDs
  • Power status LED
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration
  • Default3 PCIe 4.0 x16 FHFL double-width slots
  • 3 PCIe 4.0 x16 FHFL double-width slots
Drive Bays / Storage (per Node)
Drive Bays Configuration
  • Default: Total 2 bays2 front hot-swap 2.5″ NVMe drive bays
  • 2 front hot-swap 2.5″ NVMe drive bays
M.2
  • 2 M.2 NVMe/SATA slots (M-key)
  • View M.2 Options
System Cooling
Fans
  • Up to 4 Removable heavy-duty Fan(s)

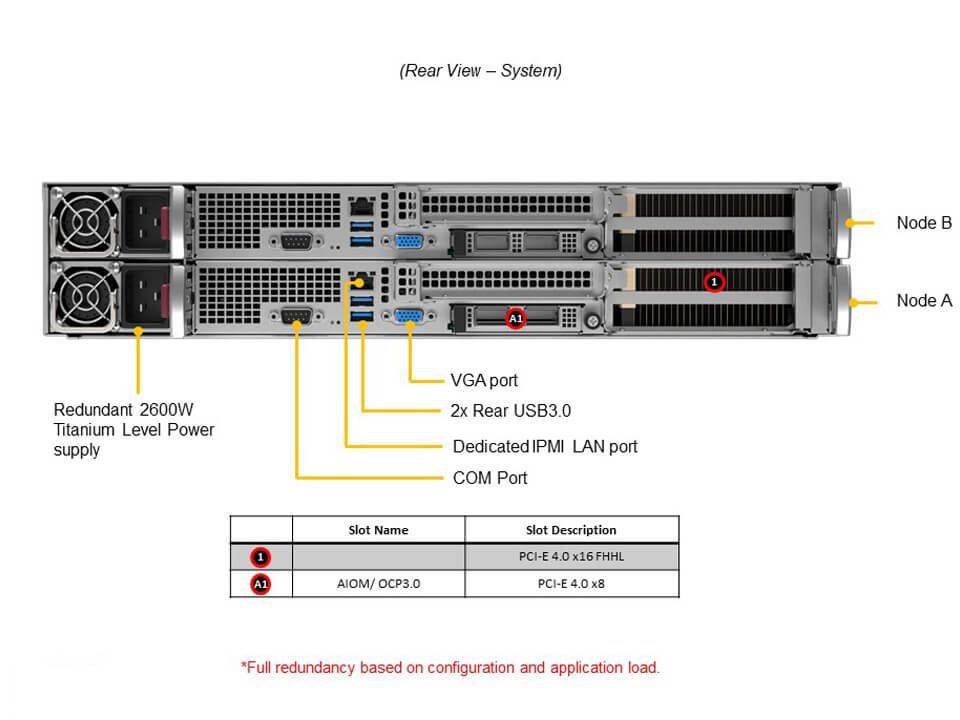

Power Supply
  • 1x 2600W 1x 2600W Redundant Titanium Level (96%) power supply Dimension (WxHxL)73.5 x 40 x 265 mm Input2600W: 200-240Vac 2600W: 200-240Vdc (For CQC Only)2600W: 200-240Vac / 50-60Hz 2600W: 200-240Vdc / 50-60Hz (for CQC only) +12VMax: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output)Max: 216A / Min: 0A (200Vac-240Vac) 12V SBMax: 3.5A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 73.5 x 40 x 265 mm
Input
  • 2600W: 200-240Vac 2600W: 200-240Vdc (For CQC Only)2600W: 200-240Vac / 50-60Hz 2600W: 200-240Vdc / 50-60Hz (for CQC only)
+12V
  • Max: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output)Max: 216A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 3.5A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • 1x 2600W 1x 2600W Redundant Titanium Level (96%) power supply Dimension (WxHxL)73.5 x 40 x 265 mm Input2600W: 200-240Vac 2600W: 200-240Vdc (For CQC Only)2600W: 200-240Vac / 50-60Hz 2600W: 200-240Vdc / 50-60Hz (for CQC only) +12VMax: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output)Max: 216A / Min: 0A (200Vac-240Vac) 12V SBMax: 3.5A Output TypeBackplanes (gold finger)
SKU: sys-210gp-dnr Categorii: , , ,
Product SKUs
  • SuperServer SYS-210GP-DNR
Motherboard
  • Super X12SPG-NF
Processor (per Node)
CPU
  • Single Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
GPU (per Node)
Max GPU Count
  • Up to 3 double-width or 3 single-width GPUs
Supported GPU
  • NVIDIA PCIe: A10, A100, A30, A40, RTX A4000, RTX A4500
CPU-GPU Interconnect
  • PCIe 4.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • PCIe
System Memory (per Node)
Memory
  • Slot Count: 8 DIMM slots
  • Max Memory (2DPC): Up to 1TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Memory Voltage
  • 1.2V
On-Board Devices (per Node)
Network Connectivity
  • Via AIOM
Input / Output (per Node)
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 7 +1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • SuperServer SYS-210GP-DNR
  • Super X12SPG-NF
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-227GTS-R2K63P
Dimensions and Weight
Height
  • 3.47″ (88 mm)
Width
  • 17.6″ (447 mm)
Depth
  • 29.9″ (760 mm)
Package
  • 9.44″ (H) x 23.62″ (W) x 43.3″ (D)
Weight
  • Gross Weight: 60 lbs (27.21 kg)
  • Net Weight: 55 lbs (24.94 kg)
Available Color
  • Black Front & Silver Body
Front Panel
Buttons
  • Power On/Off button
  • System UID button/LED
LED
  • Hard drive activity LED
  • Information LED as manual description
  • Network activity LEDs
  • Power status LED
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration
  • Default3 PCIe 4.0 x16 FHFL double-width slots
  • 3 PCIe 4.0 x16 FHFL double-width slots
Drive Bays / Storage (per Node)
Drive Bays Configuration
  • Default: Total 2 bays2 front hot-swap 2.5″ NVMe drive bays
  • 2 front hot-swap 2.5″ NVMe drive bays
M.2
  • 2 M.2 NVMe/SATA slots (M-key)
  • View M.2 Options
System Cooling
Fans
  • Up to 4 Removable heavy-duty Fan(s)
Power Supply
  • 1x 2600W 1x 2600W Redundant Titanium Level (96%) power supply Dimension (WxHxL)73.5 x 40 x 265 mm Input2600W: 200-240Vac 2600W: 200-240Vdc (For CQC Only)2600W: 200-240Vac / 50-60Hz 2600W: 200-240Vdc / 50-60Hz (for CQC only) +12VMax: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output)Max: 216A / Min: 0A (200Vac-240Vac) 12V SBMax: 3.5A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 73.5 x 40 x 265 mm
Input
  • 2600W: 200-240Vac 2600W: 200-240Vdc (For CQC Only)2600W: 200-240Vac / 50-60Hz 2600W: 200-240Vdc / 50-60Hz (for CQC only)
+12V
  • Max: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output)Max: 216A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 3.5A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • 1x 2600W 1x 2600W Redundant Titanium Level (96%) power supply Dimension (WxHxL)73.5 x 40 x 265 mm Input2600W: 200-240Vac 2600W: 200-240Vdc (For CQC Only)2600W: 200-240Vac / 50-60Hz 2600W: 200-240Vdc / 50-60Hz (for CQC only) +12VMax: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output)Max: 216A / Min: 0A (200Vac-240Vac) 12V SBMax: 3.5A Output TypeBackplanes (gold finger)
