Supermicro SuperServer SYS-531MC-H8TNR
Supermicro SuperServer SYS-531MC-H8TNR - imagine 2
Supermicro SuperServer SYS-531MC-H8TNR - imagine 3
Supermicro SuperServer SYS-531MC-H8TNR - imagine 4
Supermicro SuperServer SYS-531MC-H8TNR - imagine 5
Supermicro SuperServer SYS-531MC-H8TNR - imagine 6
, , ,

Supermicro SuperServer SYS-531MC-H8TNR

Favorite
Compara

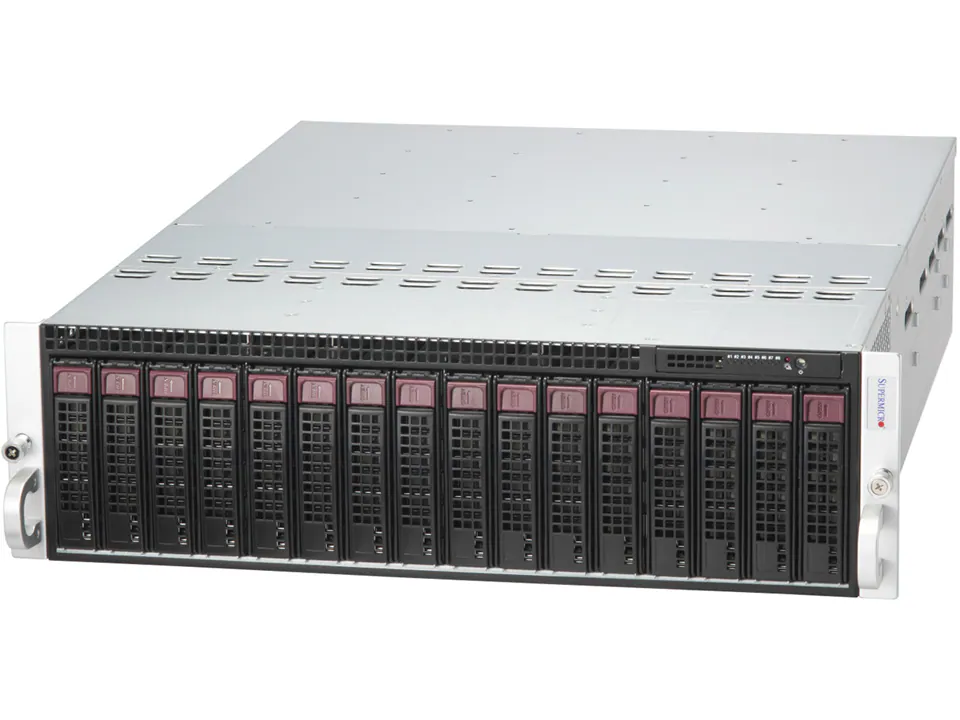

3U 8-Node MicroCloud with single-width GPU support

Pretul afisat contine TVA (21%).

SuperServer SYS-531MC-H8TNR

3U 8-Node MicroCloud with single-width GPU support

Key Features

  1. Intel® Xeon® 6300-Series/E-2400/Pentium® G7400 and G7400T Processor Single Socket LGA-1700 (Socket V0) supported, CPU TDP supports Up to 95W TDP
  2. Intel® C266
  3. 8 set of Up to 128GB ECC UDIMM; DDR5 4400MHz, in 4 DIMM sockets
  4. 8 set of PCIe 5.0 x8 (in x16 slot) low profile slot and 8 set of PCIe 4.0 x8 Micro-LP slots
  5. 8 set of 2x Front Hot-swappable 3.5″ SATA3 HDD or Hybrid 2x 2.5″ SAS/SATA3/NVMe U.2 drives w/ option kits
  6. 2200W Redundant Titanium Level high-efficiency power supplies

Specifications

Product SKUs
  • SuperServer SYS-531MC-H8TNR

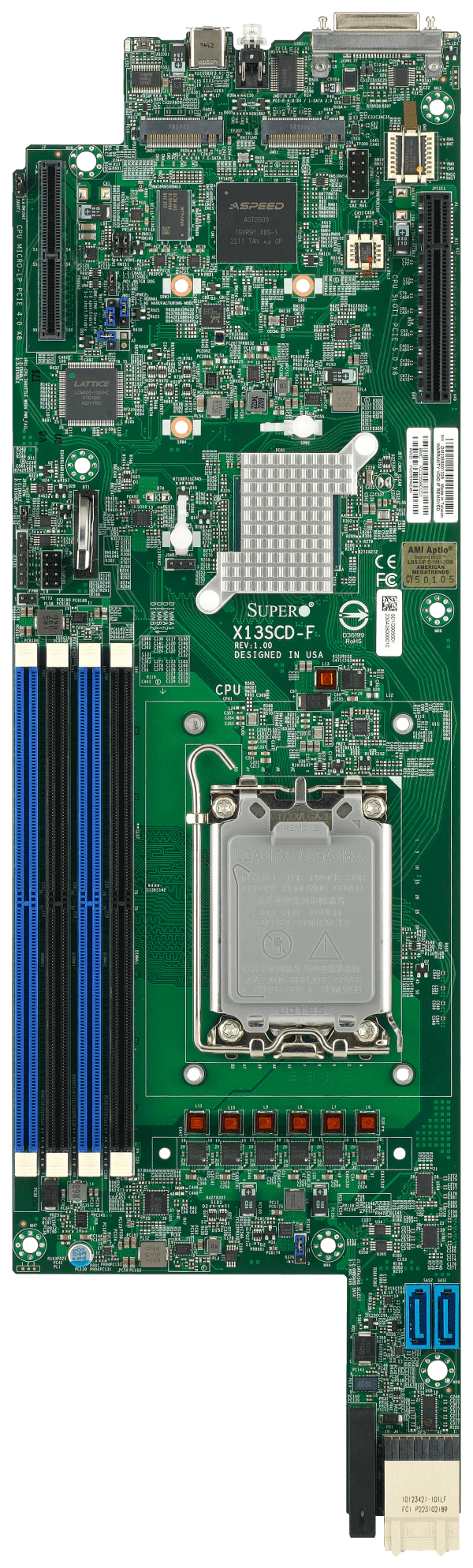

Motherboard
  • Super X13SCD-F
Processor (per Node)
CPU
  • Single V0 (LGA-1700)
  • Intel® Xeon® 6300-series/E-2400/Pentium® G7400/G7400T processors
Note
  • Supports up to 95W TDP CPUs (Air Cooled)
GPU (per Node)
Max GPU Count
  • Up to 1 single-width GPU

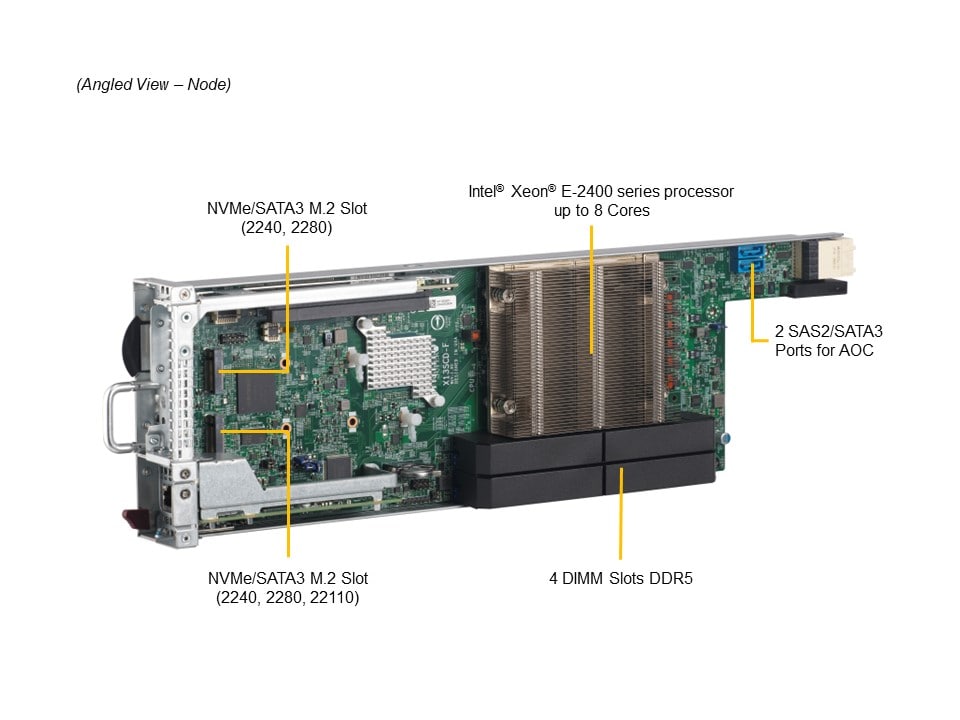

System Memory (per Node)
Memory
  • Slot Count: 4 DIMM slots
  • Max Memory (2DPC): Up to 128GB 4400MT/s ECC DDR5 UDIMM
Memory Voltage
  • 1.1V
On-Board Devices (per Node)
SATA
  • SATA (6Gbps) ; RAID 0/1 support
Network Connectivity
  • No NIC option supported
Input / Output (per Node)
USB
  • 1 Type-C port(front)
  • 2 USB 2.0 Type-A ports
Video
  • 1 port
TPM
  • 1 TPM Onboard/port 80
System BIOS
BIOS Type
  • AMI 256MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI 6.0 Power Management
PC Health Monitoring
CPU
  • 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V
  • Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
FAN
  • Fan speed control, Dual Cooling Zone
Temperature
  • Monitoring for CPU and chassis environment
  • SuperServer SYS-531MC-H8TNR
  • Super X13SCD-F
Chassis
Form Factor
  • 3U Rackmount
Model
  • CSE-938NH-R2K20BP2
Dimensions and Weight
Height
  • 5.21″ (132 mm)
Width
  • 17.26″ (438 mm)
Depth
  • 23.2″ (589 mm)
Package
  • 11.65″ (H) x 26.26″ (W) x 34″ (D)
Weight
  • Gross Weight: 88 lbs (39.92 kg)
  • Net Weight: 62.2 lbs (28.21 kg)
Available Color
  • N/A

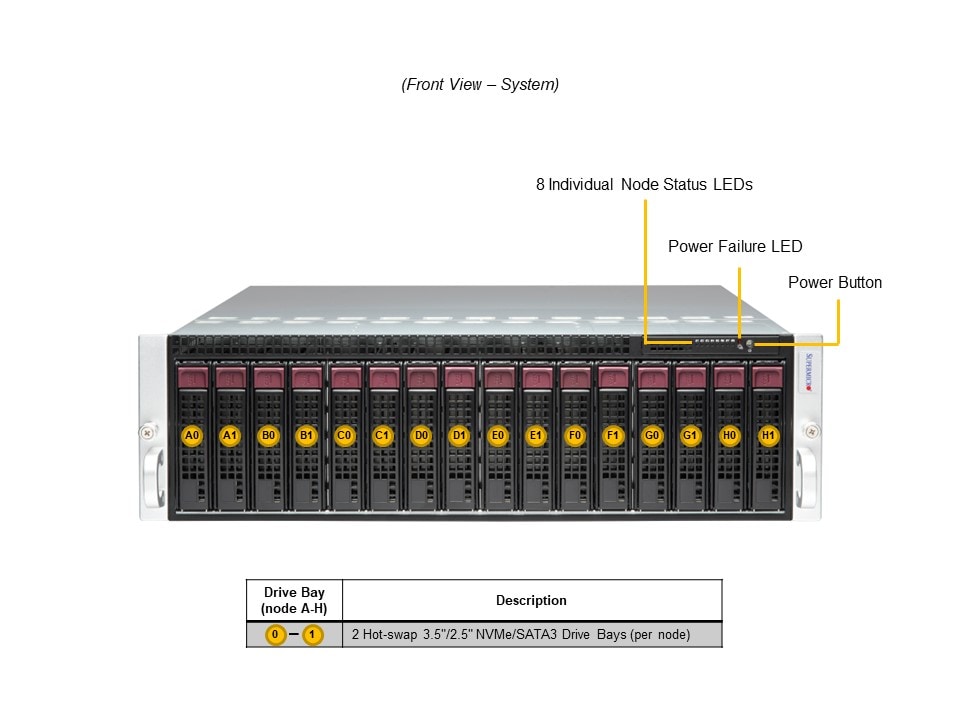

Front Panel
Buttons
  • Power On/Off
LED
  • 8 Individual Node Status Indicators
  • Power Failure

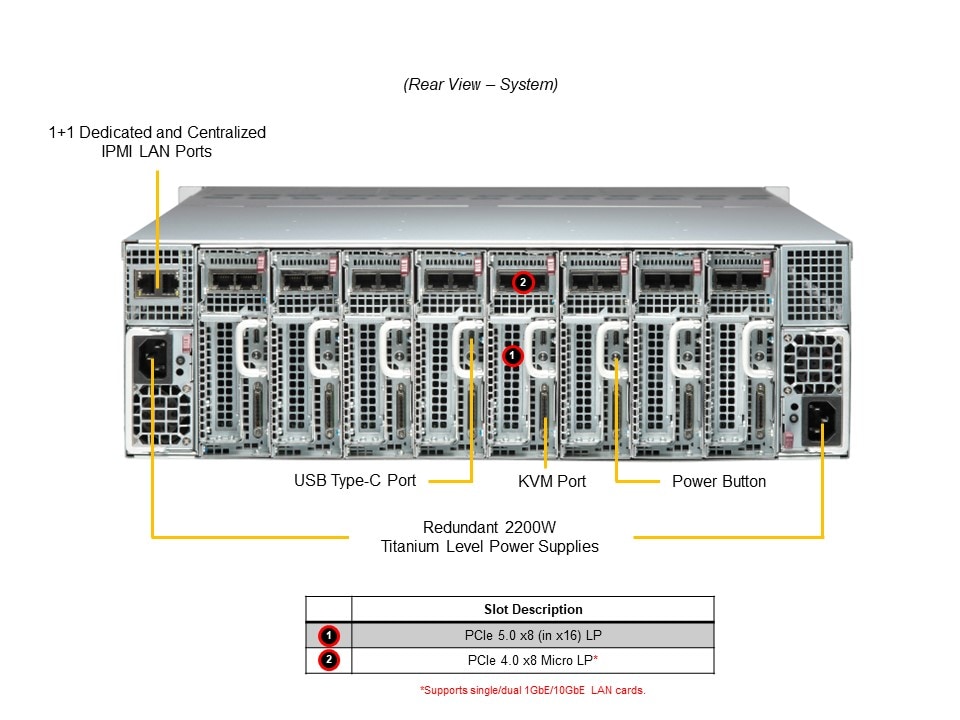

Expansion Slots (per Node)
PCI-Express (PCIe) Configuration
  • Default1 PCIe 5.0 x8 (in x16) LP slot 1 PCIe 4.0 x8 (in x8) MicroLP slot
  • 1 PCIe 5.0 x8 (in x16) LP slot
  • 1 PCIe 4.0 x8 (in x8) MicroLP slot

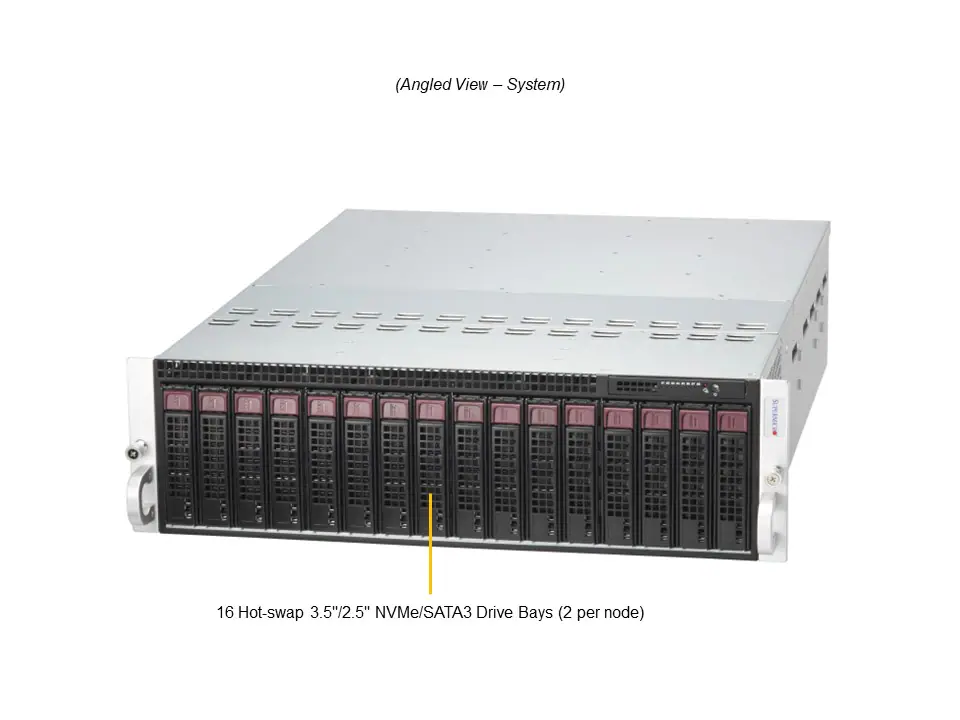

Drive Bays / Storage (per Node)
Drive Bays Configuration
  • Default: Total 2 bays2 front hot-swap 3.5″ NVMe/SAS/SATA drive bays
  • 2 front hot-swap 3.5″ NVMe/SAS/SATA drive bays
M.2
  • 2 M.2 NVMe/SATA slots (M-key 2280/22110)
  • View M.2 Options
System Cooling
Fans
  • Up to 4 Heavy Duty 8cm Fan(s)
Air Shroud
  • 8 Air Shrouds
Power Supply
  • 2x 2200W 2x 2200W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)76 x 40 x 336 mm Total Output Power(for UL/cUL use only)(for CCC only) Input1200W: 100-127Vac 1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2090W: 230-240Vac / 50-60Hz 2090W: 230-240Vdc / 50-60Hz (for CCC only)2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)2200W: 230-240Vac 2200W: 220-240Vac / 50-60Hz (for UL/cUL use only) +12VMax: 100A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (100Vdc-127Vdc)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 174.17A / Min: 0A (230Vac-240Vac)Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)Max: 183.3A / Min: 0A (220Vac-240Vac)Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)Max: 183.33A / Min: 0A (230Vdc-240Vdc) 5V SBMax: 1A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 76 x 40 x 336 mm
Total Output Power
  • (for UL/cUL use only)(for CCC only)
Input
  • 1200W: 100-127Vac 1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2090W: 230-240Vac / 50-60Hz 2090W: 230-240Vdc / 50-60Hz (for CCC only)2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)2200W: 230-240Vac 2200W: 220-240Vac / 50-60Hz (for UL/cUL use only)
+12V
  • Max: 100A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (100Vdc-127Vdc)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 174.17A / Min: 0A (230Vac-240Vac)Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)Max: 183.3A / Min: 0A (220Vac-240Vac)Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)Max: 183.33A / Min: 0A (230Vdc-240Vdc)
5V SB
  • Max: 1A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 8% to 95% (non-condensing)
  • 2x 2200W 2x 2200W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)76 x 40 x 336 mm Total Output Power(for UL/cUL use only)(for CCC only) Input1200W: 100-127Vac 1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2090W: 230-240Vac / 50-60Hz 2090W: 230-240Vdc / 50-60Hz (for CCC only)2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)2200W: 230-240Vac 2200W: 220-240Vac / 50-60Hz (for UL/cUL use only) +12VMax: 100A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (100Vdc-127Vdc)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 174.17A / Min: 0A (230Vac-240Vac)Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)Max: 183.3A / Min: 0A (220Vac-240Vac)Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)Max: 183.33A / Min: 0A (230Vdc-240Vdc) 5V SBMax: 1A / Min: 0A Output TypeBackplanes (gold finger)
Standard Parts (Parts Included)
Optional Parts List
SKU: sys-531mc-h8tnr Categorii: , , ,
