Supermicro SuperServer SYS-221GE-NR
Supermicro SuperServer SYS-221GE-NR - imagine 2
Supermicro SuperServer SYS-221GE-NR - imagine 3
Supermicro SuperServer SYS-221GE-NR - imagine 4
Supermicro SuperServer SYS-221GE-NR - imagine 5
, , ,

Supermicro SuperServer SYS-221GE-NR

Favorite
Compara

DP Intel 2U PCIe GPU System with up to 4 NVIDIA H100, H100 NVL, or L40S

Pretul afisat contine TVA (21%).

SuperServer SYS-221GE-NR

DP Intel 2U PCIe GPU System with up to 4 NVIDIA H100, H100 NVL, or L40S

Key Features

  1. High density 2U GPU system with up to 4 NVIDIA® PCIe GPUsHighest GPU communication using NVIDIA® NVLink™ usingPCIe-based NVIDIA H100-NVL with NVIDIA NVLink support
  2. High density 2U GPU system with up to 4 NVIDIA® PCIe GPUs
  3. Highest GPU communication using NVIDIA® NVLink™ using
  4. PCIe-based NVIDIA H100-NVL with NVIDIA NVLink support
  5. 5th/4th Gen Intel® Xeon® Scalable processor support
  6. 32 DIMM slots Up to 8TB: 32x 256 GB DRAM Memory Type: 5600MT/s ECC DDR5
  7. 7 PCIe 5.0 x16 FHFL Slots
  8. NVIDIA BlueField®-3 Data Processing Unit Support for the most demanding accelerated computing workloads.
  9. 8 E1.S NVMe Storage Support
  10. NVIDIA RTX PRO™ 6000 Blackwell GPUs at 450W by firmware control

Specifications

Product SKUs
  • SuperServer SYS-221GE-NR
Motherboard

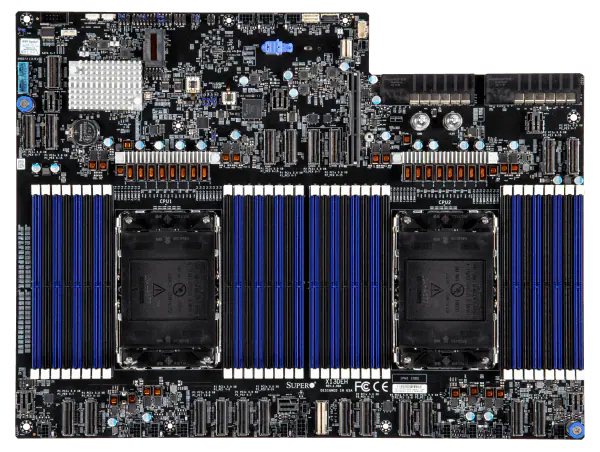

  • Super X13DEH
Processor
CPU
  • Dual Socket E (LGA-4677)
  • 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 64C/128T; Up to 320MB Cache per CPU
Note
  • Supports up to 350W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 4 double-width GPUs
Supported GPU
  • NVIDIA PCIe: H100, H100 NVL, L40, L40S, NVIDIA RTX PRO™ 6000 Blackwell Server Edition
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • NVIDIA® NVLink™ Bridge (optional)
System Memory
Memory
  • Slot Count: 32 DIMM slots
  • Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5
  • Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5
Memory Voltage
  • 1.1V
On-Board Devices
Chipset
  • Intel® C741
Network Connectivity
  • 1 RJ45 1GbE
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 ports(rear)
Video
  • 1 mini-DP port
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • Redfish API
  • Supermicro Server Manager (SSM)
  • Supermicro Power Manager (SPM)
  • Supermicro SuperDoctor® 5 (SD5)
  • KVM with dedicated LAN
  • IPMI 2.0
  • OOB Management Package (SFT-OOB-LIC )
  • SMCIPMITool
  • IPMIView
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • 8+4 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • SuperServer SYS-221GE-NR
  • Super X13DEH
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-GP201TS-R000NP
Dimensions and Weight
Height
  • 3.46″ (88 mm)
Width
  • 17.25″ (438.4 mm)
Depth
  • 35.43″ (900 mm)
Package
  • 11″ (H) x 22.5″ (W) x 45.5″ (D)
Weight
  • Gross Weight: 86.5 lbs (39.2 kg)
  • Net Weight: 67.5 lbs (30.6 kg)
Available Color
  • Black front & silver body
Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LED
  • Hard drive activity LED
  • Network activity LEDs
  • Power status LED
  • System Overheat & Power Fail LED
Expansion Slots

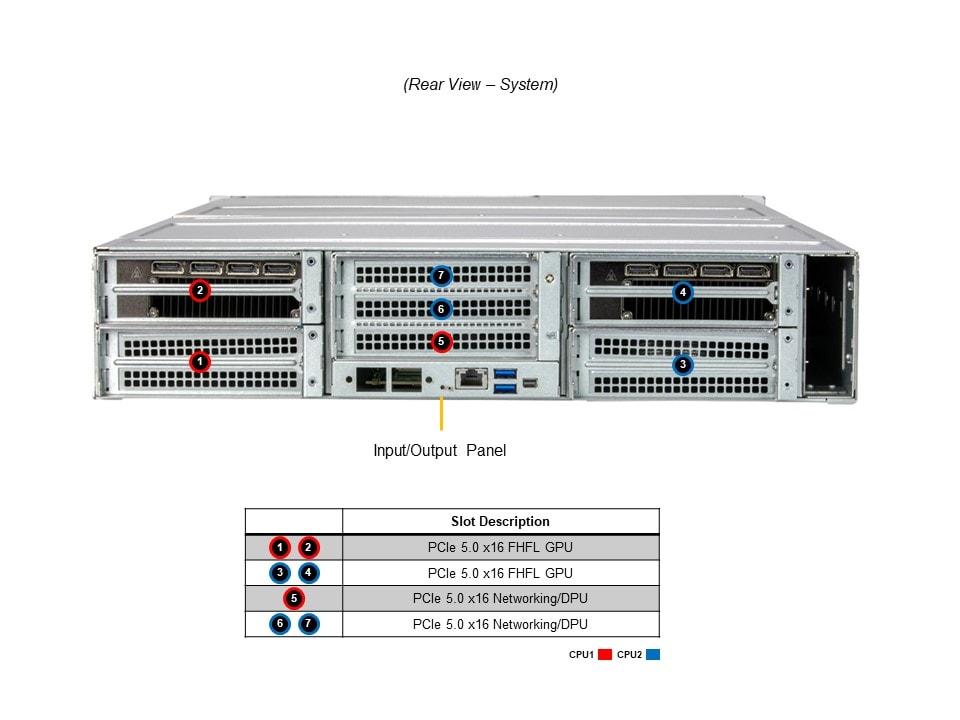

PCI-Express (PCIe) Configuration
  • Default4 PCIe 5.0 x16 FHFL double-width slots 3 PCIe 5.0 x16 FHFL slots
  • 4 PCIe 5.0 x16 FHFL double-width slots
  • 3 PCIe 5.0 x16 FHFL slots

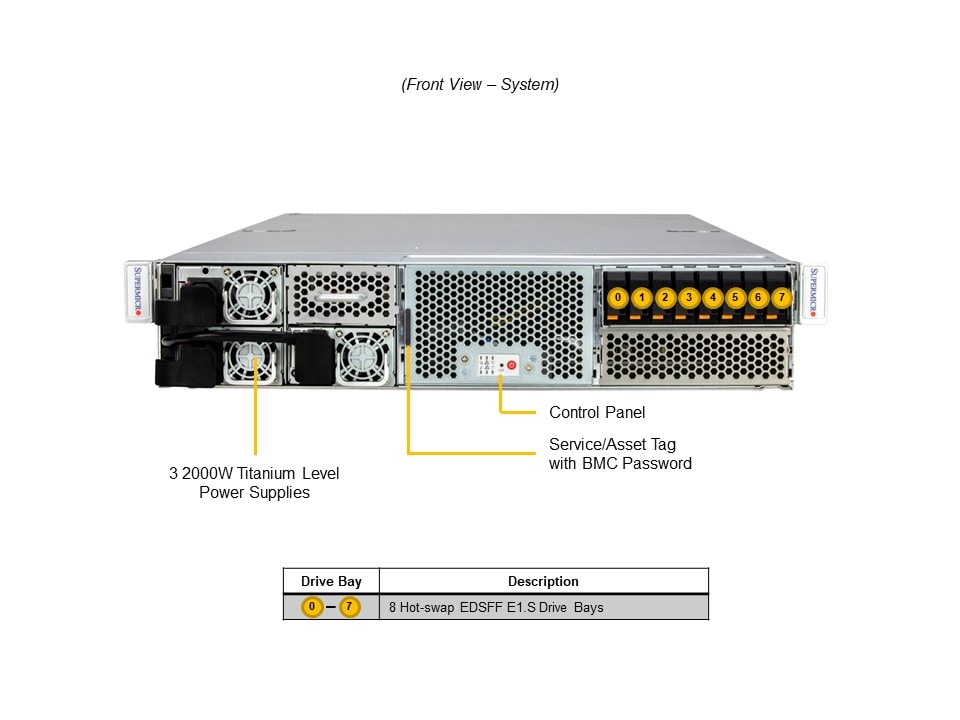

Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bays8 front hot-swap E1.S NVMe drive bays
  • 8 front hot-swap E1.S NVMe drive bays
M.2
  • 2 M.2 NVMe/SATA slots (M-key)
  • View M.2 Options
System Cooling
Fans
  • Up to 6x 6cm heavy duty fans with optimal fan speed control
Air Shroud
  • 1 Air Shroud
Power Supply
  • 3x 2000W 3x 2000W Redundant Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 185 mm
Dimension (WxHxL)
  • 73.5 x 40 x 185 mm
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (max 21° DP; non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (max 38° DP; non-condensing)
Environmental / Recycling
Recycle
  • Return Server-End of Life Product
  • 3x 2000W 3x 2000W Redundant Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 185 mm
Optional Parts List
SKU: sys-221ge-nr Categorii: , , ,
Product SKUs
  • SuperServer SYS-221GE-NR
Motherboard
  • Super X13DEH
Processor
CPU
  • Dual Socket E (LGA-4677)
  • 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 64C/128T; Up to 320MB Cache per CPU
Note
  • Supports up to 350W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 4 double-width GPUs
Supported GPU
  • NVIDIA PCIe: H100, H100 NVL, L40, L40S, NVIDIA RTX PROâ„¢ 6000 Blackwell Server Edition
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • NVIDIA® NVLinkâ„¢ Bridge (optional)
System Memory
Memory
  • Slot Count: 32 DIMM slots
  • Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5
  • Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5
Memory Voltage
  • 1.1V
On-Board Devices
Chipset
  • Intel® C741
Network Connectivity
  • 1 RJ45 1GbE
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 ports(rear)
Video
  • 1 mini-DP port
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • Redfish API
  • Supermicro Server Manager (SSM)
  • Supermicro Power Manager (SPM)
  • Supermicro SuperDoctor® 5 (SD5)
  • KVM with dedicated LAN
  • IPMI 2.0
  • OOB Management Package (SFT-OOB-LIC )
  • SMCIPMITool
  • IPMIView
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • 8+4 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • SuperServer SYS-221GE-NR
  • Super X13DEH
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-GP201TS-R000NP
Dimensions and Weight
Height
  • 3.46″ (88 mm)
Width
  • 17.25″ (438.4 mm)
Depth
  • 35.43″ (900 mm)
Package
  • 11″ (H) x 22.5″ (W) x 45.5″ (D)
Weight
  • Gross Weight: 86.5 lbs (39.2 kg)
  • Net Weight: 67.5 lbs (30.6 kg)
Available Color
  • Black front & silver body
Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LED
  • Hard drive activity LED
  • Network activity LEDs
  • Power status LED
  • System Overheat & Power Fail LED
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default4 PCIe 5.0 x16 FHFL double-width slots 3 PCIe 5.0 x16 FHFL slots
  • 4 PCIe 5.0 x16 FHFL double-width slots
  • 3 PCIe 5.0 x16 FHFL slots
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bays8 front hot-swap E1.S NVMe drive bays
  • 8 front hot-swap E1.S NVMe drive bays
M.2
  • 2 M.2 NVMe/SATA slots (M-key)
  • View M.2 Options
System Cooling
Fans
  • Up to 6x 6cm heavy duty fans with optimal fan speed control
Air Shroud
  • 1 Air Shroud
Power Supply
  • 3x 2000W 3x 2000W Redundant Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 185 mm
Dimension (WxHxL)
  • 73.5 x 40 x 185 mm
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (max 21° DP; non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (max 38° DP; non-condensing)
Environmental / Recycling
Recycle
  • Return Server-End of Life Product
  • 3x 2000W 3x 2000W Redundant Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 185 mm
Optional Parts List
