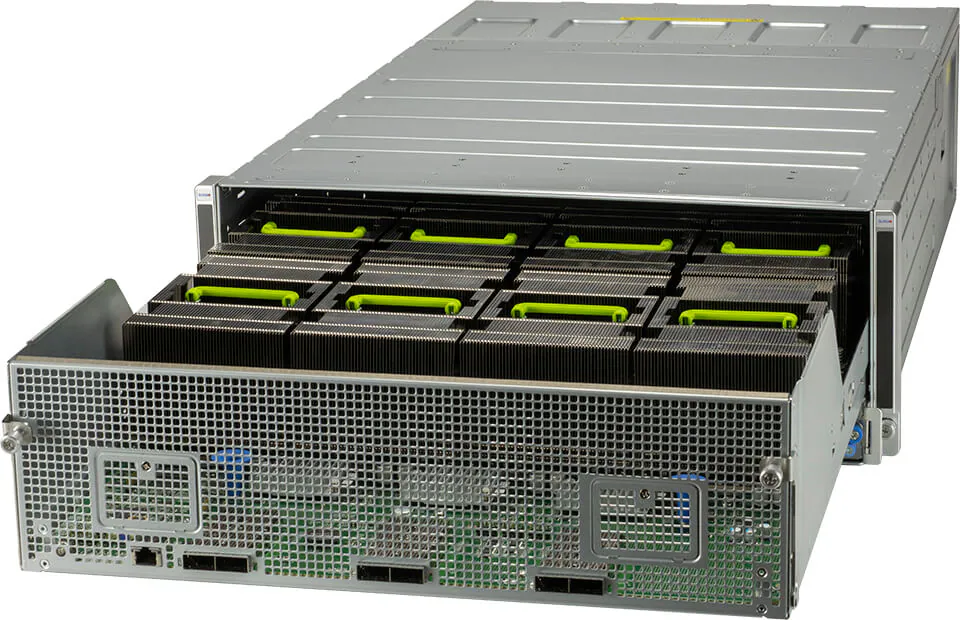

4U GPU server supporting up to 8 double-width GPUs + 4 hot-swap 2.5″ NVMe/SAS/SATA drives

Pretul afisat contine TVA (21%).

SuperServer SYS-420GH-TNGR

4U GPU server supporting up to 8 double-width GPUs + 4 hot-swap 2.5″ NVMe/SAS/SATA drives

Key Features

  1. Dual Intel® Xeon® Scalable Processors (Ice Lake) TDP up to 270W
  2. Intel® C621A Chipset
  3. 32x DIMM slots, up to 8TB Registered ECC DDR4 3200MHz SDRAM
  4. 1x PCIe 4.0 x16 FHHL slot plus 2x PCIe 4.0 AIOM (OCP 3.0 superset) slots
  5. 24x on-board 100GbE (via 6x QSFP-DDs) for scale-out and 1x 10GbE BaseT (dedicated IPMI port)
  6. 4x 2.5†SAS/SATA/NVMe Hybrid Hot-Swap Bays
  7. 5x Removable Heavy-Duty Fan(s)
  8. 4x 3000W(54V+12V)/2000W(12V) redundant, Titanium Level power supplies

Specifications

Product SKUs
  • SuperServer SYS-420GH-TNGR

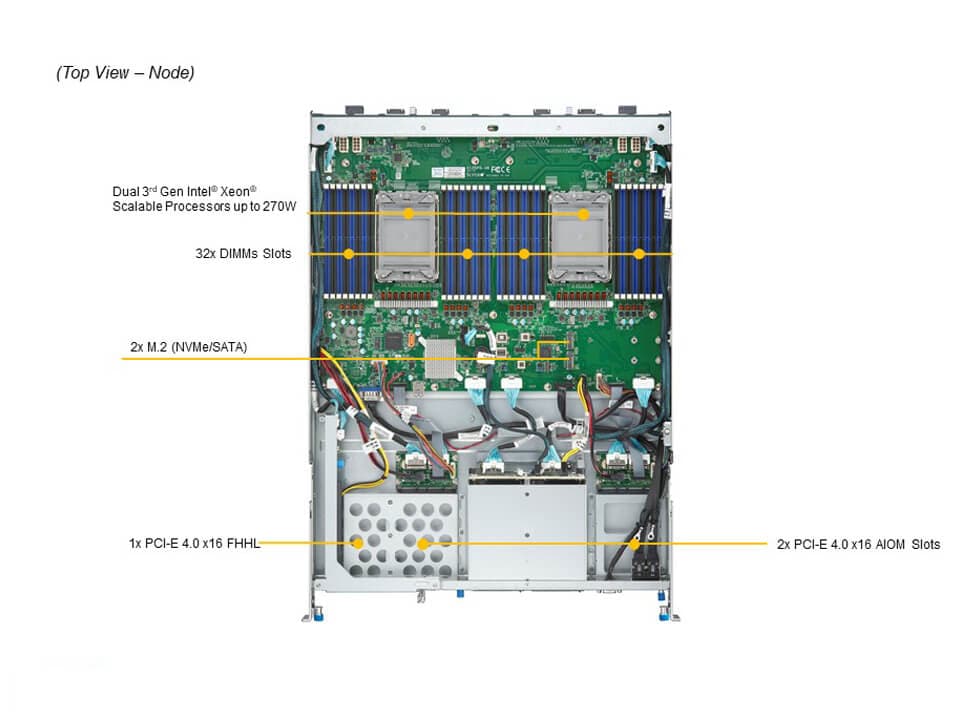

Motherboard

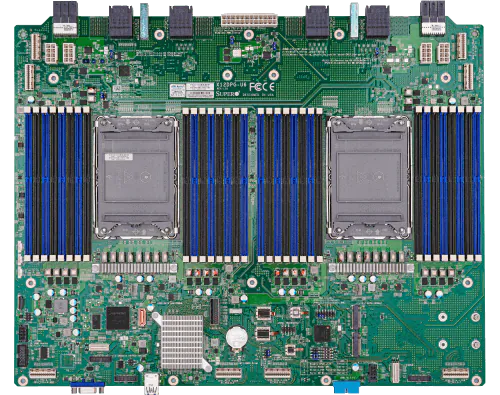

  • Super X12DPG-U6
Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 40C/80T
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
GPU
Max GPU Count

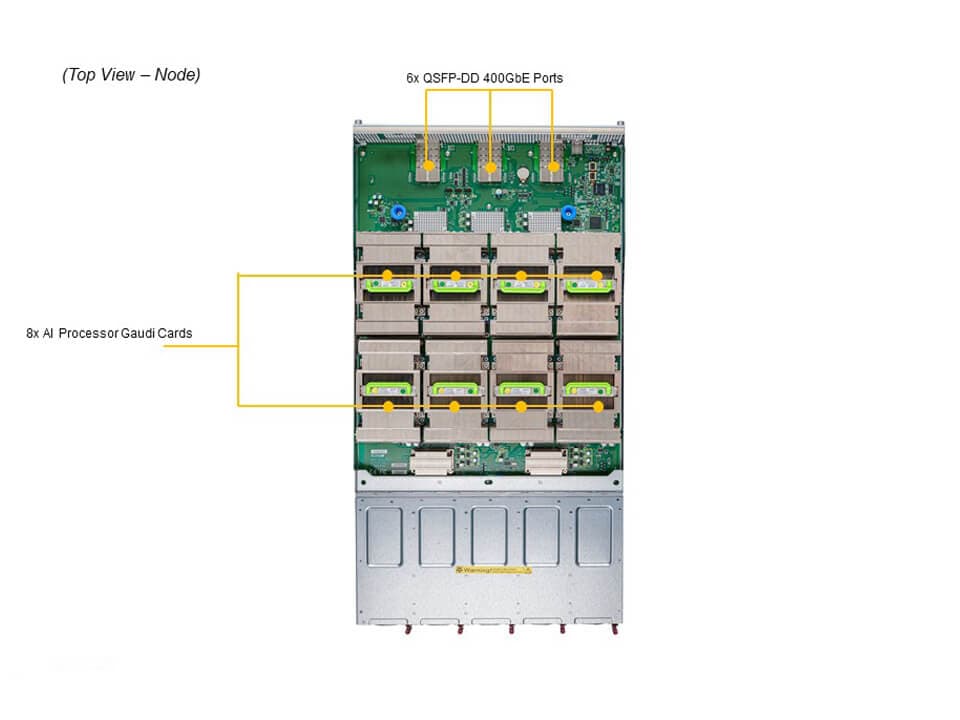

  • Up to 8 double-width GPUs
System Memory
Memory
  • Slot Count: 32 DIMM slots
  • Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Memory Voltage
  • 1.2V
On-Board Devices
Network Connectivity
  • 6 QSFP-DD 400GbE
  • 1 RJ45 10GbE
Input / Output
LAN
  • 1 RJ45 1 GbE LAN port
USB
  • 2 USB 3.0 ports
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 7+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • SuperServer SYS-420GH-TNGR
  • Super X12DPG-U6
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-428G2
Dimensions and Weight
Height
  • 7″ (178 mm)
Width
  • 17.6″ (447 mm)
Depth
  • 32″ (813 mm)
Package
  • 15″ (H) x 27.3″ (W) x 49.4″ (D)
Weight
  • Gross Weight: 137 lbs (62 kg)
Available Color
  • Silver

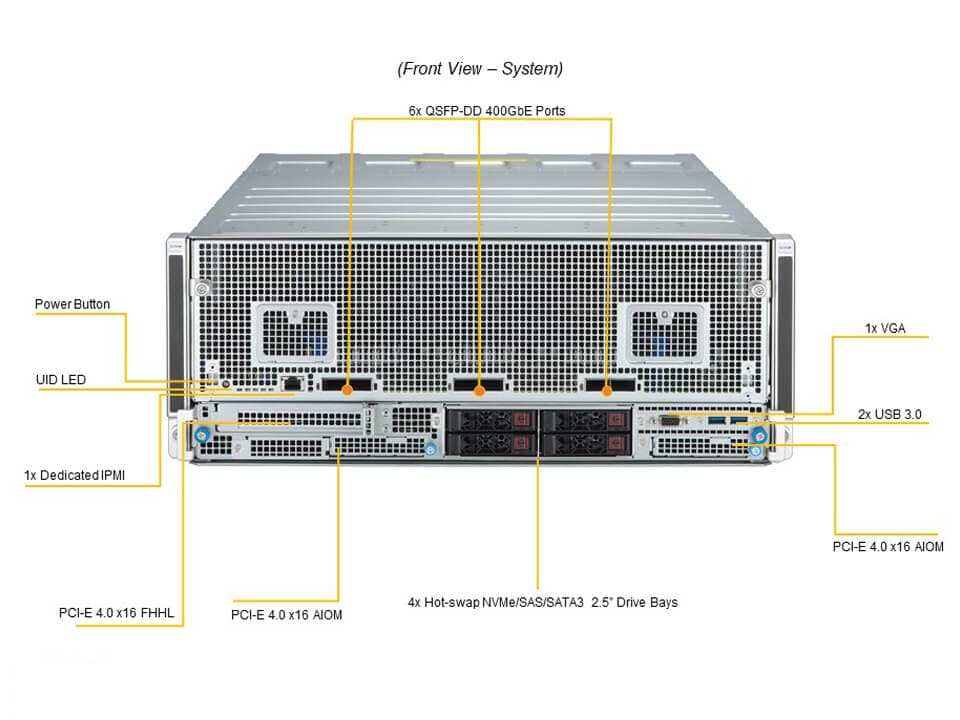

Front Panel
Buttons
  • Power On/Off button
LED
  • Carrier Board Node LED
  • CPU Node LED
  • Information LED
  • PSU Failed LED
  • UID LED
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default1 PCIe 4.0 x16 FHFL slot 2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible)
  • 1 PCIe 4.0 x16 FHFL slot
  • 2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible)
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 4 bays4 front hot-swap 2.5″ NVMe/SAS/SATA drive bays
  • 4 front hot-swap 2.5″ NVMe/SAS/SATA drive bays
M.2
  • 2 M.2 NVMe slots (M-key)
  • View M.2 Options
System Cooling
Fans

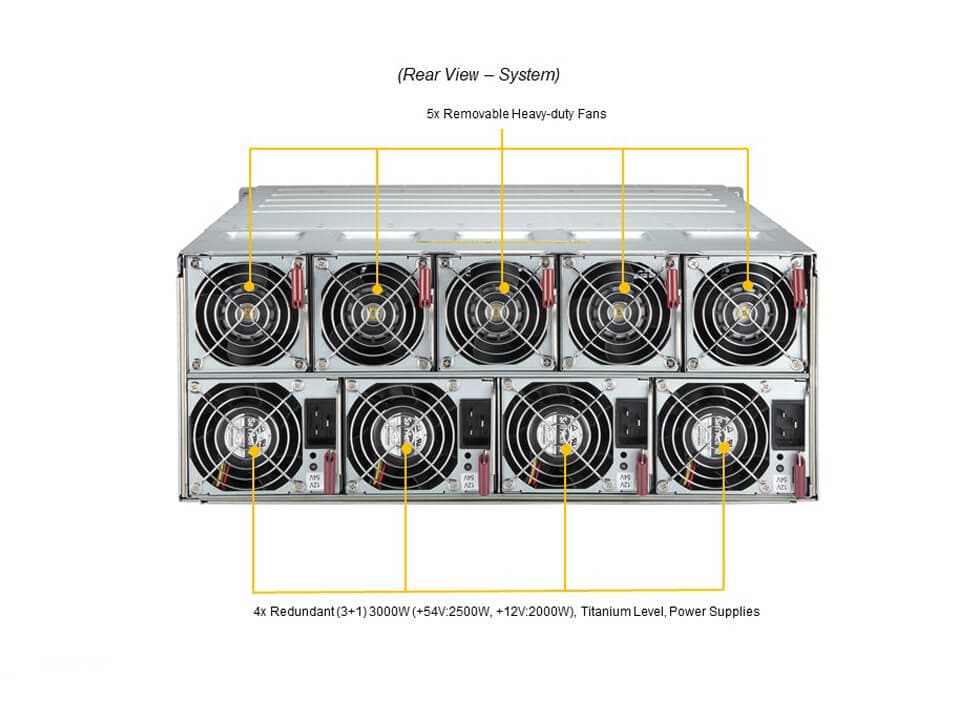

  • Up to 5 Removable Heavy-Duty 84×203.5×82.4mm Fan(s)
Power Supply
  • 1x 3000W 1x 3000W Redundant Titanium Level (96%) power supply Dimension (WxHxL)106.5 x 82.4 x 203.5 mm Input2880W: 200-207Vac 2880W: 200-207Vac / 50-60Hz 3000W: 207.1-240Vac 3000W: 240Vdc 3000W: 207.1-240Vac / 50-60Hz 3000W: 240Vdc / 50-60Hz +12VMax: 91.66A / Min: 0A (Vdc-240Vdc)Max: 91.66A / Min: 0A (200Vac-240Vac) 12V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 106.5 x 82.4 x 203.5 mm
Input
  • 2880W: 200-207Vac 2880W: 200-207Vac / 50-60Hz 3000W: 207.1-240Vac 3000W: 240Vdc 3000W: 207.1-240Vac / 50-60Hz 3000W: 240Vdc / 50-60Hz
+12V
  • Max: 91.66A / Min: 0A (Vdc-240Vdc)Max: 91.66A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • 1x 3000W 1x 3000W Redundant Titanium Level (96%) power supply Dimension (WxHxL)106.5 x 82.4 x 203.5 mm Input2880W: 200-207Vac 2880W: 200-207Vac / 50-60Hz 3000W: 207.1-240Vac 3000W: 240Vdc 3000W: 207.1-240Vac / 50-60Hz 3000W: 240Vdc / 50-60Hz +12VMax: 91.66A / Min: 0A (Vdc-240Vdc)Max: 91.66A / Min: 0A (200Vac-240Vac) 12V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
