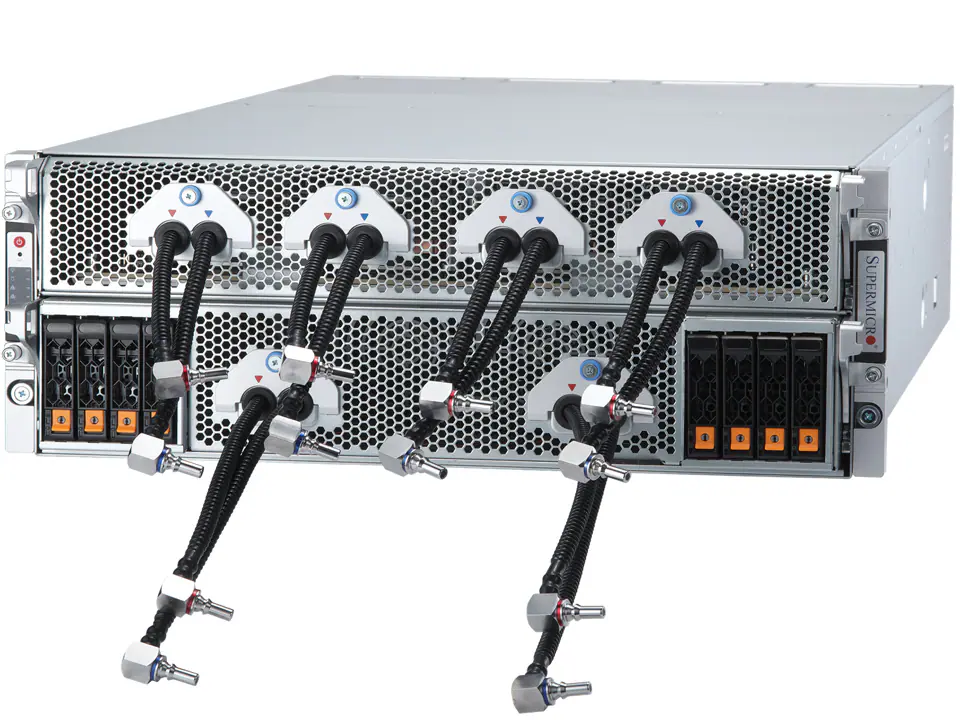

Supermicro SuperServer SYS-421GE-TNHR2-LCC

Supermicro SuperServer SYS-421GE-TNHR2-LCC - imagine 2

Supermicro SuperServer SYS-421GE-TNHR2-LCC - imagine 3

Supermicro SuperServer SYS-421GE-TNHR2-LCC - imagine 4

Supermicro SuperServer SYS-421GE-TNHR2-LCC - imagine 5

Supermicro SuperServer SYS-421GE-TNHR2-LCC - imagine 6

BRAND, gpu, Server&Storage, SUPERMICRO

Supermicro SuperServer SYS-421GE-TNHR2-LCC

Favorite

Compara

DP Intel 4U Liquid-Cooled System with NVIDIA HGX H100/H200 8-GPU (onsite service is required for liquid-cooling)

Pretul afisat contine TVA (21%).

SuperServer SYS-421GE-TNHR2-LCC

DP Intel 4U Liquid-Cooled System with NVIDIA HGX H100/H200 8-GPU (onsite service is required for liquid-cooling)

Key Features

Complete liquid-cooled rack integration is required for purchase

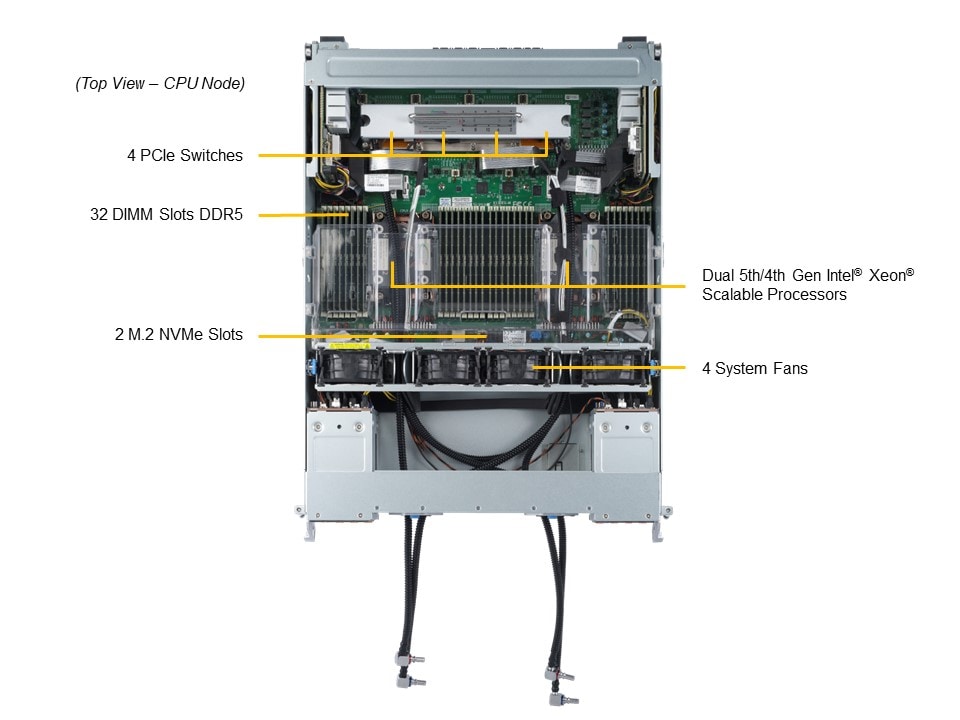

5th/4th Gen Intel® Xeon® Scalable processor support
8 NVIDIA H200/H100 GPUs
32 DIMM slots, ECC RDIMM DDR5 up to 4TB 5600MT/s (1DPC) or up to 8TB 4400MT/s (2DPC)
8 PCIe 5.0 x16 LP, 2x PCIe 5.0 x16 FHHL slots
8 front hot-swap 2.5″ NVMe U.2, 2x front hot-swap NVMe M.2
4 Redundant 52500W Titanium Level power supplies
2 10GbE RJ-45, 1x Dedicated BMC/IPMI

Specifications

Product SKUs
SuperServer SYS-421GE-TNHR2-LCC
Motherboard

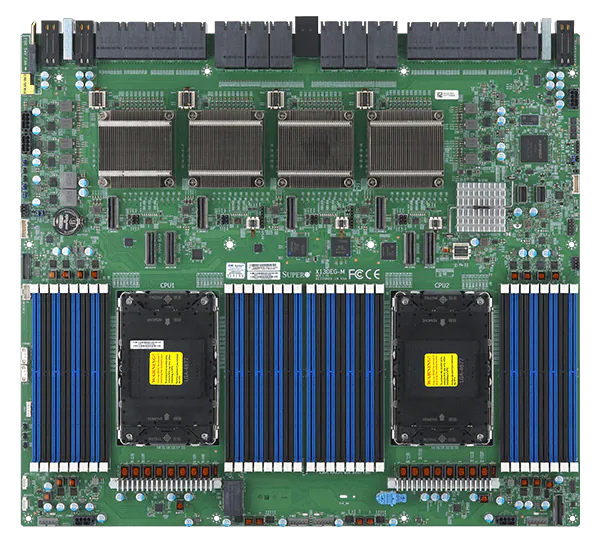

Super X13DEG-M
Processor
CPU	Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Core Count	Up to 64C/128T; Up to 320MB Cache per CPU
Note	Supports up to 385W TDP CPUs (Liquid Cooled)
GPU
Max GPU Count	8 onboard GPUs

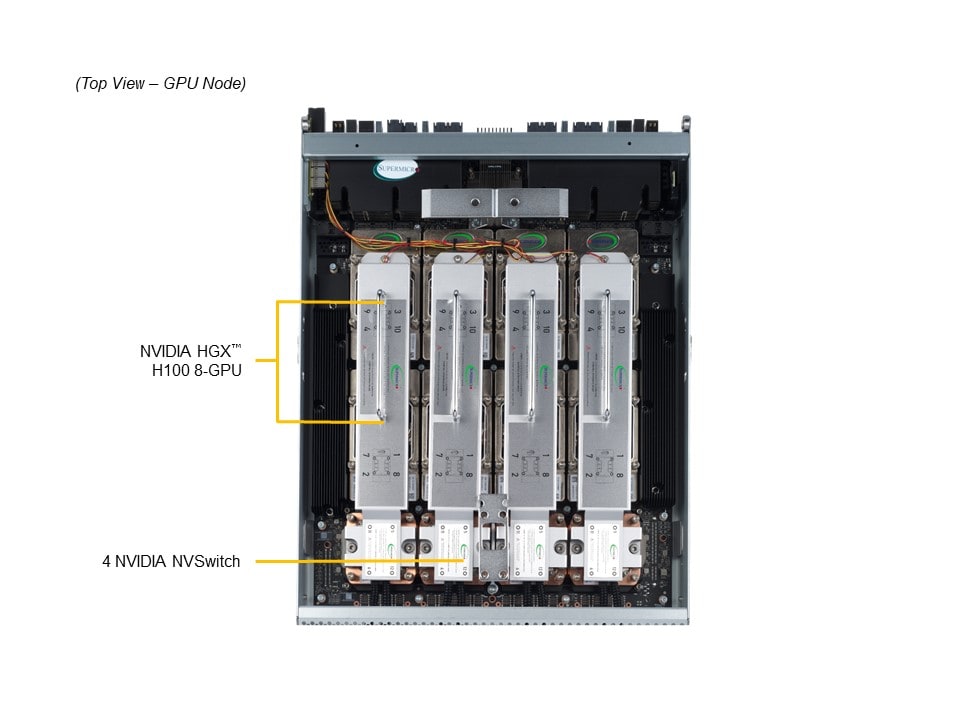

Supported GPU	NVIDIA SXM: HGX H100 8-GPU (80GB), HGX H200 8-GPU (141GB)
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	NVIDIA® NVLink™ with NVSwitch™
System Memory
Memory	Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM
Memory Voltage	1.1V
On-Board Devices
Network Connectivity	2 RJ45 10GbE with Intel® X710-AT2
Input / Output
Video	1 VGA port
System BIOS
BIOS Type	AMI 32MB UEFI
Management
Software	SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown
PC Health Monitoring
CPU	8+4 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
SuperServer SYS-421GE-TNHR2-LCC
Super X13DEG-M
Chassis
Form Factor	4U Rackmount
Model	CSE-GP403TS-R000NFP
Dimensions and Weight
Height	6.85″ (174 mm)
Width	17.6″ (449 mm)
Depth	35.25″ (895.35 mm)
Package	16.14″ (H) x 28.7″ (W) x 50.39″ (D)
Weight	Gross Weight: 216 lbs (98 kg) Net Weight: 176 lbs (80 kg)
Available Color	Silver

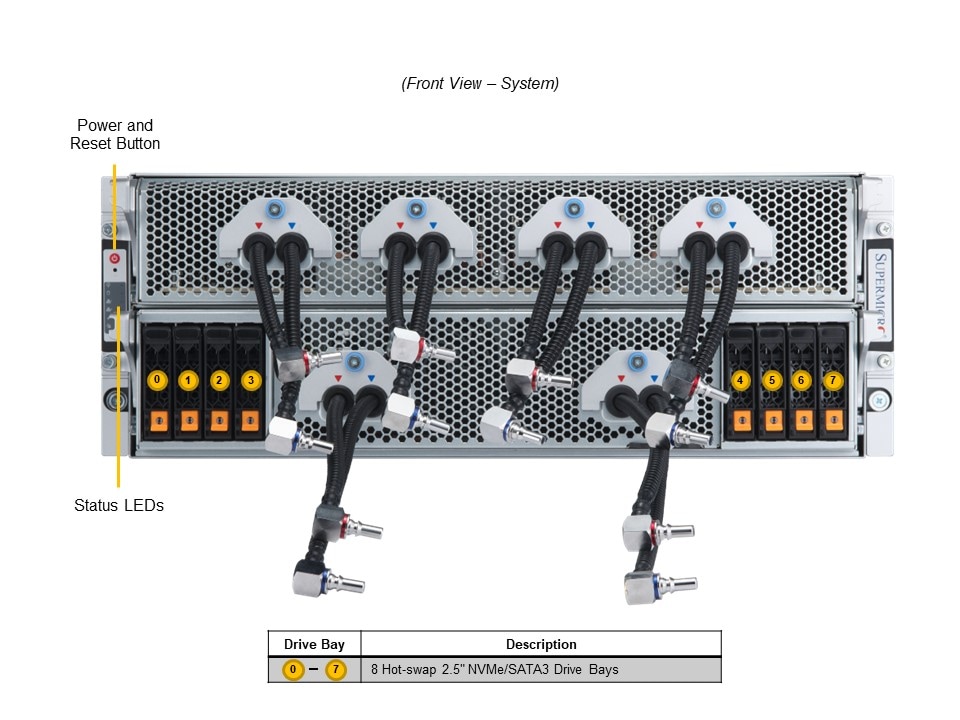

Front Panel
Buttons	Power On/Off UID/ Reset button
LED	Network activity LEDs System information (overheat/UID) UID
Expansion Slots

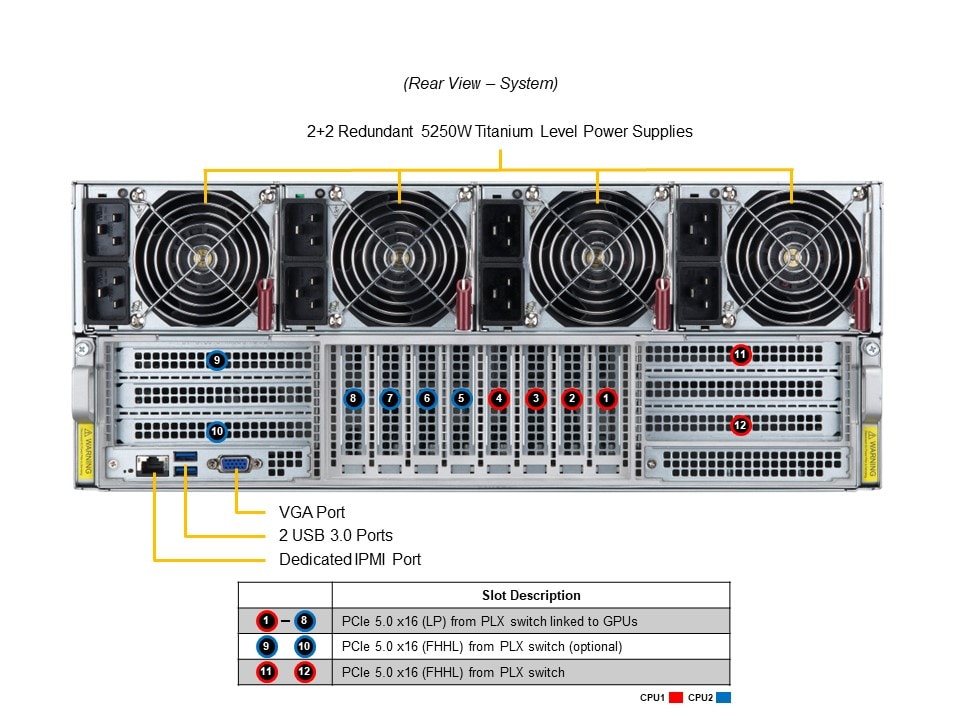

PCI-Express (PCIe) Configuration	Default8 PCIe 5.0 x16 LP slots 2 PCIe 5.0 x16 FHHL slots 8 PCIe 5.0 x16 LP slots 2 PCIe 5.0 x16 FHHL slots Option A8 PCIe 4.0 x16 LP slots 4 PCIe 5.0 x16 FHHL slots 8 PCIe 4.0 x16 LP slots 4 PCIe 5.0 x16 FHHL slots
Drive Bays / Storage

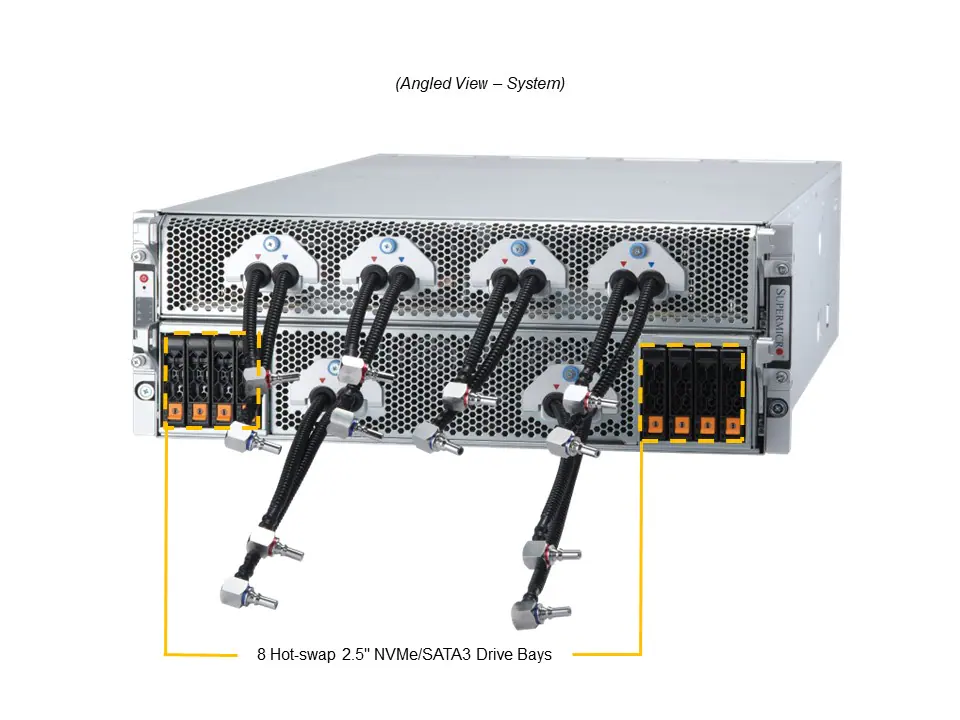

Drive Bays Configuration	Default: Total 8 bays8 front hot-swap 2.5″ NVMe drive bays 8 front hot-swap 2.5″ NVMe drive bays
M.2	2 M.2 NVMe slots (M-key) View M.2 Options
System Cooling
Fans	Up to 4 Fan 8cm Fan(s)
Liquid Cooling	Direct to Chip (D2C) Cold Plate
Power Supply
4x 5250W 4x 5250W Redundant (2 + 2) Titanium Level (96%) power supplies Dimension (WxHxL)106.5 x 82.1 x 245.3 mm Input5250W: 200-240Vac / 50-60Hz +12VMax: 125A / Min: 0A (200Vac-240Vac) 12V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger) Certification Titanium Level [ Test Report ]
Dimension (WxHxL)	106.5 x 82.1 x 245.3 mm
Input	5250W: 200-240Vac / 50-60Hz
+12V	Max: 125A / Min: 0A (200Vac-240Vac)
12V SB	Max: 4A / Min: 0A
Output Type	Backplanes (gold finger)
Certification	Titanium Level [ Test Report ]
Operating Environment
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
4x 5250W 4x 5250W Redundant (2 + 2) Titanium Level (96%) power supplies Dimension (WxHxL)106.5 x 82.1 x 245.3 mm Input5250W: 200-240Vac / 50-60Hz +12VMax: 125A / Min: 0A (200Vac-240Vac) 12V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger) Certification Titanium Level [ Test Report ]
Optional Parts List
