Supermicro SuperServer SYS-421GU-TNXR

Favorite

Compara

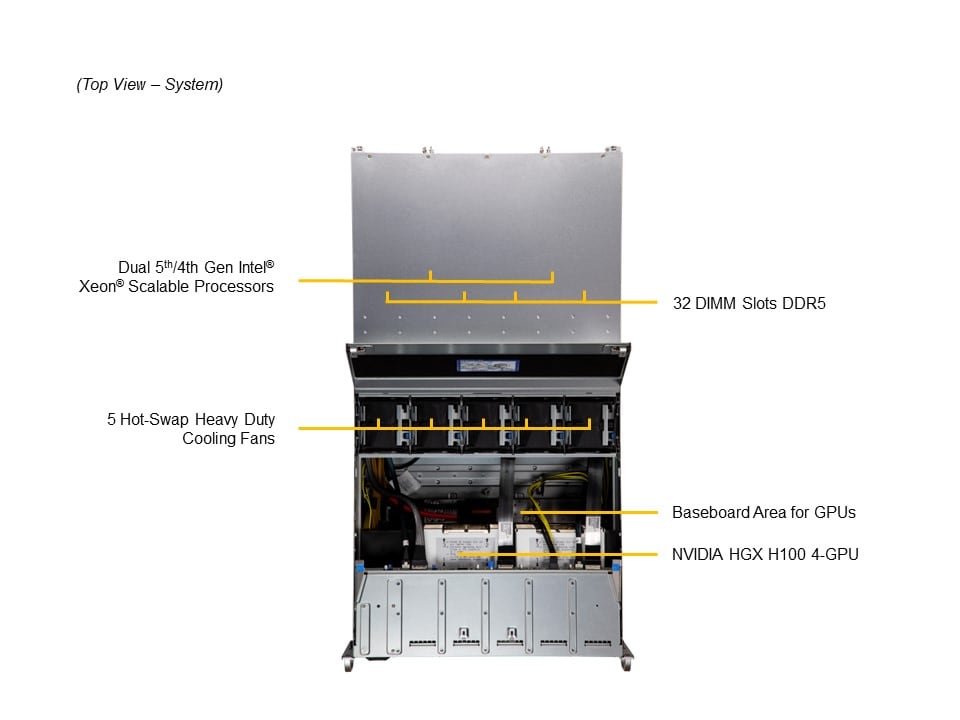

DP Intel 4U Universal GPU System with NVIDIA HGX H100/H200 4-GPU

Pretul afisat contine TVA (21%).

SuperServer SYS-421GU-TNXR

DP Intel 4U Universal GPU System with NVIDIA HGX H100/H200 4-GPU

Key Features

32 DIMM slots Up to 8TB: 32x 256 GB DRAM Memory Type: 4800MHz ECC DDR532 DIMM slots Up to 8TB: 32x 256 GB DRAM Memory Type: 5600MTs ECC DDR5
8 PCIe Gen 5.0 X16 LP Slots
Flexible networking options
2 M.2 NVMe and SATA for boot drive only6x 2.5″ Hot-swap NVMe/SATA/SAS drive bays

Specifications

Product SKUs
SuperServer SYS-421GU-TNXR
Motherboard

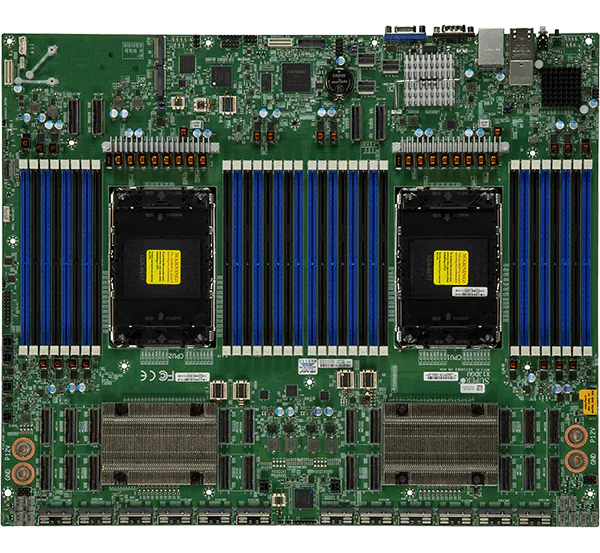

Super X13DGU
Processor
CPU	Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Core Count	Up to 56C/112T; Up to 112.5MB Cache per CPU
Note	Supports up to 350W TDP CPUs (Air Cooled) Supports up to 350W TDP CPUs (Liquid Cooled)
GPU
Max GPU Count	4 onboard GPUs
Supported GPU	NVIDIA SXM: HGX H100 4-GPU (80GB), HGX H200 4-GPU (141GB)
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	NVIDIA® NVLink™
System Memory
Memory	Slot Count: 32 DIMM slots Max Memory (2DPC): Up to 8TB 5600MT/s ECC DDR5
Memory Voltage	1.1V
On-Board Devices
Network Connectivity	2 RJ45 10GbE with Intel® X710-AT2
Input / Output
Video	1 VGA port
System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM
Management
Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown
PC Health Monitoring
CPU	8+4 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
SuperServer SYS-421GU-TNXR
Super X13DGU
Chassis
Form Factor	4U Rackmount
Model	CSE-458GTS-R3K06P
Dimensions and Weight
Height	7″ (175.6 mm)
Width	17.67″ (449 mm)
Depth	32.79″ (833 mm)
Package	14.57″ (H) x 27.55″ (W) x 49.6″ (D)
Weight	Gross Weight: 140 lbs (64 kg) Net Weight: 105 lbs (48 kg)
Available Color	Black Front & Silver Body

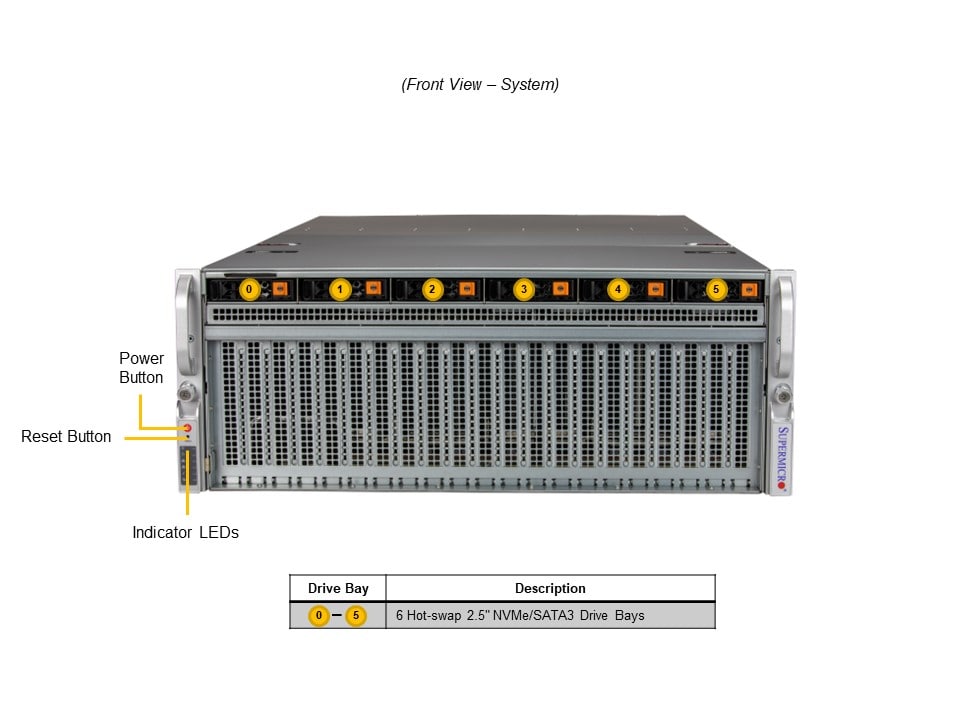

Front Panel
Buttons	Power On/Off button System Reset button
LED	Hard drive activity LED Network activity LEDs Power status LED System Overheat & Power Fail LED

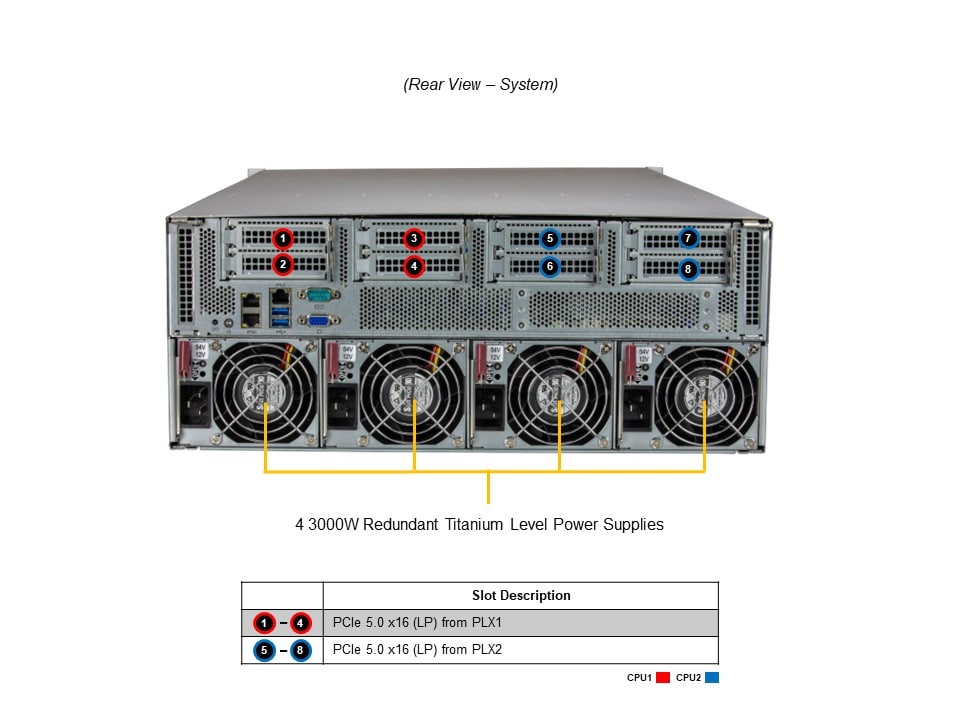

Expansion Slots
PCI-Express (PCIe) Configuration	Default1 PCIe 5.0 x16 LP slot 7 PCIe 5.0 x16 LP slots 1 PCIe 5.0 x16 LP slot 7 PCIe 5.0 x16 LP slots
Drive Bays / Storage

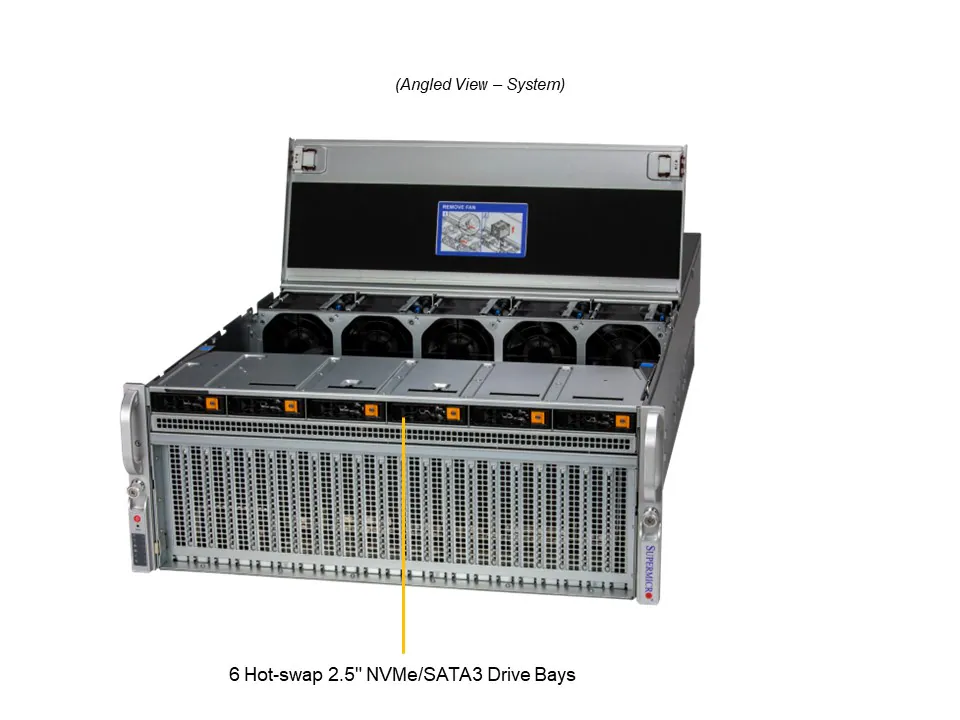

Drive Bays Configuration	Default: Total 6 bays6 front hot-swap 2.5″ NVMe/SATA drive bays 6 front hot-swap 2.5″ NVMe/SATA drive bays
M.2	2 M.2 NVMe/SATA slots (M-key) View M.2 Options
System Cooling
Fans	Up to 5 heavy duty fans with optimal fan speed control
Air Shroud	1 Air Shroud
Liquid Cooling	Direct to Chip (D2C) Cold Plate (optional)
Power Supply
4x 3000W 4x 3000W Redundant Titanium Level (96%) power supplies Dimension (WxHxL)106.5 x 82.1 x 245.5 mm Input2880W: 200-207Vac / 50-60Hz 3000W: 3000W: 207-240Vac / 50-60Hz 3000W: 0240Vdc / 50-60Hz (for CQC only) +12VMax: 91.66A / Min: 0A (200Vac-240Vac) 12V SBMax: 3A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)	106.5 x 82.1 x 245.5 mm
Input	2880W: 200-207Vac / 50-60Hz 3000W: 3000W: 207-240Vac / 50-60Hz 3000W: 0240Vdc / 50-60Hz (for CQC only)
+12V	Max: 91.66A / Min: 0A (200Vac-240Vac)
12V SB	Max: 3A / Min: 0A
Output Type	Backplanes (gold finger)
Operating Environment
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
4x 3000W 4x 3000W Redundant Titanium Level (96%) power supplies Dimension (WxHxL)106.5 x 82.1 x 245.5 mm Input2880W: 200-207Vac / 50-60Hz 3000W: 3000W: 207-240Vac / 50-60Hz 3000W: 0240Vdc / 50-60Hz (for CQC only) +12VMax: 91.66A / Min: 0A (200Vac-240Vac) 12V SBMax: 3A / Min: 0A Output TypeBackplanes (gold finger)
