DP Intel 4U Dual-Root PCIe GPU System with up to 8 GPUs

Pretul afisat contine TVA (21%).

SuperServer SYS-422GA-NRT

DP Intel 4U Dual-Root PCIe GPU System with up to 8 GPUs

Key Features

  1. Dual Socket BR (LGA-7529) Intel® Xeon® 6900 series processors with P-cores up to 500W with air cooling
  2. Support up to 8 double-width 600W PCIe GPU accelerator cards at 35ºCSupport 8 NVIDIA RTX PRO 6000 Blackwell Server Edition+ 5 NVIDIA BlueField-3 at 35ºC
  3. Support up to 8 double-width 600W PCIe GPU accelerator cards at 35ºC
  4. Support 8 NVIDIA RTX PRO 6000 Blackwell Server Edition+ 5 NVIDIA BlueField-3 at 35ºC
  5. Up to 24 DIMMs supporting up to 6TB DDR5-6400 in 1DPC or 6TB DDR5-8800 in 1DPC
  6. Flexible networking with up to AIOM slots
  7. Up to 13 PCIe 5.0 x16 FHFL slots

Specifications

Product SKUs
  • SuperServer SYS-422GA-NRT
  • SuperServer SYS-422GA-NRT-01-G2 Gold Series version with pre-configured components
Motherboard

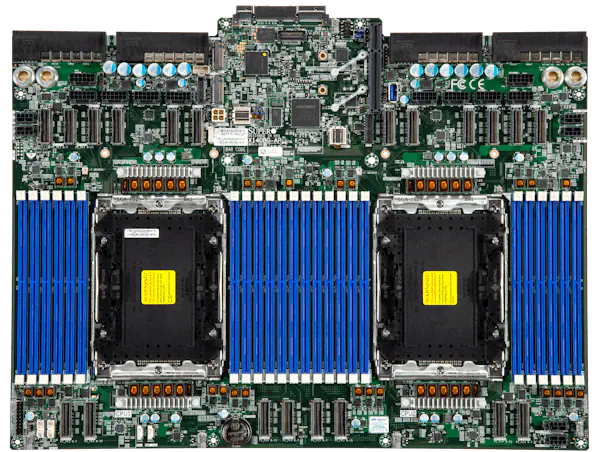

  • Super X14DBG-AP
Processor
CPU
  • Dual Socket BR (LGA-7529)
  • Intel® Xeon® 6900 series processors with P-cores
Core Count
  • Up to 128C/256T; Up to 504MB Cache per CPU
Note
  • Supports up to 500W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 2 quad-width or 2 triple-width or 8 double-width or 10 single-width GPUs
Supported GPU
  • NVIDIA PCIe: H200 NVL (141GB), NVIDIA RTX PRO™ 6000 Blackwell Max-Q Workstation Edition, NVIDIA RTX PRO™ 6000 Blackwell Server Edition
CPU-GPU Interconnect
  • PCIe 5.0 x16 Switch Dual-Root
GPU-GPU Interconnect
  • NVIDIA® NVLink™ Bridge (optional)
System Memory
Memory

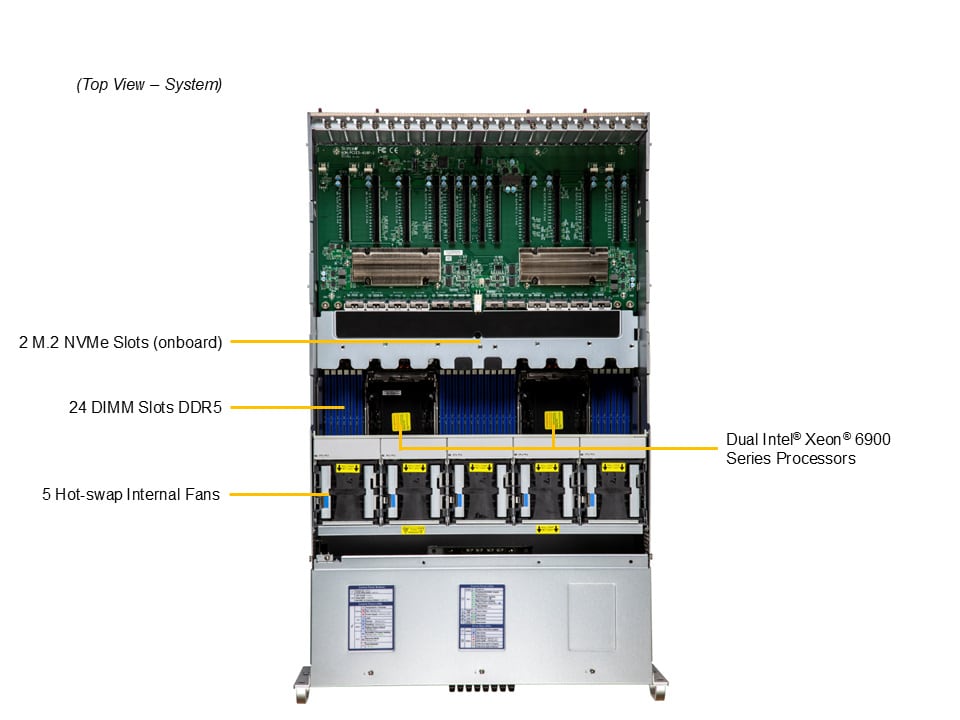

  • Slot Count: 24 DIMM slots
  • Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM
  • Max Memory (1DPC): Up to 6TB 8800MT/s ECC DDR5 MRDIMM
Memory Voltage
  • 1.1V
On-Board Devices
Network Connectivity
  • 2 RJ45 10GbE with Intel® X710-AT2
Input / Output
LAN
  • 2 RJ45 10 GbE LAN ports (Intel® X710)
USB
  • 2 USB 3.0 Type-A ports(Rear)
Video
  • 1 VGA port
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • 8+4 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • SuperServer SYS-422GA-NRT
  • SuperServer SYS-422GA-NRT-01-G2 Gold Series version with pre-configured components
  • Super X14DBG-AP
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-418G3TS-R6K40P
Dimensions and Weight
Height
  • 7″ (178 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 29″ (737 mm)
Package
  • 26.57″ (H) x 27″ (W) x 41″ (D)
Weight
  • Gross Weight: 100 lbs (45.3 kg)
  • Net Weight: 65.5 lbs (29.7 kg)
Available Color
  • Black Front & Silver Body
Expansion Slots
PCI-Express (PCIe) Configuration

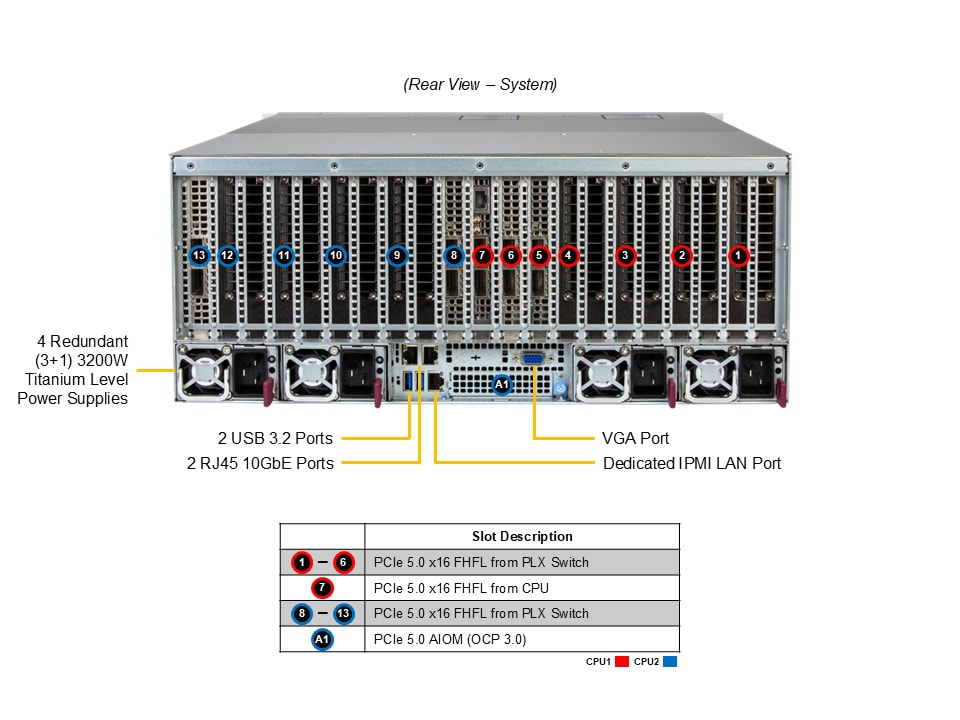

  • Default13 PCIe 5.0 x16 FHFL slots
  • 13 PCIe 5.0 x16 FHFL slots
M.2
  • 2 M.2 PCIe 5.0 x4 NVMe slots (B+M-key)
Drive Bays / Storage
Drive Bays Configuration

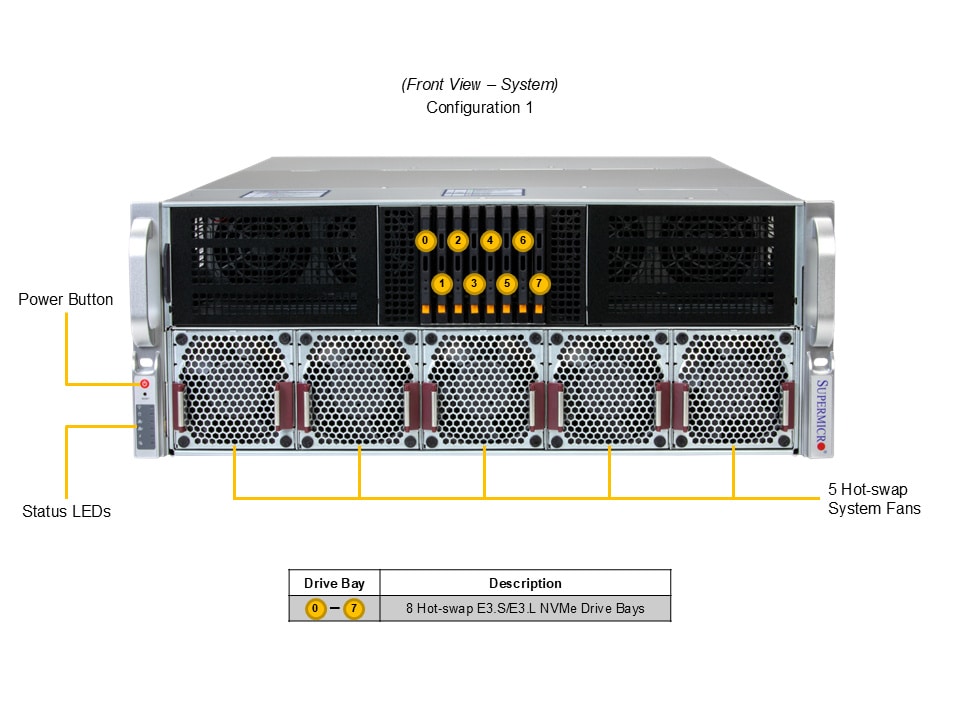

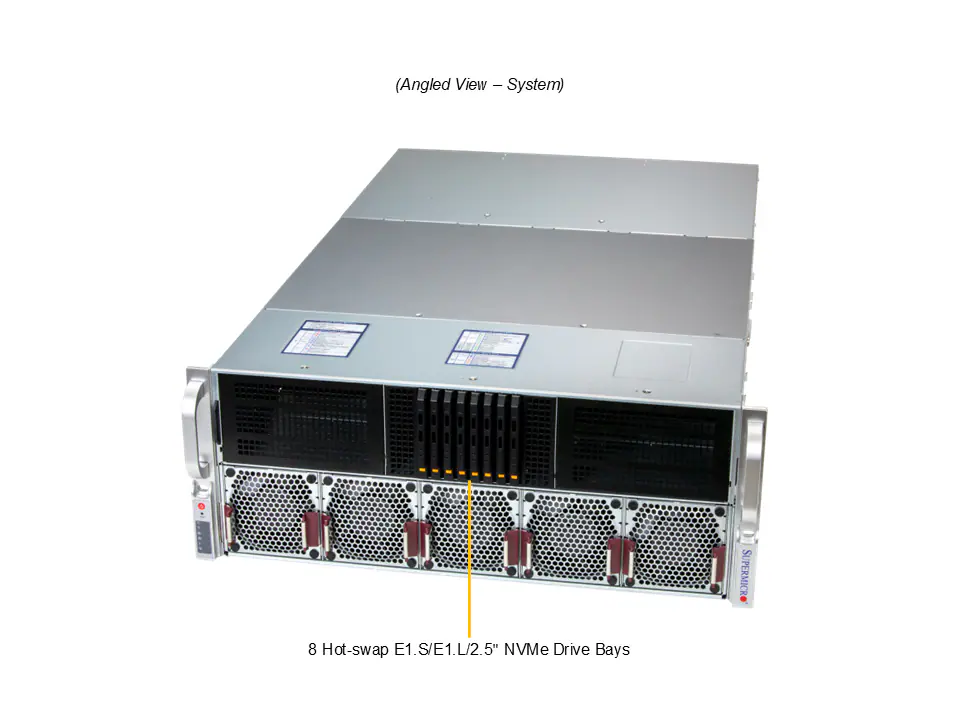

  • Option A: Total 8 bays8 front hot-swap E3.S 1T PCIe 5.0 x4 NVMe drive bays
  • 8 front hot-swap E3.S 1T PCIe 5.0 x4 NVMe drive bays
  • Option B: Total 8 bays8 front hot-swap E3.L 1T PCIe 5.0 x4 NVMe drive bays
  • 8 front hot-swap E3.L 1T PCIe 5.0 x4 NVMe drive bays

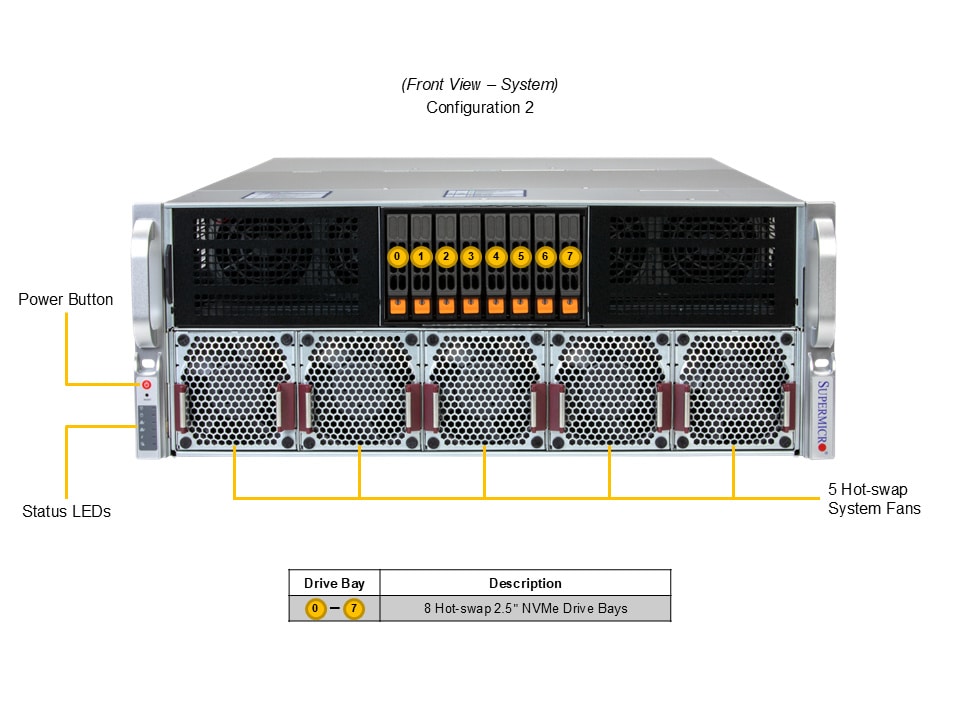

  • Option C: Total 8 bays8 front hot-swap 2.5″ PCIe 5.0 x4 NVMe drive bays
  • 8 front hot-swap 2.5″ PCIe 5.0 x4 NVMe drive bays
M.2
  • 2 M.2 NVMe slots (M-key)
  • View M.2 Options
System Cooling
Fans
  • 10x 8cm heavy duty fans with optimal fan speed control
Air Shroud
  • 1 Air Shroud
Power Supply
  • 4x 3200W 4x 3200W Redundant (3 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 203 mm Input1400W: 100-127Vac / 50-60Hz 2900W: 200-207Vac / 50-60Hz 3000W: 207.1-219Vac / 50-60Hz 3200W: 219.1-240Vac / 50-60Hz 3200W: 240Vdc / 50-60Hz (for CQC only) +12VMax: 116.6A / Min: 0A (100Vac-127Vac)Max: 241.6A / Min: 0A (200Vac-207Vac)Max: 250A / Min: 0A (207.1Vac-219Vac)Max: 266.6A / Min: 0A (219.1Vac-240Vac) 12V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 73.5 x 40 x 203 mm
Input
  • 1400W: 100-127Vac / 50-60Hz 2900W: 200-207Vac / 50-60Hz 3000W: 207.1-219Vac / 50-60Hz 3200W: 219.1-240Vac / 50-60Hz 3200W: 240Vdc / 50-60Hz (for CQC only)
+12V
  • Max: 116.6A / Min: 0A (100Vac-127Vac)Max: 241.6A / Min: 0A (200Vac-207Vac)Max: 250A / Min: 0A (207.1Vac-219Vac)Max: 266.6A / Min: 0A (219.1Vac-240Vac)
12V SB
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • 4x 3200W 4x 3200W Redundant (3 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 203 mm Input1400W: 100-127Vac / 50-60Hz 2900W: 200-207Vac / 50-60Hz 3000W: 207.1-219Vac / 50-60Hz 3200W: 219.1-240Vac / 50-60Hz 3200W: 240Vdc / 50-60Hz (for CQC only) +12VMax: 116.6A / Min: 0A (100Vac-127Vac)Max: 241.6A / Min: 0A (200Vac-207Vac)Max: 250A / Min: 0A (207.1Vac-219Vac)Max: 266.6A / Min: 0A (219.1Vac-240Vac) 12V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
