Supermicro SuperServer SYS-821GE-TNHR

Favorite

Compara

DP Intel 8U System with NVIDIA HGX H100/H200 8-GPU and Rear I/O

Pretul afisat contine TVA (21%).

SuperServer SYS-821GE-TNHR

DP Intel 8U System with NVIDIA HGX H100/H200 8-GPU and Rear I/O

Key Features

5th/4th Gen Intel® Xeon® Scalable processor support
Support for NVIDIA HGX™ H100/H200 8-GPU
32 DIMM slots Up to 8TB: 32x 256 GB DRAM Memory Type: 5600MTs ECC DDR5
8 PCIe Gen 5.0 X16 LP2 PCIe Gen 5.0 X16 FHHL Slots, 2 PCIe Gen 5.0 X16 FHHL Slots (optional)
8 PCIe Gen 5.0 X16 LP
2 PCIe Gen 5.0 X16 FHHL Slots, 2 PCIe Gen 5.0 X16 FHHL Slots (optional)
Flexible networking options
2 M.2 NVMe for boot drive only16x 2.5″ Hot-swap NVMe drive bays (12x by default, 4x optional)3x 2.5″ Hot-swap SATA drive baysOptional: 8x 2.5″ Hot-swap SATA drive bays
2 M.2 NVMe for boot drive only
16x 2.5″ Hot-swap NVMe drive bays (12x by default, 4x optional)
3x 2.5″ Hot-swap SATA drive bays
Optional: 8x 2.5″ Hot-swap SATA drive bays
10 heavy duty fans with optimal fan speed control
Optional: 8x 3000W (4+4) Redundant Power Supplies, Titanium Level6x 3000W (4+2) Redundant Power Supplies, Titanium Level
Optional: 8x 3000W (4+4) Redundant Power Supplies, Titanium Level
6x 3000W (4+2) Redundant Power Supplies, Titanium Level

Specifications

Product SKUs
SuperServer SYS-821GE-TNHR
Motherboard

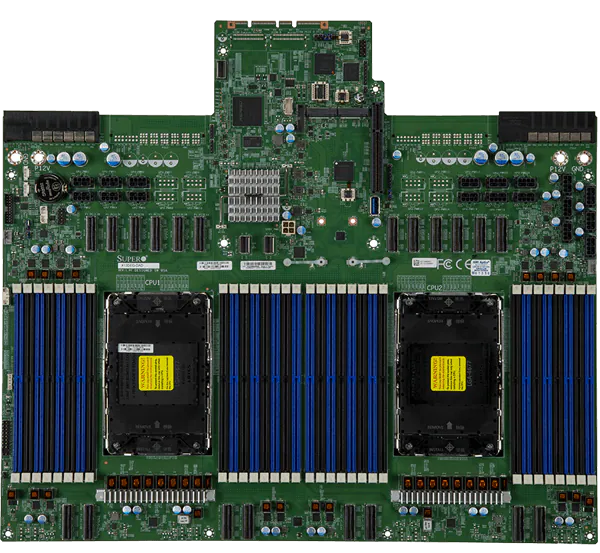

Super X13DEG-OAD
Processor
CPU	Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Core Count	Up to 64C/128T; Up to 320MB Cache per CPU
Note	Supports up to 350W TDP CPUs (Air Cooled)
GPU
Max GPU Count	8 onboard GPUs

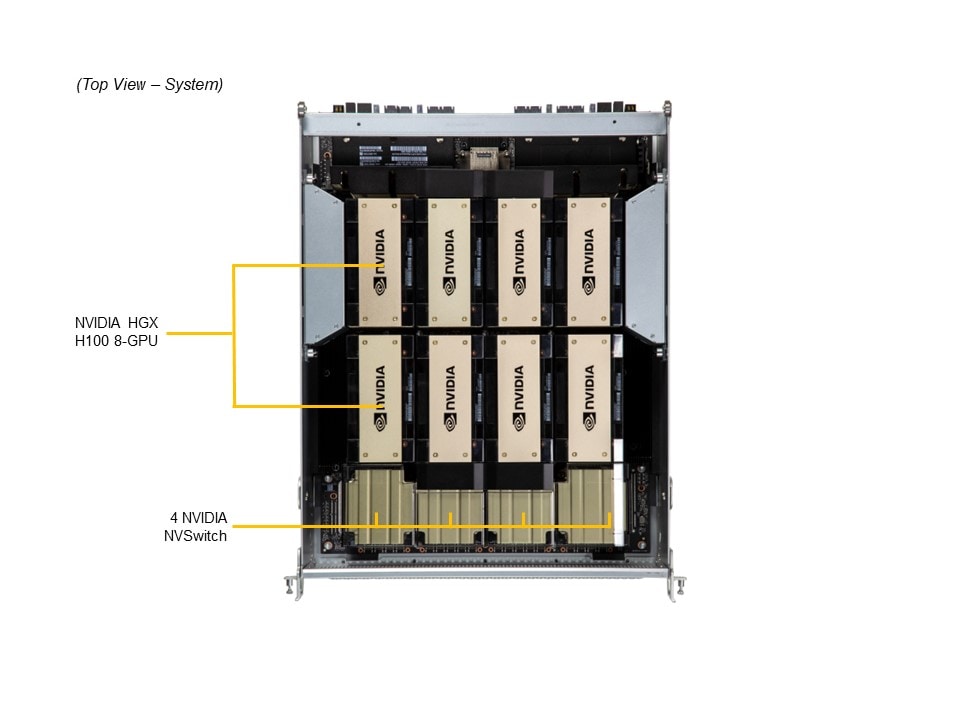

Supported GPU	NVIDIA SXM: HGX H100 8-GPU (80GB), HGX H200 8-GPU (141GB)
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	NVIDIA® NVLink™ with NVSwitch™
System Memory

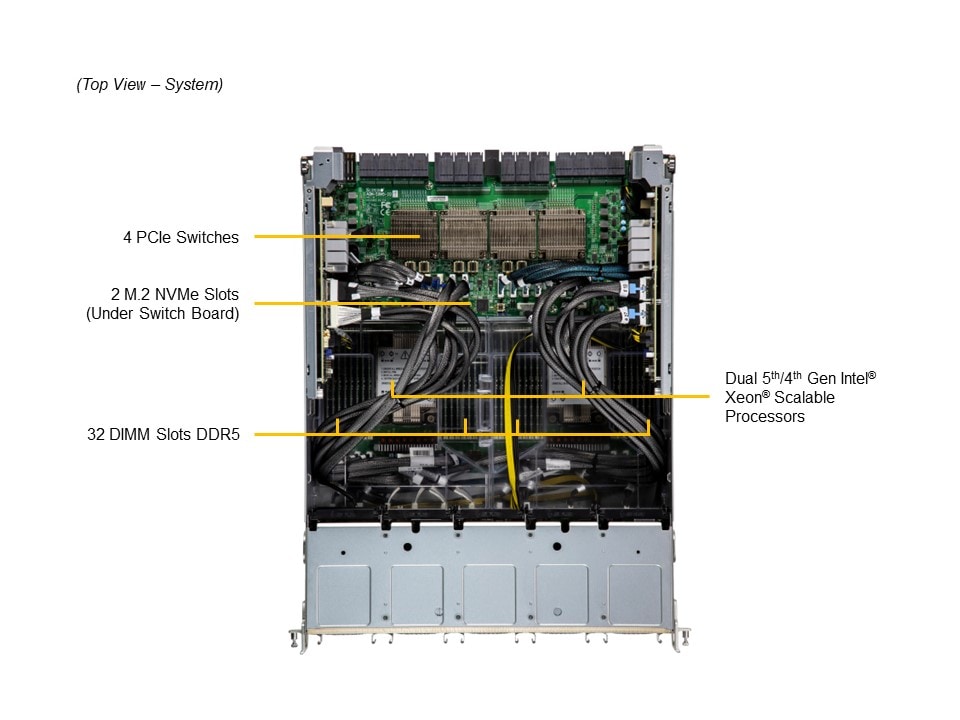

Memory	Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM
Memory Voltage	1.1V
On-Board Devices
Chipset	Intel® C741
Network Connectivity	2 RJ45 10GbE with Intel® X550-AT2 (optional) 2 SFP28 25GbE with Broadcom® BCM57414 (optional) 2 RJ45 10GbE with Intel® X710-AT2 (optional)
Input / Output
Video	1 VGA port
TPM	1 TPM header
System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM
Management
Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management
Security
Hardware	Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown
PC Health Monitoring
CPU	8+4 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
SuperServer SYS-821GE-TNHR
Super X13DEG-OAD
Chassis
Form Factor	8U Rackmount
Model	CSE-GP801TS
Dimensions and Weight
Height	14″ (355.6 mm)
Width	17.2″ (437 mm)
Depth	33.2″ (843.28 mm)
Package	29.5″ (H) x 27.5″ (W) x 51.2″ (D)
Weight	Gross Weight: 225 lbs (102.1 kg) Net Weight: 166 lbs (75.3 kg)
Available Color	Black front & silver body
Front Panel
Buttons	Power On/Off button System Reset button
LED	Hard drive activity LED Network activity LEDs Power status LED System Overheat & Power Fail LED
Expansion Slots

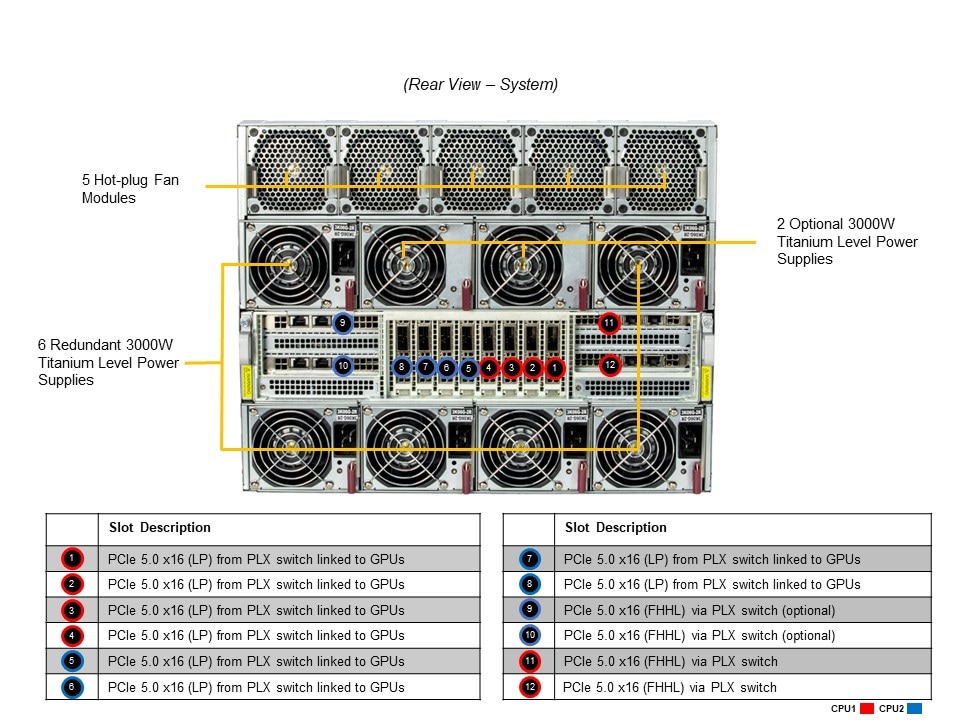

PCI-Express (PCIe) Configuration	Default8 PCIe 5.0 x16 LP slots 2 PCIe 5.0 x16 FHHL slots 8 PCIe 5.0 x16 LP slots 2 PCIe 5.0 x16 FHHL slots Option A2 PCIe 5.0 x16 FHHL slots 2 PCIe 5.0 x16 FHHL slots
Drive Bays / Storage

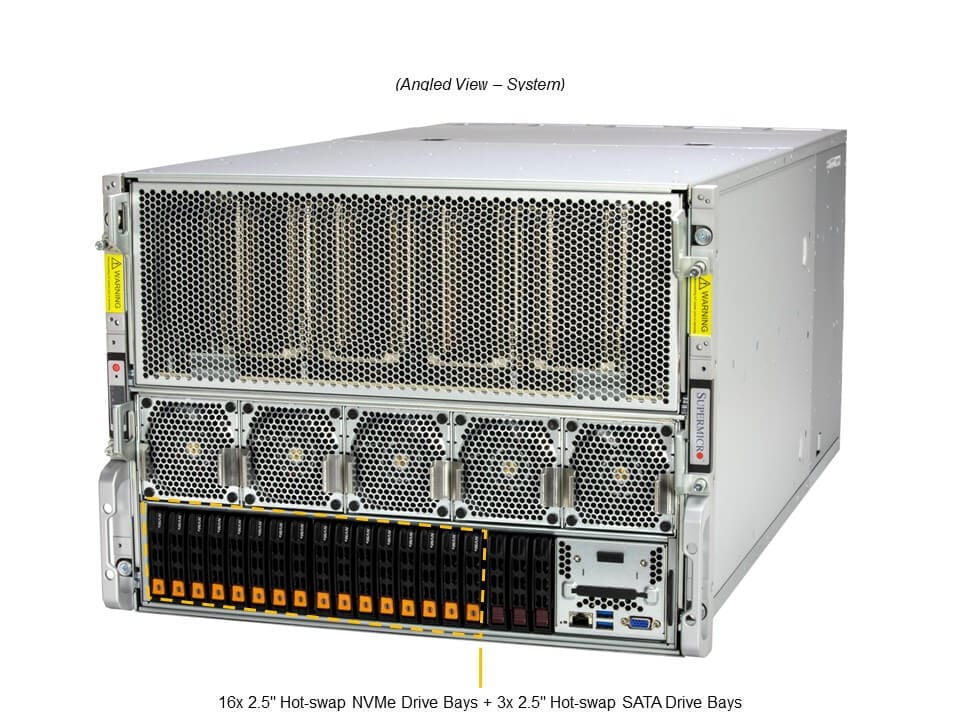

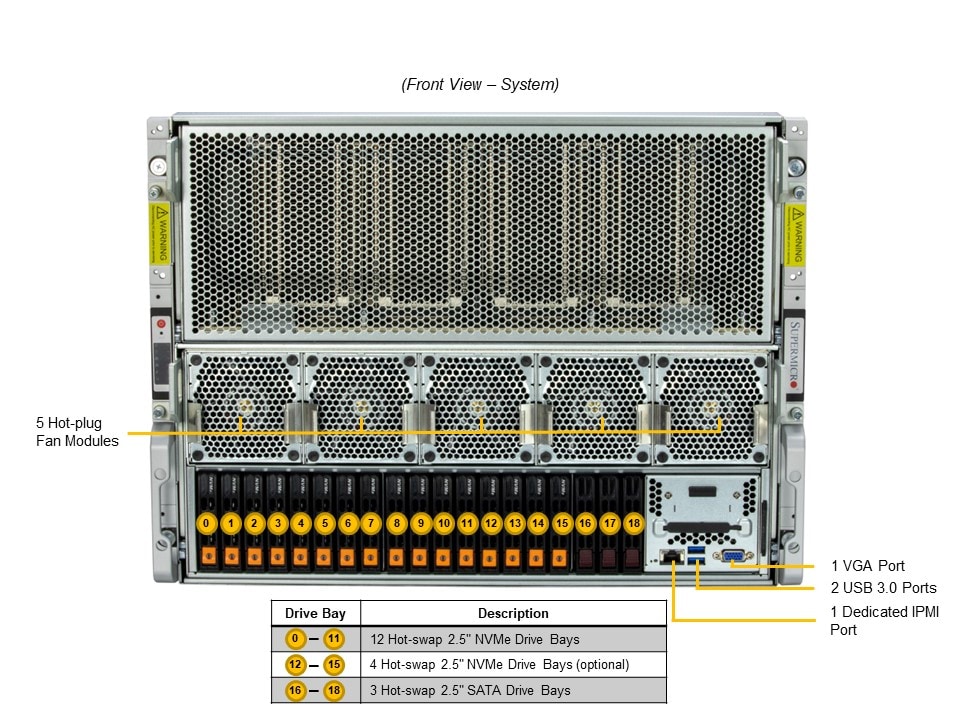

Drive Bays Configuration	Default: Total 15 bays12 front hot-swap 2.5″ NVMe drive bays 3 front hot-swap 2.5″ SATA drive bays 12 front hot-swap 2.5″ NVMe drive bays 3 front hot-swap 2.5″ SATA drive bays Option A: Total 19 bays12 front hot-swap 2.5″ NVMe drive bays 4 front hot-swap 2.5″ NVMe* drive bays 3 front hot-swap 2.5″ SATA drive bays 12 front hot-swap 2.5″ NVMe drive bays 4 front hot-swap 2.5″ NVMe* drive bays 3 front hot-swap 2.5″ SATA drive bays (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2	2 M.2 NVMe slots (M-key) View M.2 Options
System Cooling
Fans	Up to 10 heavy duty fans with optimal fan speed control
Power Supply
6x 3000W 6x 3000W Redundant (4 + 2) Titanium Level (96%) power supplies Dimension (WxHxL)106.5 x 82.1 x 245.5 mm Input2880W: 200-207Vac / 50-60Hz 3000W: 3000W: 207-240Vac / 50-60Hz 3000W: 0240Vdc / 50-60Hz (for CQC only) +12VMax: 91.66A / Min: 0A (200Vac-240Vac) 12V SBMax: 3A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)	106.5 x 82.1 x 245.5 mm
Input	2880W: 200-207Vac / 50-60Hz 3000W: 3000W: 207-240Vac / 50-60Hz 3000W: 0240Vdc / 50-60Hz (for CQC only)
+12V	Max: 91.66A / Min: 0A (200Vac-240Vac)
12V SB	Max: 3A / Min: 0A
Output Type	Backplanes (gold finger)
Operating Environment
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
6x 3000W 6x 3000W Redundant (4 + 2) Titanium Level (96%) power supplies Dimension (WxHxL)106.5 x 82.1 x 245.5 mm Input2880W: 200-207Vac / 50-60Hz 3000W: 3000W: 207-240Vac / 50-60Hz 3000W: 0240Vdc / 50-60Hz (for CQC only) +12VMax: 91.66A / Min: 0A (200Vac-240Vac) 12V SBMax: 3A / Min: 0A Output TypeBackplanes (gold finger)
Optional Parts List

SKU: sys-821ge-tnhr Categorii: BRAND, gpu, Server&Storage, SUPERMICRO

Product SKUs
SuperServer SYS-821GE-TNHR
Motherboard
Super X13DEG-OAD
Processor
CPU	Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Core Count	Up to 64C/128T; Up to 320MB Cache per CPU
Note	Supports up to 350W TDP CPUs (Air Cooled)
GPU
Max GPU Count	8 onboard GPUs
Supported GPU	NVIDIA SXM: HGX H100 8-GPU (80GB), HGX H200 8-GPU (141GB)
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	NVIDIA® NVLink™ with NVSwitch™
System Memory
Memory	Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM
Memory Voltage	1.1V
On-Board Devices
Chipset	Intel® C741
Network Connectivity	2 RJ45 10GbE with Intel® X550-AT2 (optional) 2 SFP28 25GbE with Broadcom® BCM57414 (optional) 2 RJ45 10GbE with Intel® X710-AT2 (optional)
Input / Output
Video	1 VGA port
TPM	1 TPM header
System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM
Management
Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management
Security
Hardware	Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown
PC Health Monitoring
CPU	8+4 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
SuperServer SYS-821GE-TNHR
Super X13DEG-OAD
Chassis
Form Factor	8U Rackmount
Model	CSE-GP801TS
Dimensions and Weight
Height	14″ (355.6 mm)
Width	17.2″ (437 mm)
Depth	33.2″ (843.28 mm)
Package	29.5″ (H) x 27.5″ (W) x 51.2″ (D)
Weight	Gross Weight: 225 lbs (102.1 kg) Net Weight: 166 lbs (75.3 kg)
Available Color	Black front & silver body
Front Panel
Buttons	Power On/Off button System Reset button
LED	Hard drive activity LED Network activity LEDs Power status LED System Overheat & Power Fail LED
Expansion Slots
PCI-Express (PCIe) Configuration	Default8 PCIe 5.0 x16 LP slots 2 PCIe 5.0 x16 FHHL slots 8 PCIe 5.0 x16 LP slots 2 PCIe 5.0 x16 FHHL slots Option A2 PCIe 5.0 x16 FHHL slots 2 PCIe 5.0 x16 FHHL slots
Drive Bays / Storage
Drive Bays Configuration	Default: Total 15 bays12 front hot-swap 2.5″ NVMe drive bays 3 front hot-swap 2.5″ SATA drive bays 12 front hot-swap 2.5″ NVMe drive bays 3 front hot-swap 2.5″ SATA drive bays Option A: Total 19 bays12 front hot-swap 2.5″ NVMe drive bays 4 front hot-swap 2.5″ NVMe* drive bays 3 front hot-swap 2.5″ SATA drive bays 12 front hot-swap 2.5″ NVMe drive bays 4 front hot-swap 2.5″ NVMe* drive bays 3 front hot-swap 2.5″ SATA drive bays (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2	2 M.2 NVMe slots (M-key) View M.2 Options
System Cooling
Fans	Up to 10 heavy duty fans with optimal fan speed control
Power Supply
6x 3000W 6x 3000W Redundant (4 + 2) Titanium Level (96%) power supplies Dimension (WxHxL)106.5 x 82.1 x 245.5 mm Input2880W: 200-207Vac / 50-60Hz 3000W: 3000W: 207-240Vac / 50-60Hz 3000W: 0240Vdc / 50-60Hz (for CQC only) +12VMax: 91.66A / Min: 0A (200Vac-240Vac) 12V SBMax: 3A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)	106.5 x 82.1 x 245.5 mm
Input	2880W: 200-207Vac / 50-60Hz 3000W: 3000W: 207-240Vac / 50-60Hz 3000W: 0240Vdc / 50-60Hz (for CQC only)
+12V	Max: 91.66A / Min: 0A (200Vac-240Vac)
12V SB	Max: 3A / Min: 0A
Output Type	Backplanes (gold finger)
Operating Environment
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
6x 3000W 6x 3000W Redundant (4 + 2) Titanium Level (96%) power supplies Dimension (WxHxL)106.5 x 82.1 x 245.5 mm Input2880W: 200-207Vac / 50-60Hz 3000W: 3000W: 207-240Vac / 50-60Hz 3000W: 0240Vdc / 50-60Hz (for CQC only) +12VMax: 91.66A / Min: 0A (200Vac-240Vac) 12V SBMax: 3A / Min: 0A Output TypeBackplanes (gold finger)
Optional Parts List
