DP Intel 8U System with AMD MI300X 8-GPU and Rear I/O

Pretul afisat contine TVA (21%).

SuperServer SYS-821GE-TNMR2

DP Intel 8U System with AMD MI300X 8-GPU and Rear I/O

Key Features

  1. Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors up to 350W with air cooling

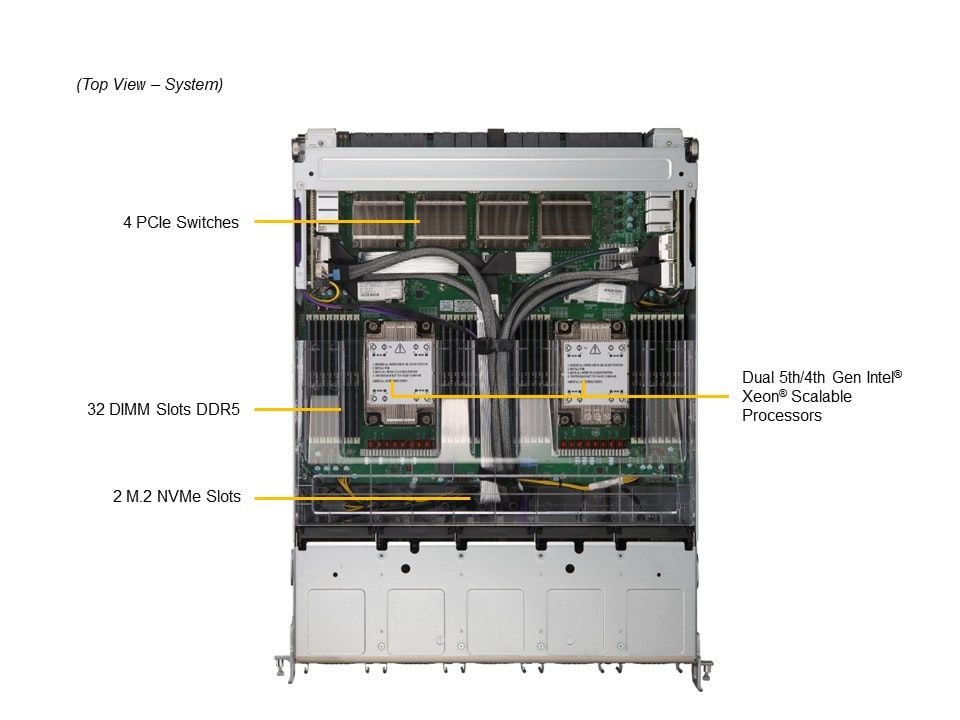

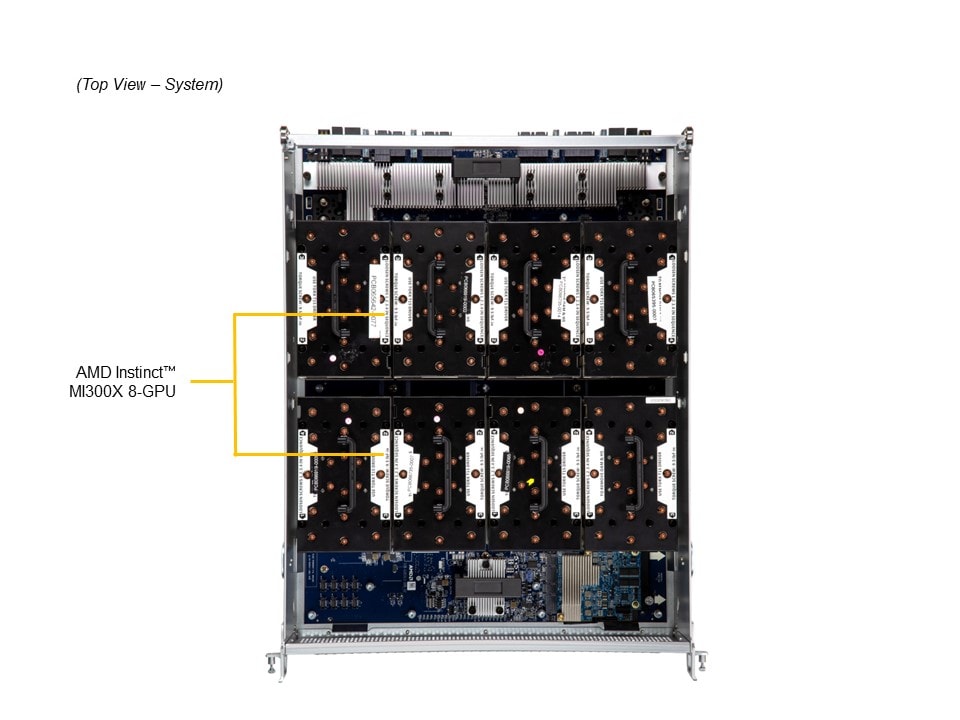

  2. High density 8U system with AMD Instinct MI300X 8-GPU
  3. Up to 32 DIMMs supporting up to 8TB DDR5-4400 in 2DPC or 4TB DDR5-5600 in 1DPC
  4. Flexible networking options
  5. 8 PCIe Gen 5.0 X16 LP, 2 PCIe Gen 5.0 X16 FHHL Slots, 2 PCIe Gen 5.0 X16 FHHL Slots (optional)

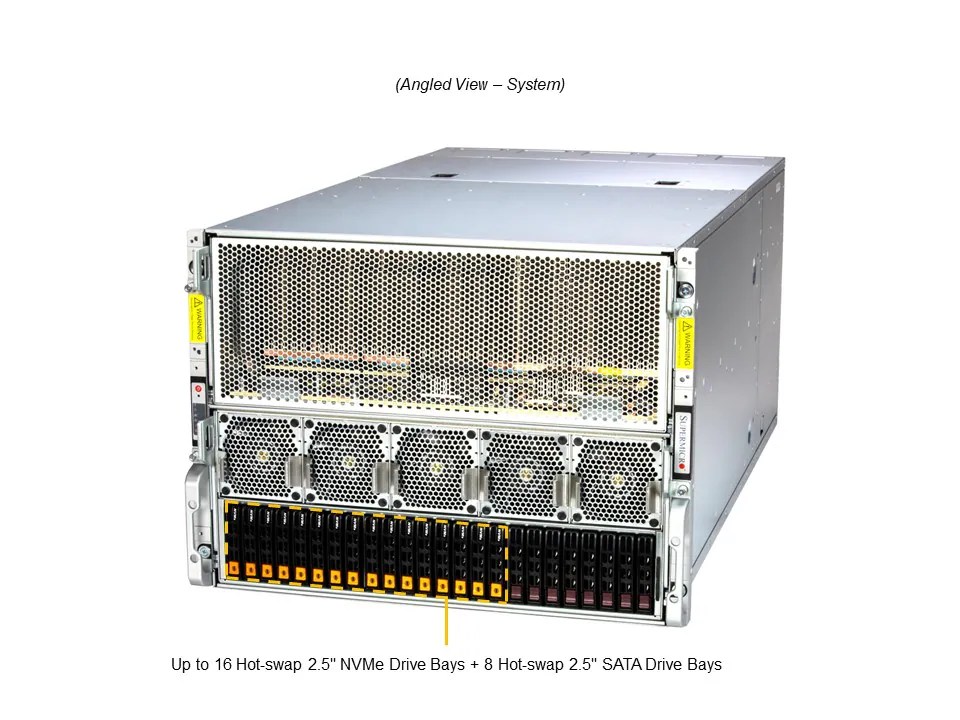

  6. 8x 2.5″ Hot-swap SATA drive bays, 2x M.2 NVMe for boot drive, up to 16x 2.5″ Hot-swap NVMe drive bays (12 by default + 4 optional)
  7. 6 Redundant 3000W Titanium Level power supplies
  8. 8U Rackmount chassis with 33.2″ (843mm) depth

Specifications

Product SKUs
  • SuperServer SYS-821GE-TNMR2
Motherboard

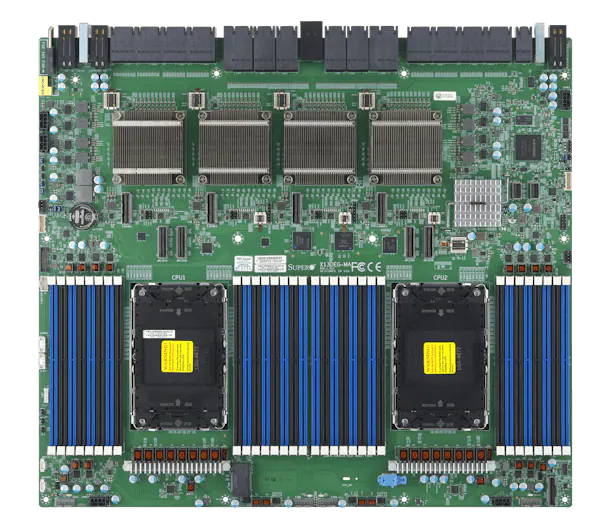

  • Super X13DEG-MA
Processor
CPU
  • Dual Socket E (LGA-4677)
  • 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 64C/128T; Up to 320MB Cache per CPU
Note
  • Supports up to 350W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • 8 onboard GPUs
Supported GPU
  • AMD: Instinct™ MI300X Accelerators
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • AMD Infinity Fabric™ Link
System Memory
Memory
  • Slot Count: 32 DIMM slots
  • Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
  • Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM
Memory Voltage
  • 1.1V
On-Board Devices
Network Connectivity
  • 2 SFP28 25GbE with Broadcom® BCM57414 (optional)
  • 2 RJ45 10GbE with Intel® X710-AT2 (optional)
Input / Output
USB
  • 1 USB 3.0 Type-A port(Rear)
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • 8+4 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • SuperServer SYS-821GE-TNMR2
  • Super X13DEG-MA
Chassis
Form Factor
  • 8U Rackmount
Model
  • CSE-GP801TS-R000NPF-D2
Dimensions and Weight
Height
  • 13.8″ (356 mm)
Width
  • 17.7″ (447 mm)
Depth
  • 33.2″ (843 mm)
Package
  • 27.6″ (H) x 29.5″ (W) x 51″ (D)
Weight
  • Gross Weight: 178.6 lbs (81 kg)
  • Net Weight: 116.22 lbs (53 kg)
Available Color
  • Silver
Front Panel
Buttons
  • UID button
Expansion Slots

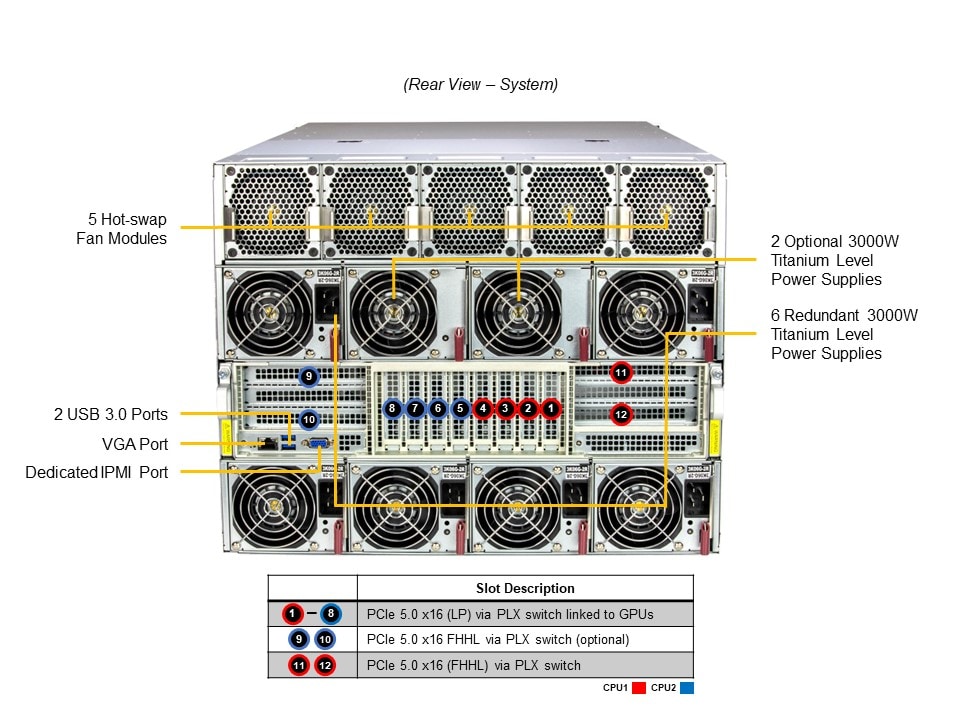

PCI-Express (PCIe) Configuration
  • Default8 PCIe 5.0 x16 LP slots 2 PCIe 5.0 x16 FHHL slots
  • 8 PCIe 5.0 x16 LP slots
  • 2 PCIe 5.0 x16 FHHL slots
Drive Bays / Storage
Drive Bays Configuration

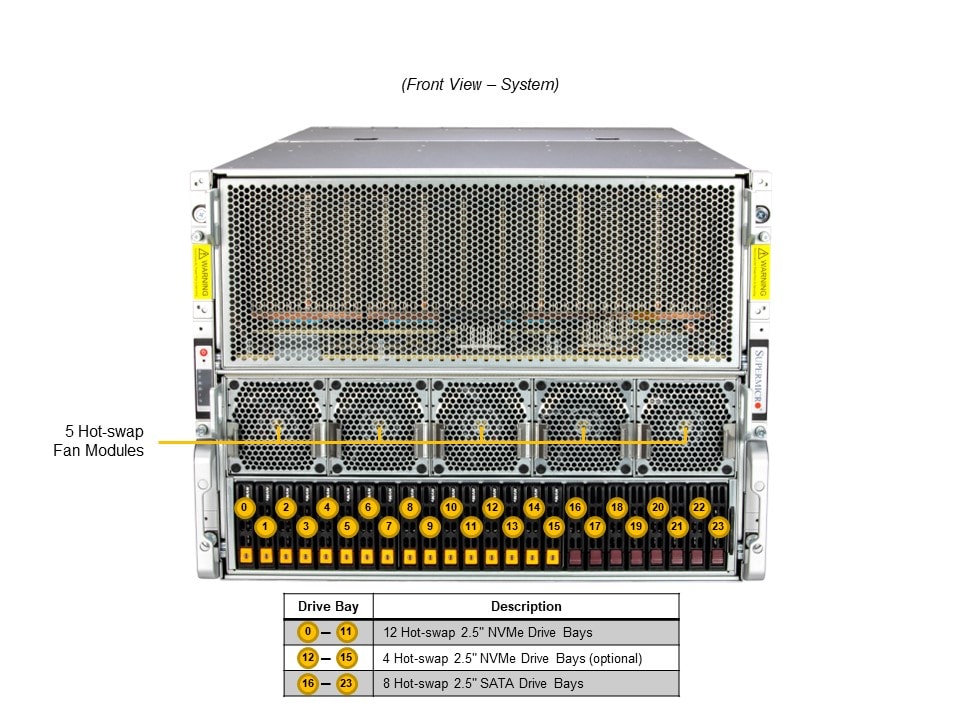

  • Default: Total 20 bays12 front hot-swap 2.5″ NVMe drive bays 8 front hot-swap 2.5″ SATA drive bays
  • 12 front hot-swap 2.5″ NVMe drive bays
  • 8 front hot-swap 2.5″ SATA drive bays
  • Option A: Total 4 bays4 front hot-swap 2.5″ NVMe drive bays
  • 4 front hot-swap 2.5″ NVMe drive bays
M.2
  • 2 M.2 PCIe 3.0 x2 NVMe slots (M-key)
  • View M.2 Options
System Cooling
Fans
  • Up to 10 heavy duty fans with optimal fan speed control
Power Supply
  • 6x 3000W 6x 3000W Redundant Titanium Level (96%) power supplies Dimension (WxHxL)106.5 x 82.1 x 245.5 mm Input2880W: 200-207Vac / 50-60Hz 3000W: 3000W: 207-240Vac / 50-60Hz 3000W: 0240Vdc / 50-60Hz (for CQC only) +12VMax: 91.66A / Min: 0A (200Vac-240Vac) 12V SBMax: 3A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 106.5 x 82.1 x 245.5 mm
Input
  • 2880W: 200-207Vac / 50-60Hz 3000W: 3000W: 207-240Vac / 50-60Hz 3000W: 0240Vdc / 50-60Hz (for CQC only)
+12V
  • Max: 91.66A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 3A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • 6x 3000W 6x 3000W Redundant Titanium Level (96%) power supplies Dimension (WxHxL)106.5 x 82.1 x 245.5 mm Input2880W: 200-207Vac / 50-60Hz 3000W: 3000W: 207-240Vac / 50-60Hz 3000W: 0240Vdc / 50-60Hz (for CQC only) +12VMax: 91.66A / Min: 0A (200Vac-240Vac) 12V SBMax: 3A / Min: 0A Output TypeBackplanes (gold finger)
