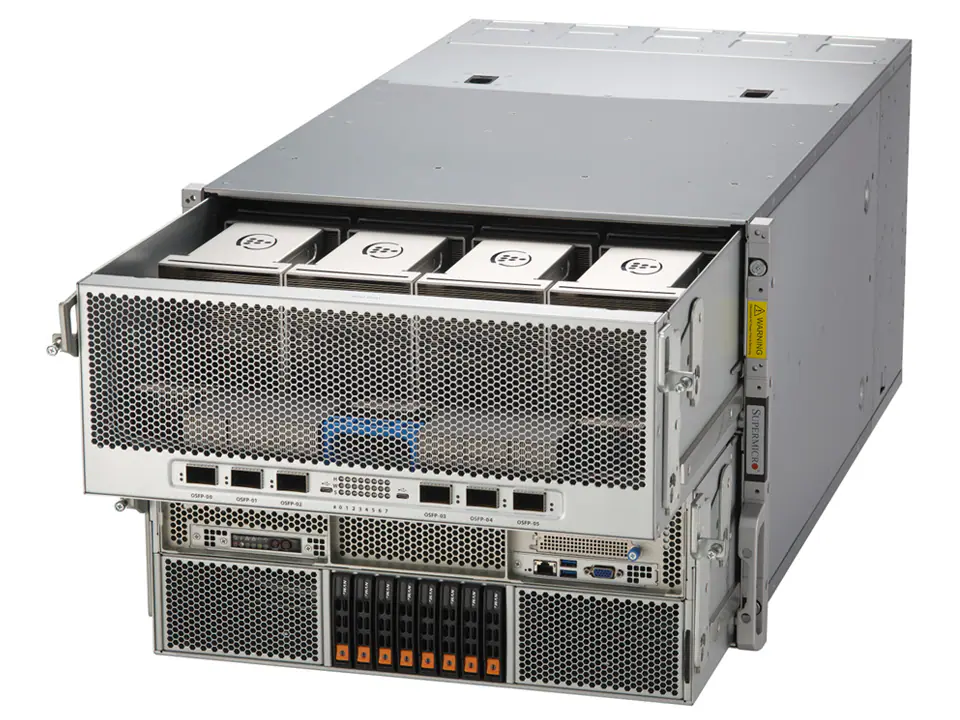

Supermicro SuperServer SYS-822GA-NGR3
Supermicro SuperServer SYS-822GA-NGR3 - imagine 2
Supermicro SuperServer SYS-822GA-NGR3 - imagine 3
Supermicro SuperServer SYS-822GA-NGR3 - imagine 4
Supermicro SuperServer SYS-822GA-NGR3 - imagine 5
Supermicro SuperServer SYS-822GA-NGR3 - imagine 6
Supermicro SuperServer SYS-822GA-NGR3 - imagine 7
, , ,

Supermicro SuperServer SYS-822GA-NGR3

Favorite
Compara

8U AI training platform with 8 Gaudi® 3 accelerators

Pretul afisat contine TVA (21%).

SuperServer SYS-822GA-NGR3

8U AI training platform with 8 Gaudi® 3 accelerators

Key Features

  1. Dual Intel® Xeon® 6900 series processors with P-cores
  2. Support for up to 24 DIMMs DDR5-6400 and 8800MT/s MRDIMMs

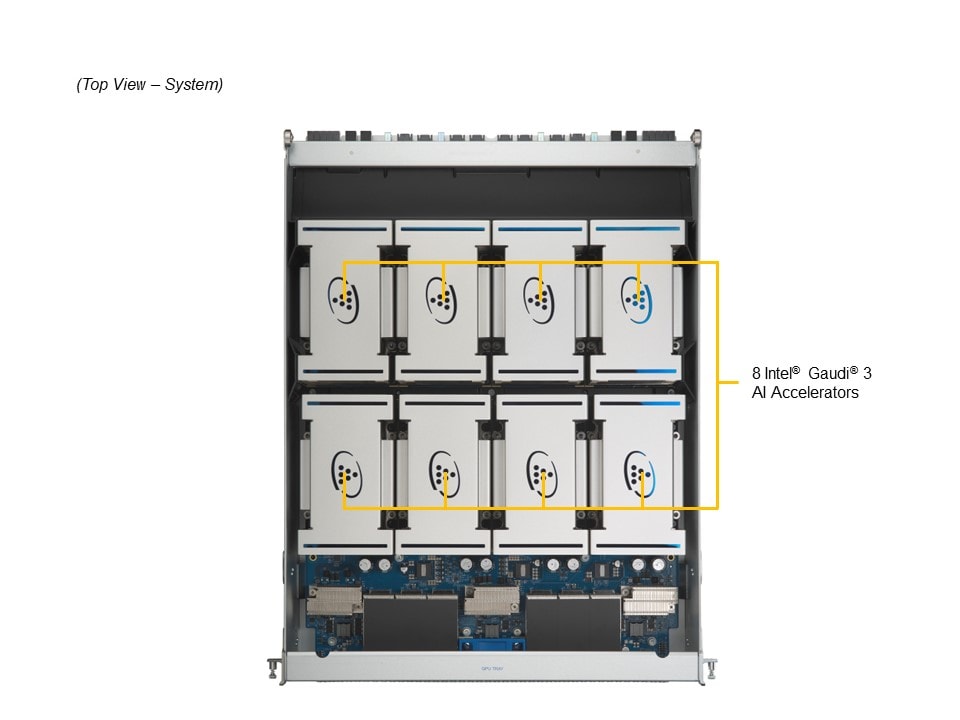

  3. Support for 8 Gaudi® 3 OAM GPUs
  4. 6 On-board OSFP 800GbE ports
  5. Up to 2 PCIe 5.0 x16 FHFL and 2 PCIe 5.0 x8 FHFL slotsDefault AIOM dual port 10GBase-T
  6. Up to 8 2.5″ hot-swap NVMe Gen5 drive bays
  7. 8x 3000W (4+4) redundant Titanium level power supplies

Specifications

Product SKUs
  • SuperServer SYS-822GA-NGR3

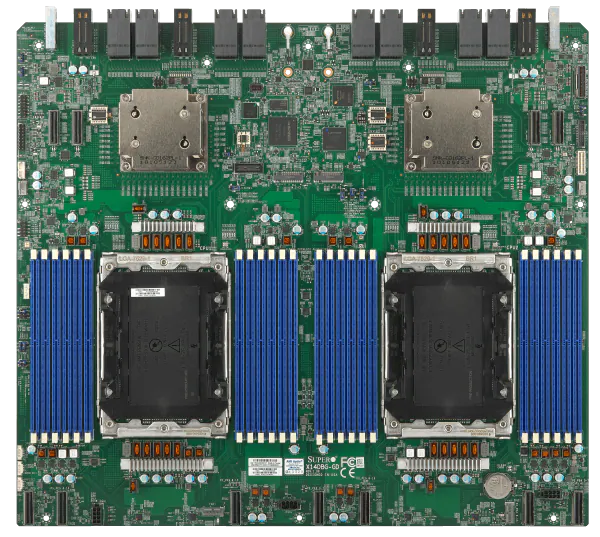

Motherboard
  • Super X14DBG-GD
Processor
CPU
  • Dual Socket BR (LGA-7529)
  • Intel® Xeon® 6900 series processors with P-cores
Core Count
  • Up to 128C/256T; Up to 504MB Cache per CPU
Note
  • Supports up to 500W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • 8 onboard GPUs
Supported GPU
  • Intel OAM: Gaudi 3
CPU-GPU Interconnect
  • PCIe Gen5 x16
GPU-GPU Interconnect
  • 24x 200Gbe (48 x 112Gbps) PAM4 SerDes links split
System Memory
Memory

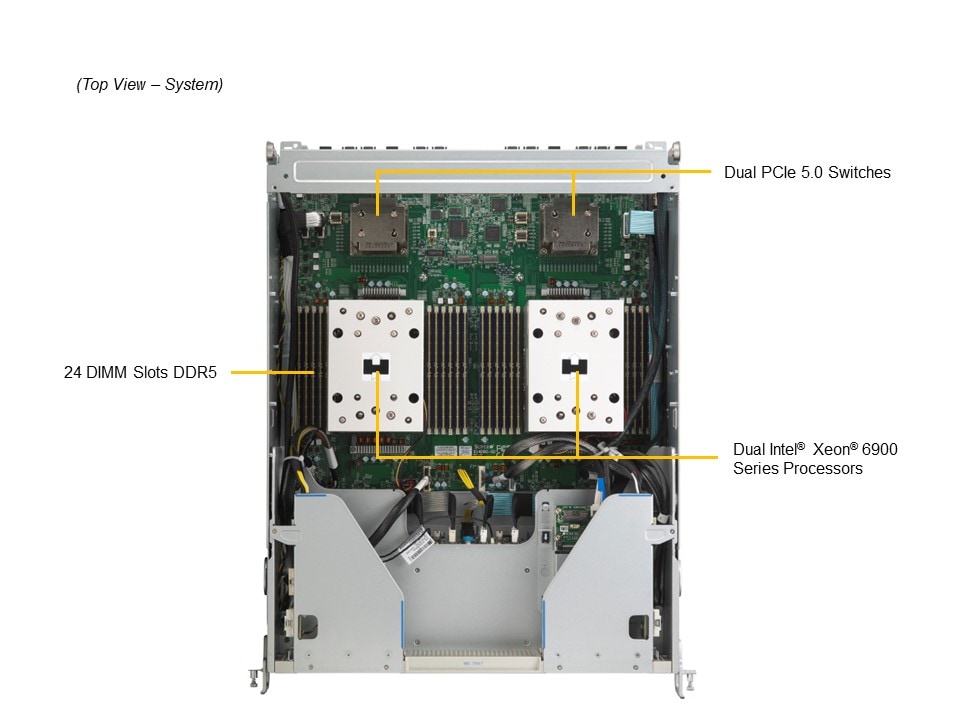

  • Slot Count: 24 DIMM slots
  • Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM/LRDIMM
  • Max Memory (1DPC): Up to 6TB 8800MT/s ECC DDR5 MRDIMM
Memory Voltage
  • 1.1V
On-Board Devices
Network Connectivity

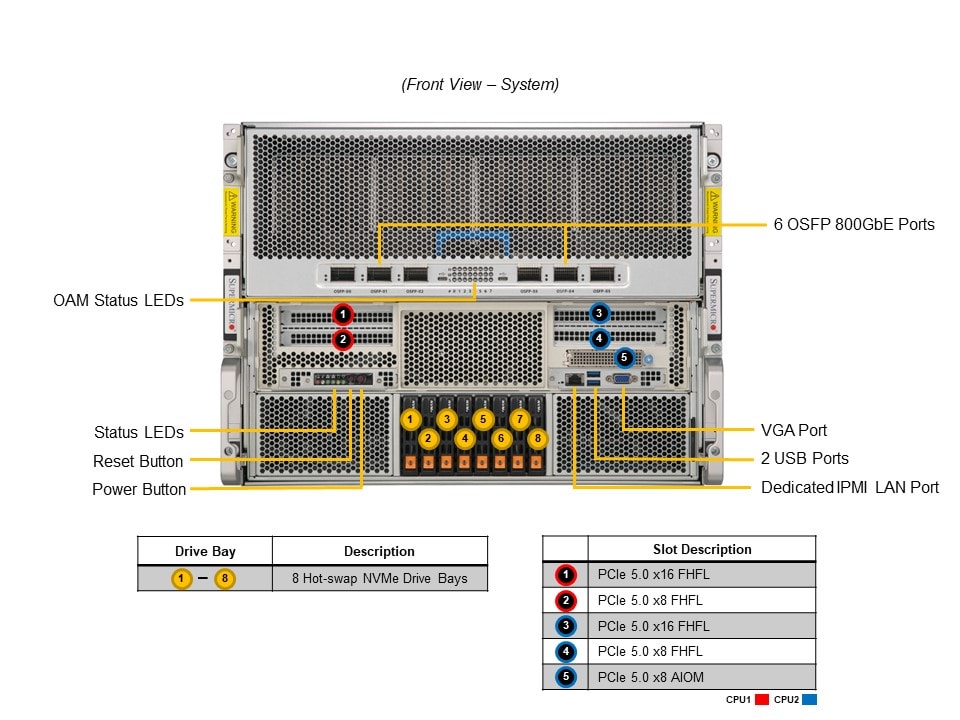

  • 6 OSFP 800GbE
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 Type-A ports
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 7+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • SuperServer SYS-822GA-NGR3
  • Super X14DBG-GD
Chassis
Form Factor
  • 8U Rackmount
Model
  • CSE-GP806TS-R000NPF
Dimensions and Weight
Height
  • 13.8″ (356 mm)
Width
  • 17.6″ (447 mm)
Depth
  • 33.2″ (800 mm)
Package
  • 27.6″ (H) x 29.5″ (W) x 51″ (D)
Weight
  • Gross Weight: 282 lbs (128 kg)
  • Net Weight: 308 lbs (140 kg)
Available Color
  • Silver
Front Panel
Buttons
  • Power On/Off
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default2 PCIe 5.0 x16 FHFL slots 2 PCIe 5.0 x8 FHFL slots 1 PCIe 5.0 x4 AIOM slot (OCP 3.0 compatible)
  • 2 PCIe 5.0 x16 FHFL slots
  • 2 PCIe 5.0 x8 FHFL slots
  • 1 PCIe 5.0 x4 AIOM slot (OCP 3.0 compatible)
M.2
  • 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 22110(default))
Drive Bays / Storage
Drive Bays Configuration

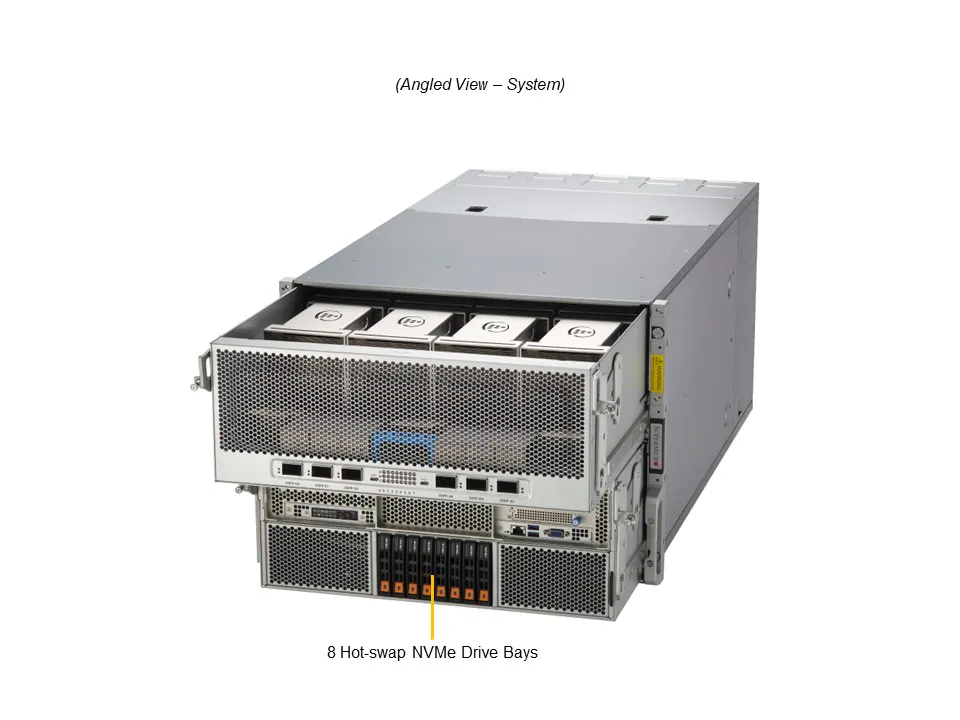

  • Default: Total 8 bays8 front hot-swap 2.5″ PCIe 5.0 NVMe drive bays
  • 8 front hot-swap 2.5″ PCIe 5.0 NVMe drive bays
M.2
  • 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 22110(default))
  • View M.2 Options
System Cooling
Fans

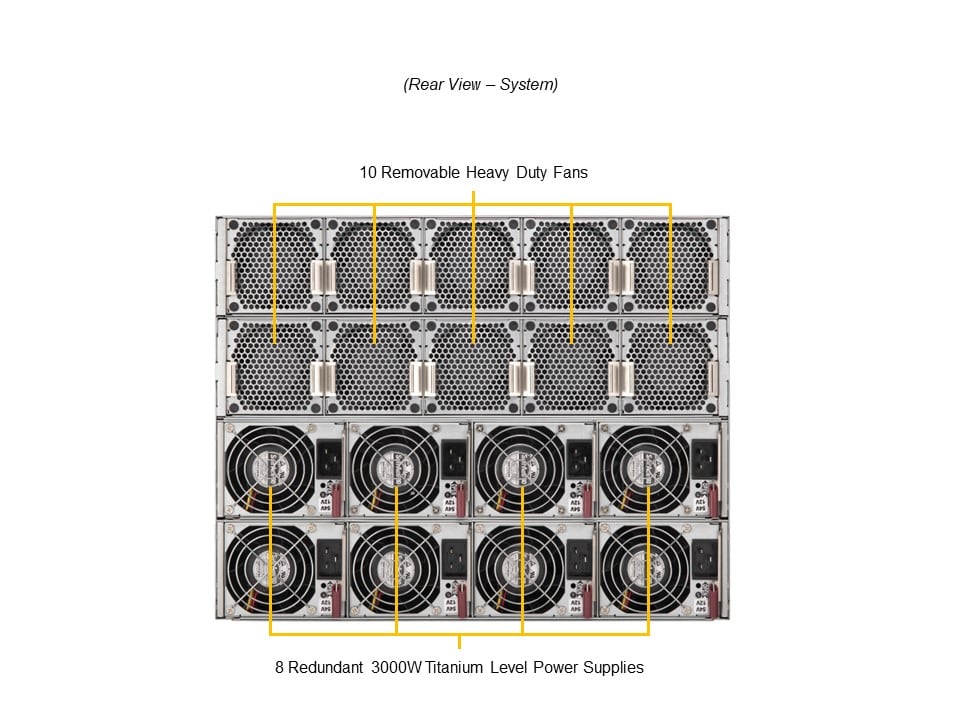

  • Up to 10 Removable Heavy-Duty 80 x 80 x 80mm Fan(s)
Power Supply
  • 8x 3000W 8x 3000W Redundant Titanium Level (96%) power supplies Dimension (WxHxL)106.5 x 82.4 x 203.5 mm Input2880W: 200-207Vac 2880W: 200-207Vac / 50-60Hz 3000W: 207.1-240Vac 3000W: 240Vdc 3000W: 207.1-240Vac / 50-60Hz 3000W: 240Vdc / 50-60Hz +12VMax: 91.66A / Min: 0A (Vdc-240Vdc)Max: 91.66A / Min: 0A (200Vac-240Vac) 12V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 106.5 x 82.4 x 203.5 mm
Input
  • 2880W: 200-207Vac 2880W: 200-207Vac / 50-60Hz 3000W: 207.1-240Vac 3000W: 240Vdc 3000W: 207.1-240Vac / 50-60Hz 3000W: 240Vdc / 50-60Hz
+12V
  • Max: 91.66A / Min: 0A (Vdc-240Vdc)Max: 91.66A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (non-condensing)
  • 8x 3000W 8x 3000W Redundant Titanium Level (96%) power supplies Dimension (WxHxL)106.5 x 82.4 x 203.5 mm Input2880W: 200-207Vac 2880W: 200-207Vac / 50-60Hz 3000W: 207.1-240Vac 3000W: 240Vdc 3000W: 207.1-240Vac / 50-60Hz 3000W: 240Vdc / 50-60Hz +12VMax: 91.66A / Min: 0A (Vdc-240Vdc)Max: 91.66A / Min: 0A (200Vac-240Vac) 12V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
