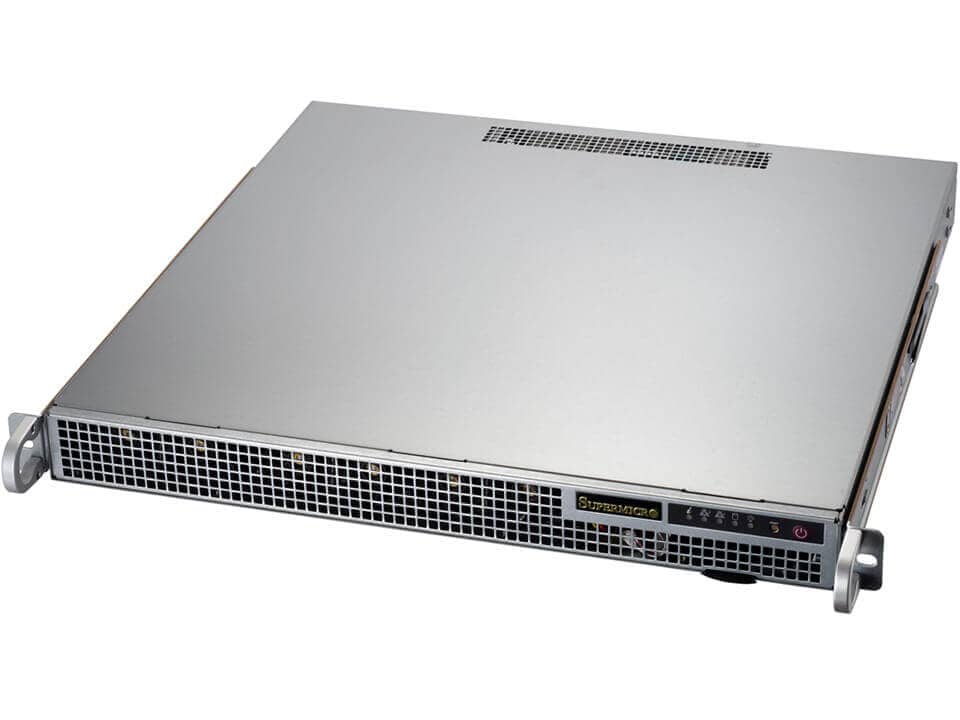

Supermicro SuperServer AS -1015A-MT

Favorite

Compara

1U UP Mainstream with up to 4 internal 2.5″ SATA bays and 1 PCIe 5.0 slot

Pretul afisat contine TVA (21%).

SuperServer AS -1015A-MT

1U UP Mainstream with up to 4 internal 2.5″ SATA bays and 1 PCIe 5.0 slot

Key Features

AMD EPYC™ 4004 / 4005 or Ryzen™ 7000 / 9000 Series Processor up to 170W TDP
4 DDR5 UDIMM slots, ECC/Non-ECC DDR5-5200 up to total 192GB
1 PCIe 5.0 x16 FHHL slot
IPMI 2.0 + KVM with Dedicated LAN (1GbE)Dual 1GbE LAN (Intel® I210-AT)
500W High-Efficiency Power Supply Platinum Level Certified

Specifications

Product SKUs
A+ Server AS -1015A-MT
A+ Server AS -1015A-MT-01-G2 Gold Series version with pre-configured components
Motherboard

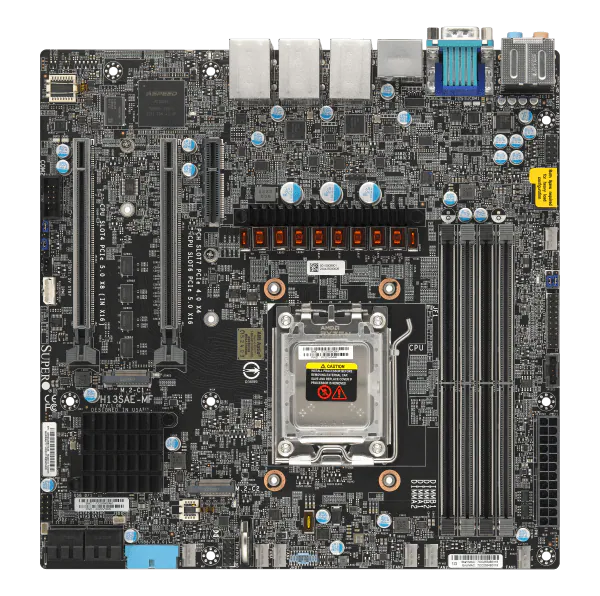

Super H13SAE-MF
Processor
CPU	Single processor(s) AMD EPYC™ 4004 / 4005 or AMD Ryzen™ 7000 / 9000 Series Processors
Core Count	Up to 16C/32T
Note	Supports 60W – 170W TDP CPUs (Air Cooled)
GPU
Max GPU Count	Up to 1 single-width GPU
Supported GPU	NVIDIA PCIe: A2, L4, RTX 4000 Ada Generation, RTX A4000 AMD PCIe: Radeon Pro W7500
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect
System Memory
Memory	Slot Count: 4 DIMM slots Max Memory (2DPC): Up to 192GB 5200MT/s ECC/non-ECC DDR5 UDIMM
Memory Voltage	1.1V
On-Board Devices
SATA	SATA (6Gbps) ; RAID 0/1 support
NVMe	NVMe; RAID 0/1 support(Native)
Network Connectivity	1 RJ45 1GbE with Realtek RTL8211F PHY (dedicated IPMI) 2 RJ45 1GbE with Intel® I210-AT

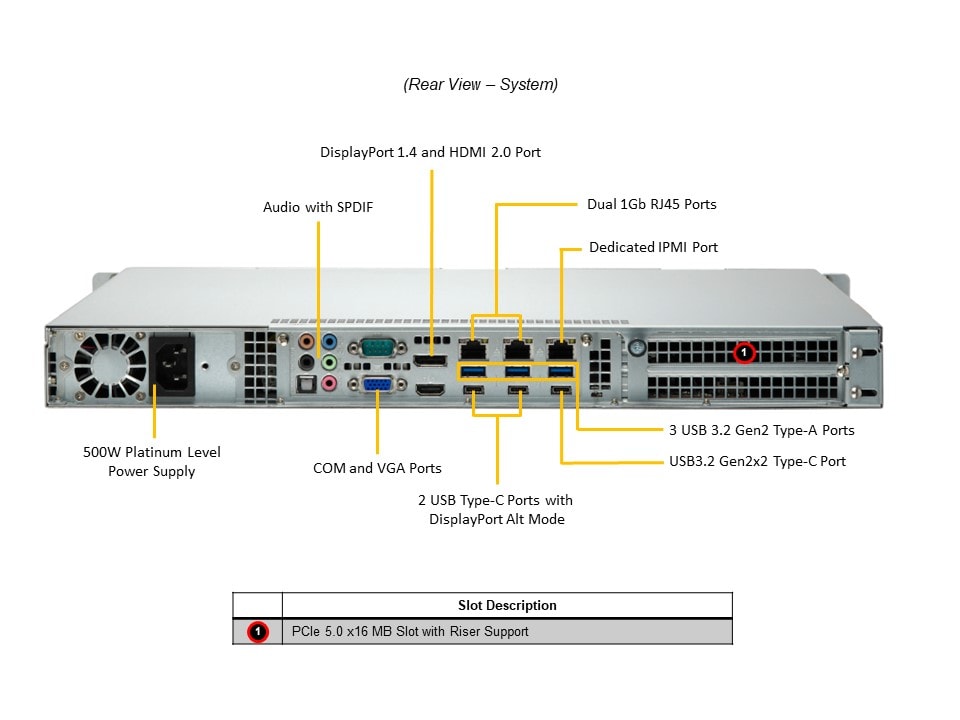

Input / Output
LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	3 Type-A ports(Rear) 2 Type-C ports(Rear) 1 Type-C port(Rear)
Video	1 VGA port 1 DisplayPort 1.4 port 1 HDMI 2 port
Audio	Rear Audio
TPM	1 TPM header
System BIOS
BIOS Type	AMI 32MB SPI Flash
Management
Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	ACPI 6.0 Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Supply Chain Security: Remote Attestation Runtime BMC Protections
PC Health Monitoring
FAN	Status monitor for speed control
Other Features	8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor
Temperature	CPU thermal trip support, Monitoring for CPU and chassis environment, PECI
Voltage	+1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM
A+ Server AS -1015A-MT
A+ Server AS -1015A-MT-01-G2 Gold Series version with pre-configured components
Super H13SAE-MF
Chassis
Form Factor	1U
Model	CSE-514-505
Dimensions and Weight
Height	1.7″ (43 mm)
Width	17.2″ (437 mm)

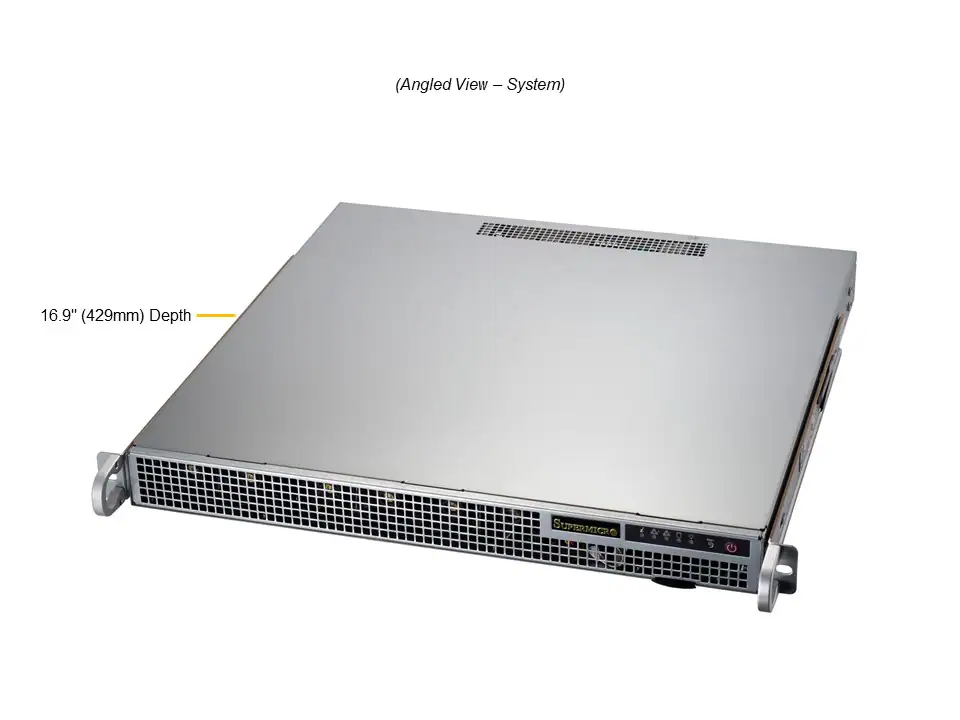

Depth	16.9″ (429 mm)
Package	8″ (H) x 27″ (W) x 24″ (D)
Weight	Gross Weight: 16 lbs (7.26 kg)
Available Color	Silver

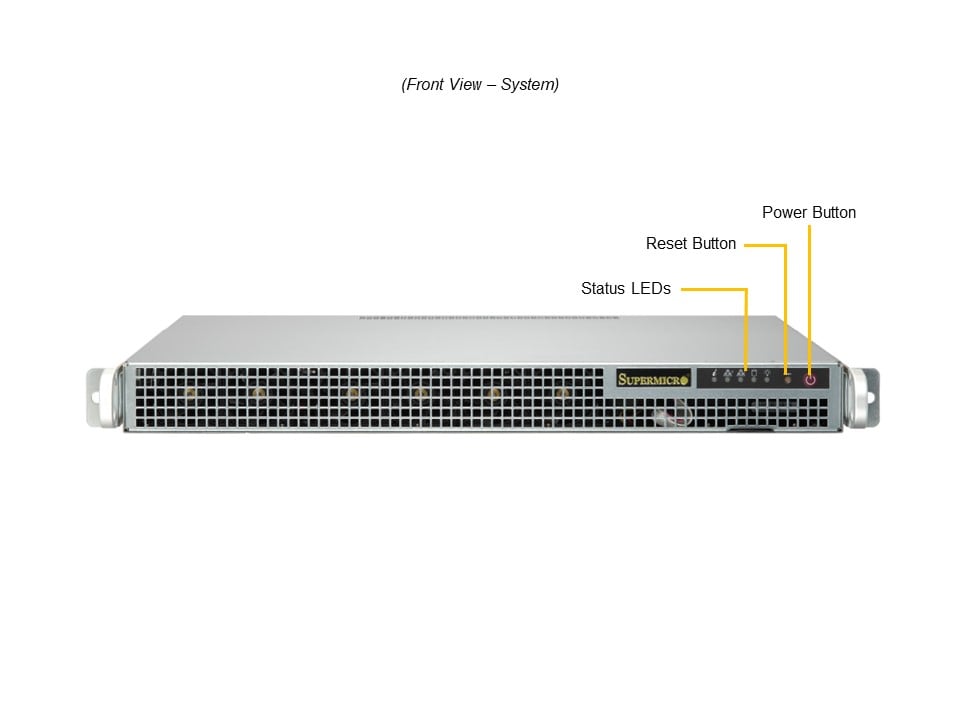

Front Panel
Buttons	Power On/Off button System Reset button
LED	Fan Fail/System Over Heat LED HDD activity LED Network Activity LEDs Power status LED
Expansion Slots
PCI-Express (PCIe) Configuration	Default1 PCIe 5.0 x16 FHHL slot 1 PCIe 5.0 x16 FHHL slot
Drive Bays / Storage
Drive Bays Configuration	Default: Total 1 bay1 internal fixed 3.5″ SATA drive bay 1 internal fixed 3.5″ SATA drive bay Option A: Total 4 bays4 internal fixed 2.5″ SATA* drive bays 4 internal fixed 2.5″ SATA* drive bays (*SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2	2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280/22110) View M.2 Options
System Cooling

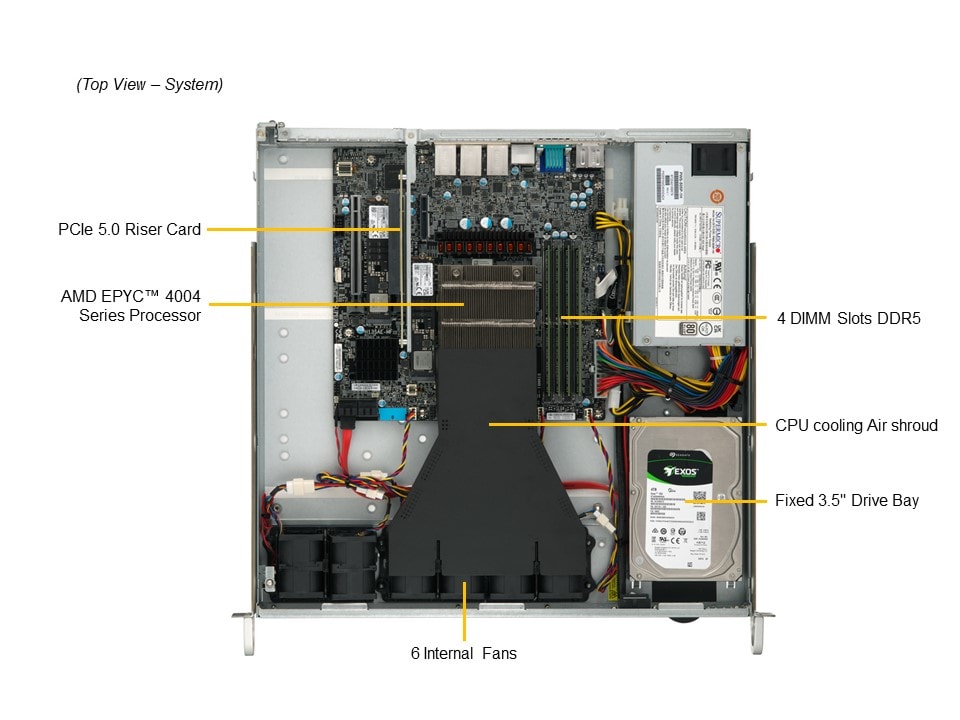

Fans	Up to 6x 40mm Fan(s)
Air Shroud	1 Air Shroud
Power Supply
1x 500W 1x 500W Platinum Level (93%) power supply Dimension (WxHxL)100 x 40 x 180 mm Input500W: 100-240Vac 500W: 100-240Vac / 50-60Hz +12VMax: 41A / Min: 0.5A Max: 41A / Min: 0.5A (100Vac-240Vac) 5V SBMax: 3A / Min: 0A Output Type24pin ATX Certification Platinum Level
Dimension (WxHxL)	100 x 40 x 180 mm
Input	500W: 100-240Vac 500W: 100-240Vac / 50-60Hz
+12V	Max: 41A / Min: 0.5A Max: 41A / Min: 0.5A (100Vac-240Vac)
5V SB	Max: 3A / Min: 0A
Output Type	24pin ATX
Certification	Platinum Level
Operating Environment
ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
1x 500W 1x 500W Platinum Level (93%) power supply Dimension (WxHxL)100 x 40 x 180 mm Input500W: 100-240Vac 500W: 100-240Vac / 50-60Hz +12VMax: 41A / Min: 0.5A Max: 41A / Min: 0.5A (100Vac-240Vac) 5V SBMax: 3A / Min: 0A Output Type24pin ATX Certification Platinum Level
Standard Parts (Parts Included)
Optional Parts List
