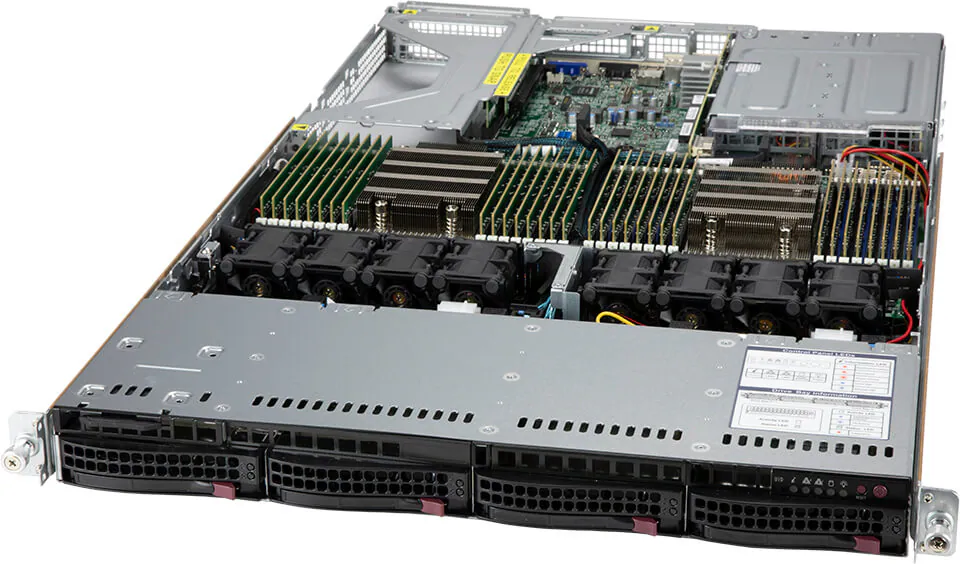

1U Ultra with 4 SATA bays (optional NVMe/SAS)

Pretul afisat contine TVA (21%).

SuperServer AS -1024US-TRT

1U Ultra with 4 SATA bays (optional NVMe/SAS)

Key Features

  1. Dual AMD EPYC™ 7003/7002 Series Processors(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  2. Dual AMD EPYC™ 7003/7002 Series Processors
  3. (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  4. 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
  5. 2 PCIe 4.0 x16 (FH / 9.5″L) slots1 PCIe 4.0 x16 (LP) slot1 PCIe 4.0 x16 (internal proprietary LP slot)
  6. 2 PCIe 4.0 x16 (FH / 9.5″L) slots
  7. 1 PCIe 4.0 x16 (LP) slot
  8. 1 PCIe 4.0 x16 (internal proprietary LP slot)
  9. 4 hot-swap 3.5″ SATA3 by defaultor 4 NVMe (via optional drive tray)or 4 SAS3 (via optional SAS kit)
  10. 4 hot-swap 3.5″ SATA3 by default
  11. or 4 NVMe (via optional drive tray)
  12. or 4 SAS3 (via optional SAS kit)

Specifications

Product SKUs
  • A+ Server AS -1024US-TRT
Motherboard

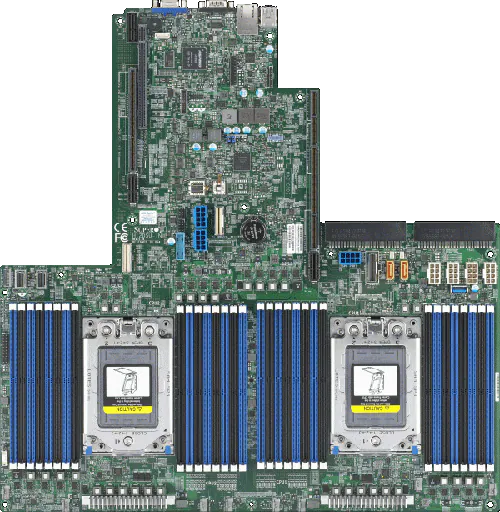

  • Super H12DSU-iN
Processor
CPU
  • Dual Socket SP3
  • AMD EPYC™ 7002/7003 Series Processors
Note
  • Supports up to 280W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 1 double-width or 1 single-width GPU
Supported GPU
  • NVIDIA PCIe: RTX A2000, T4
System Memory
Memory

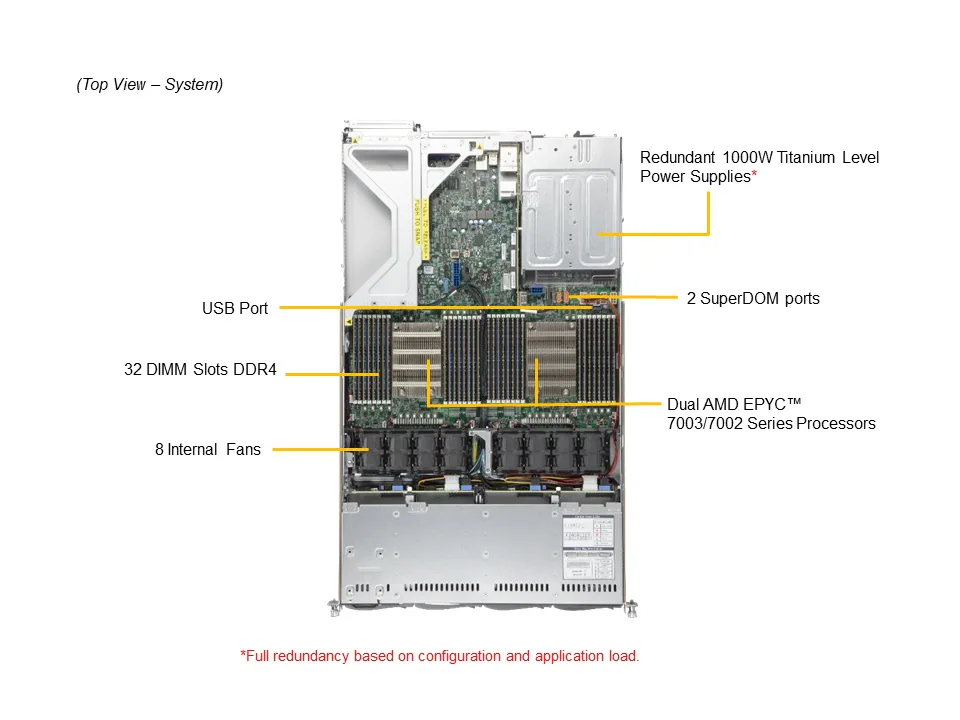

  • Slot Count: 32 DIMM slots
  • Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Memory Voltage
  • 1.2V
On-Board Devices
Network Connectivity
  • 2 RJ45 10GbE
  • View Network Card (AOC) Options
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 3 USB 3.0 ports
Video
  • 1 VGA port
Serial
  • 1 COM port
DOM
  • 2 SATA DOM (Disk on Module) ports
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 128MB SPI Flash EEPROM
BIOS Features
  • PCI 2.2
  • Plug and Play (PnP)
  • USB Keyboard support
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
  • IPMICFG
  • SMCIPMITool
  • IPMIView
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
FAN
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • A+ Server AS -1024US-TRT
  • Super H12DSU-iN
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-819UTS-R1K02P-A
Dimensions and Weight
Height
  • 1.7″ (43 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 29″ (737 mm)
Package
  • 7.99″ (H) x 23.81″ (W) x 37.4″ (D)
Weight
  • Gross Weight: 41 lbs (18.6 kg)
  • Net Weight: 26 lbs (11.8 kg)
Available Color
  • N/A
Expansion Slots

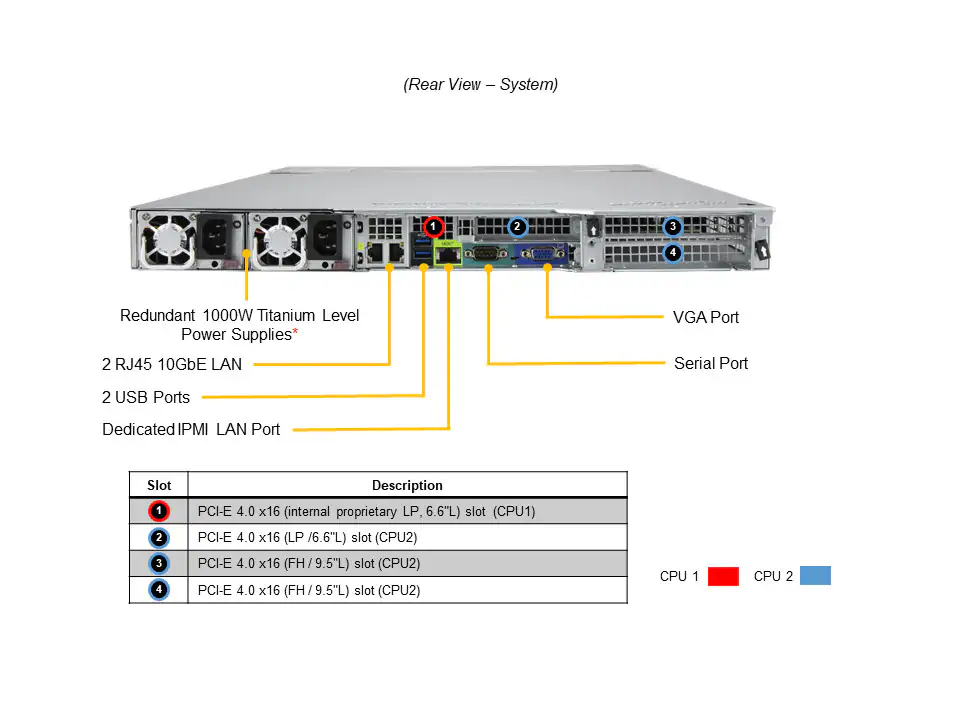

PCI-Express (PCIe) Configuration
  • Default1 PCIe 4.0 x16 LP slot 2 PCIe 4.0 x16 FH, 9.5″L slots 1 PCIe 4.0 x16 INTERNAL slot
  • 1 PCIe 4.0 x16 LP slot
  • 2 PCIe 4.0 x16 FH, 9.5″L slots
  • 1 PCIe 4.0 x16 INTERNAL slot
Drive Bays / Storage

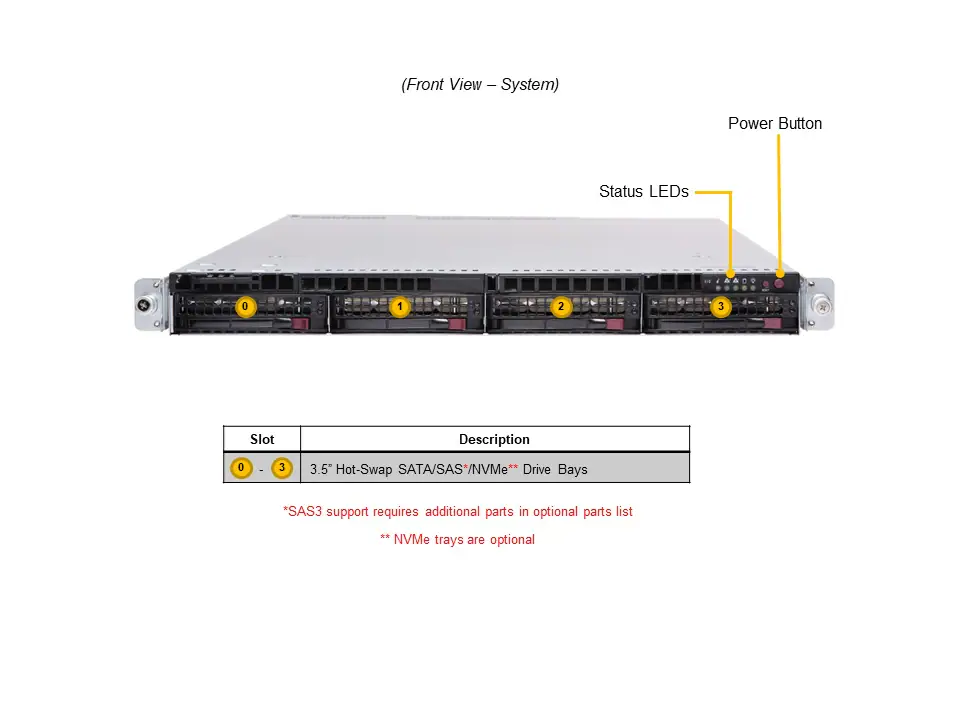

Drive Bays Configuration

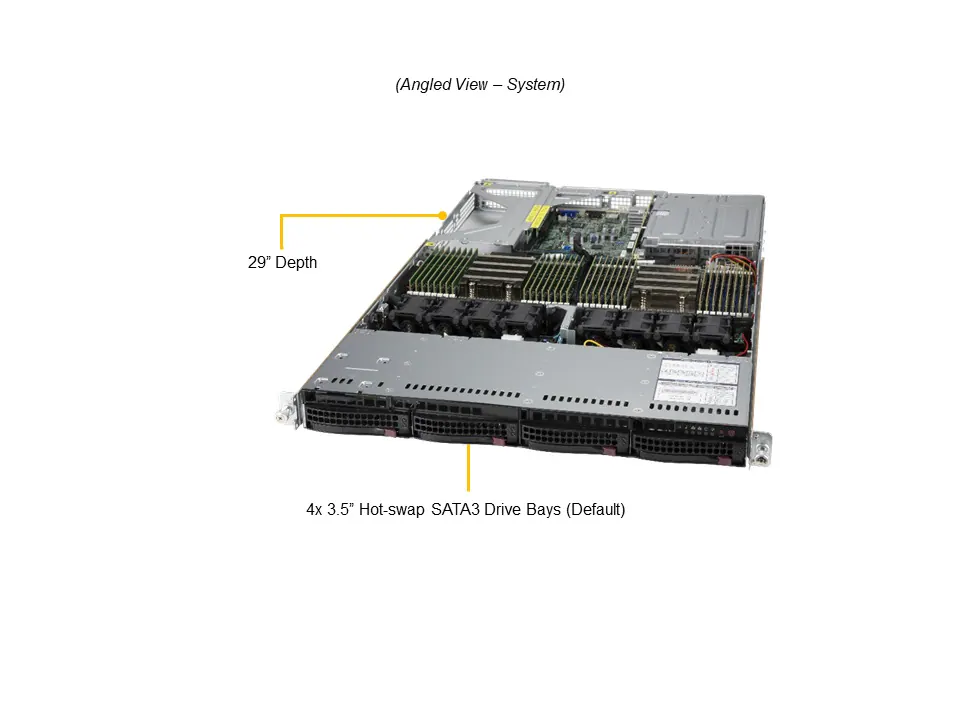

  • Default: Total 4 bays4 front hot-swap 3.5″ SATA drive bays
  • 4 front hot-swap 3.5″ SATA drive bays
  • Option A: Total 4 bays4 front hot-swap 3.5″/2.5″ NVMe* drive bays
  • 4 front hot-swap 3.5″/2.5″ NVMe* drive bays
  • Option B: Total 4 bays4 front hot-swap 3.5″ SAS* drive bays
  • 4 front hot-swap 3.5″ SAS* drive bays
  • (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
System Cooling
Fans
  • Up to 8 heavy duty fans with optimal fan speed control
Power Supply
  • 2x 1000W 2x 1000W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 203 mm Input800W: 100-127Vac / 50-60Hz 1000W: 200-240Vac / 50-60Hz 1000W: 200-240Vdc / 50-60Hz +12VMax: 66.7A / Min: 0A (100Vac-127Vac)Max: 83A / Min: 0A (200Vac-240Vac)Max: 83A (200Vdc-240Vdc) 12V SBMax: 2.1A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 73.5 x 40 x 203 mm
Input
  • 800W: 100-127Vac / 50-60Hz 1000W: 200-240Vac / 50-60Hz 1000W: 200-240Vdc / 50-60Hz
+12V
  • Max: 66.7A / Min: 0A (100Vac-127Vac)Max: 83A / Min: 0A (200Vac-240Vac)Max: 83A (200Vdc-240Vdc)
12V SB
  • Max: 2.1A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • 2x 1000W 2x 1000W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 203 mm Input800W: 100-127Vac / 50-60Hz 1000W: 200-240Vac / 50-60Hz 1000W: 200-240Vdc / 50-60Hz +12VMax: 66.7A / Min: 0A (100Vac-127Vac)Max: 83A / Min: 0A (200Vac-240Vac)Max: 83A (200Vdc-240Vdc) 12V SBMax: 2.1A / Min: 0A Output TypeBackplanes (gold finger)
SKU: as-1024us-trt Categorii: , , ,
