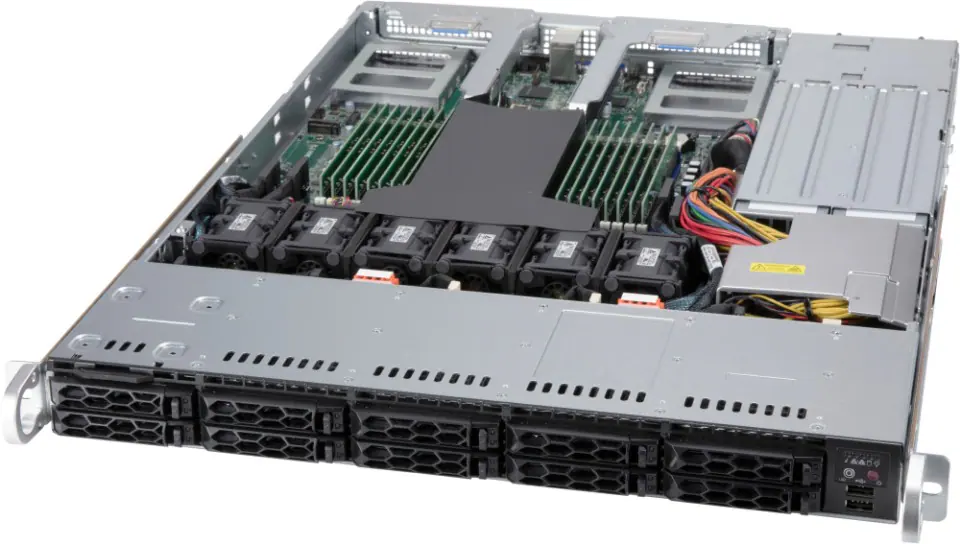

1U CloudDC with 10 hot-swap SATA bays and 2 PCIe 4.0 x16 slots

Pretul afisat contine TVA (21%).

SuperServer AS -1114CS-TNR

1U CloudDC with 10 hot-swap SATA bays and 2 PCIe 4.0 x16 slots

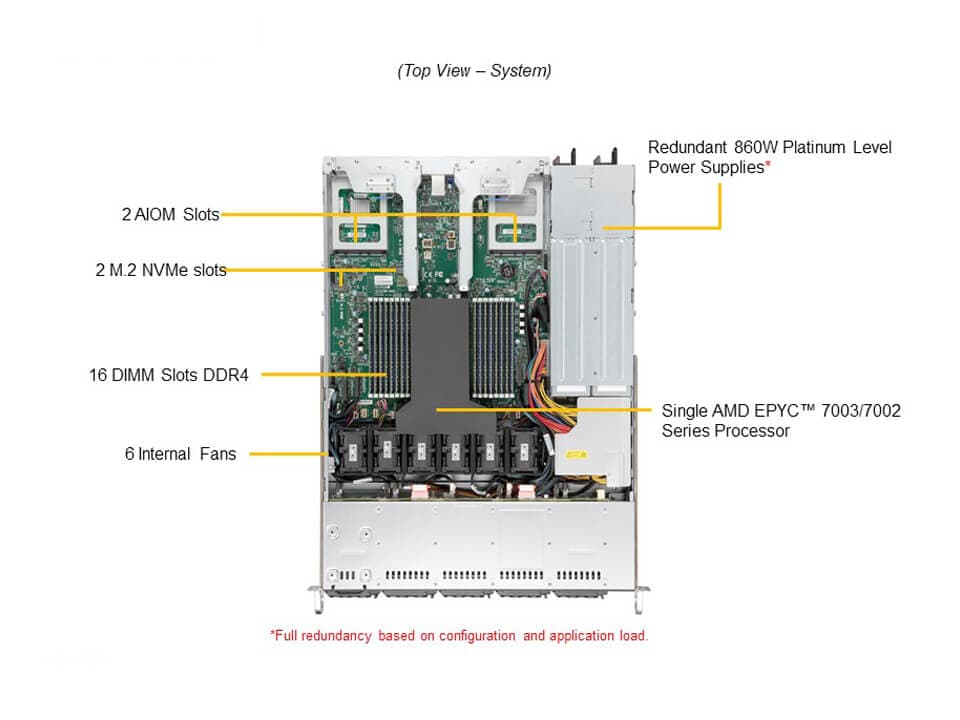

Key Features

  1. Single AMD EPYC™ 7002/7003 Series Processor(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  2. Single AMD EPYC™ 7002/7003 Series Processor
  3. (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  4. 16 DIMMs; up to 4TB 3DS ECC DDR4-3200MHzRDIMM/LRDIMM
  5. 16 DIMMs; up to 4TB 3DS ECC DDR4-3200MHz
  6. RDIMM/LRDIMM
  7. 2 PCIe 4.0 x16 FHHL slots2 AIOM slots for flexible networking (1 x8 AIOM slot + 1 x16 AIOM slot)
  8. 2 PCIe 4.0 x16 FHHL slots
  9. 2 AIOM slots for flexible networking (1 x8 AIOM slot + 1 x16 AIOM slot)
  10. 10 Hot-swap 2.5″ SATA3 drive baysoptional 10x SAS3/NVMe support via additional SAS/NVMe kitM.2 Interface: 2 PCIe 4.0 x4M.2 Form Factor: 2242, 2260, 2280, 22110M.2 Key: M-key
  11. 10 Hot-swap 2.5″ SATA3 drive bays
  12. optional 10x SAS3/NVMe support via additional SAS/NVMe kit
  13. M.2 Interface: 2 PCIe 4.0 x4
  14. M.2 Form Factor: 2242, 2260, 2280, 22110
  15. M.2 Key: M-key

Specifications

Product SKUs
  • A+ Server AS -1114CS-TNR Standard version with PWS-860P-1R2 (Platinum Level)
  • A+ Server AS -1114CS-TNR-EU European version with PWS-861A-1R (Titanium Level)
Motherboard

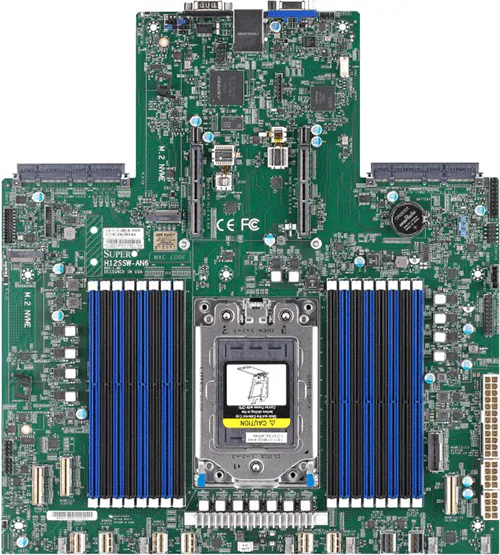

  • Super H12SSW-AN6
Processor
CPU
  • Single Socket SP3
  • AMD EPYC™ 7002/7003 Series Processors
Core Count
  • Up to 64C/128T
Note
  • Supports up to 280W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 2 double-width or 2 single-width GPUs
Supported GPU
  • NVIDIA PCIe: A2, T4
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps)
Network Connectivity
  • Ethernet
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

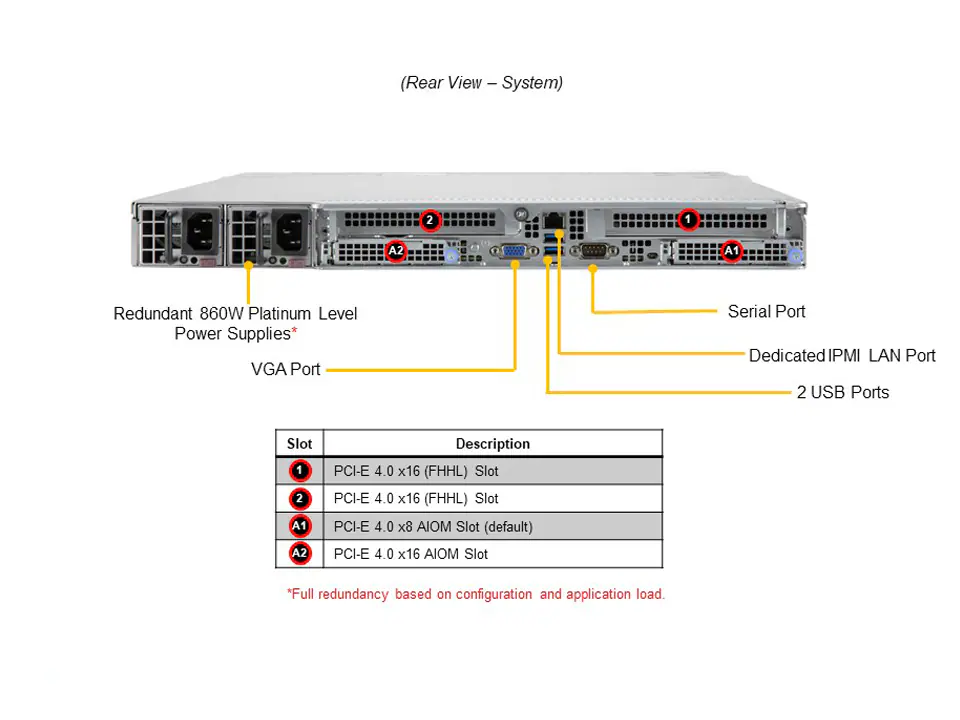

Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports(rear)
Video
  • 1 VGA port
Serial
  • 1 COM port(rear)
System BIOS
BIOS Type
  • AMI 256MB SPI Flash EEPROM
Management
Software
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • KVM with dedicated LAN
  • IPMI 2.0
  • Watch Dog
  • OOB Management Package (SFT-OOB-LIC )
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 4+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • A+ Server AS -1114CS-TNR Standard version with PWS-860P-1R2 (Platinum Level)
  • A+ Server AS -1114CS-TNR-EU European version with PWS-861A-1R (Titanium Level)
  • Super H12SSW-AN6
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-LB16TS-R860AWP
Dimensions and Weight
Height
  • 1.7″ (43 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 23.5″ (597 mm)
Package
  • 7.7″ (H) x 23.7″ (W) x 31.8″ (D)
Weight
  • Gross Weight: 40 lbs (18.14 kg)
  • Net Weight: 25 lbs (11.34 kg)
Available Color
  • Black

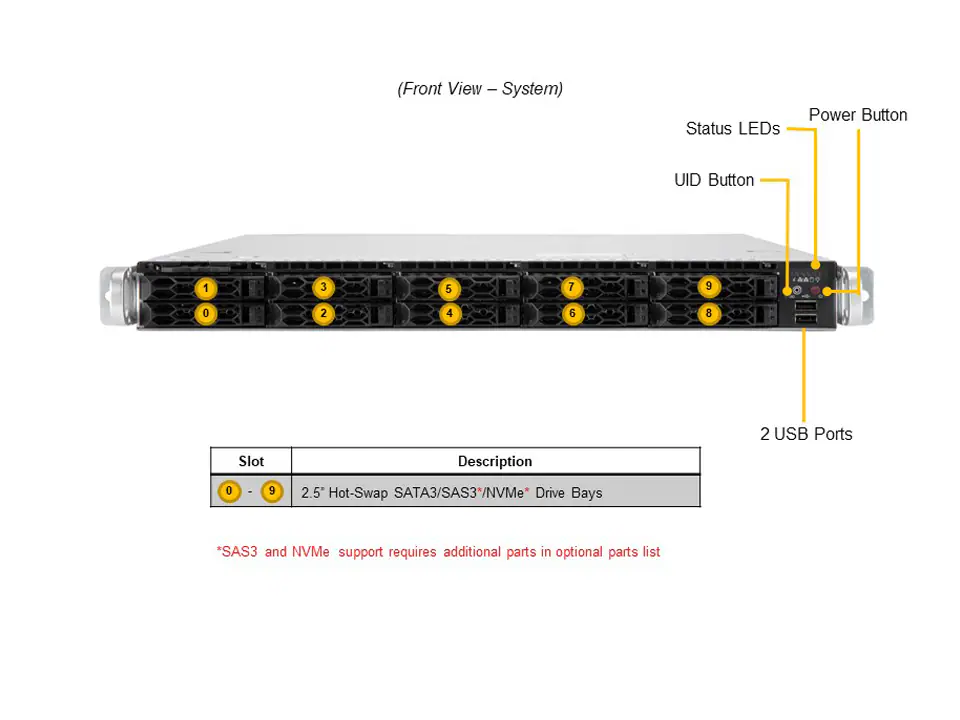

Front Panel
Buttons
  • Power On/Off
  • UID button
LED
  • Device Activity
  • LAN 1 Activity
  • LAN 2 Activity
  • Power status
  • System information
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default2 PCIe 4.0 x16 FHHL slots 2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible)
  • 2 PCIe 4.0 x16 FHHL slots
  • 2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible)
M.2
  • 2 M.2 PCIe 4.0 x4 slots (M-key 2242/2260/2280/22110)
Drive Bays / Storage
Drive Bays Configuration

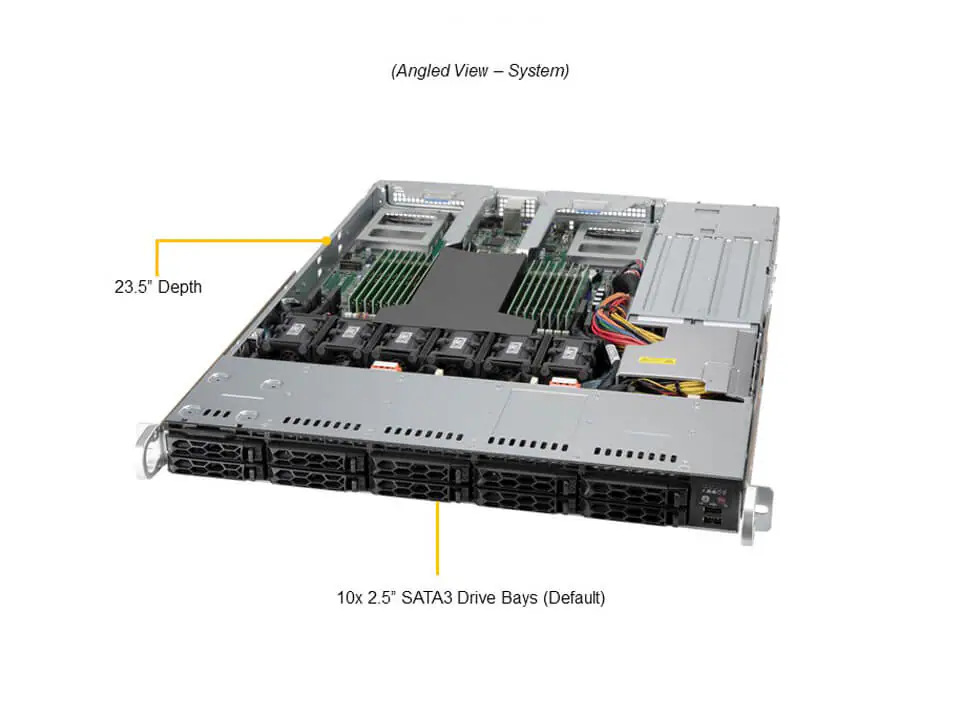

  • Default: Total 10 bays10 front hot-swap 2.5″ SATA drive bays
  • 10 front hot-swap 2.5″ SATA drive bays
  • Option A: Total 10 bays10 front hot-swap 2.5″ NVMe* drive bays
  • 10 front hot-swap 2.5″ NVMe* drive bays
  • Option B: Total 10 bays10 front hot-swap 2.5″ SAS* drive bays
  • 10 front hot-swap 2.5″ SAS* drive bays
  • (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
System Cooling
Fans
  • Up to 6 Counter-rotating 40x40x56mm Fan(s)
Power Supply
  • 2x 860W 2x 860W Redundant (1 + 1) Platinum Level (94%) power supplies Dimension (WxHxL)54.5 x 40.25 x 322 mm Input800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 860W: 200-240Vac 860W: 200-240Vac / 50-60Hz 860W: 200-240Vdc / 50-60Hz +12VMax: 66.6A / Min: 0A (100Vac-127Vac)Max: 71.6A / Min: 0A (200Vac-240Vac)Max: 71.6A / Min: 0A (200Vdc-240Vdc) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 54.5 x 40.25 x 322 mm
Input
  • 800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 860W: 200-240Vac 860W: 200-240Vac / 50-60Hz 860W: 200-240Vdc / 50-60Hz
+12V
  • Max: 66.6A / Min: 0A (100Vac-127Vac)Max: 71.6A / Min: 0A (200Vac-240Vac)Max: 71.6A / Min: 0A (200Vdc-240Vdc)
5V SB
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • 2x 860W 2x 860W Redundant (1 + 1) Platinum Level (94%) power supplies Dimension (WxHxL)54.5 x 40.25 x 322 mm Input800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 860W: 200-240Vac 860W: 200-240Vac / 50-60Hz 860W: 200-240Vdc / 50-60Hz +12VMax: 66.6A / Min: 0A (100Vac-127Vac)Max: 71.6A / Min: 0A (200Vac-240Vac)Max: 71.6A / Min: 0A (200Vdc-240Vdc) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
Optional Parts List
