Supermicro SuperServer AS -1125HS-TNR

Favorite
Compara

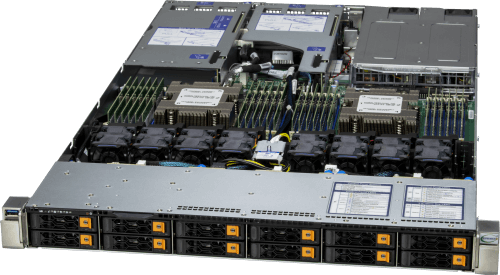

1U Hyper with 8 hot-swap 2.5″ NVMe/SAS/SATA bays and 3 PCIe 5.0 x16 slots

Pretul afisat contine TVA (21%).

SuperServer AS -1125HS-TNR

1U Hyper with 8 hot-swap 2.5″ NVMe/SAS/SATA bays and 3 PCIe 5.0 x16 slots

Key Features

  1. Dual AMD EPYC™ 9004/9005* Series Processors(*AMD EPYC™ 9005 series drop-in support requires board revision 2.xx)
  2. Dual AMD EPYC™ 9004/9005* Series Processors
  3. (*AMD EPYC™ 9005 series drop-in support requires board revision 2.xx)
  4. Support up to DDR5 24 DIMM slots (1DPC), speed up to 6400MT/s(Please check System Memory Section for detail)
  5. Support up to DDR5 24 DIMM slots (1DPC), speed up to 6400MT/s
  6. (Please check System Memory Section for detail)
  7. 2 PCIe 5.0 x16 FHFL slots1 PCIe 5.0 x16 FHHL slotFlexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible)
  8. 2 PCIe 5.0 x16 FHFL slots
  9. 1 PCIe 5.0 x16 FHHL slot
  10. Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible)
  11. 8 Hot-swap 2.5″ NVMe/SATA/SAS drive baysOptional 4 Hot-swap 2.5″ NVMe/SAS/SATA drive support via additional parts2 M.2 PCIe 3.0 NVMe slots
  12. 8 Hot-swap 2.5″ NVMe/SATA/SAS drive bays
  13. Optional 4 Hot-swap 2.5″ NVMe/SAS/SATA drive support via additional parts
  14. 2 M.2 PCIe 3.0 NVMe slots
  15. Dual 1200W Redundant Titanium Level power supplies(Power supply full redundancy based on configuration and application load)
  16. Dual 1200W Redundant Titanium Level power supplies
  17. (Power supply full redundancy based on configuration and application load)

Specifications

Product SKUs
  • A+ Server AS -1125HS-TNR

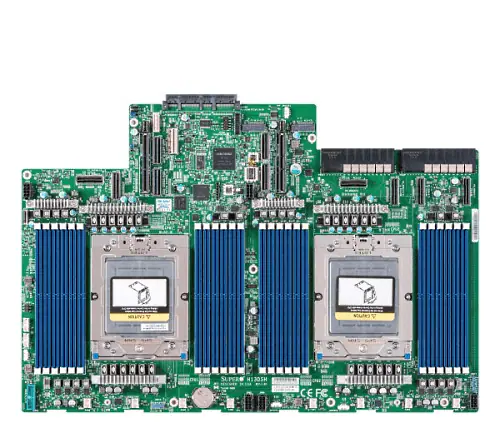

Motherboard
  • Super H13DSH
Processor
CPU
  • Dual processor(s)
  • AMD EPYC™ 9004/9005 Series Processors(* AMD EPYC™ 9005 Series drop-in support requires board revision 2.x)
Core Count
  • Up to 320C/640T
Note
  • Supports up to 400W TDP CPUs *
  • *Air Cooled CPUs with TDP over 290W only supported under specific conditions. Contact a Supermicro representative for details.

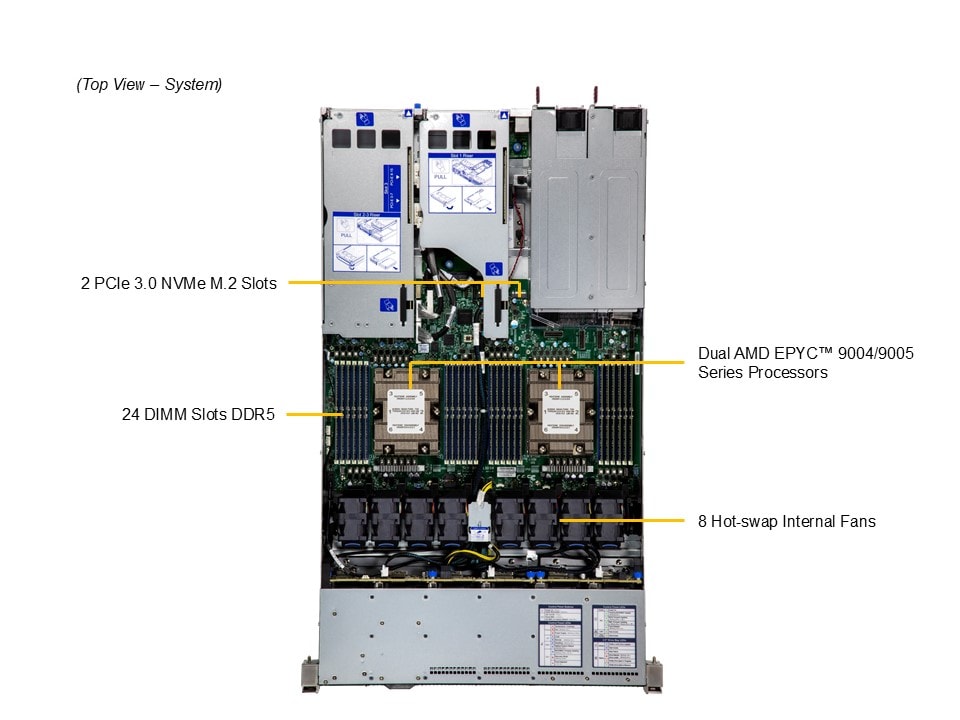

System Memory
Memory
  • Slot Count: 24 DIMM slots
  • Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor, MB R1.x/R2.0/R2.01)
  • Max Memory (1DPC): Up to 6TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.0)
  • Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.01)
Memory Voltage
  • 1.1V
On-Board Devices
Network Connectivity
  • Via AIOM
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports(rear)
  • 1 USB 3.0 port(front)
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
BIOS Features
  • ACPI 6.4
  • Plug and Play (PnP)
  • SMBIOS 3.5 or later
  • UEFI 2.8
  • USB Keyboard support
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • OOB Management Package (SFT-OOB-LIC )
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • ACPI Power Management
  • Power-on mode control for AC power loss recovery
  • Power button override mechanism,
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Voltage
  • System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
  • A+ Server AS -1125HS-TNR
  • Super H13DSH
Chassis
Form Factor
  • 1U
Model
  • CSE-HS119-R1K24P2-A
Dimensions and Weight
Height
  • 1.7″ (43 mm)
Width
  • 17.2″ (437 mm)
Depth

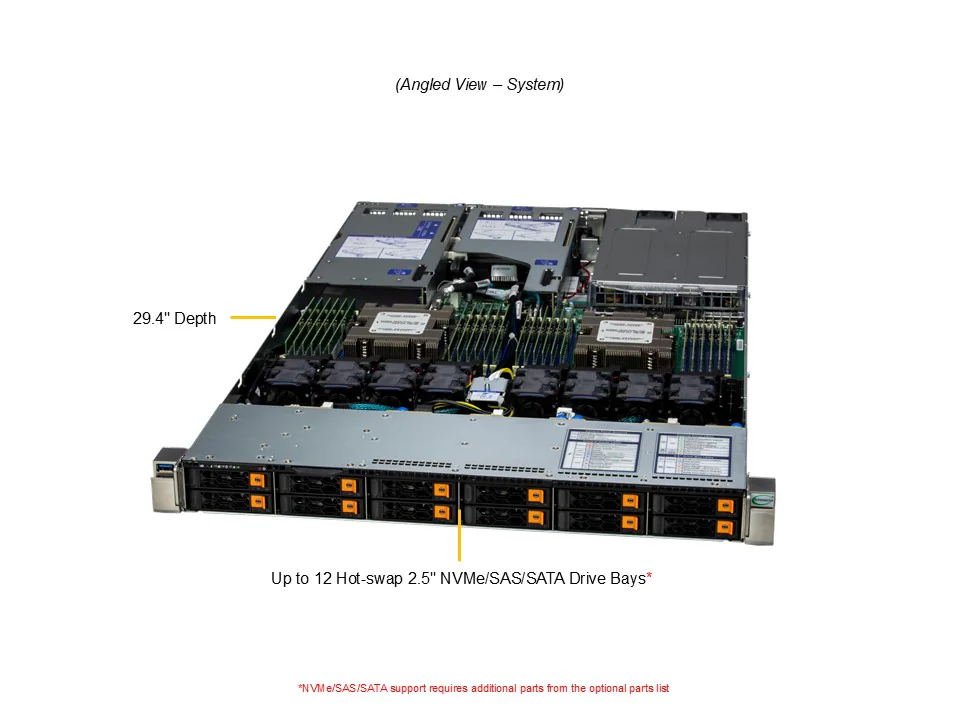

  • 29.4″ (747 mm)
Package
  • 8.1″ (H) x 23.8″ (W) x 40.6″ (D)
Weight
  • Gross Weight: 51 lbs (23.1 kg)
  • Net Weight: 32 lbs (14.5 kg)
Available Color
  • Black front & silver body
Front Panel
Buttons
  • Power On/Off
  • UID button
LED
  • HDD activity
  • LAN1 activity
  • Power status
  • System information
Expansion Slots

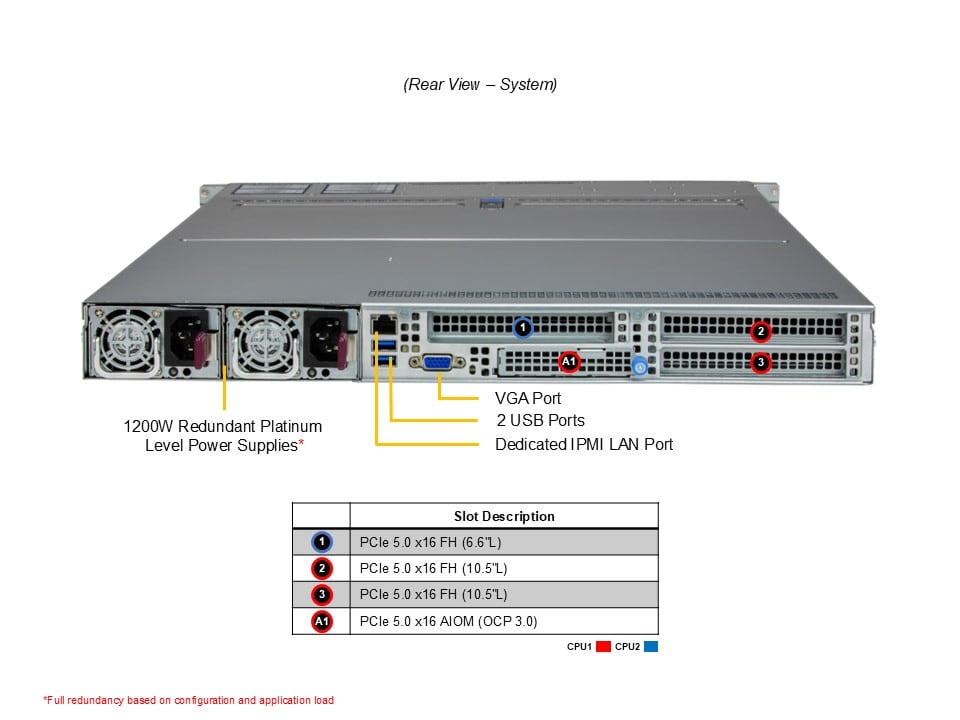

PCI-Express (PCIe) Configuration
  • Default1 PCIe 5.0 x16 FHHL slot 2 PCIe 5.0 x16 FHFL slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
  • 1 PCIe 5.0 x16 FHHL slot
  • 2 PCIe 5.0 x16 FHFL slots
  • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Drive Bays / Storage
Drive Bays Configuration

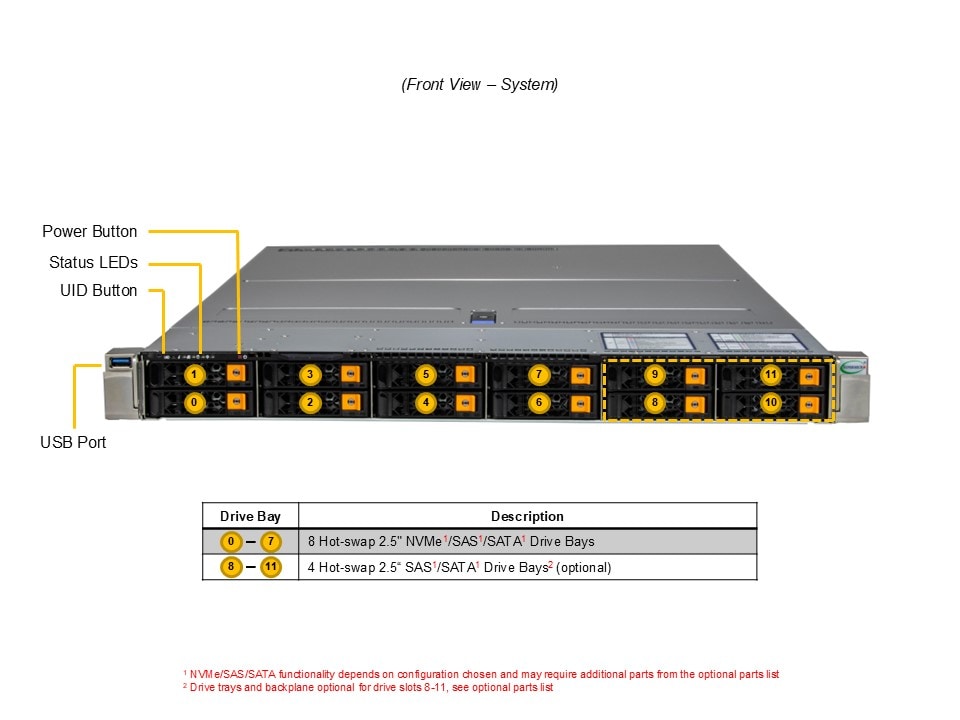

  • Default: Total 8 bays8 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
  • 8 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
  • Option A: Total 12 bays12 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
  • 12 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
  • (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
  • 2 M.2 PCIe 3.0 x4 NVMe slots (M-key 2280/22110)
  • View M.2 Options
System Cooling
Fans
  • Up to 8 counter-rotating 40x40x56mm Fan(s)
Air Shroud
  • 2 Air Shrouds
Power Supply
  • 2x 1200W 2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 230-240Vdc / 50-60Hz (for CCC only) +12VMax: 66.7A / Min: 0A (100Vac-127Vac)Max: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only) 12V SBMax: 2.1A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 73.5 x 40 x 265 mm
Input
  • 800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 230-240Vdc / 50-60Hz (for CCC only)
+12V
  • Max: 66.7A / Min: 0A (100Vac-127Vac)Max: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)
12V SB
  • Max: 2.1A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Environmental / Recycling
Recycle
  • Return Server-End of Life Product
  • 2x 1200W 2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 230-240Vdc / 50-60Hz (for CCC only) +12VMax: 66.7A / Min: 0A (100Vac-127Vac)Max: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only) 12V SBMax: 2.1A / Min: 0A Output TypeBackplanes (gold finger)
