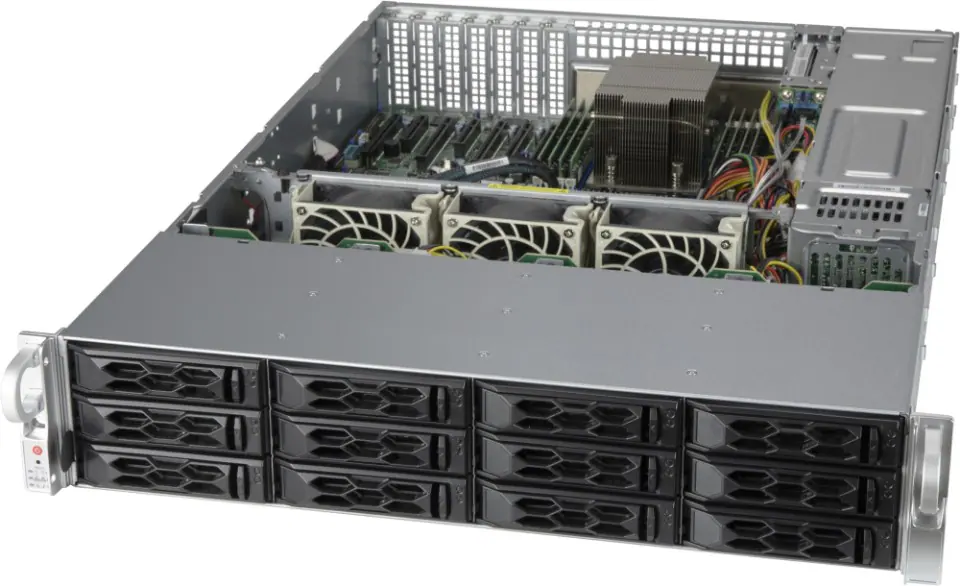

Supermicro SuperServer AS -2014S-TR
Supermicro SuperServer AS -2014S-TR - imagine 2
Supermicro SuperServer AS -2014S-TR - imagine 3
Supermicro SuperServer AS -2014S-TR - imagine 4
Supermicro SuperServer AS -2014S-TR - imagine 5
Supermicro SuperServer AS -2014S-TR - imagine 6
, , ,

Supermicro SuperServer AS -2014S-TR

Favorite
Compara

2U Mainstream with 7 low-profile PCIe 4.0 slots

Pretul afisat contine TVA (21%).

SuperServer AS -2014S-TR

2U Mainstream with 7 low-profile PCIe 4.0 slots

Key Features

  1. Single AMD EPYC™ 7002/7003 Series Processor(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  2. Single AMD EPYC™ 7002/7003 Series Processor
  3. (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  4. 8 DIMMs; up to 2TB 3DS ECC DDR4-3200MHzRDIMM/LRDIMM
  5. 8 DIMMs; up to 2TB 3DS ECC DDR4-3200MHz
  6. RDIMM/LRDIMM
  7. 5 PCIe 4.0 x16 LP slots + 2 PCIe 4.0 x8 LP slots
  8. 12 Hot-swap 3.5″ SATA3 drive bays,2 rear Hot-swap 2.5″ SATA3 Drive bays via optional kitM.2 Interface: 2 PCIe 4.0 x4M.2 Form Factor: 2242, 2260, 2280, 22110M.2 Key: M-key
  9. 12 Hot-swap 3.5″ SATA3 drive bays,
  10. 2 rear Hot-swap 2.5″ SATA3 Drive bays via optional kit
  11. M.2 Interface: 2 PCIe 4.0 x4
  12. M.2 Form Factor: 2242, 2260, 2280, 22110
  13. M.2 Key: M-key

Specifications

Product SKUs
  • A+ Server AS -2014S-TR
Motherboard

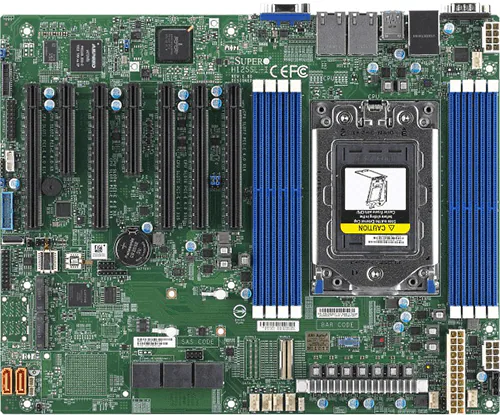

  • Super H12SSL-i
Processor
CPU
  • Single Socket SP3

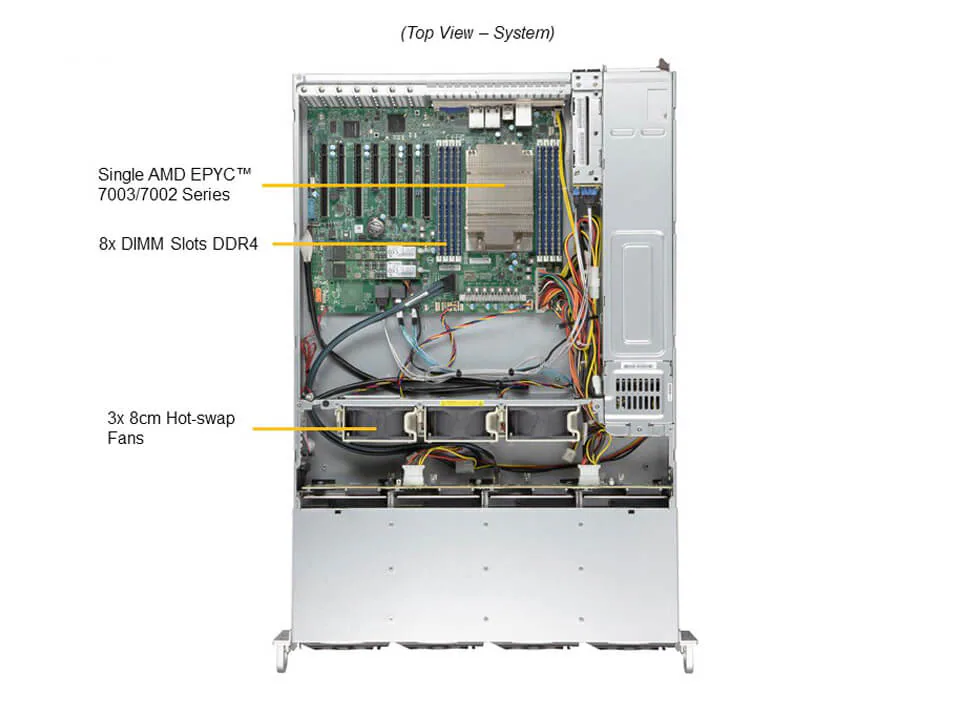

  • AMD EPYC™ 7002/7003 Series Processors
Note
  • Supports up to 280W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 8 DIMM slots
  • Max Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Memory Voltage
  • 1.2V
On-Board Devices
Network Connectivity
  • 2 RJ45 1GbE
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

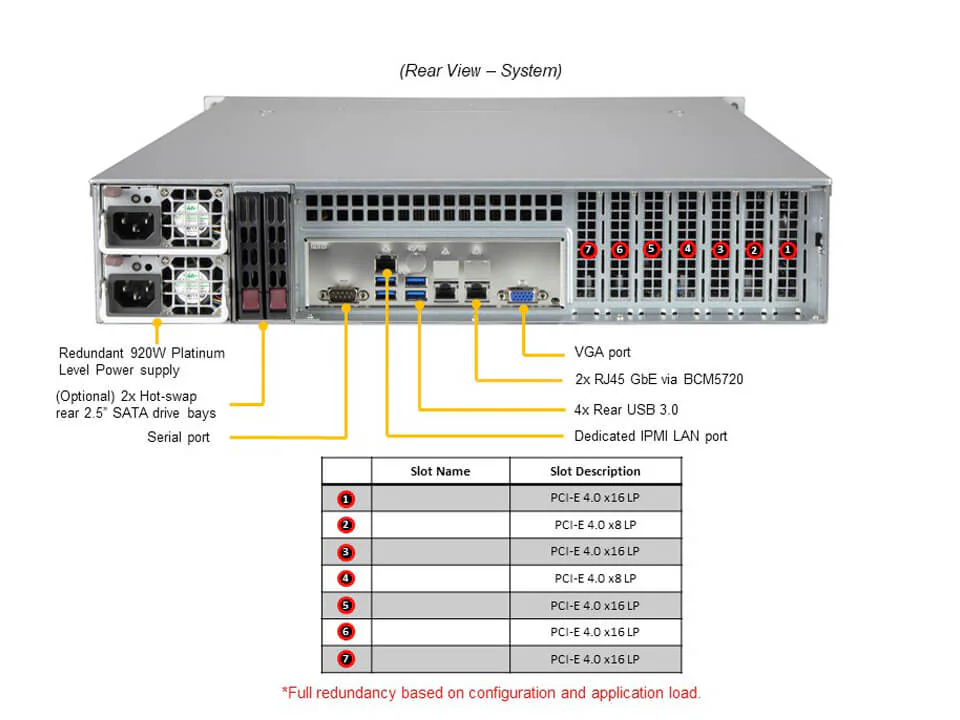

Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
  • 2 RJ45 1 GbE LAN ports
USB
  • 6 USB 3.0 ports(Rear)
Video
  • 1 VGA port
Serial
  • 1 COM port
System BIOS
BIOS Type
  • AMI 256MB SPI Flash ROM
Management
Software
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • KVM with dedicated LAN
  • IPMI 2.0
  • Watch Dog
  • NMI
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 4+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory.
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • A+ Server AS -2014S-TR
  • Super H12SSL-i
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-LA26TS-R920LPP1
Dimensions and Weight
Height
  • 3.5″ (89 mm)
Width
  • 17.2″ (437 mm)

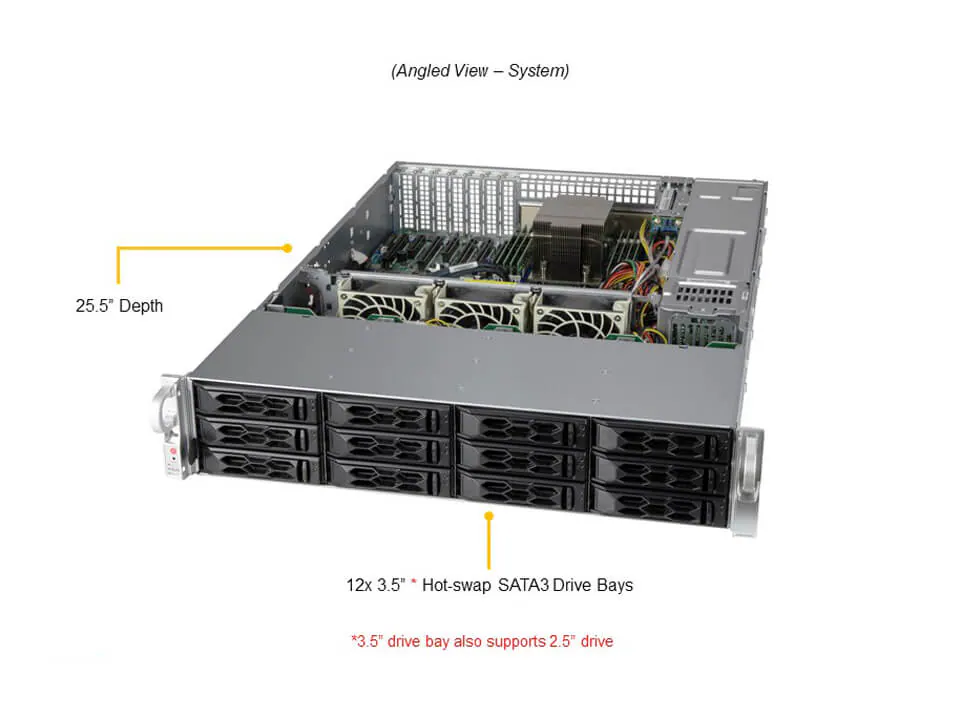

Depth
  • 25.5″ (648 mm)
Package
  • 11.4″ (H) x 26.7″ (W) x 34.5″ (D)
Weight
  • Gross Weight: 60 lbs (27.2 kg)
  • Net Weight: 33.5 lbs (15.2 kg)
Available Color
  • Silver
Front Panel
Buttons
  • Power On/Off button
  • Reset button
LED
  • HDD activity LED
  • Information LED
  • Network activity LEDs
  • Power Fail LED
  • Power status LED
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default5 PCIe 4.0 x16 LP slots 2 PCIe 4.0 x8 LP slots
  • 5 PCIe 4.0 x16 LP slots
  • 2 PCIe 4.0 x8 LP slots
M.2
  • 2 M.2 PCIe 4.0 x4 slots (M-key 2242/2260/2280/22110)
Drive Bays / Storage
Drive Bays Configuration

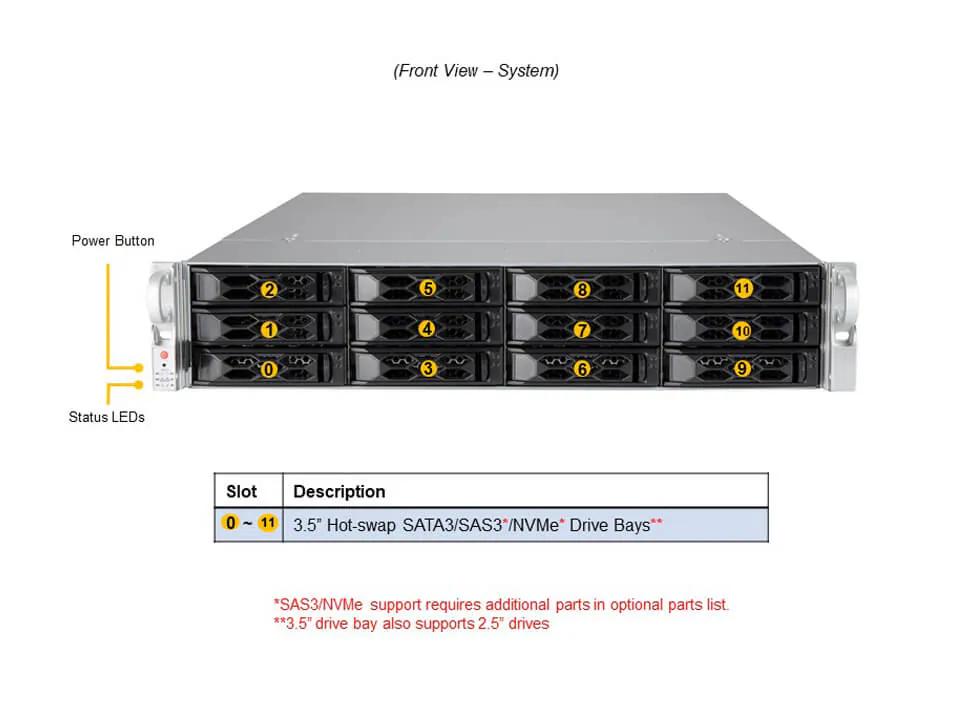

  • Default: Total 12 bays12 front hot-swap 3.5″ SATA drive bays
  • 12 front hot-swap 3.5″ SATA drive bays
  • Option A: Total 14 bays12 front hot-swap 3.5″ SATA drive bays 2 rear hot-swap 2.5″ SATA* drive bays
  • 12 front hot-swap 3.5″ SATA drive bays
  • 2 rear hot-swap 2.5″ SATA* drive bays
  • (*SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
System Cooling
Fans
  • Up to 3 x 80x80x38mm middle cooling Fan(s)
Power Supply
  • 2x 920W 2x 920W Redundant (1 + 1) Platinum Level (94%) power supplies Dimension (WxHxL)76 x 40 x 336 mm Input920W: 100-127Vac 920W: 200-240Vac 920W: 100-127Vac / 50-60Hz 920W: 200-240Vac / 50-60Hz 920W: 200-240Vdc / 50-60Hz +12VMax: 75A / Min: 0A (100Vac-127Vac)Max: 75A / Min: 0A (200Vac-240Vac) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 76 x 40 x 336 mm
Input
  • 920W: 100-127Vac 920W: 200-240Vac 920W: 100-127Vac / 50-60Hz 920W: 200-240Vac / 50-60Hz 920W: 200-240Vdc / 50-60Hz
+12V
  • Max: 75A / Min: 0A (100Vac-127Vac)Max: 75A / Min: 0A (200Vac-240Vac)
5V SB
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
  • 2x 920W 2x 920W Redundant (1 + 1) Platinum Level (94%) power supplies Dimension (WxHxL)76 x 40 x 336 mm Input920W: 100-127Vac 920W: 200-240Vac 920W: 100-127Vac / 50-60Hz 920W: 200-240Vac / 50-60Hz 920W: 200-240Vdc / 50-60Hz +12VMax: 75A / Min: 0A (100Vac-127Vac)Max: 75A / Min: 0A (200Vac-240Vac) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
Standard Parts (Parts Included)
SKU: as-2014s-tr Categorii: , , ,
Product SKUs
  • A+ Server AS -2014S-TR
Motherboard
  • Super H12SSL-i
Processor
CPU
  • Single Socket SP3
  • AMD EPYCâ„¢ 7002/7003 Series Processors
Note
  • Supports up to 280W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 8 DIMM slots
  • Max Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Memory Voltage
  • 1.2V
On-Board Devices
Network Connectivity
  • 2 RJ45 1GbE
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
  • 2 RJ45 1 GbE LAN ports
USB
  • 6 USB 3.0 ports(Rear)
Video
  • 1 VGA port
Serial
  • 1 COM port
System BIOS
BIOS Type
  • AMI 256MB SPI Flash ROM
Management
Software
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • KVM with dedicated LAN
  • IPMI 2.0
  • Watch Dog
  • NMI
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 4+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory.
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • A+ Server AS -2014S-TR
  • Super H12SSL-i
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-LA26TS-R920LPP1
Dimensions and Weight
Height
  • 3.5″ (89 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 25.5″ (648 mm)
Package
  • 11.4″ (H) x 26.7″ (W) x 34.5″ (D)
Weight
  • Gross Weight: 60 lbs (27.2 kg)
  • Net Weight: 33.5 lbs (15.2 kg)
Available Color
  • Silver
Front Panel
Buttons
  • Power On/Off button
  • Reset button
LED
  • HDD activity LED
  • Information LED
  • Network activity LEDs
  • Power Fail LED
  • Power status LED
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default5 PCIe 4.0 x16 LP slots 2 PCIe 4.0 x8 LP slots
  • 5 PCIe 4.0 x16 LP slots
  • 2 PCIe 4.0 x8 LP slots
M.2
  • 2 M.2 PCIe 4.0 x4 slots (M-key 2242/2260/2280/22110)
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 12 bays12 front hot-swap 3.5″ SATA drive bays
  • 12 front hot-swap 3.5″ SATA drive bays
  • Option A: Total 14 bays12 front hot-swap 3.5″ SATA drive bays 2 rear hot-swap 2.5″ SATA* drive bays
  • 12 front hot-swap 3.5″ SATA drive bays
  • 2 rear hot-swap 2.5″ SATA* drive bays
  • (*SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
System Cooling
Fans
  • Up to 3 x 80x80x38mm middle cooling Fan(s)
Power Supply
  • 2x 920W 2x 920W Redundant (1 + 1) Platinum Level (94%) power supplies Dimension (WxHxL)76 x 40 x 336 mm Input920W: 100-127Vac 920W: 200-240Vac 920W: 100-127Vac / 50-60Hz 920W: 200-240Vac / 50-60Hz 920W: 200-240Vdc / 50-60Hz +12VMax: 75A / Min: 0A (100Vac-127Vac)Max: 75A / Min: 0A (200Vac-240Vac) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 76 x 40 x 336 mm
Input
  • 920W: 100-127Vac 920W: 200-240Vac 920W: 100-127Vac / 50-60Hz 920W: 200-240Vac / 50-60Hz 920W: 200-240Vdc / 50-60Hz
+12V
  • Max: 75A / Min: 0A (100Vac-127Vac)Max: 75A / Min: 0A (200Vac-240Vac)
5V SB
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
  • 2x 920W 2x 920W Redundant (1 + 1) Platinum Level (94%) power supplies Dimension (WxHxL)76 x 40 x 336 mm Input920W: 100-127Vac 920W: 200-240Vac 920W: 100-127Vac / 50-60Hz 920W: 200-240Vac / 50-60Hz 920W: 200-240Vdc / 50-60Hz +12VMax: 75A / Min: 0A (100Vac-127Vac)Max: 75A / Min: 0A (200Vac-240Vac) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
Standard Parts (Parts Included)
