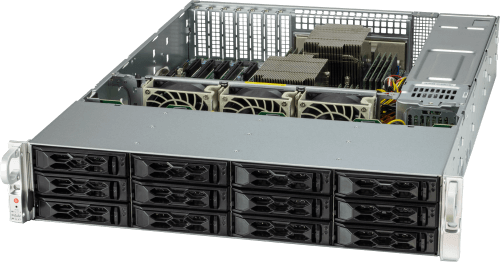

2U Mainstream with dual AMD® EPYC™ and 6 PCIe 4.0 slots

Pretul afisat contine TVA (21%).

SuperServer AS -2024S-TR

2U Mainstream with dual AMD® EPYC™ and 6 PCIe 4.0 slots

Key Features

  1. Dual AMD EPYC™ 7003/7002 Series Processors Supports Up to 240W CPU TDP
  2. AMD® SP3
  3. Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz in 16 DIMMS
  4. 3 PCIe 4.0 x16 Low Profile (LP) 3 PCIe 4.0 x8 Low Profile (LP)
  5. Dual Gigabit LAN
  6. 12 Hot-swap 3.5″ (tool-less) or 2.5″ (screw) drive bays (default configuration is 8 SATA + 4 NVMe) (up to 12 NVMe drives supported with optional NVMe kit) 1 M.2 support: – M.2 Interface: PCIe 3.0 x4 – M.2 form factor: 2260, 2280, 22110 – M.2 Key: M-Key
  7. 920W Redundant Power Supplies Platinum level
  8. 1 rear VGA, 1 Type A port, 1 COM Port, and 4 USB ports

Specifications

Product SKUs
  • A+ Server AS -2024S-TR
Motherboard

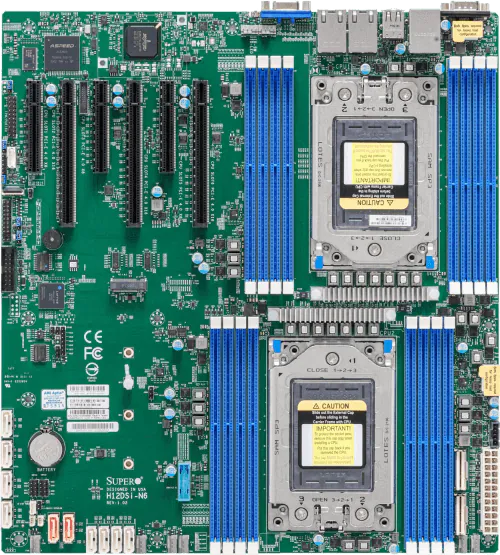

  • Super H12DSi-N6
Processor
CPU
  • Dual Socket SP3
  • AMD EPYC™ 7002/7003 Series Processors
Core Count
  • Up to 64C/128T; Up to 256MB Cache per CPU
Note
  • Supports up to 240W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (1DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Memory Voltage
  • 1.2V
On-Board Devices
Network Connectivity
  • 2 RJ45 1GbE
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
  • 2 RJ45 1 GbE LAN ports
USB
  • 2 USB 2.0 ports(rear)
  • 2 USB 3.0 ports(rear)
Video
  • 1 VGA port
DOM
  • 2 SuperDOM (Disk on Module) ports
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 7 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory.
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • A+ Server AS -2024S-TR
  • Super H12DSi-N6
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-LA26TS-R920LPP1
Dimensions and Weight
Height
  • 3.5″ (89 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 25.5″ (648 mm)
Package
  • 11.4″ (H) x 26.7″ (W) x 34.5″ (D)
Weight
  • Gross Weight: 60 lbs (27.2 kg)
  • Net Weight: 33.5 lbs (15.2 kg)
Available Color
  • Silver

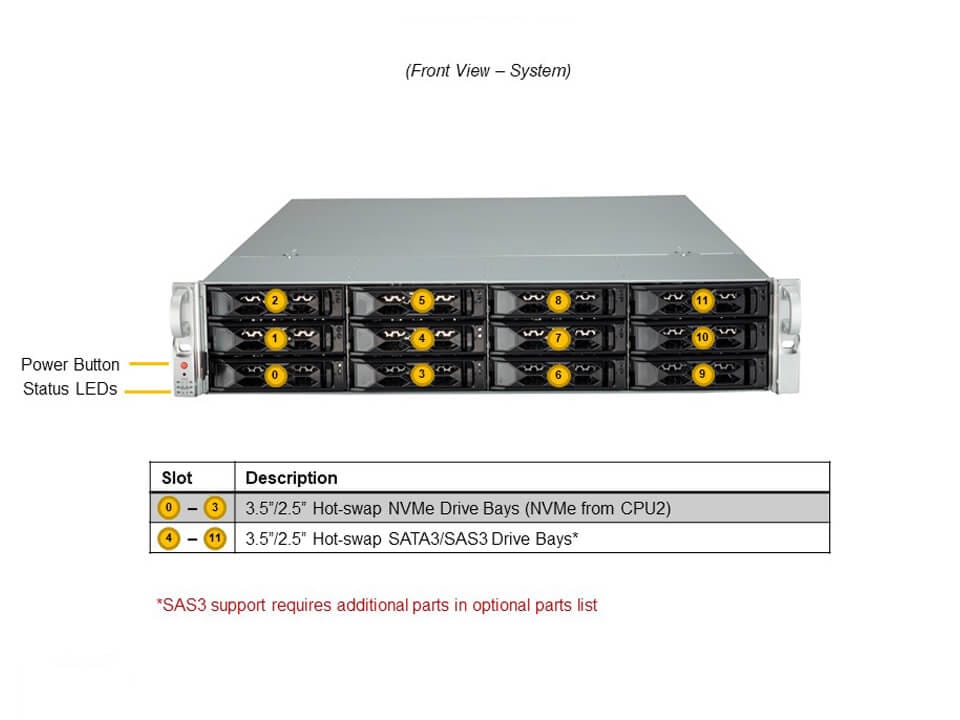

Front Panel
Buttons
  • Power On/Off button
  • Reset button
LED
  • HDD activity LED
  • Information LED
  • Network activity LEDs
  • Power Fail LED
  • Power status LED

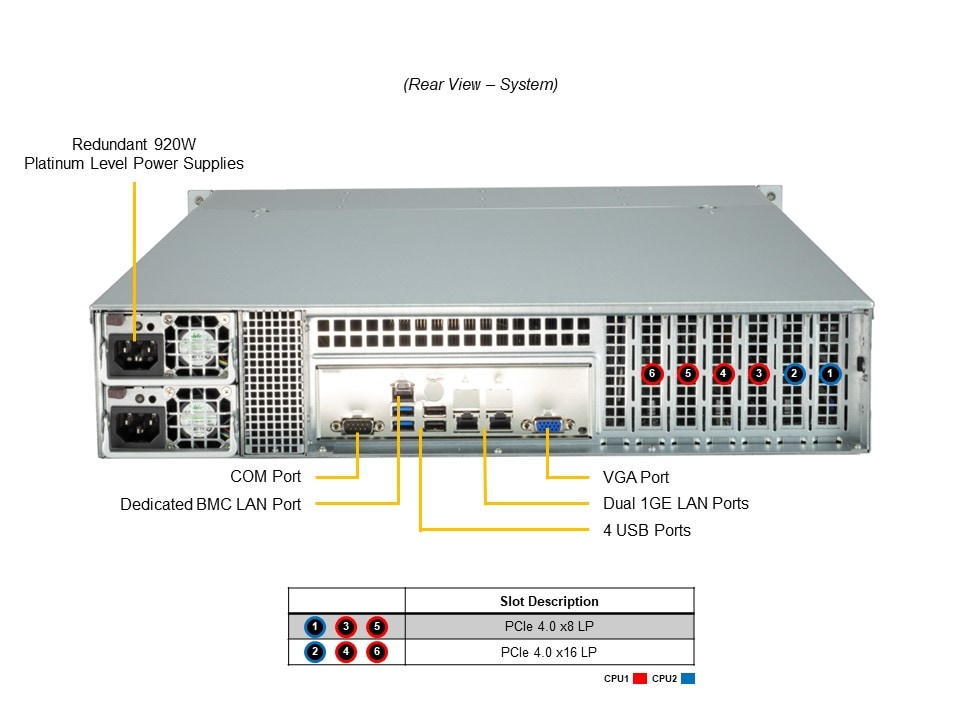

Expansion Slots
PCI-Express (PCIe) Configuration
  • Default3 PCIe 4.0 x8 LP slots 3 PCIe 4.0 x16 LP slots
  • 3 PCIe 4.0 x8 LP slots
  • 3 PCIe 4.0 x16 LP slots

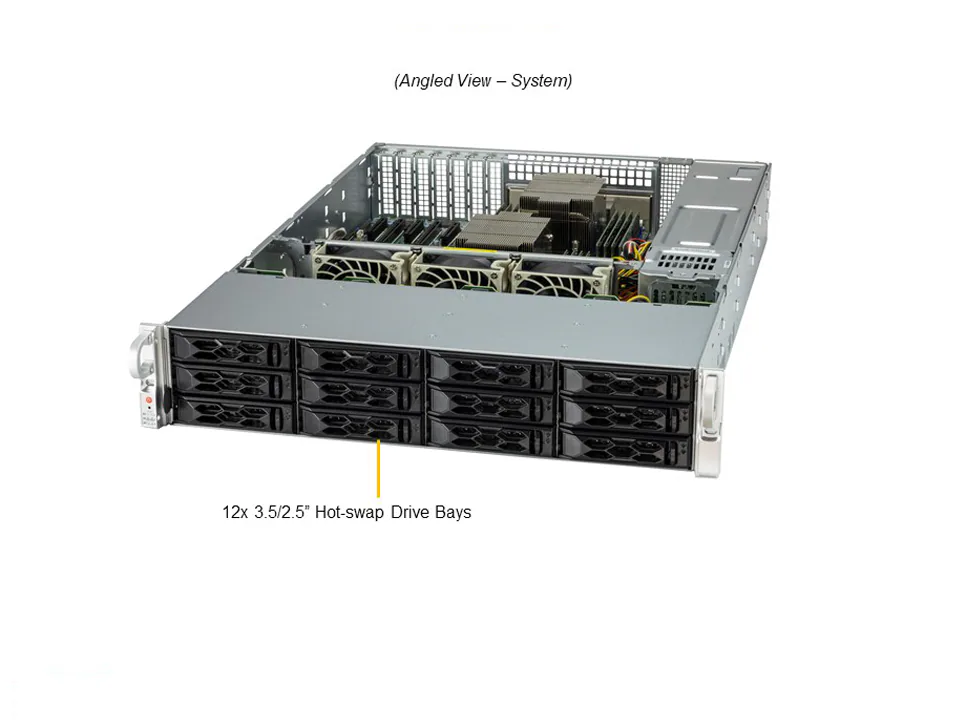

Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 12 bays4 front hot-swap 3.5″ NVMe drive bays 8 front hot-swap 3.5″ SAS*/SATA drive bays
  • 4 front hot-swap 3.5″ NVMe drive bays
  • 8 front hot-swap 3.5″ SAS*/SATA drive bays
  • Option A: Total 12 bays12 front hot-swap 2.5″ SAS/SATA drive bays
  • 12 front hot-swap 2.5″ SAS/SATA drive bays
  • (*SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
  • 1 M.2 NVMe slot (M-key 2280/22110)
  • View M.2 Options
System Cooling
Fans

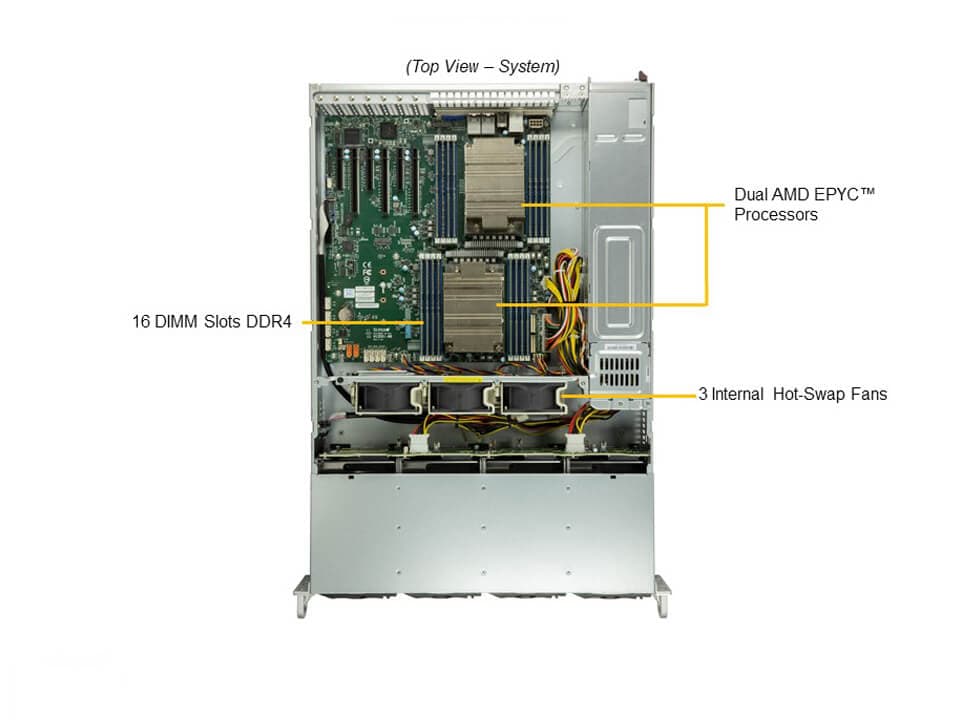

  • Up to 3 Middle 80mm Fan(s)
Air Shroud
  • 1 Clear Plastic Air Shroud
Power Supply
  • 2x 920W 2x 920W Redundant Platinum Level (94%) power supplies Dimension (WxHxL)76 x 40 x 336 mm Input920W: 100-127Vac 920W: 200-240Vac 920W: 100-127Vac / 50-60Hz 920W: 200-240Vac / 50-60Hz 920W: 200-240Vdc / 50-60Hz +12VMax: 75A / Min: 0A (100Vac-127Vac)Max: 75A / Min: 0A (200Vac-240Vac) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 76 x 40 x 336 mm
Input
  • 920W: 100-127Vac 920W: 200-240Vac 920W: 100-127Vac / 50-60Hz 920W: 200-240Vac / 50-60Hz 920W: 200-240Vdc / 50-60Hz
+12V
  • Max: 75A / Min: 0A (100Vac-127Vac)Max: 75A / Min: 0A (200Vac-240Vac)
5V SB
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • 2x 920W 2x 920W Redundant Platinum Level (94%) power supplies Dimension (WxHxL)76 x 40 x 336 mm Input920W: 100-127Vac 920W: 200-240Vac 920W: 100-127Vac / 50-60Hz 920W: 200-240Vac / 50-60Hz 920W: 200-240Vdc / 50-60Hz +12VMax: 75A / Min: 0A (100Vac-127Vac)Max: 75A / Min: 0A (200Vac-240Vac) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
Standard Parts (Parts Included)
Optional Parts List
