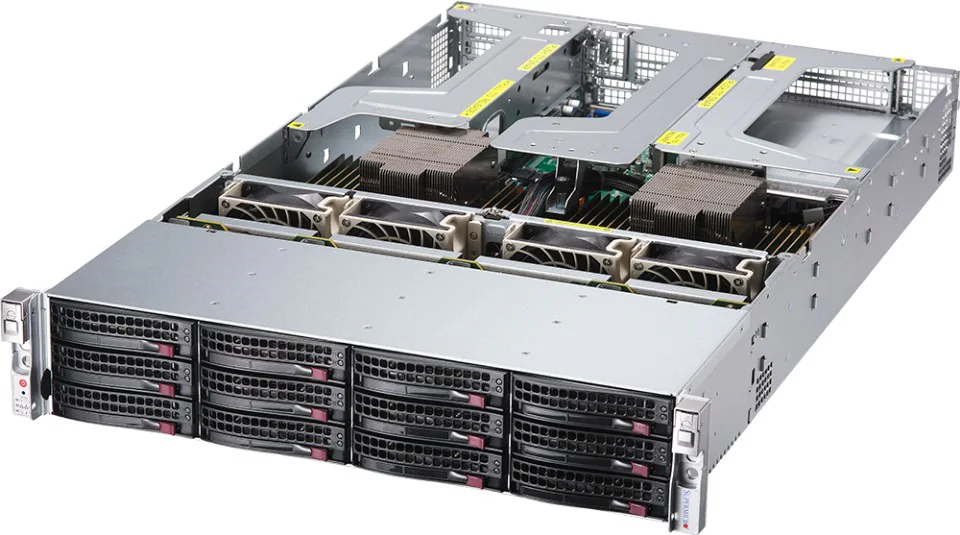

Supermicro SuperServer AS -2024US-TNR
Supermicro SuperServer AS -2024US-TNR - imagine 2
Supermicro SuperServer AS -2024US-TNR - imagine 3
Supermicro SuperServer AS -2024US-TNR - imagine 4
Supermicro SuperServer AS -2024US-TNR - imagine 5
Supermicro SuperServer AS -2024US-TNR - imagine 6
, , ,

Supermicro SuperServer AS -2024US-TNR

Favorite
Compara

2U DP Ultra with up to 12 hot-swap 3.5″ NVMe/SAS/SATA bays and 4 PCIe 4.0 slots

Pretul afisat contine TVA (21%).

SuperServer AS -2024US-TNR

2U DP Ultra with up to 12 hot-swap 3.5″ NVMe/SAS/SATA bays and 4 PCIe 4.0 slots

Key Features

  1. Dual AMD EPYC™ 7003/7002 Series Processors(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  2. Dual AMD EPYC™ 7003/7002 Series Processors
  3. (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  4. 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
  5. Must bundle with optional Ultra Riser Card1 PCIe 4.0 x16 (FH/10.5″ L) slot1 PCIe 4.0 x16 (FH, 9.5″ L) slot1 PCIe 4.0 x16 (LP) slot,1 PCIe 4.0 x16 (FH, 10.5″ L) slot, 1 PCIe 4.0 x8 (internal proprietary LP in x16) slot*1 PCIe 4.0 x8 FH, 9.5″ L (in x16) slot (with AOC-2UR668G4 this slot will become PCIe 4.0 x16)
  6. Must bundle with optional Ultra Riser Card
  7. 1 PCIe 4.0 x16 (FH/10.5″ L) slot
  8. 1 PCIe 4.0 x16 (FH, 9.5″ L) slot
  9. 1 PCIe 4.0 x16 (LP) slot,
  10. 1 PCIe 4.0 x16 (FH, 10.5″ L) slot, 1 PCIe 4.0 x8 (internal proprietary LP in x16) slot*
  11. 1 PCIe 4.0 x8 FH, 9.5″ L (in x16) slot (with AOC-2UR668G4 this slot will become PCIe 4.0 x16)
  12. 12 hot-swap 3.5″ Drive Bays:12 SATA3 by defaultor 8 SATA3 + 4 NVMe via optional tray
  13. 12 hot-swap 3.5″ Drive Bays:
  14. 12 SATA3 by default
  15. or 8 SATA3 + 4 NVMe via optional tray

Specifications

Product SKUs
  • A+ Server AS -2024US-TNR

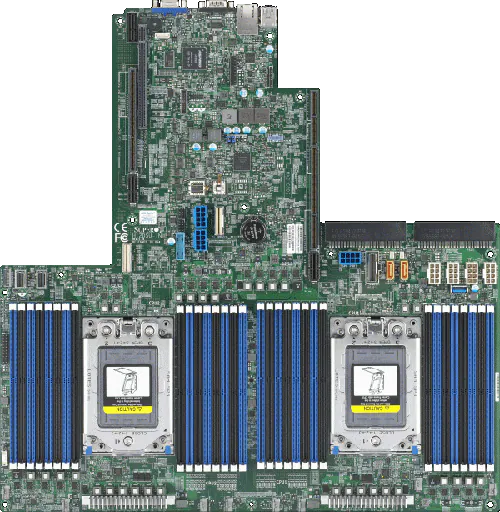

Motherboard
  • Super H12DSU-iN
Processor
CPU
  • Dual Socket SP3
  • AMD EPYC™ 7002/7003 Series Processors
Note
  • Supports up to 280W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 32 DIMM slots
  • Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Memory Voltage
  • 1.2V
On-Board Devices
Network Connectivity
  • Ultra Riser Card
  • View Network Card (AOC) Options
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 3 USB 3.0 Type-A ports(Rear)
Video
  • 1 VGA port
Serial
  • 1 port
DOM
  • 2 SATA DOM (Disk on Module) ports
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
BIOS Features
  • Plug and Play (PnP)
  • USB Keyboard support
  • ACPI 5.1
  • DMI 2.3
  • PCI 2.2
  • SMBIOS 3.1.1
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • OOB Management Package (SFT-OOB-LIC )
  • SuperServer Automation Assistant (SAA) New!
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
FAN
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • CPU thermal trip support
  • Monitoring for CPU and chassis environment
  • A+ Server AS -2024US-TNR
  • Super H12DSU-iN

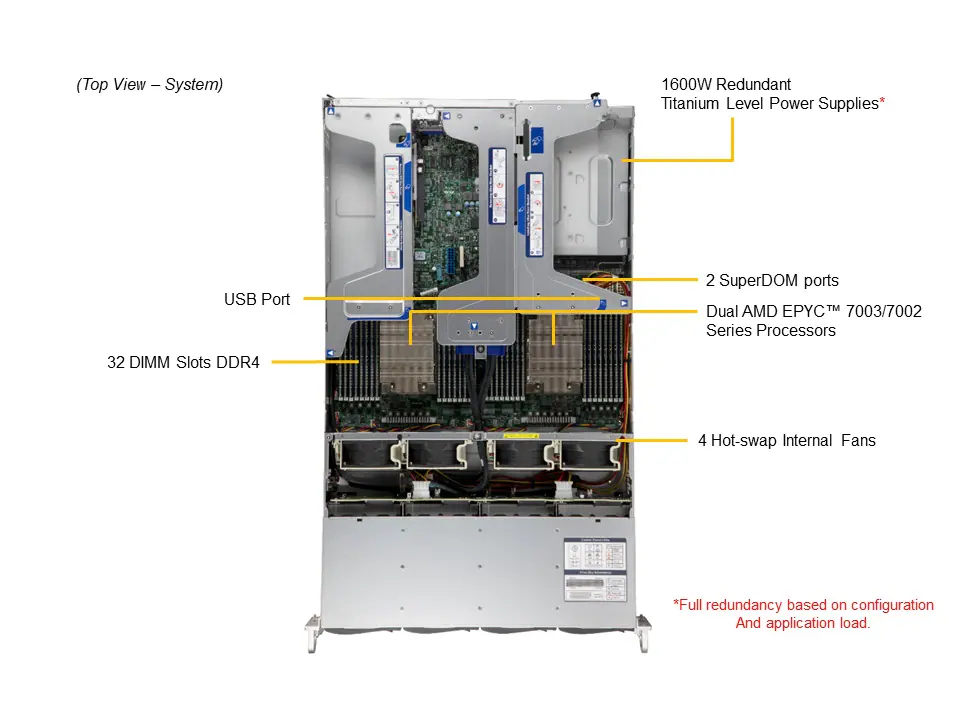

Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-829U2TS-R1K62P3-T
Dimensions and Weight
Height
  • 3.5″ (89 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 28.46″ (723 mm)
Package
  • 10.28″ (H) x 24.65″ (W) x 45.39″ (D)
Weight
  • Gross Weight: 72 lbs (16.4 kg)
  • Net Weight: 36 lbs (16.4 kg)
Available Color
  • N/A

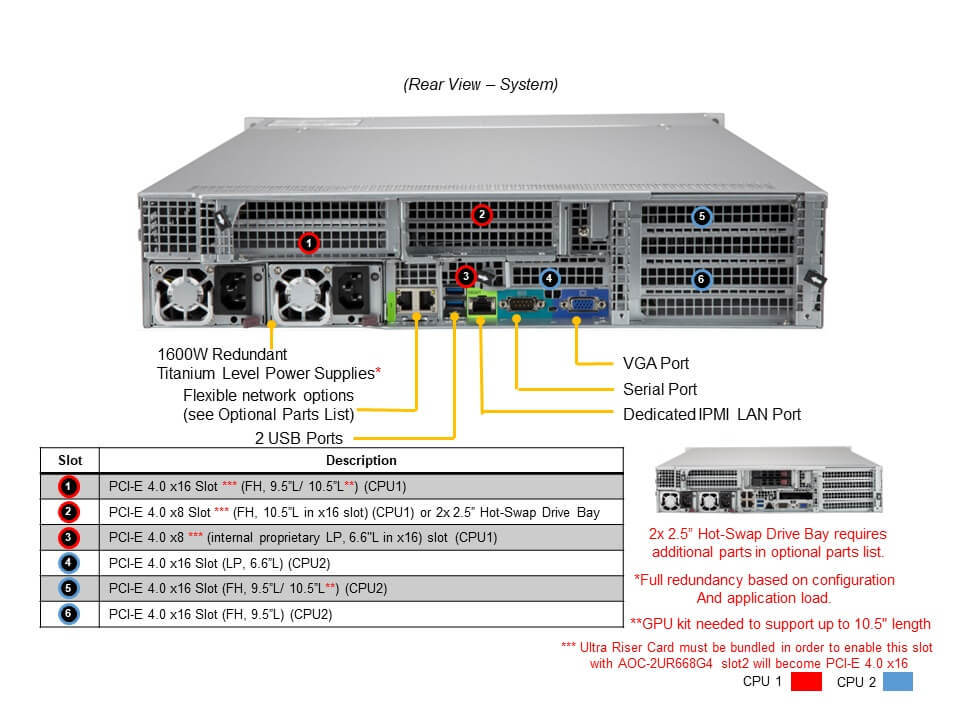

Expansion Slots
PCI-Express (PCIe) Configuration
  • Default2 PCIe 4.0 x16 FH/10.5″L slots 1 PCIe 4.0 x16 LP slot 1 PCIe 4.0 x16 FH/9.5″L slot 1 PCIe 4.0 x8 (in x16) FH/9.5″L slot 1 PCIe 4.0 x8 internal slot
  • 2 PCIe 4.0 x16 FH/10.5″L slots
  • 1 PCIe 4.0 x16 LP slot
  • 1 PCIe 4.0 x16 FH/9.5″L slot
  • 1 PCIe 4.0 x8 (in x16) FH/9.5″L slot
  • 1 PCIe 4.0 x8 internal slot

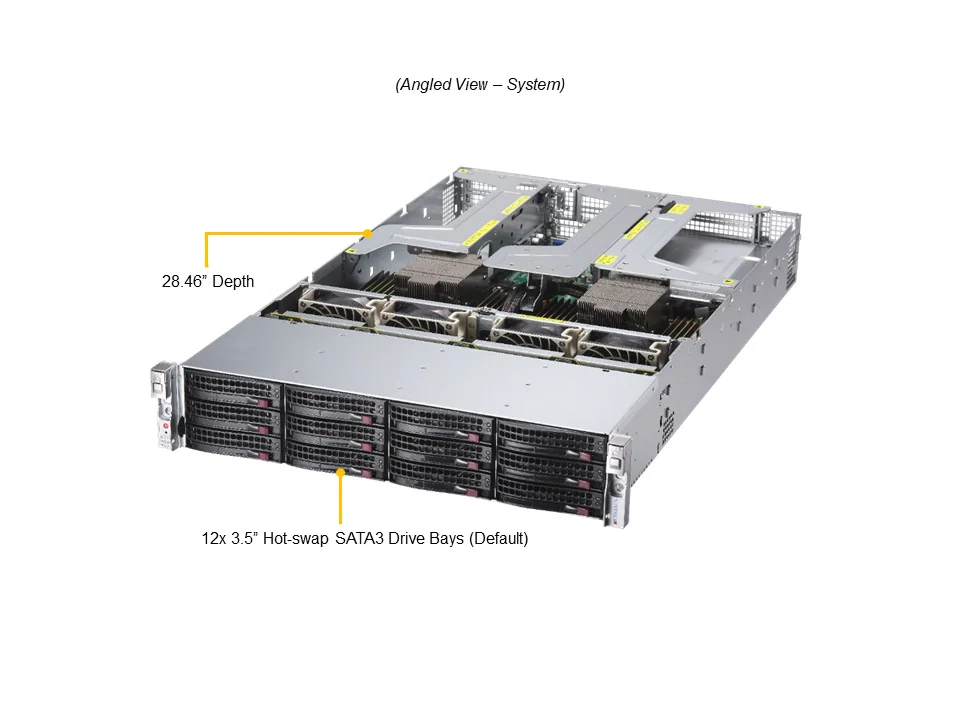

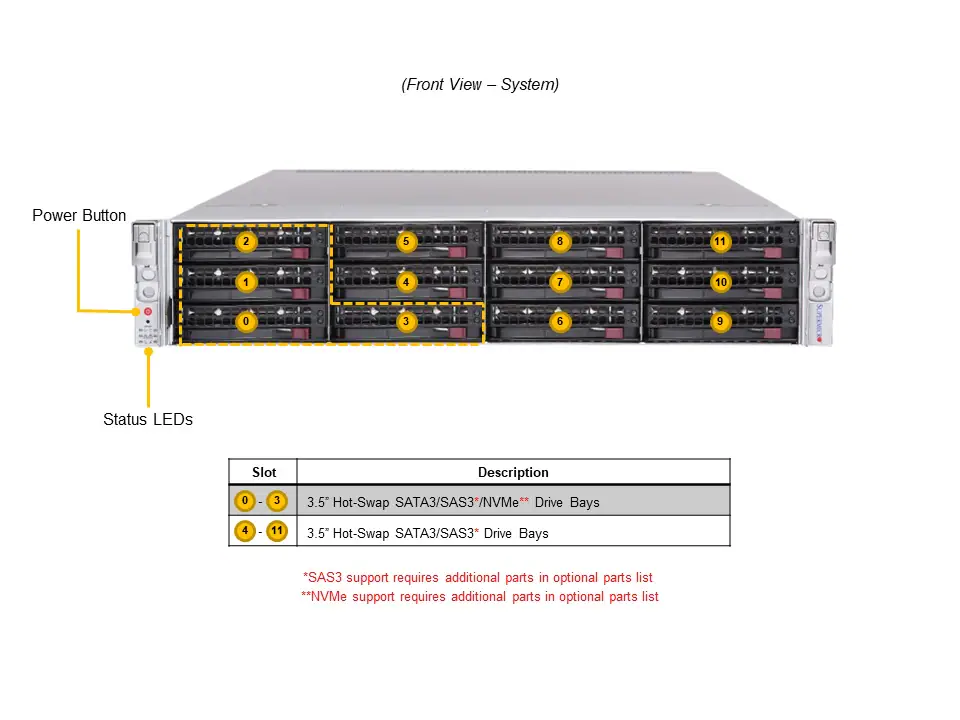

Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 12 bays12 front hot-swap 3.5″ SATA drive bays
  • 12 front hot-swap 3.5″ SATA drive bays
  • Option A: Total 12 bays8 front hot-swap 3.5″ SATA drive bays 4 front hot-swap 2.5″ NVMe* drive bays
  • 8 front hot-swap 3.5″ SATA drive bays
  • 4 front hot-swap 2.5″ NVMe* drive bays
  • Option B: Total 12 bays12 front hot-swap 3.5″ SAS* drive bays
  • 12 front hot-swap 3.5″ SAS* drive bays
  • (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
System Cooling
Fans
  • Up to 4 heavy duty fans with optimal fan speed control
Power Supply
  • 2x 1600W 2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 203 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 83.3A / Min: 0A (100Vac-127Vac)Max: 133A / Min: 0A (200Vac-240Vac) 12V SBMax: 2.1A / Min: 0A Output TypeBackplanes (gold finger) Certification Titanium Level [ Test Report ]
Dimension (WxHxL)
  • 73.5 x 40 x 203 mm
Input
  • 1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)Max: 83.3A / Min: 0A (100Vac-127Vac)Max: 133A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 2.1A / Min: 0A
Output Type
  • Backplanes (gold finger)
Certification
  • Titanium Level [ Test Report ]
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • 2x 1600W 2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 203 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 83.3A / Min: 0A (100Vac-127Vac)Max: 133A / Min: 0A (200Vac-240Vac) 12V SBMax: 2.1A / Min: 0A Output TypeBackplanes (gold finger) Certification Titanium Level [ Test Report ]
