Supermicro SuperServer AS -3014TS-i

Favorite

Compara

UP mid-tower workstation for entry-level and office applications

Pretul afisat contine TVA (21%).

SuperServer AS -3014TS-i

UP mid-tower workstation for entry-level and office applications

Key Features

Single AMD EPYC™ 7002/7003 Series Processor(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
8 DIMMs; up to 2TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
5 PCIe 4.0 x16 FH, 2 PCIe 4.0 x8 FH
4 Internal 3.5″ SATA3 drive bays + 4 internal 2.5″ drive baysM.2 Interface: 2 PCIe 4.0 x4M.2 Form Factor: 2280, 22110M.2 Key: M-key

Specifications

Product SKUs
A+ Server AS -3014TS-i
Motherboard

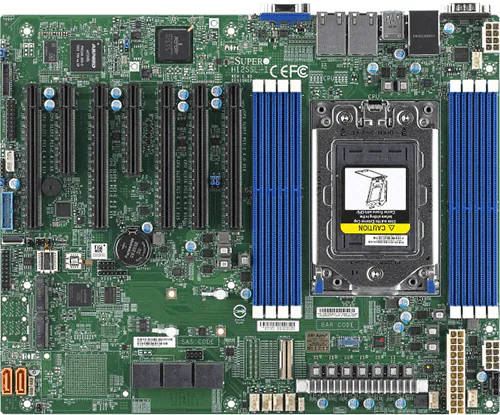

Super H12SSL-i
Processor
CPU	Single Socket SP3 AMD EPYC™ 7002/7003 Series Processors
Note	Supports up to 280W TDP CPUs (Air Cooled)
System Memory
Memory	Slot Count: 8 DIMM slots Max Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Memory Voltage	1.2V
On-Board Devices
SATA	SATA (6Gbps)
Network Connectivity	2 RJ45 1GbE
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

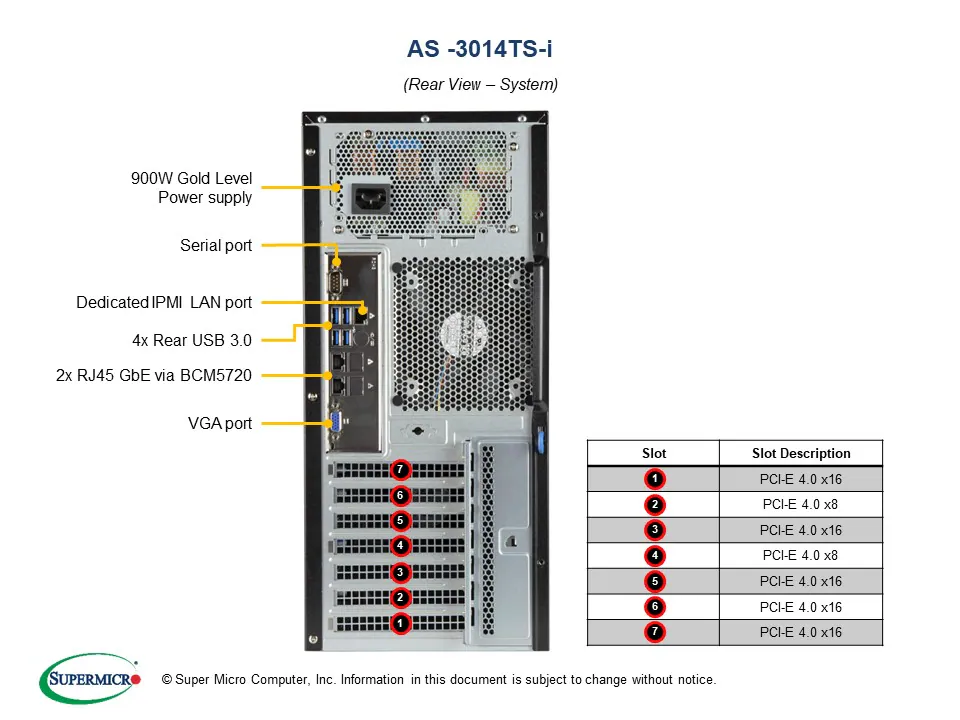

Input / Output
LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	6 USB 3.0 ports(Rear)
Video	1 VGA port
Serial	1 COM port(Rear)
DOM	1 SuperDOM (Disk on Module) port
System BIOS
BIOS Type	AMI 256MB SPI Flash EEPROM
Management
Software	Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) KVM with dedicated LAN IPMI 2.0 Watch Dog NMI
Power configurations	ACPI/APM Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown
PC Health Monitoring
CPU	4+1 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory.
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
A+ Server AS -3014TS-i
Super H12SSL-i

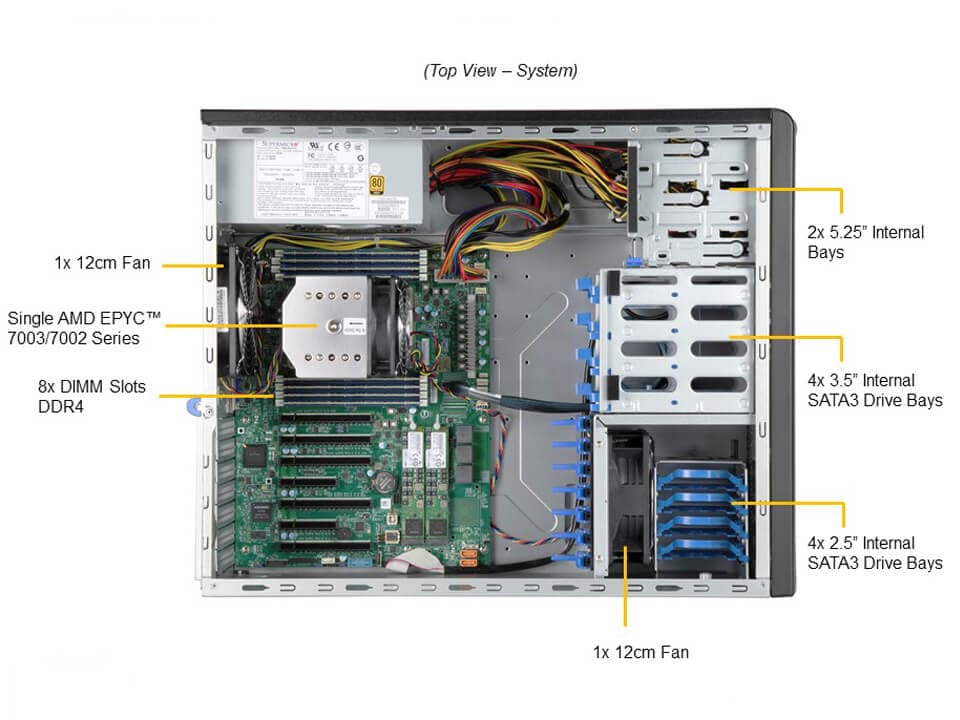

Chassis
Form Factor	Mid-Tower
Model	CSE-732i-903B

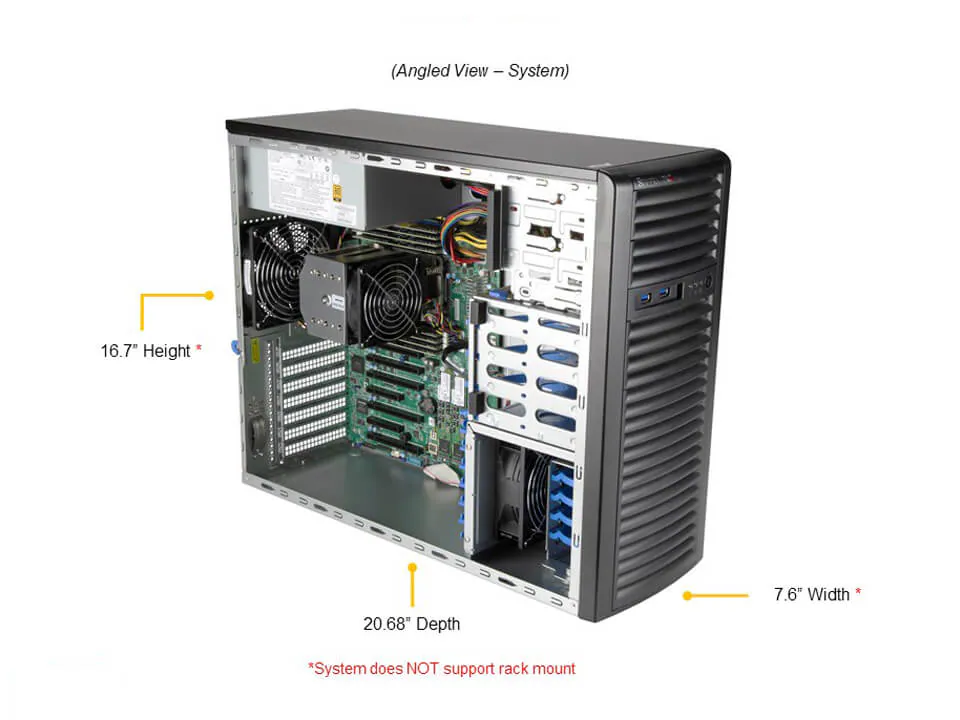

Dimensions and Weight
Height	16.7″ (424 mm)
Width	7.6″ (193 mm)
Depth	20.68″ (525 mm)
Package	11.97″ (H) x 21.38″ (W) x 25.28″ (D)
Weight	Gross Weight: 27 lbs (12.25 kg) Net Weight: 27 lbs (12.25 kg)
Available Color	Black
Expansion Slots
PCI-Express (PCIe) Configuration	Default5 PCIe 4.0 x16 FH slots 2 PCIe 4.0 x8 FH slots 5 PCIe 4.0 x16 FH slots 2 PCIe 4.0 x8 FH slots
Drive Bays / Storage
Drive Bays Configuration	Default: Total 8 bays4 internal fixed 3.5″ SATA drive bays 4 internal fixed 2.5″ SATA drive bays 4 internal fixed 3.5″ SATA drive bays 4 internal fixed 2.5″ SATA drive bays
System Cooling
Fans	Up to 1 heavy duty fans with optimal fan speed control
Power Supply
1x 900W 1x 900W Gold Level (90%) power supply Dimension (WxHxL)150 x 86 x 190 mm Input900W: 100-240Vac / 50-60Hz +12VMax: 25A / Min: 0.1A (100Vac-240Vac)Max: 25A / Min: 0.1A (100Vac-120Vac) 5V SBMax: 4A / Min: 0.02A Output Type24pin ATX Certification Gold Level
Dimension (WxHxL)	150 x 86 x 190 mm
Input	900W: 100-240Vac / 50-60Hz
+12V	Max: 25A / Min: 0.1A (100Vac-240Vac)Max: 25A / Min: 0.1A (100Vac-120Vac)
5V SB	Max: 4A / Min: 0.02A
Output Type	24pin ATX
Certification	Gold Level
Operating Environment
ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
1x 900W 1x 900W Gold Level (90%) power supply Dimension (WxHxL)150 x 86 x 190 mm Input900W: 100-240Vac / 50-60Hz +12VMax: 25A / Min: 0.1A (100Vac-240Vac)Max: 25A / Min: 0.1A (100Vac-120Vac) 5V SBMax: 4A / Min: 0.02A Output Type24pin ATX Certification Gold Level

SKU: as-3014ts-i Categorii: BRAND, rackmount, Server&Storage, SUPERMICRO

Product SKUs
A+ Server AS -3014TS-i
Motherboard
Super H12SSL-i
Processor
CPU	Single Socket SP3 AMD EPYC™ 7002/7003 Series Processors
Note	Supports up to 280W TDP CPUs (Air Cooled)
System Memory
Memory	Slot Count: 8 DIMM slots Max Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Memory Voltage	1.2V
On-Board Devices
SATA	SATA (6Gbps)
Network Connectivity	2 RJ45 1GbE
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	6 USB 3.0 ports(Rear)
Video	1 VGA port
Serial	1 COM port(Rear)
DOM	1 SuperDOM (Disk on Module) port
System BIOS
BIOS Type	AMI 256MB SPI Flash EEPROM
Management
Software	Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) KVM with dedicated LAN IPMI 2.0 Watch Dog NMI
Power configurations	ACPI/APM Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown
PC Health Monitoring
CPU	4+1 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory.
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
A+ Server AS -3014TS-i
Super H12SSL-i
Chassis
Form Factor	Mid-Tower
Model	CSE-732i-903B
Dimensions and Weight
Height	16.7″ (424 mm)
Width	7.6″ (193 mm)
Depth	20.68″ (525 mm)
Package	11.97″ (H) x 21.38″ (W) x 25.28″ (D)
Weight	Gross Weight: 27 lbs (12.25 kg) Net Weight: 27 lbs (12.25 kg)
Available Color	Black
Expansion Slots
PCI-Express (PCIe) Configuration	Default5 PCIe 4.0 x16 FH slots 2 PCIe 4.0 x8 FH slots 5 PCIe 4.0 x16 FH slots 2 PCIe 4.0 x8 FH slots
Drive Bays / Storage
Drive Bays Configuration	Default: Total 8 bays4 internal fixed 3.5″ SATA drive bays 4 internal fixed 2.5″ SATA drive bays 4 internal fixed 3.5″ SATA drive bays 4 internal fixed 2.5″ SATA drive bays
System Cooling
Fans	Up to 1 heavy duty fans with optimal fan speed control
Power Supply
1x 900W 1x 900W Gold Level (90%) power supply Dimension (WxHxL)150 x 86 x 190 mm Input900W: 100-240Vac / 50-60Hz +12VMax: 25A / Min: 0.1A (100Vac-240Vac)Max: 25A / Min: 0.1A (100Vac-120Vac) 5V SBMax: 4A / Min: 0.02A Output Type24pin ATX Certification Gold Level
Dimension (WxHxL)	150 x 86 x 190 mm
Input	900W: 100-240Vac / 50-60Hz
+12V	Max: 25A / Min: 0.1A (100Vac-240Vac)Max: 25A / Min: 0.1A (100Vac-120Vac)
5V SB	Max: 4A / Min: 0.02A
Output Type	24pin ATX
Certification	Gold Level
Operating Environment
ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
1x 900W 1x 900W Gold Level (90%) power supply Dimension (WxHxL)150 x 86 x 190 mm Input900W: 100-240Vac / 50-60Hz +12VMax: 25A / Min: 0.1A (100Vac-240Vac)Max: 25A / Min: 0.1A (100Vac-120Vac) 5V SBMax: 4A / Min: 0.02A Output Type24pin ATX Certification Gold Level
