Supermicro SuperServer SYS-240P-TNRT

Favorite

Compara

2U 4-socket system with 48 DIMMs and 24 NVMe/SAS/SATA drive bays

Pretul afisat contine TVA (21%).

SuperServer SYS-240P-TNRT

2U 4-socket system with 48 DIMMs and 24 NVMe/SAS/SATA drive bays

Key Features

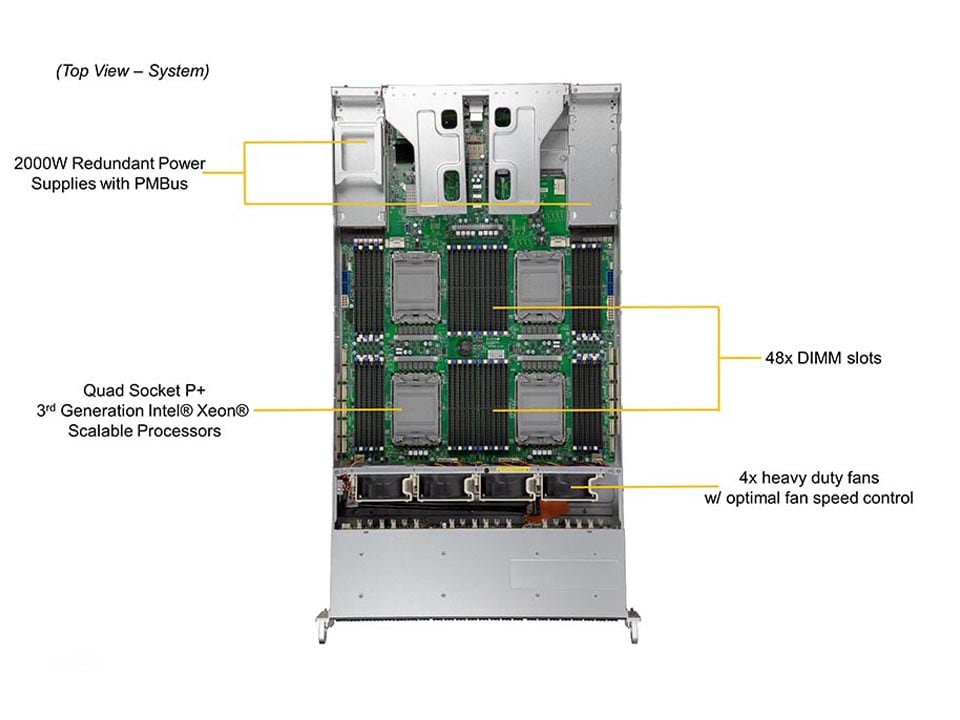

Quad Socket P+ (LGA-4189) 3rd Generation Intel® Xeon® Scalable processors
48 DIMMs; Up to 18TB 3DS ECC DDR4-3200:LRDIMM/RDIMM/Intel® Intel® DCPMM
Intel® Ethernet Controller X710-TM4 2x 10G RJ45 + 2x 10G SFP+ port; (optional) AIOM up to 100G QSFP28
Up to 24 Hot-swap 2.5″ NVMe/SAS3/SATA3 drive bays (Default with 8 SAS3/SATA3 drive bays); Onboard 2x M.2 SATA.
4 heavy duty fans w/ optimal fan speed control; 1 Air Shroud

Specifications

Product SKUs
SuperServer SYS-240P-TNRT
Motherboard

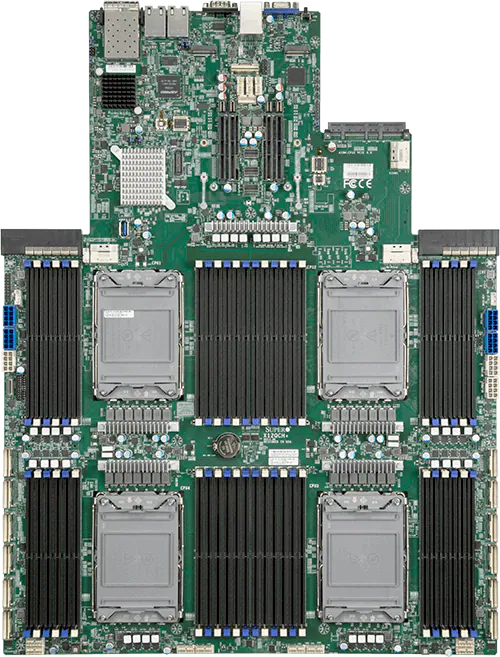

Super X12QCH+
Processor
CPU	Quad Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Core Count	Up to 28C/56T; Up to 38.5MB Cache per CPU
Note	Supports 120W – 250W TDP CPUs (Air Cooled)
GPU
Max GPU Count	Up to 2 double-width or 2 single-width GPUs
Supported GPU	NVIDIA PCIe: A16, RTX 4000, RTX A6000
System Memory
Memory	Slot Count: 48 DIMM slots Max Memory (2DPC): Up to 12TB 3200MT/s ECC DDR4 RDIMM/LRDIMM Supports Intel® Optane™ persistent memory 200 series
Memory Voltage	1.2V
On-Board Devices
Network Connectivity	2 RJ45 10GBASE-T with Intel® X710-TM4 2 SFP+ 10GbE with Intel® X710-TM4
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output

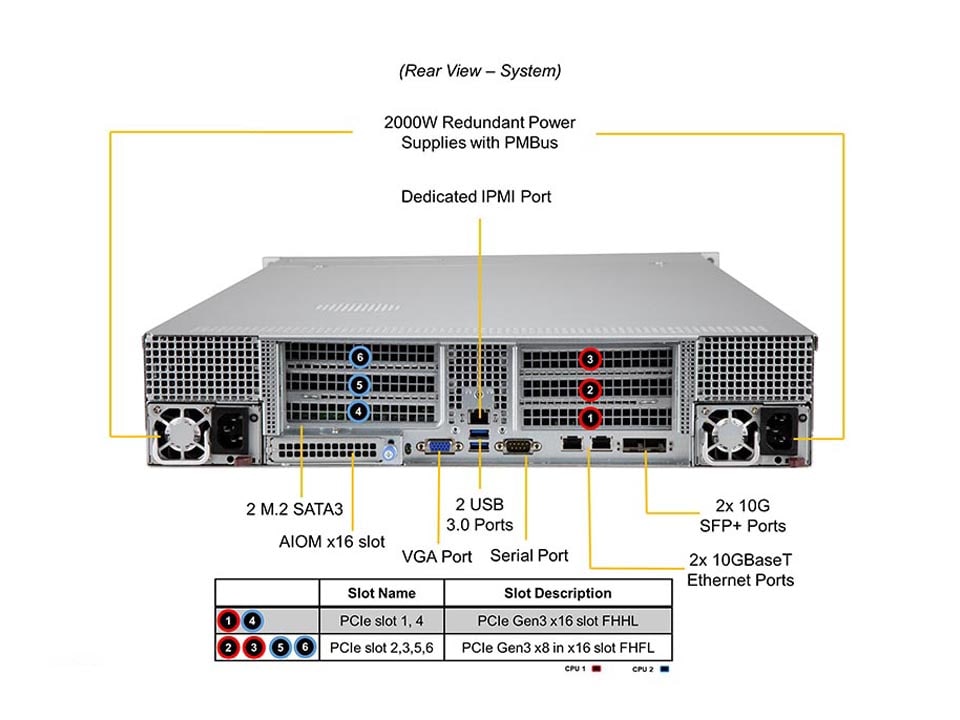

LAN	1 RJ45 1 GbE Dedicated BMC LAN port 2 RJ45 10 GbE LAN ports 2 SFP+ 10 GbE LAN ports
USB	2 USB 3.0 ports(rear)
Serial	1 COM port(Rear)
System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM
Management
Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! IPMICFG SMCIPMITool IPMIView
Power configurations	Power-on mode for AC power recovery ACPI Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown
PC Health Monitoring
CPU	4+1 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
SuperServer SYS-240P-TNRT
Super X12QCH+
Chassis
Form Factor	2U Rackmount
Model	CSE-218HTS-R2K08P
Dimensions and Weight
Height	3.5″ (89 mm)
Width	17.3″ (439.5 mm)
Depth	31.6″ (803 mm)
Package	9.75″ (H) x 26.5″ (W) x 43.5″ (D)
Weight	Gross Weight: 71.5 lbs (32.43 kg) Net Weight: 45.5 lbs (20.64 kg)
Available Color	Black
Front Panel
Buttons	Power On/Off UID/ BMC Reset (Default)
LED	HDD activity Network activity Power status System information (overheat/UID)
Expansion Slots
PCI-Express (PCIe) Configuration	Default2 PCIe 3.0 x16 FHHL slots 4 PCIe 3.0 x8 (in x16) FHFL slots 1 PCIe 3.0 x16 (in x16) AIOM slot (OCP 3.0 compatible) 2 PCIe 3.0 x16 FHHL slots 4 PCIe 3.0 x8 (in x16) FHFL slots 1 PCIe 3.0 x16 (in x16) AIOM slot (OCP 3.0 compatible)
Drive Bays / Storage

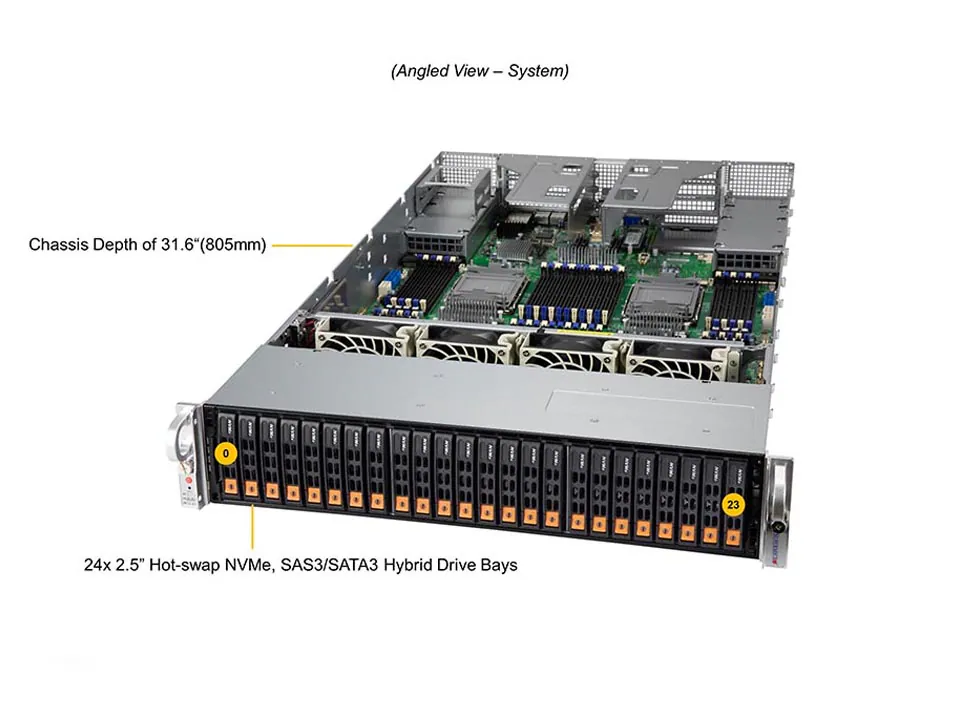

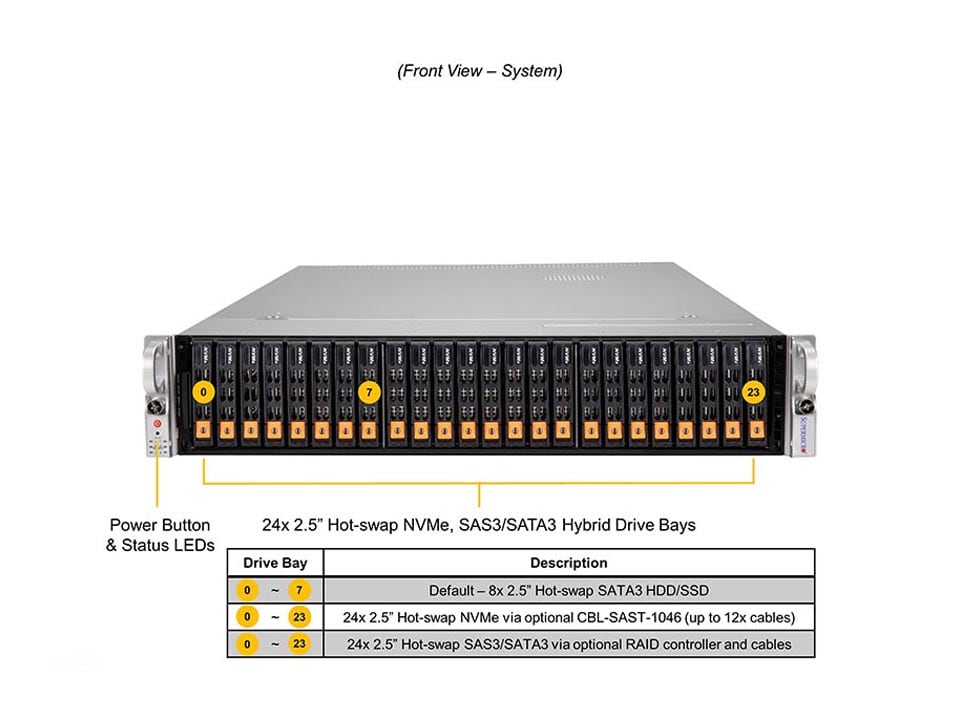

Drive Bays Configuration	Default: Total 8 bays8 front hot-swap 2.5″ SATA drive bays 8 front hot-swap 2.5″ SATA drive bays Option A: Total 24 bays24 front hot-swap 2.5″ NVMe/SAS/SATA* drive bays 24 front hot-swap 2.5″ NVMe/SAS/SATA* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2	2 M.2 NVMe/SATA slots (M-key 2280/22110) View M.2 Options
System Cooling
Fans	Up to 4x 8cm heavy duty fans with optimal fan speed control
Air Shroud	8 Air Shrouds
Power Supply
2x 2000W 2x 2000W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)73.5 x 40 x 203 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vdc 2000W: 220-240Vac 2000W: 230-240Vac 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for China only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Max: 3.5A Output TypeBackplanes (gold finger)
Dimension (WxHxL)	73.5 x 40 x 203 mm
Input	1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vdc 2000W: 220-240Vac 2000W: 230-240Vac 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for China only)
+12V	Max: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac)
12V SB	Max: 3.5A / Min: 0A Max: 3.5A
Output Type	Backplanes (gold finger)
Operating Environment
ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
2x 2000W 2x 2000W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)73.5 x 40 x 203 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vdc 2000W: 220-240Vac 2000W: 230-240Vac 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for China only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Max: 3.5A Output TypeBackplanes (gold finger)
Optional Parts List

SKU: sys-240p-tnrt Categorii: BRAND, rackmount, Server&Storage, SUPERMICRO

Product SKUs
SuperServer SYS-240P-TNRT
Motherboard
Super X12QCH+
Processor
CPU	Quad Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Core Count	Up to 28C/56T; Up to 38.5MB Cache per CPU
Note	Supports 120W – 250W TDP CPUs (Air Cooled)
GPU
Max GPU Count	Up to 2 double-width or 2 single-width GPUs
Supported GPU	NVIDIA PCIe: A16, RTX 4000, RTX A6000
System Memory
Memory	Slot Count: 48 DIMM slots Max Memory (2DPC): Up to 12TB 3200MT/s ECC DDR4 RDIMM/LRDIMM Supports Intel® Optane™ persistent memory 200 series
Memory Voltage	1.2V
On-Board Devices
Network Connectivity	2 RJ45 10GBASE-T with Intel® X710-TM4 2 SFP+ 10GbE with Intel® X710-TM4
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN	1 RJ45 1 GbE Dedicated BMC LAN port 2 RJ45 10 GbE LAN ports 2 SFP+ 10 GbE LAN ports
USB	2 USB 3.0 ports(rear)
Serial	1 COM port(Rear)
System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM
Management
Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! IPMICFG SMCIPMITool IPMIView
Power configurations	Power-on mode for AC power recovery ACPI Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown
PC Health Monitoring
CPU	4+1 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
SuperServer SYS-240P-TNRT
Super X12QCH+
Chassis
Form Factor	2U Rackmount
Model	CSE-218HTS-R2K08P
Dimensions and Weight
Height	3.5″ (89 mm)
Width	17.3″ (439.5 mm)
Depth	31.6″ (803 mm)
Package	9.75″ (H) x 26.5″ (W) x 43.5″ (D)
Weight	Gross Weight: 71.5 lbs (32.43 kg) Net Weight: 45.5 lbs (20.64 kg)
Available Color	Black
Front Panel
Buttons	Power On/Off UID/ BMC Reset (Default)
LED	HDD activity Network activity Power status System information (overheat/UID)
Expansion Slots
PCI-Express (PCIe) Configuration	Default2 PCIe 3.0 x16 FHHL slots 4 PCIe 3.0 x8 (in x16) FHFL slots 1 PCIe 3.0 x16 (in x16) AIOM slot (OCP 3.0 compatible) 2 PCIe 3.0 x16 FHHL slots 4 PCIe 3.0 x8 (in x16) FHFL slots 1 PCIe 3.0 x16 (in x16) AIOM slot (OCP 3.0 compatible)
Drive Bays / Storage
Drive Bays Configuration	Default: Total 8 bays8 front hot-swap 2.5″ SATA drive bays 8 front hot-swap 2.5″ SATA drive bays Option A: Total 24 bays24 front hot-swap 2.5″ NVMe/SAS/SATA* drive bays 24 front hot-swap 2.5″ NVMe/SAS/SATA* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2	2 M.2 NVMe/SATA slots (M-key 2280/22110) View M.2 Options
System Cooling
Fans	Up to 4x 8cm heavy duty fans with optimal fan speed control
Air Shroud	8 Air Shrouds
Power Supply
2x 2000W 2x 2000W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)73.5 x 40 x 203 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vdc 2000W: 220-240Vac 2000W: 230-240Vac 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for China only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Max: 3.5A Output TypeBackplanes (gold finger)
Dimension (WxHxL)	73.5 x 40 x 203 mm
Input	1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vdc 2000W: 220-240Vac 2000W: 230-240Vac 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for China only)
+12V	Max: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac)
12V SB	Max: 3.5A / Min: 0A Max: 3.5A
Output Type	Backplanes (gold finger)
Operating Environment
ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
2x 2000W 2x 2000W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)73.5 x 40 x 203 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vdc 2000W: 220-240Vac 2000W: 230-240Vac 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for China only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Max: 3.5A Output TypeBackplanes (gold finger)
Optional Parts List
