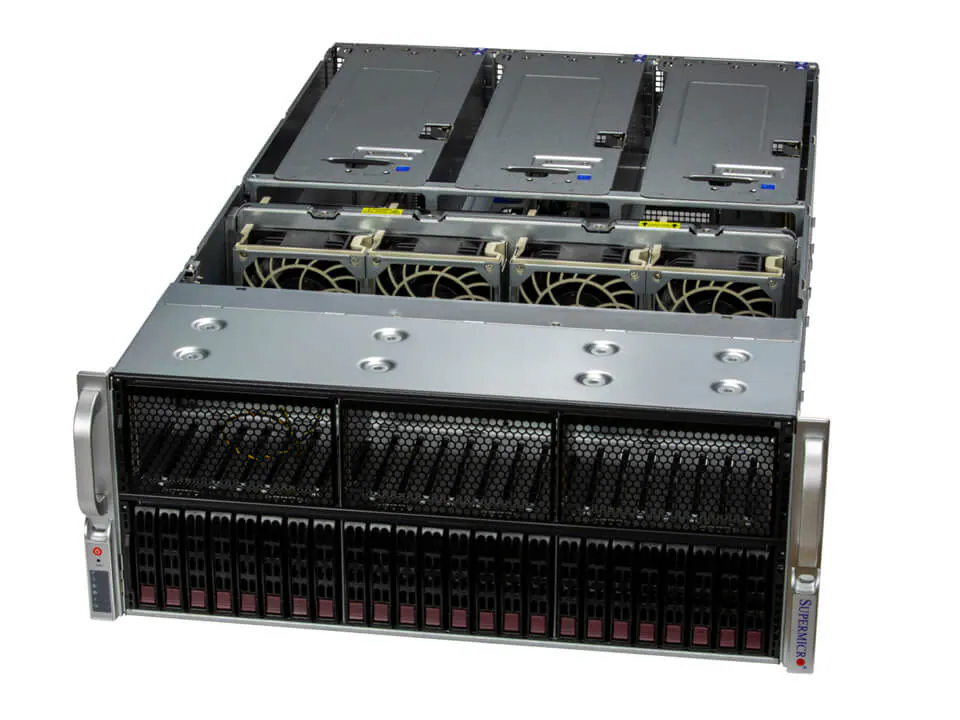

4U 4-socket system with 48 DIMMs and 24 NVMe/SAS/SATA drive bays

Pretul afisat contine TVA (21%).

SuperServer SYS-440P-TNRT

4U 4-socket system with 48 DIMMs and 24 NVMe/SAS/SATA drive bays

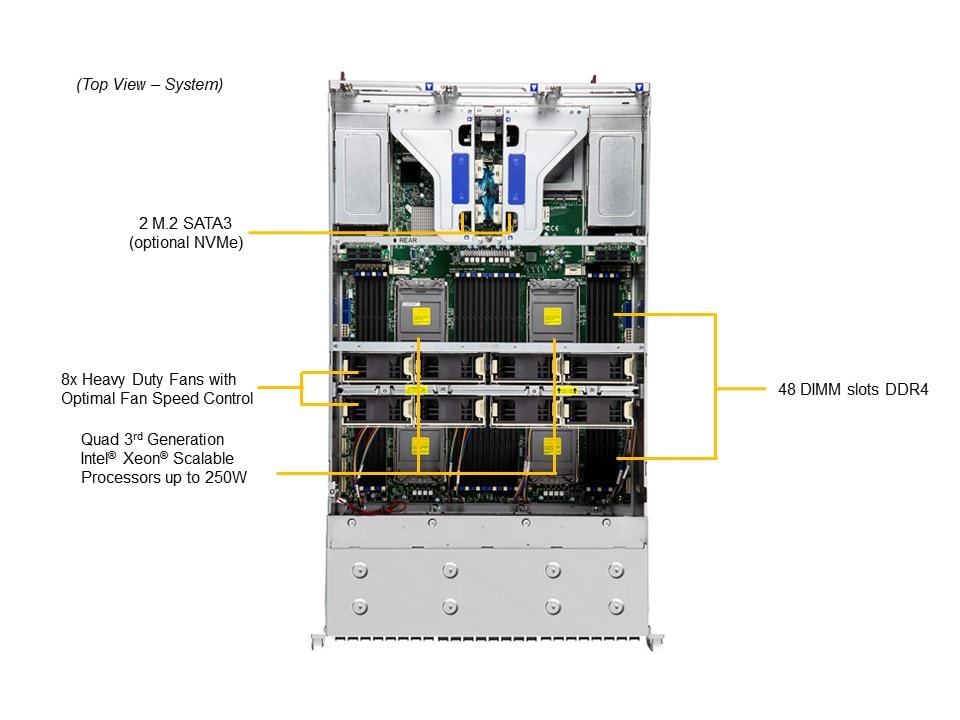

Key Features

  1. Quad Socket P+ (LGA-4189) 3rd Generation Intel® Xeon® Scalable processors
  2. Intel® Ethernet Controller X710-TM4 2x 10G RJ45 + 2x 10G SFP+ port; ; (optional) AIOM up to 100G QSFP28
  3. 8 heavy duty fans w/ optimal fan speed control

Specifications

Product SKUs
  • SuperServer SYS-440P-TNRT

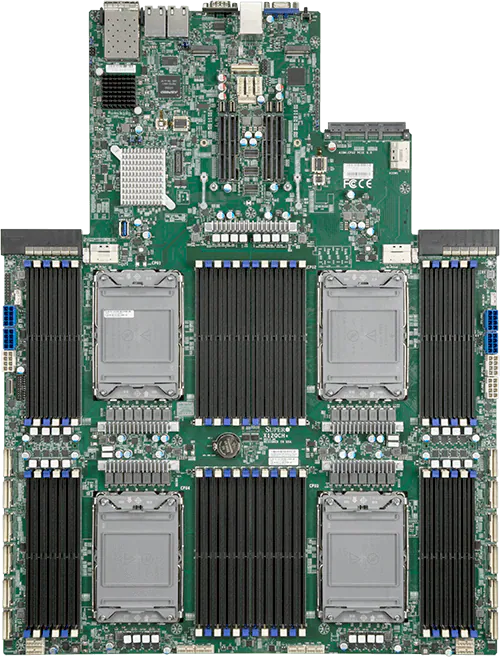

Motherboard
  • Super X12QCH+
Processor
CPU
  • Quad Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 28C/56T; Up to 38.5MB Cache per CPU
Note
  • Supports 120W – 250W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 6 double-width GPUs
System Memory
Memory
  • Slot Count: 48 DIMM slots
  • Max Memory (2DPC): Up to 12TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • Supports Intel® Optane™ persistent memory 200 series
Memory Voltage
  • 1.2V
On-Board Devices
Network Connectivity
  • 2 RJ45 10GBASE-T with Intel® X710-TM4
  • 2 SFP+ 10GbE with Intel® X710-TM4
  • 1 QSFP28 100GbE with AIOM (optional)
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
  • 2 RJ45 10 GbE LAN ports
  • 2 SFP+ 10 GbE LAN ports
USB
  • 2 USB 3.0 ports(rear)
Video
  • 1 VGA port
Serial
  • 1 COM port(Rear)
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 4+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • SuperServer SYS-440P-TNRT
  • Super X12QCH+
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-418HTS-R3K3AWP
Dimensions and Weight
Height
  • 6.96″ (177 mm)
Width
  • 17.3″ (440.9 mm)
Depth
  • 29.74″ (755.5 mm)
Package
  • 17.12″ (H) x 28.34″ (W) x 42.5″ (D)
Weight
  • Gross Weight: 132.27 lbs (60 kg)
  • Net Weight: 77.16 lbs (35 kg)
Available Color
  • Black
Front Panel
Buttons
  • Power On/Off
  • UID/ BMC Reset (Default)
LED
  • HDD activity
  • Network activity
  • Power status
  • System information (overheat/UID)
Expansion Slots

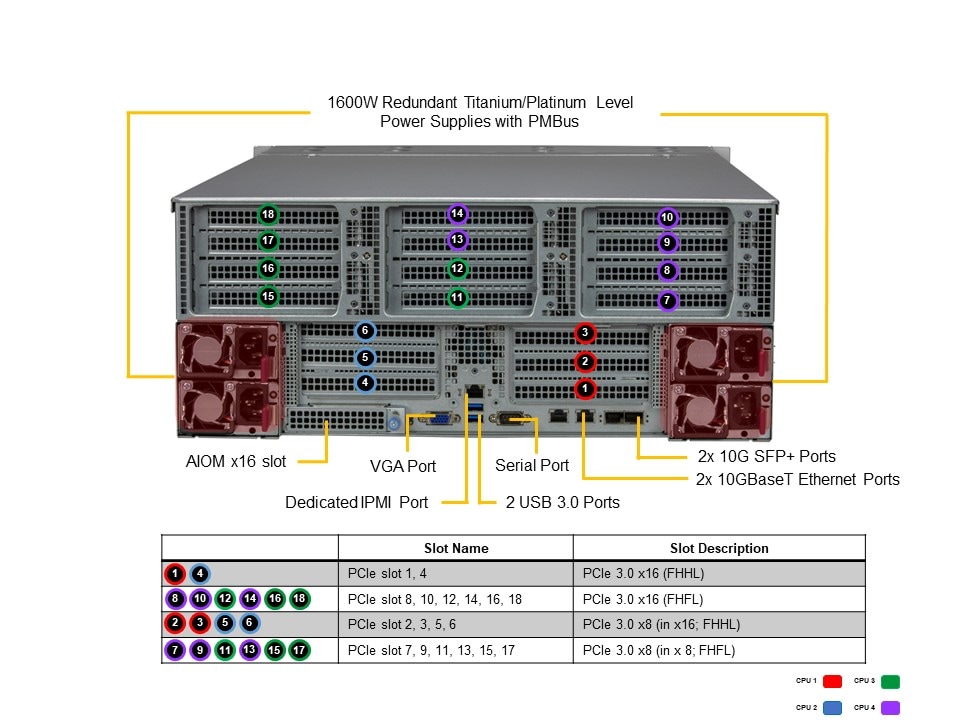

PCI-Express (PCIe) Configuration
  • Default2 PCIe 3.0 x16 FHHL slots 6 PCIe 3.0 x16 FHFL slots 4 PCIe 3.0 x8 (in x16) FHHL slots 6 PCIe 3.0 x8 FHFL slots 1 PCIe 3.0 x16 (in x16) AIOM slot (OCP 3.0 compatible)
  • 2 PCIe 3.0 x16 FHHL slots
  • 6 PCIe 3.0 x16 FHFL slots
  • 4 PCIe 3.0 x8 (in x16) FHHL slots
  • 6 PCIe 3.0 x8 FHFL slots
  • 1 PCIe 3.0 x16 (in x16) AIOM slot (OCP 3.0 compatible)

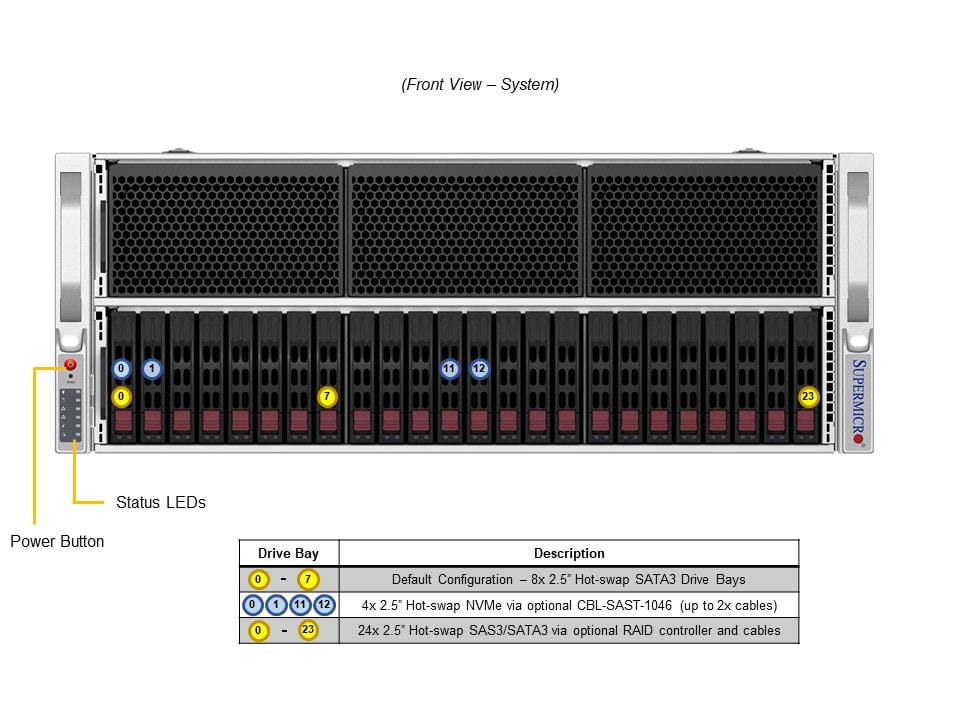

Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 24 bays24 front hot-swap 2.5″ SAS/SATA drive bays
  • 24 front hot-swap 2.5″ SAS/SATA drive bays
  • Option A: Total 24 bays20 front hot-swap 2.5″ SAS/SATA drive bays 4 front hot-swap 2.5″ NVMe/SAS/SATA drive bays
  • 20 front hot-swap 2.5″ SAS/SATA drive bays
  • 4 front hot-swap 2.5″ NVMe/SAS/SATA drive bays
M.2
  • 2 M.2 NVMe/SATA slots (M-key 2280/22110)
  • View M.2 Options
System Cooling
Fans
  • Up to 8x 9cm heavy duty fans with optimal fan speed control
Air Shroud
  • 1 Air Shroud
Power Supply
  • 4x 1600W 4x 1600W Redundant Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)73.5 x 40 x 203 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 83.3A / Min: 0A (100Vac-127Vac)Max: 133A / Min: 0A (200Vac-240Vac) 12V SBMax: 2.1A / Min: 0A Output TypeBackplanes (gold finger) Certification Titanium Level [ Test Report ]
Dimension (WxHxL)
  • 73.5 x 40 x 203 mm
Input
  • 1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)Max: 83.3A / Min: 0A (100Vac-127Vac)Max: 133A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 2.1A / Min: 0A
Output Type
  • Backplanes (gold finger)
Certification
  • Titanium Level [ Test Report ]
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
  • 4x 1600W 4x 1600W Redundant Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)73.5 x 40 x 203 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 83.3A / Min: 0A (100Vac-127Vac)Max: 133A / Min: 0A (200Vac-240Vac) 12V SBMax: 2.1A / Min: 0A Output TypeBackplanes (gold finger) Certification Titanium Level [ Test Report ]
Optional Parts List
