Supermicro SuperServer SYS-510T-WTR

Favorite
Compara

1U UP WIO with 4 hot-swap 3.5″ drive bays and 2 PCIe 4.0 slots

Pretul afisat contine TVA (21%).

SuperServer SYS-510T-WTR

1U UP WIO with 4 hot-swap 3.5″ drive bays and 2 PCIe 4.0 slots

Key Features

  1. Single Socket H5 (LGA-1200) supports Intel® Xeon® E-2300 series, Intel® Pentium® processors
  2. 4 DIMMs; Up to 128GB of DDR4 ECC UDIMM memory with speeds of up to 3200MHz
  3. 1 PCIe 4.0 x16 or 2 PCIe 4.0 x8 (FHFL); 1 PCIe 3.0 x4 (in x8 LP)
  4. Intel® Ethernet Controller X550 2x 10GbE RJ45
  5. Redundant Platinum 500W Power Supply

Specifications

Product SKUs
  • SuperServer SYS-510T-WTR Standard version with PWS-504P-1R (Platinum Level)
  • SuperServer SYS-510T-WTR-EU European version with PWS-601A-1R (Titanium Level)
Motherboard

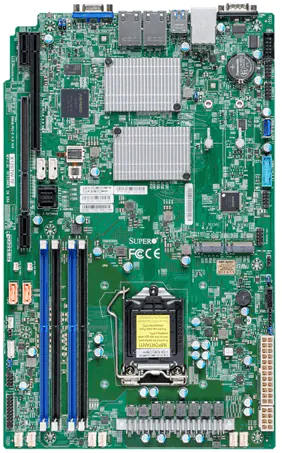

  • Super X12STW-TF
Processor
CPU
  • Single Socket H5 (LGA-1200)
  • Intel® Xeon® E-2300 series Processors and 10th Gen. Pentium® Processors
Core Count
  • Up to 8C/16T; Up to 16MB Cache
Note
  • Supports up to 95W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 1 double-width or 1 single-width GPU
Supported GPU
  • NVIDIA PCIe: RTX A2000, T4
CPU-GPU Interconnect
  • PCIe 4.0 x16 CPU-to-GPU Interconnect
System Memory
Memory
  • Slot Count: 4 DIMM slots
  • Max Memory (2DPC): Up to 128GB 3200MT/s ECC DDR4 UDIMM
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1/5/10 support
Network Connectivity
  • 2 RJ45 10GbE with Intel® X550

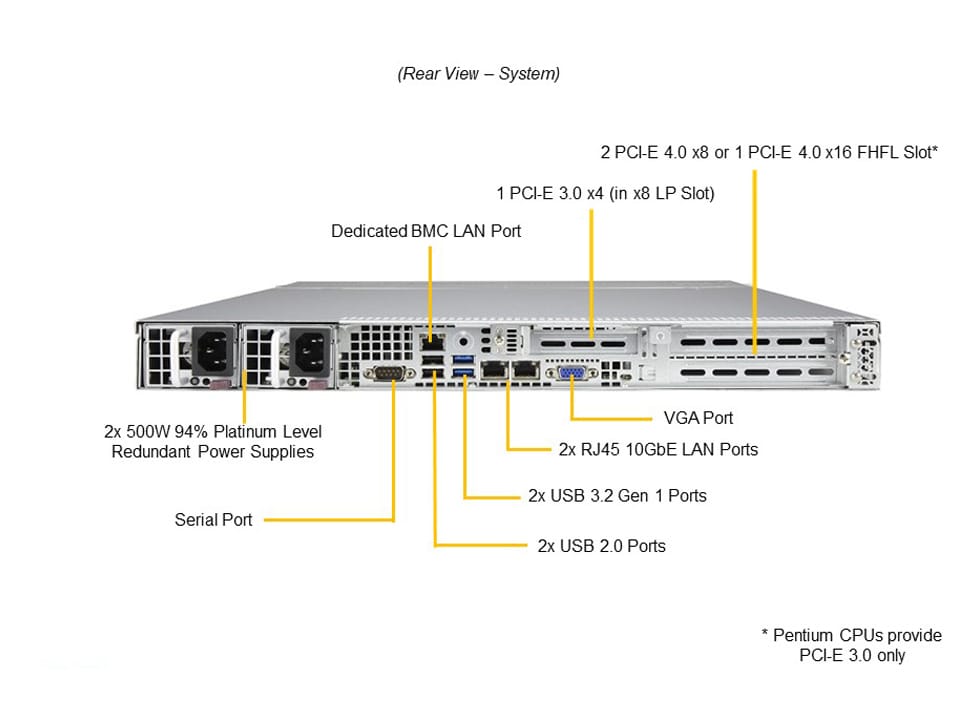

Input / Output
LAN
  • 2 RJ45 10 GbE LAN ports
  • 1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1)
USB
  • 4 USB 2.0 ports(header)
  • 2 USB 3.2 Gen1 Type-A ports(rear)
  • 2 USB 2.0 Type-A ports(rear)
  • 2 USB 3.2 Gen1 ports(Header)
  • 1 USB 3.2 Gen2 Type-A port(Header)
Video
  • 1 VGA port
Serial
  • 1 COM port(Rear)
  • 1 COM port(Header)
DOM
  • 2 SuperDOM (Disk on Module) portswith built-in power
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 6 + 2 + 1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • SuperServer SYS-510T-WTR Standard version with PWS-504P-1R (Platinum Level)
  • SuperServer SYS-510T-WTR-EU European version with PWS-601A-1R (Titanium Level)
  • Super X12STW-TF
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-815TS-R504WBP7
Dimensions and Weight
Height
  • 1.7″ (43 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 25.6″ (650 mm)
Package
  • 8.5″ (H) x 23.5″ (W) x 33.7″ (D)
Weight
  • Gross Weight: 48 lbs (21.77 kg)
  • Net Weight: 24 lbs (10.89 kg)
Available Color
  • Black

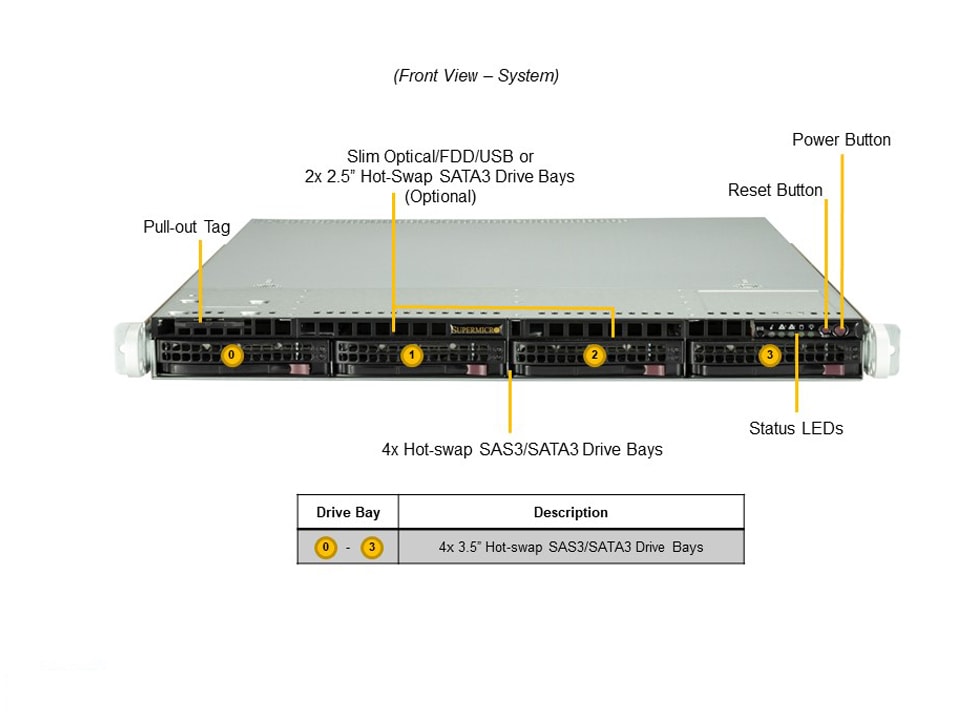

Front Panel
Buttons
  • Power On/Off
  • System Reset
  • UID button
LED
  • Device Activity
  • LAN 1 Activity
  • LAN 2 Activity
  • Power status
  • System information
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default2 PCIe 4.0 x8 FHFL slots 1 PCIe 3.0 x4 (in x8) LP slot
  • 2 PCIe 4.0 x8 FHFL slots
  • 1 PCIe 3.0 x4 (in x8) LP slot
  • Option A1 PCIe 4.0 x16 FHFL slot 1 PCIe 3.0 x4 (in x8) LP slot
  • 1 PCIe 4.0 x16 FHFL slot
  • 1 PCIe 3.0 x4 (in x8) LP slot
Drive Bays / Storage
Drive Bays Configuration

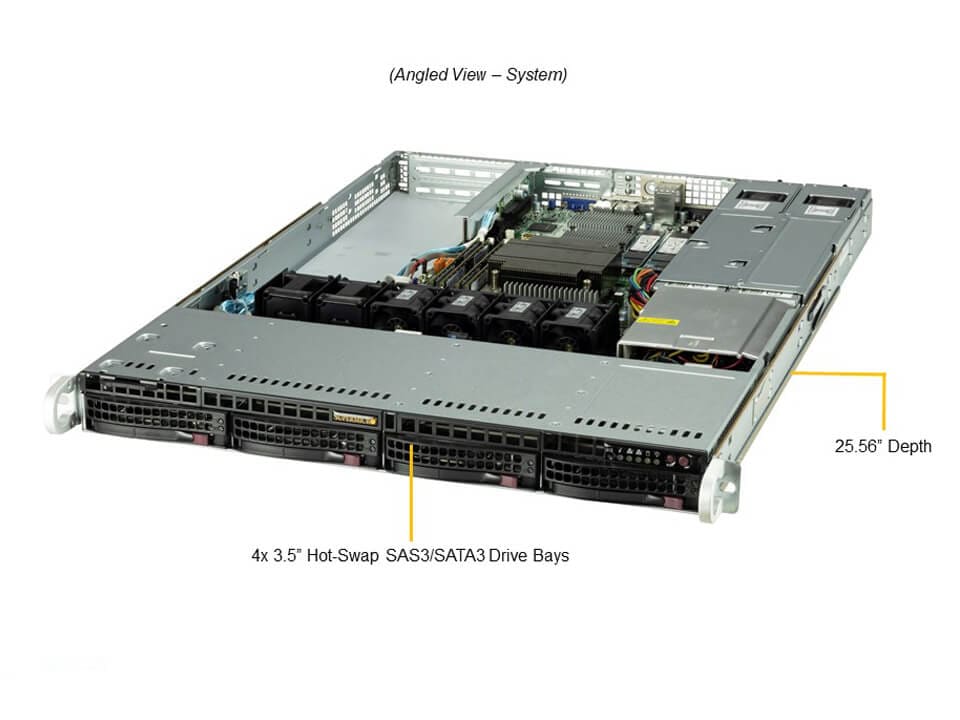

  • Default: Total 4 bays4 front hot-swap 3.5″ SAS*/SATA drive bays
  • 4 front hot-swap 3.5″ SAS*/SATA drive bays
  • (*SAS support may require additional storage controller and/or cables)
M.2
  • 2 M.2 PCIe 4.0 x4 NVMe slots (M-key 2280/22110)
  • View M.2 Options
Peripheral Bays
  • 2 2.5″ bays
System Cooling
Fans
  • Up to 4 counter-rotation PWM 40x40x56mm Fan(s)
  • Up to 2 AOC cooling Fan(s) (optional)
Air Shroud
  • 1 Air Shroud
Power Supply
  • 2x 500W 2x 500W Redundant (1 + 1) Platinum Level (94%) power supplies Dimension (WxHxL)54.5 x 40.25 x 320 mm Input500W: 100-240Vac / 50-60Hz +12VMax: 42A / Min: 0.5A Max: 42A / Min: 0.5A (100Vac-240Vac) 5V SBMax: 4A / Min: 0A Max: 3A / Min: 0A Output TypeBackplanes (gold finger) Certification Platinum Level [ Test Report ]
Dimension (WxHxL)
  • 54.5 x 40.25 x 320 mm
Input
  • 500W: 100-240Vac / 50-60Hz
+12V
  • Max: 42A / Min: 0.5A Max: 42A / Min: 0.5A (100Vac-240Vac)
5V SB
  • Max: 4A / Min: 0A Max: 3A / Min: 0A
Output Type
  • Backplanes (gold finger)
Certification
  • Platinum Level [ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • 2x 500W 2x 500W Redundant (1 + 1) Platinum Level (94%) power supplies Dimension (WxHxL)54.5 x 40.25 x 320 mm Input500W: 100-240Vac / 50-60Hz +12VMax: 42A / Min: 0.5A Max: 42A / Min: 0.5A (100Vac-240Vac) 5V SBMax: 4A / Min: 0A Max: 3A / Min: 0A Output TypeBackplanes (gold finger) Certification Platinum Level [ Test Report ]
