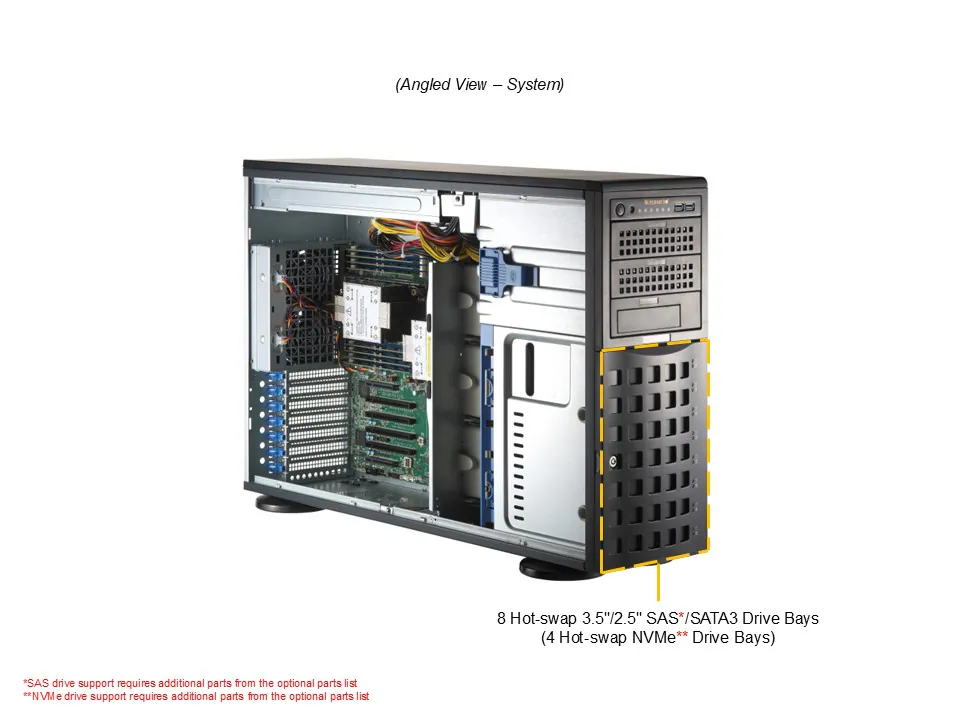

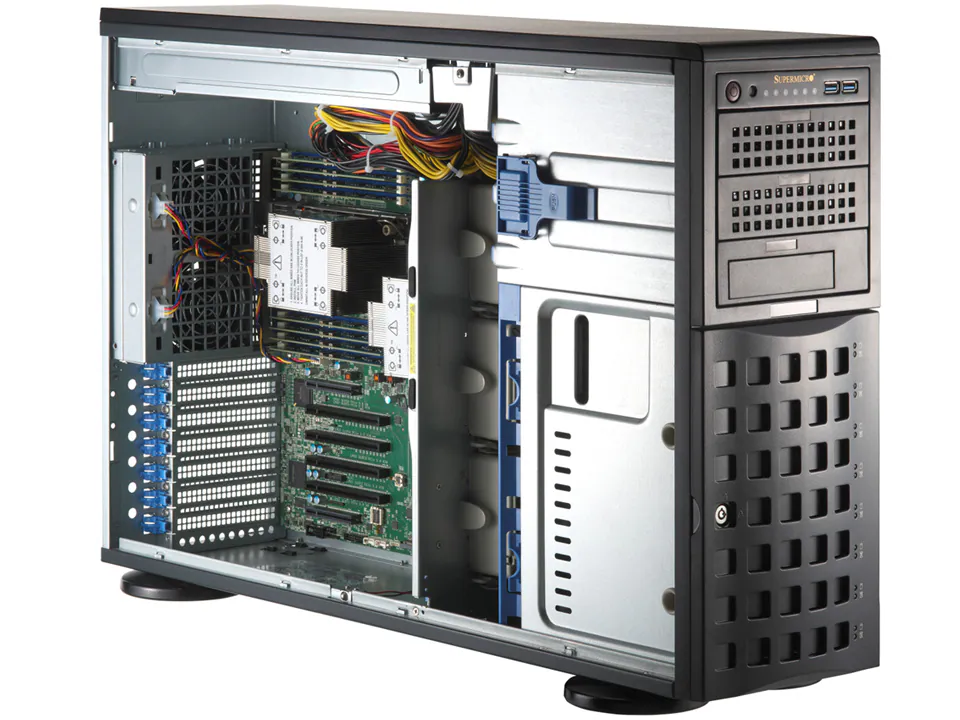

Supermicro SuperServer SYS-741P-TR
Supermicro SuperServer SYS-741P-TR - imagine 2
Supermicro SuperServer SYS-741P-TR - imagine 3
Supermicro SuperServer SYS-741P-TR - imagine 4
Supermicro SuperServer SYS-741P-TR - imagine 5
Supermicro SuperServer SYS-741P-TR - imagine 6
, , ,

Supermicro SuperServer SYS-741P-TR

Favorite
Compara

DP 4U rackmount tower workstation with 1GbE for virtualization and enterprise server applications

Pretul afisat contine TVA (21%).

SuperServer SYS-741P-TR

DP 4U rackmount tower workstation with 1GbE for virtualization and enterprise server applications

Key Features

  1. Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors,supports up to 300W TDP
  2. 16 DIMM slots, Up to 4TB DDR5-5600MHZ/4800MHz ECC Registered RDIMM
  3. 4 PCIe 5.0 x16 full height slot(s), 2 PCIe 5.0 x8 full height slot(s)
  4. 1200W Redundant Titanium level Power Supplies

Specifications

Product SKUs
  • SuperServer SYS-741P-TR
Motherboard

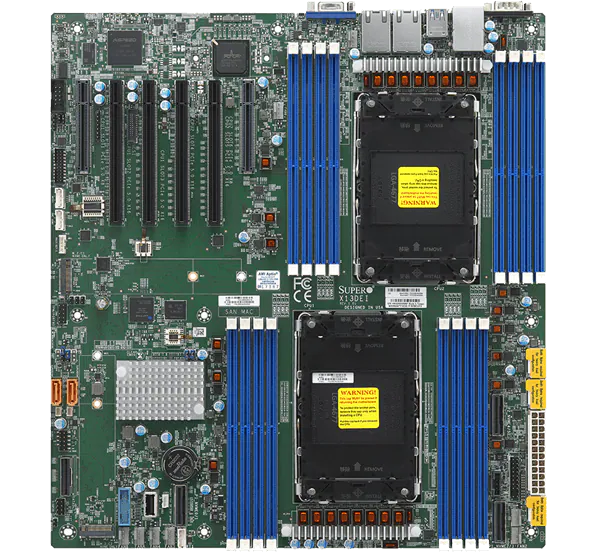

  • Super X13DEI
Processor
CPU
  • Dual Socket E (LGA-4677)
  • 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Note
  • Supports up to 300W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 2 double-width or 2 single-width GPUs
Supported GPU
  • NVIDIA PCIe: H100 NVL, A16, L4, L40S, NVIDIA RTX PRO™ 4000 Blackwell, NVIDIA RTX PRO™ 6000 Blackwell Max-Q Workstation Edition, NVIDIA RTX PRO™ 6000 Blackwell Workstation Edition, RTX 2000 Ada, RTX 4000 SFF Ada Generation, RTX 4500 Ada, RTX 5000 Ada, RTX 6000 Ada Generation, RTX A4000, T1000
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • SATA (6Gbps)
Chipset
  • Intel® C741
Network Connectivity
  • 2 RJ45 1GbE
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports(front)
  • 4 USB 3.0 ports(rear)
Video
  • 1 VGA port
Serial
  • 1 COM port(rear)
DOM
  • 2 SuperDOM (Disk on Module) ports
TPM
  • 1 TPM Onboard/port 80
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors

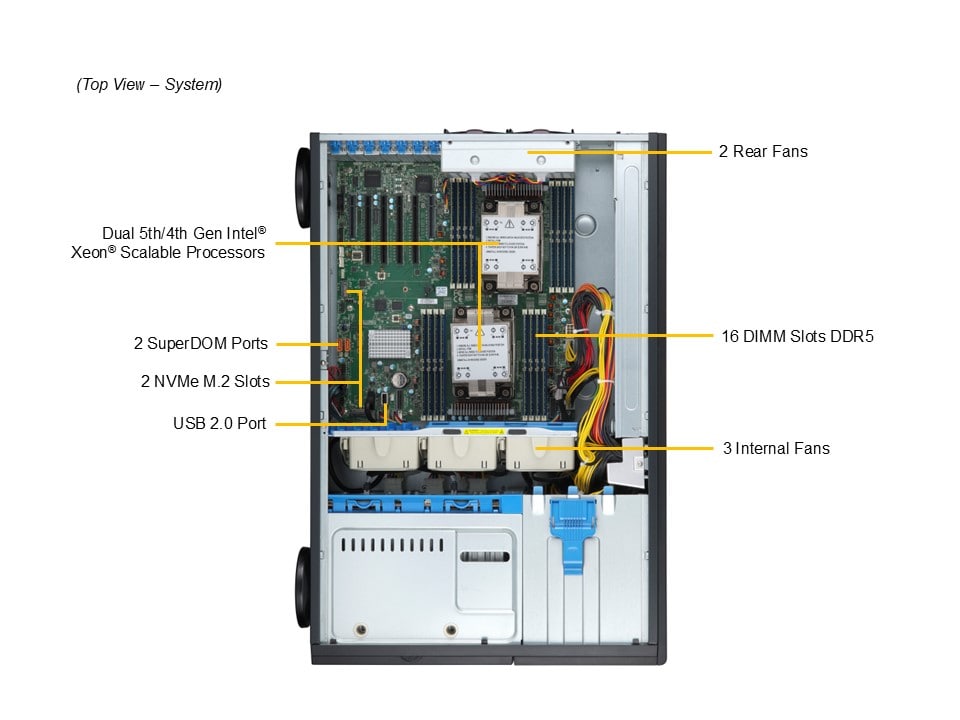

  • SuperServer SYS-741P-TR
  • Super X13DEI
Chassis
Form Factor
  • Tower/4U Rackmount
Model
  • CSE-745BTS-R1K23BP
Dimensions and Weight
Height
  • 17.8″ (452 mm)
Width
  • 7″ (178 mm)
Depth
  • 25.5″ (647 mm)
Package
  • 24.6″ (H) x 14″ (W) x 31.3″ (D)
Weight
  • Gross Weight: 73.5 lbs (33.9 kg)
  • Net Weight: 56 lbs (25.9 kg)
Available Color
  • Black

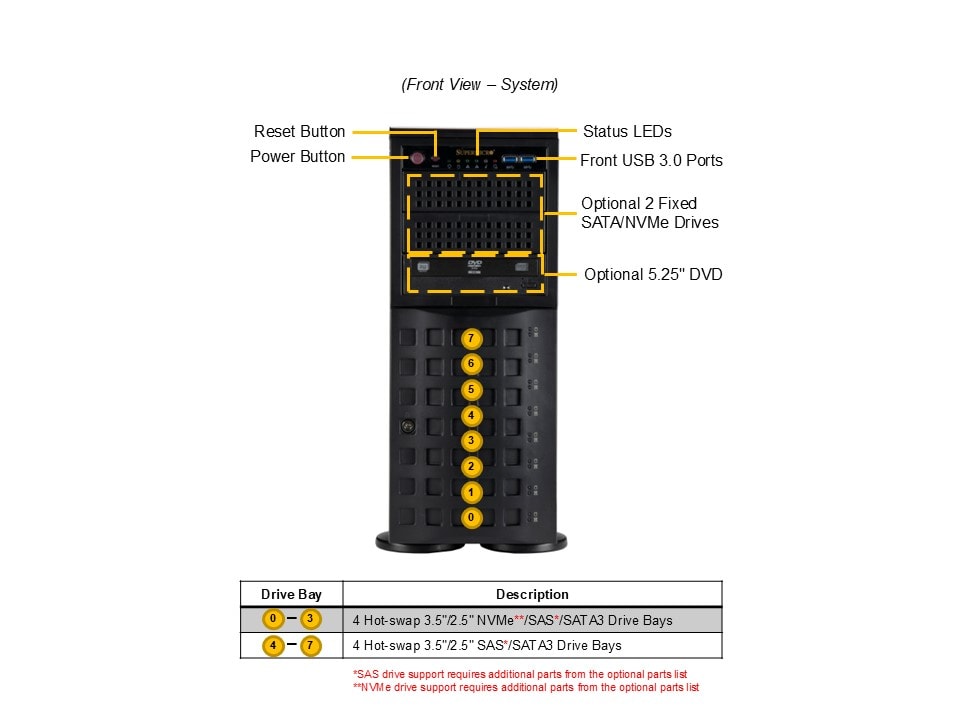

Front Panel
Buttons
  • Power On/Off
  • System Reset
LED
  • HDD activity
  • Network activity
  • Power status
  • System information (overheat/UID)
Expansion Slots

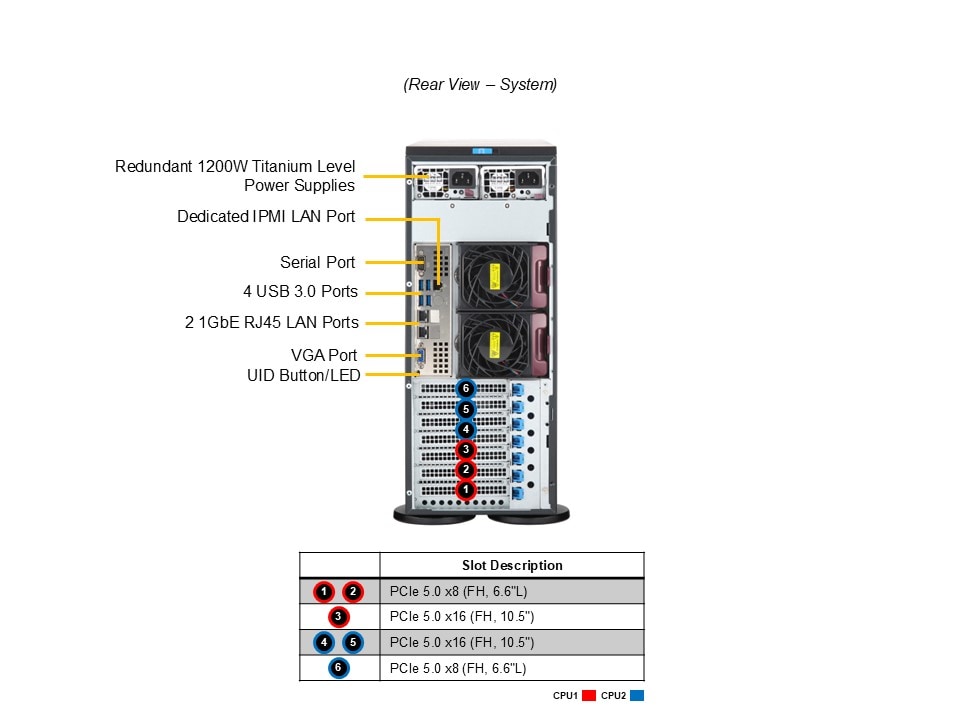

PCI-Express (PCIe) Configuration
  • Default2 PCIe 5.0 x8 FHFL slots 4 PCIe 5.0 x16 FHFL slots
  • 2 PCIe 5.0 x8 FHFL slots
  • 4 PCIe 5.0 x16 FHFL slots
M.2
  • 2 M.2 PCIe 4.0 x2 NVMe slots (M-key)
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bays4 front hot-swap 3.5″ NVMe*/SAS*/SATA drive bays 4 front hot-swap 3.5″ SAS*/SATA drive bays
  • 4 front hot-swap 3.5″ NVMe*/SAS*/SATA drive bays
  • 4 front hot-swap 3.5″ SAS*/SATA drive bays
  • Option A: Total 8 bays4 front hot-swap 2.5″ NVMe*/SAS*/SATA drive bays 4 front hot-swap 2.5″ SAS*/SATA drive bays
  • 4 front hot-swap 2.5″ NVMe*/SAS*/SATA drive bays
  • 4 front hot-swap 2.5″ SAS*/SATA drive bays
  • (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
  • 2 M.2 NVMe slots (M-key)
  • View M.2 Options
Peripheral Bays
  • 3 5.25″ DVD bays (optional)
System Cooling
Fans
  • Up to 3 middle Fan(s)
  • Up to 2 rear Fan(s)
Power Supply
  • 2x 1200W 2x 1200W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)76 x 40 x 336 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 76 x 40 x 336 mm
Input
  • 1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)
5V SB
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (non-condensing)
  • 2x 1200W 2x 1200W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)76 x 40 x 336 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
