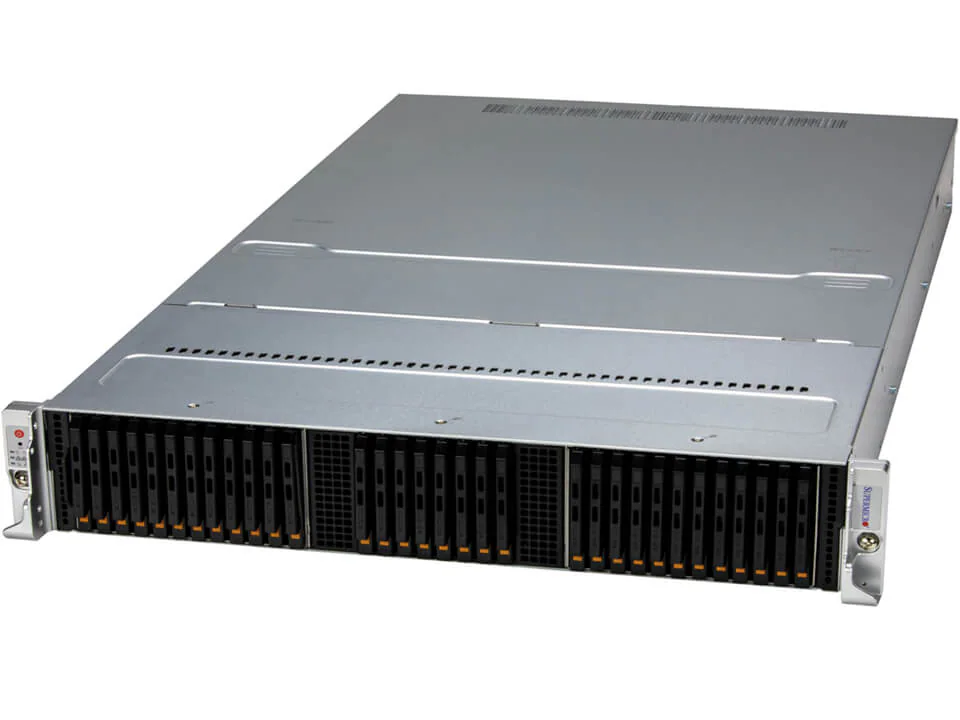

2U front-loading all-flash storage server with 32 E3.S NVMe drives and PCIe 5.0

Pretul afisat contine TVA (21%).

SuperServer ASG-2115S-NE332R

2U front-loading all-flash storage server with 32 E3.S NVMe drives and PCIe 5.0

Key Features

  1. Single Socket SP5 AMD EPYC™ 9004/9005 Series processor; up to 400WTDP
  2. Supports 24 DIMMs with 2DPC, up to 9TB memory capacity with 24 DIMMs of 384GB 3DS RDIMM/RDIMM DDR5 ECC memory
  3. 2 PCIe 5.0 x16 slots & 2 AIOM slots (OCP 3.0 SFF compliant)

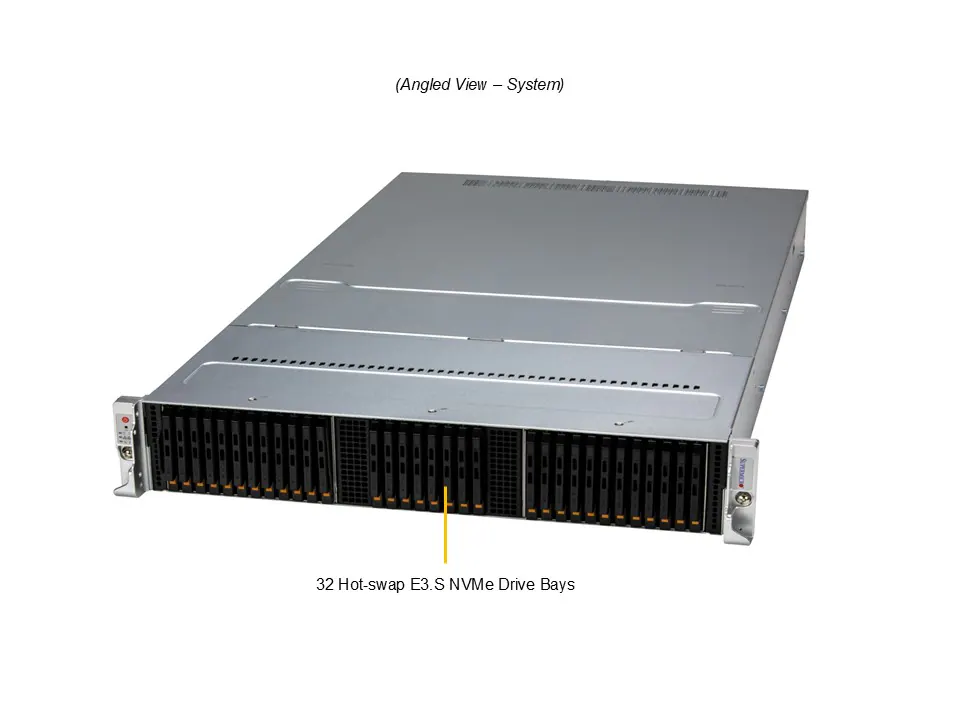

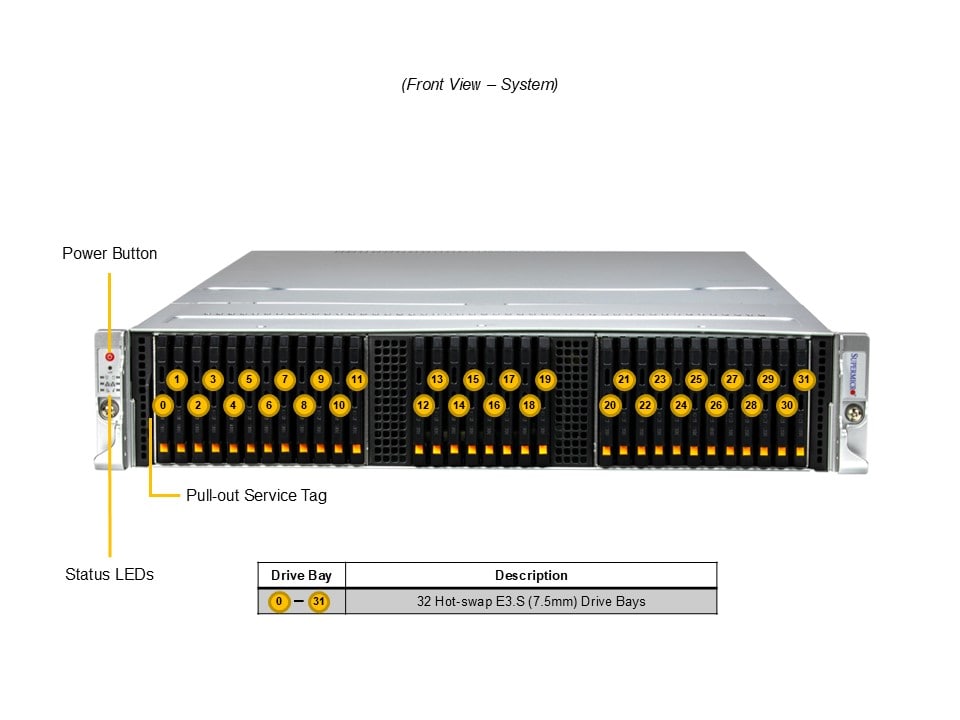

  4. 32 Hot-swap E3.S (7.5mm) NVMe PCIe5.0 x2 drive bays
  5. Redundant Titanium 2000W Power Supplies

Specifications

Product SKUs
  • A+ Server ASG-2115S-NE332R
Motherboard

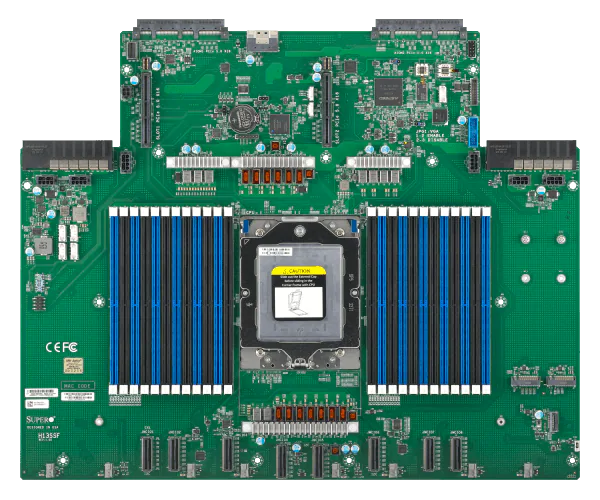

  • Super H13SSF
Processor
CPU
  • Single processor(s)
  • AMD EPYC™ 9004/9005 Series Processors(* AMD EPYC™ 9005 Series drop-in support requires board revision 2.x)
Note
  • Supports 200W – 400W TDP CPUs
System Memory
Memory

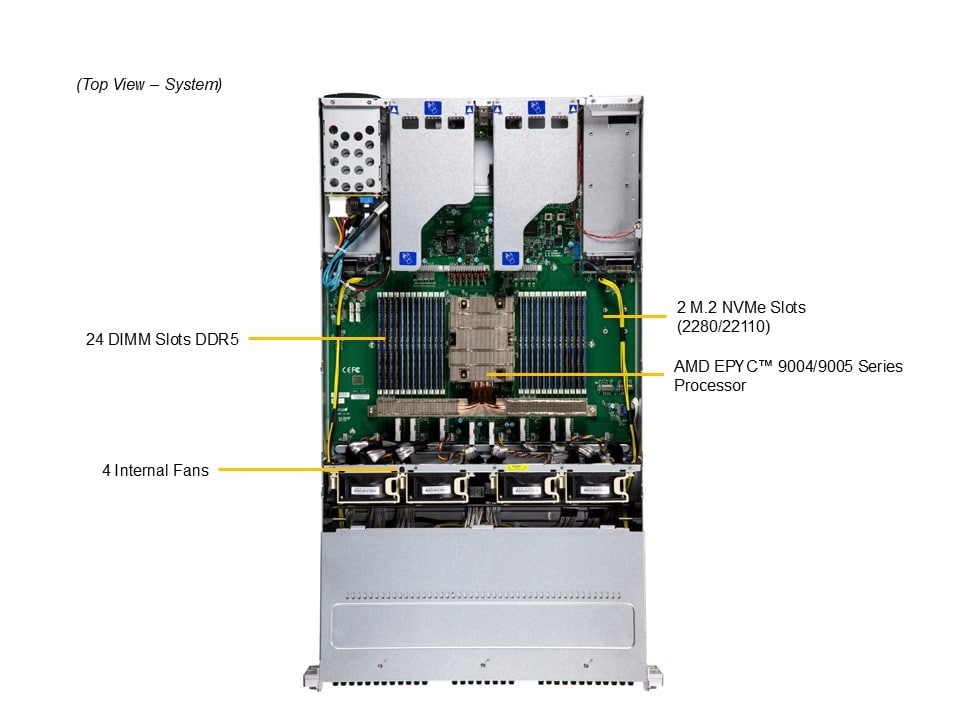

  • Slot Count: 24 DIMM slots
  • Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
  • Max Memory (2DPC): Up to 6TB 4000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
  • Max Memory (1DPC): Up to 4.5TB 5200MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
  • Max Memory (2DPC): Up to 9TB 4400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
Memory Voltage
  • 1.1V
On-Board Devices
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports(rear)
  • 2 USB 3.0 ports(front)
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • 4+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Voltage
  • +1.8V, +12V, +3.3V, +5V, +5V standby, 10 -fan status, 3.3V standby, HT, Memory, VBAT
  • A+ Server ASG-2115S-NE332R
  • Super H13SSF
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-236E3-R2K08P
Dimensions and Weight
Height
  • 3.5″ (89.8 mm)
Width
  • 17.2″ (438.4 mm)
Depth
  • 30.8″ (789.9 mm)
Package
  • 10″ (H) x 26.5″ (W) x 43.25″ (D)
Weight
  • Gross Weight: 77 lbs (34.93 kg)
  • Net Weight: 55 lbs (24.95 kg)
Available Color
  • Silver
Expansion Slots
PCI-Express (PCIe) Configuration

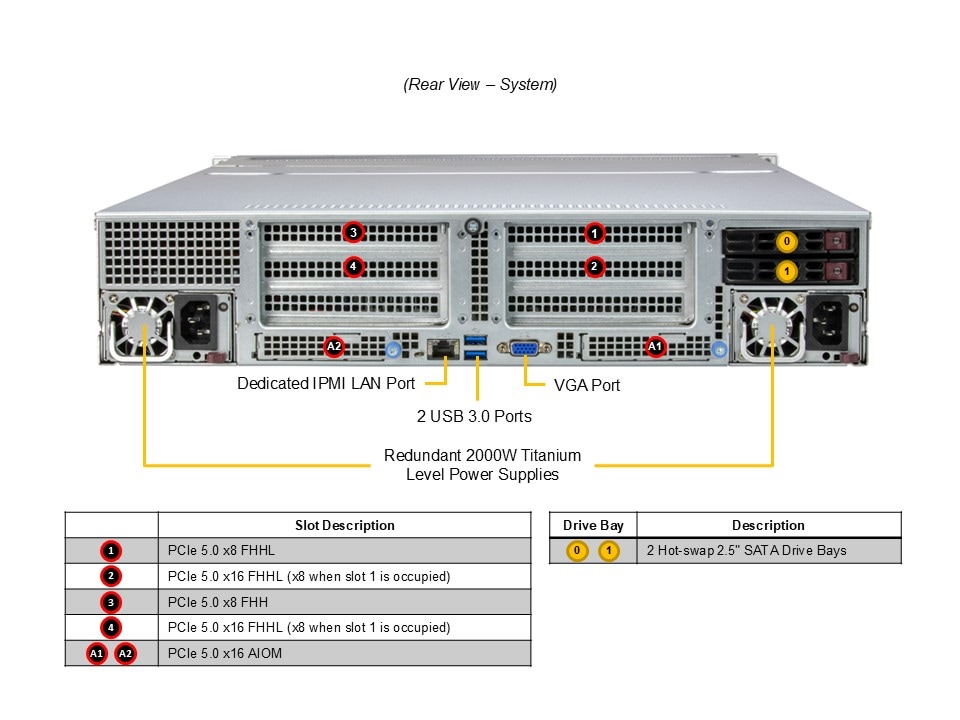

  • Default2 PCIe 5.0 x16 FHHL slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
  • 2 PCIe 5.0 x16 FHHL slots
  • 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
M.2
  • 2 M.2 PCIe 3.0 x2 NVMe slots (M-key 2280/22110)
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 34 bays2 rear hot-swap 2.5″ SATA drive bays 32 front hot-swap E3.S 1T PCIe 5.0 x2 NVMe drive bays
  • 2 rear hot-swap 2.5″ SATA drive bays
  • 32 front hot-swap E3.S 1T PCIe 5.0 x2 NVMe drive bays
M.2
  • 1 M.2 PCIe 3.0 x2 NVMe slot (M-key 2280/22110)
  • 1 M.2 PCIe 3.0 x4 NVMe slot (M-key 2280/22110)
  • View M.2 Options
System Cooling
Fans
  • Up to 4 Heavy Duty 8cm Fan(s)
Air Shroud
  • 1 Air Shroud
Power Supply
  • 2x 2000W 2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 203 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vdc 2000W: 220-240Vac 2000W: 230-240Vac 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for China only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Max: 3.5A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 73.5 x 40 x 203 mm
Input
  • 1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vdc 2000W: 220-240Vac 2000W: 230-240Vac 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for China only)
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac)
12V SB
  • Max: 3.5A / Min: 0A Max: 3.5A
Output Type
  • Backplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
Environmental / Recycling
Recycle
  • Return Server-End of Life Product
  • 2x 2000W 2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 203 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vdc 2000W: 220-240Vac 2000W: 230-240Vac 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for China only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Max: 3.5A Output TypeBackplanes (gold finger)
Optional Parts List
