Supermicro SuperServer SSG-122B-NE316R

Favorite

Compara

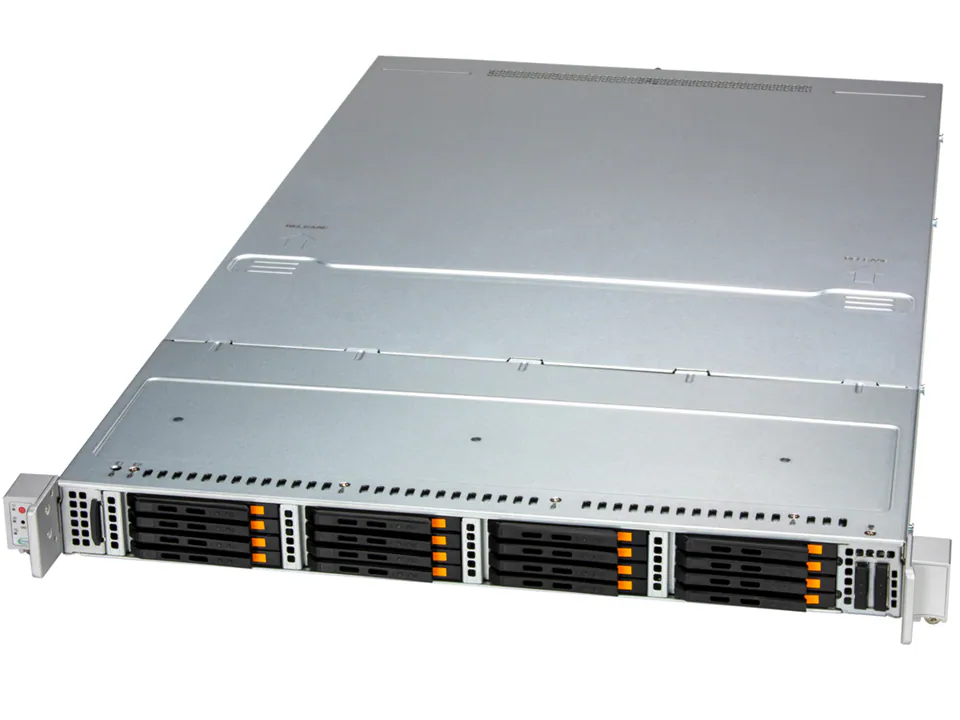

1U front-loading all-flash storage server with 16 E3.S NVMe drives and PCIe 5.0

Pretul afisat contine TVA (21%).

SuperServer SSG-122B-NE316R

1U front-loading all-flash storage server with 16 E3.S NVMe drives and PCIe 5.0

Key Features

Dual Socket E2 (LGA-4710) Intel® Xeon® 6 6700 series processors with P-coresSupport CPU TDP up to 270W with air cooling
Supports up to 4 TB of ECC DDR5 RDIMM/RDIMM 3DS/MRDIMM memory with speeds of up to 6400 MT/s (1DPC) or up to 5200 MT/s (2DPC) in 32 DIMM slots
Flexible networking with up to 2 OCP 3.0 compatible AIOM slots
Up to 2 PCIe 5.0 x16 FHHL + 2 PCIe 5.0 x16 AIOM slots

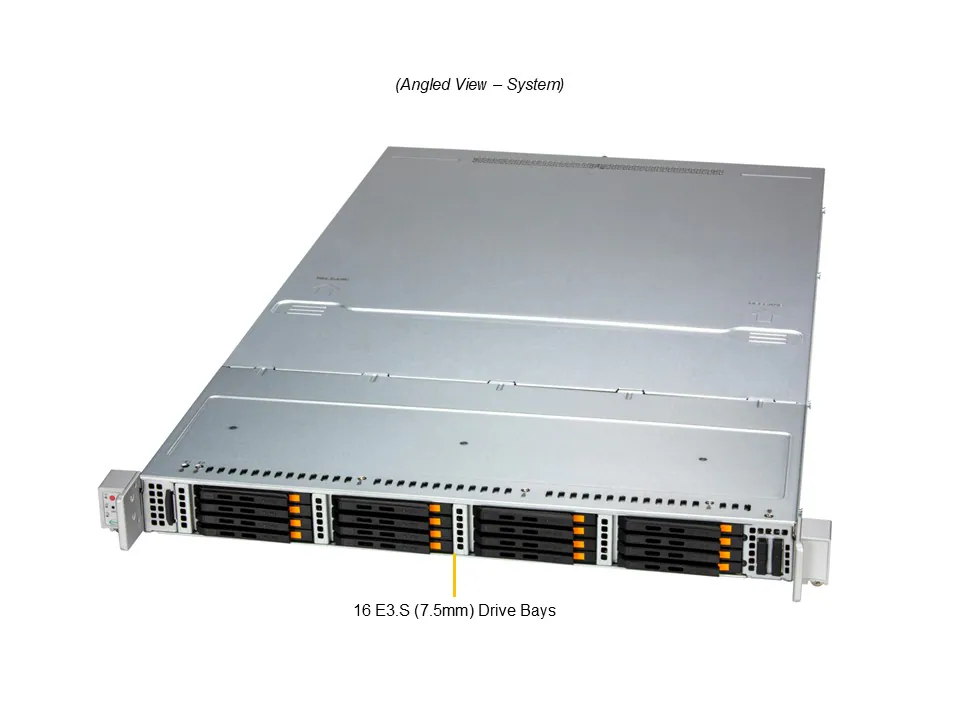

Up to 16 front hot-swap E3.S 1T NVMe drive bays

Specifications

Product SKUs
SuperServer SSG-122B-NE316R

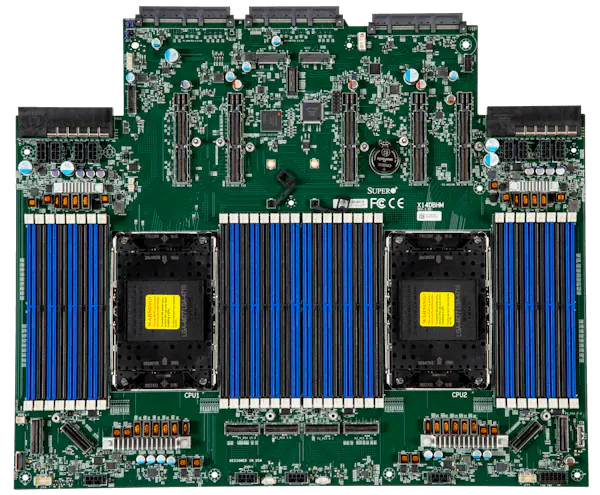

Motherboard
Super X14DBHM
Processor
CPU	Dual Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores
Core Count	P-cores: Up to 128C/256T; Up to 108MB Cache per CPU E-cores: Up to 144C/144T; Up to 108MB Cache per CPU
Note	Supports up to 270W TDP CPUs (Air Cooled)
System Memory
Memory	Slot Count: 32 DIMM slots/2 Channels Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM/LRDIMM Max Memory (1DPC): Up to 4TB 8000MT/s ECC DDR5 MRDIMM Max Memory (2DPC): Up to 4TB 5200MT/s ECC DDR5 RDIMM/LRDIMM
Memory Voltage	1.1V
On-Board Devices
NVMe	NVMe; RAID 0/1/5/10 support(VROC HW key required)
Network Connectivity	Via AIOM

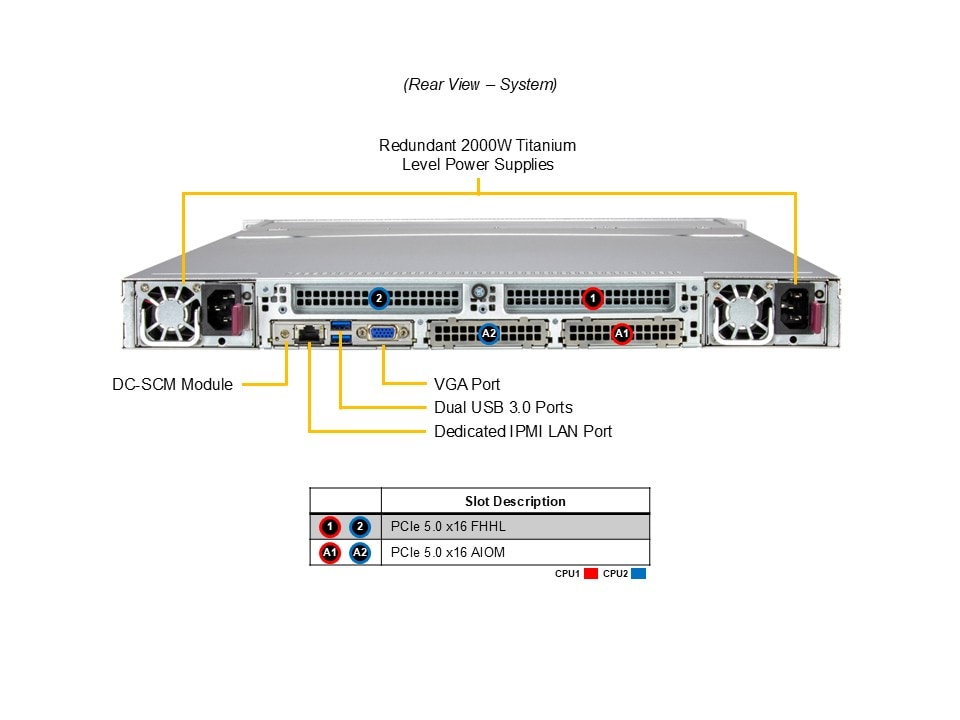

Input / Output
LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	2 USB 3.0 ports(rear)
Video	1 VGA port
System BIOS
BIOS Type	AMI 64MB SPI Flash
Management
Software	SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown
PC Health Monitoring
CPU	7 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
SuperServer SSG-122B-NE316R
Super X14DBHM
Chassis
Form Factor	1U Rackmount
Model	CSE-146E32-R2K09P
Dimensions and Weight
Height	1.7″ (43.6 mm)
Width	17.2″ (438.4 mm)
Depth	30.9″ (784.85 mm)
Package	9.52″ (H) x 26.77″ (W) x 43.62″ (D)
Weight	Gross Weight: 66.8 lbs (30.3 kg) Net Weight: 43.6 lbs (19.8 kg)
Available Color	Silver

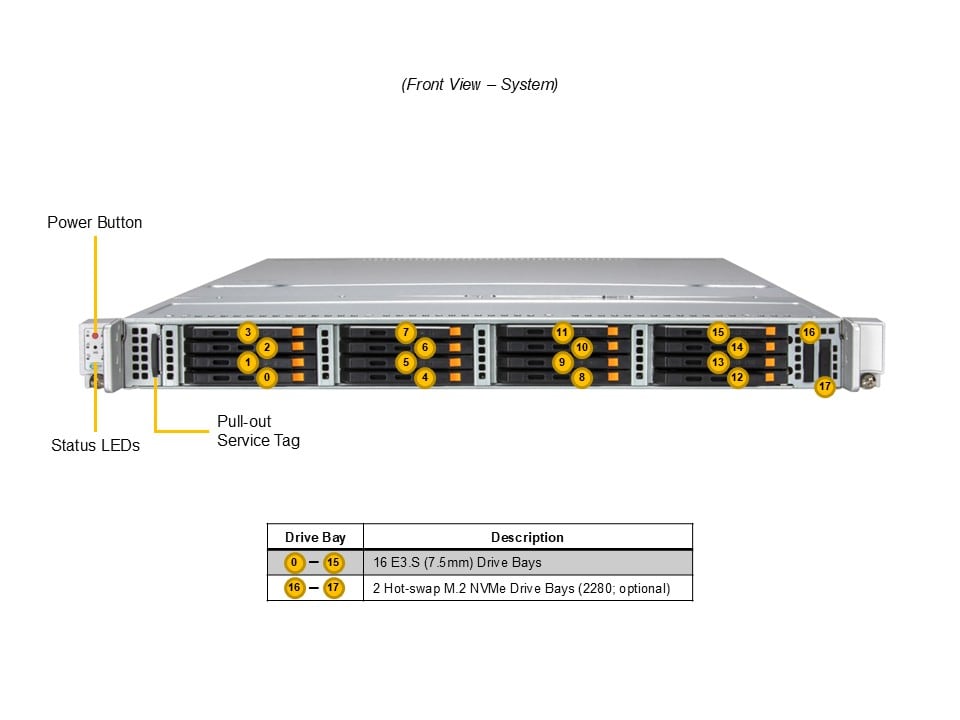

Front Panel
Buttons	Power On/Off UID button
LED	HDD activity LAN1 activity LAN2 activity Power Fail LED Power status System information
Expansion Slots
PCI-Express (PCIe) Configuration	Default2 PCIe 5.0 x16 FHHL slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) 2 PCIe 5.0 x16 FHHL slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
Drive Bays / Storage
Drive Bays Configuration	Default: Total 16 bays16 front hot-swap E3.S 1T NVMe drive bays 16 front hot-swap E3.S 1T NVMe drive bays
M.2	2 M.2 NVMe slots (M-key 2280/22110) View M.2 Options

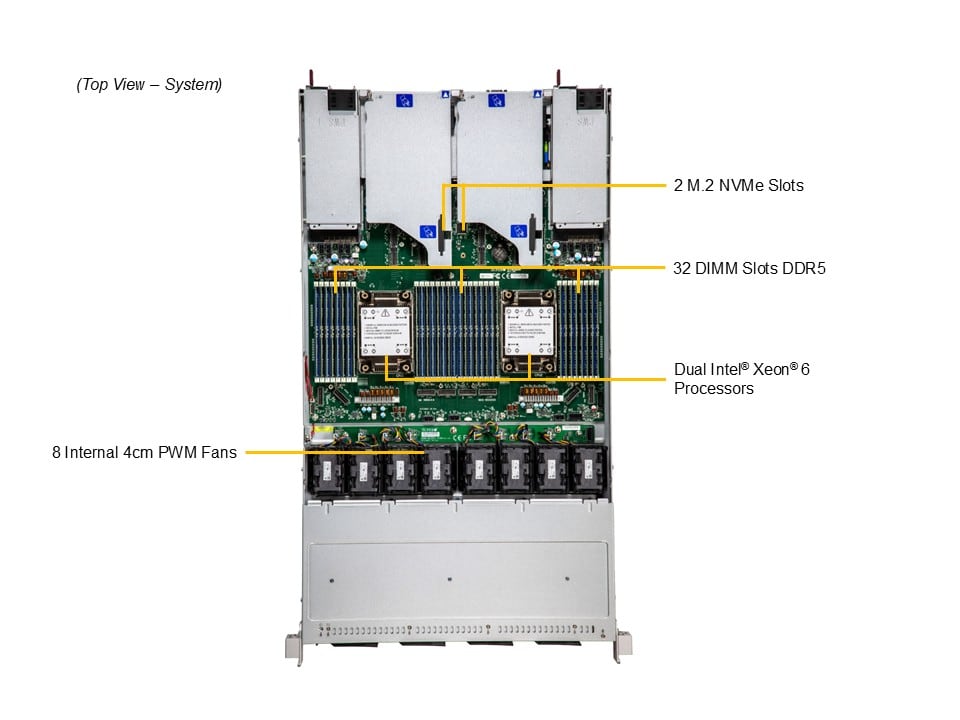

System Cooling
Fans	Up to 8x 4cm heavy duty fans with optimal fan speed control
Air Shroud	1 Air Shroud
Power Supply
2x 2000W 2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 185 mm Input1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for CQC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)	73.5 x 40 x 185 mm
Input	1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for CQC only)
+12V	Max: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac)
12V SB	Max: 3.5A / Min: 0A
Output Type	Backplanes (gold finger)
Operating Environment
ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-condensing) Non-operating Relative Humidity: 8% to 95% (Non-condensing)
2x 2000W 2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 185 mm Input1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for CQC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Output TypeBackplanes (gold finger)
Optional Parts List
