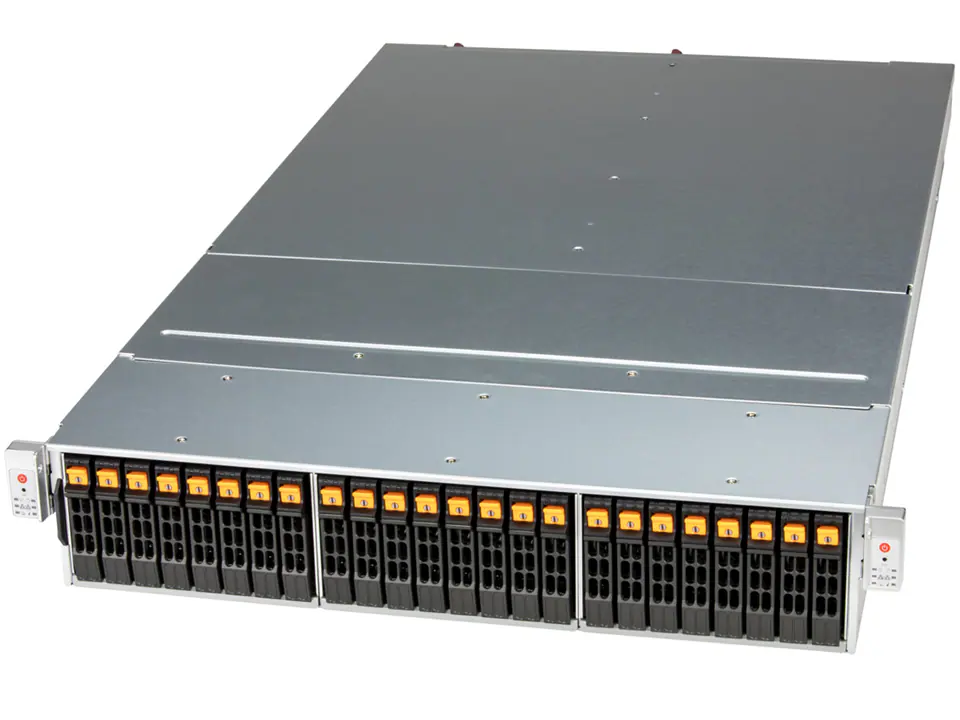

Supermicro SuperServer SSG-221E-DN2R24R
Supermicro SuperServer SSG-221E-DN2R24R - imagine 2
Supermicro SuperServer SSG-221E-DN2R24R - imagine 3
Supermicro SuperServer SSG-221E-DN2R24R - imagine 4
Supermicro SuperServer SSG-221E-DN2R24R - imagine 5
Supermicro SuperServer SSG-221E-DN2R24R - imagine 6
Supermicro SuperServer SSG-221E-DN2R24R - imagine 7
, , , Configureaza acest server →

Supermicro SuperServer SSG-221E-DN2R24R

Favorite
Compara

2U all-flash SBB with 24 U.2 NVMe drives and PCIe 5.0

Pretul afisat contine TVA (21%).

SuperServer SSG-221E-DN2R24R

2U all-flash SBB with 24 U.2 NVMe drives and PCIe 5.0

Key Features

  1. Single Socket E (LGA-4677) 5th/4th Generation Intel® Xeon® Scalable processor. Up to 350W TDP.
  2. 2 PCIe 5.0 x16 HHHL slots2 PCIe 5.0 x8 HHHL slots
  3. 2 PCIe 5.0 x16 HHHL slots
  4. 2 PCIe 5.0 x8 HHHL slots
  5. Supports 8 DIMMs per node with 1DPC, up to 2TB memory capacity with 8 DIMMs of 256GB 3DS RDIMM DDR5-5600 ECC memory per node.
  6. Dedicated 1GbE Private Ethernet connection for node-to-node communication (Heartbeat)

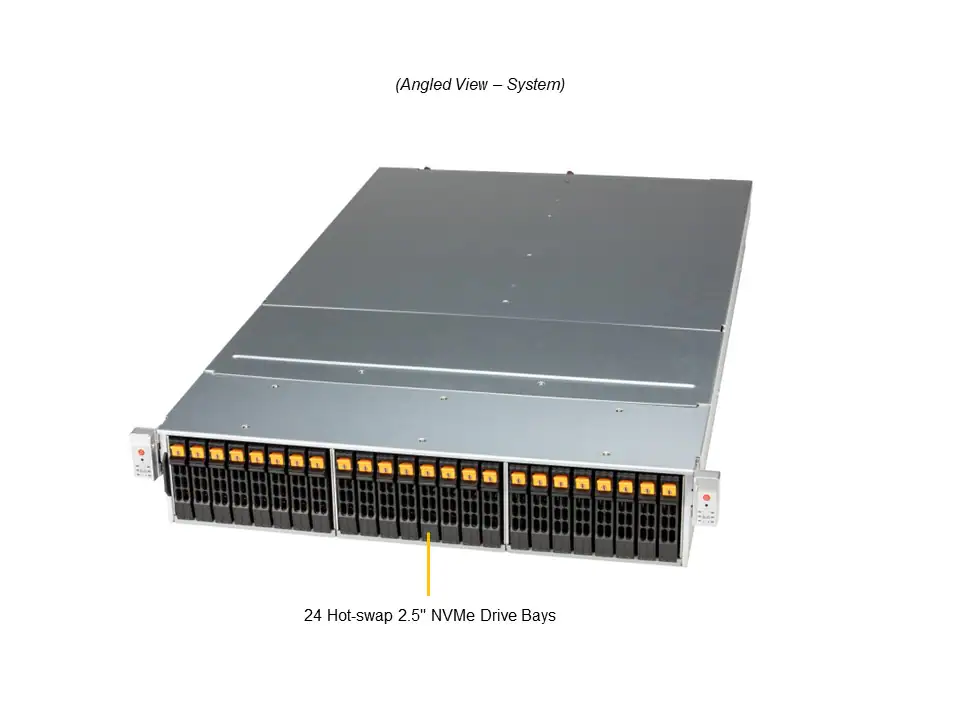

  7. 24 Hot-swap Dual Port Gen 5 U.2 NVMe SSD bays
  8. Redundant Titanium 2000W Power Supplies

Specifications

Product SKUs
  • SuperServer SSG-221E-DN2R24R
Motherboard
  • Super X13SEB-TF
Processor (per Node)
CPU
  • Single Socket E (LGA-4677)
  • 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Note
  • Supports 150W – 350W TDP CPUs (Air Cooled)

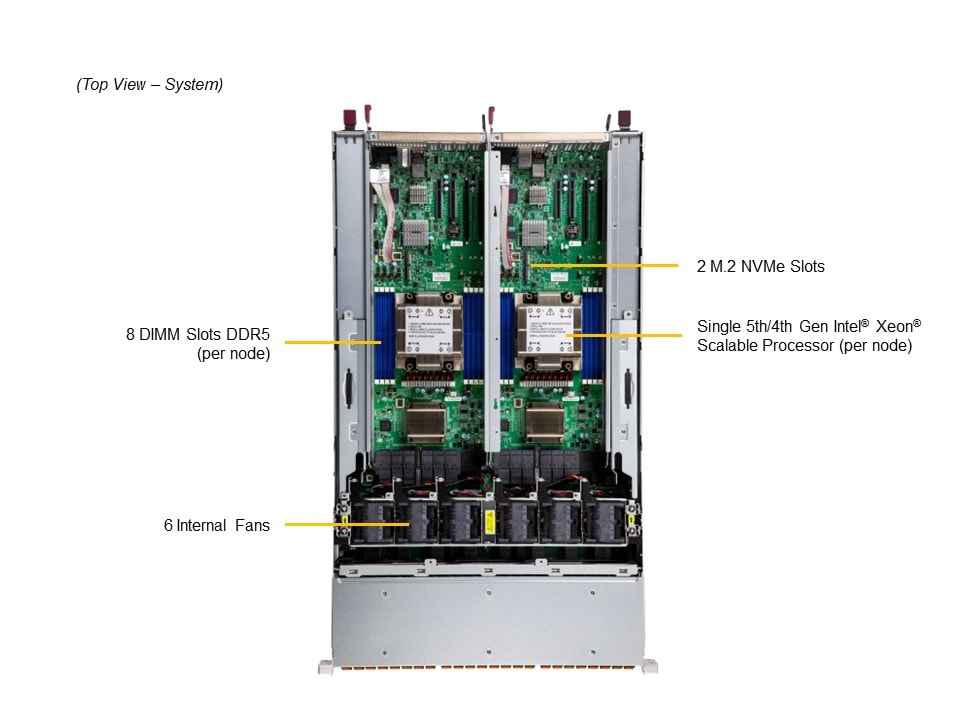

System Memory (per Node)
Memory
  • Slot Count: 8 DIMM slots/8 Channels
  • Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM/LRDIMM
Memory Voltage
  • 1.1V
On-Board Devices (per Node)
Network Connectivity
  • 2 RJ45 10GbE with Intel® X710

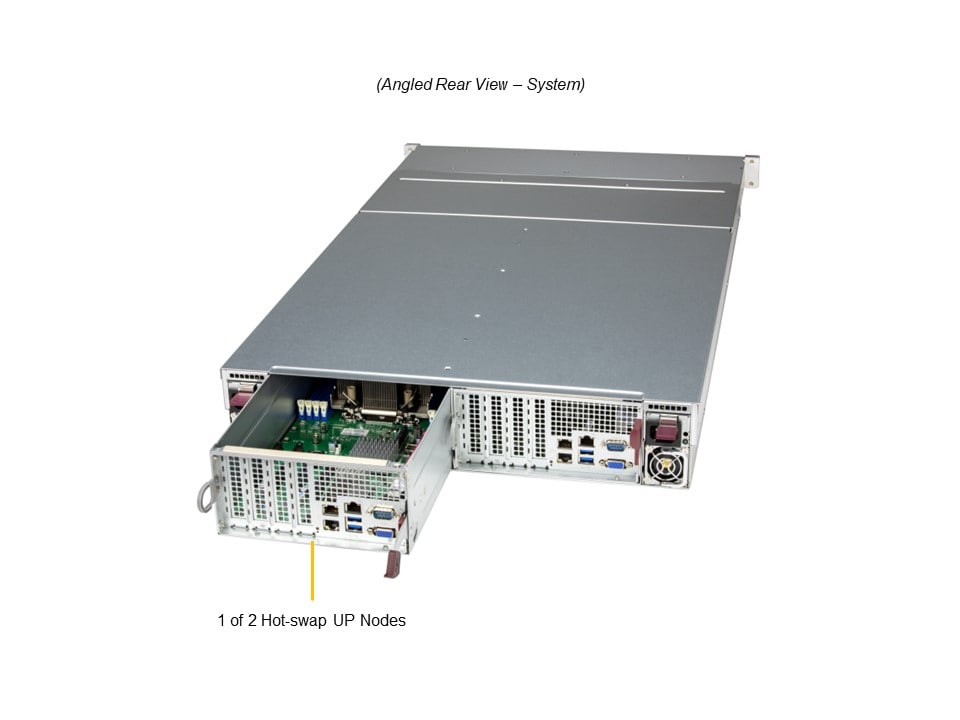

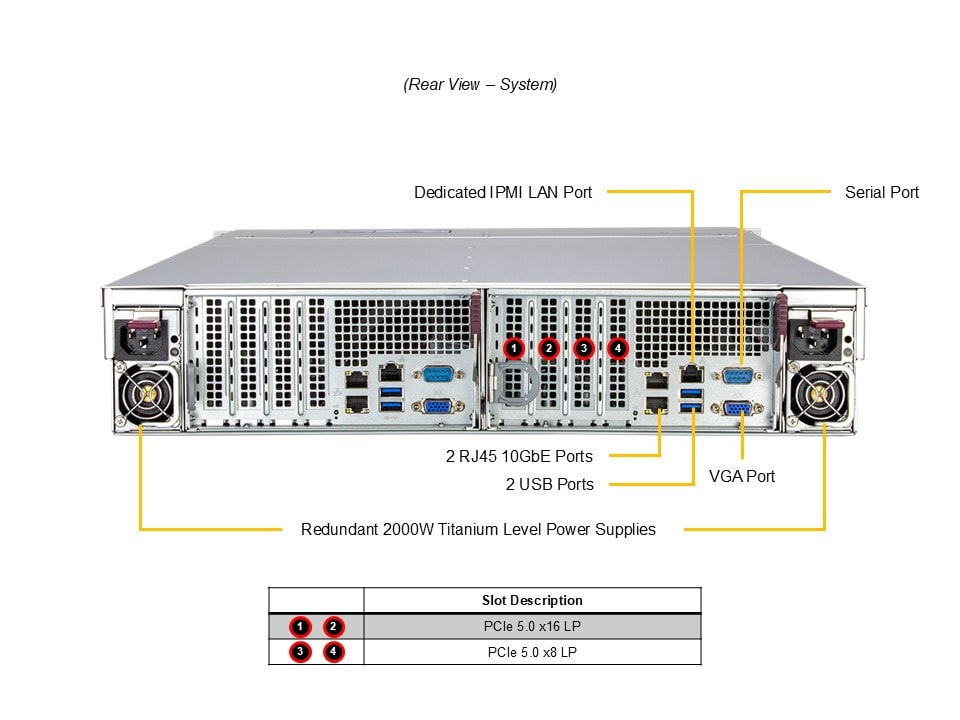

Input / Output (per Node)
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
  • 2 RJ45 10 GbE LAN ports
USB
  • 2 USB 3.0 ports(rear)
Video
  • 1 VGA port
Serial
  • 1 COM port(Rear)
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • 7 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • SuperServer SSG-221E-DN2R24R
  • Super X13SEB-TF
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-229TS-R000NP
Dimensions and Weight
Height
  • 3.47″ (88 mm)
Width
  • 17.7″ (449.4 mm)
Depth
  • 30″ (762 mm)
Package
  • 9.64″ (H) x 26.37″ (W) x 43.3″ (D)
Weight
  • Gross Weight: 89.63 lbs (40.66 kg)
  • Net Weight: 66.82 lbs (30.31 kg)
Available Color
  • Silver

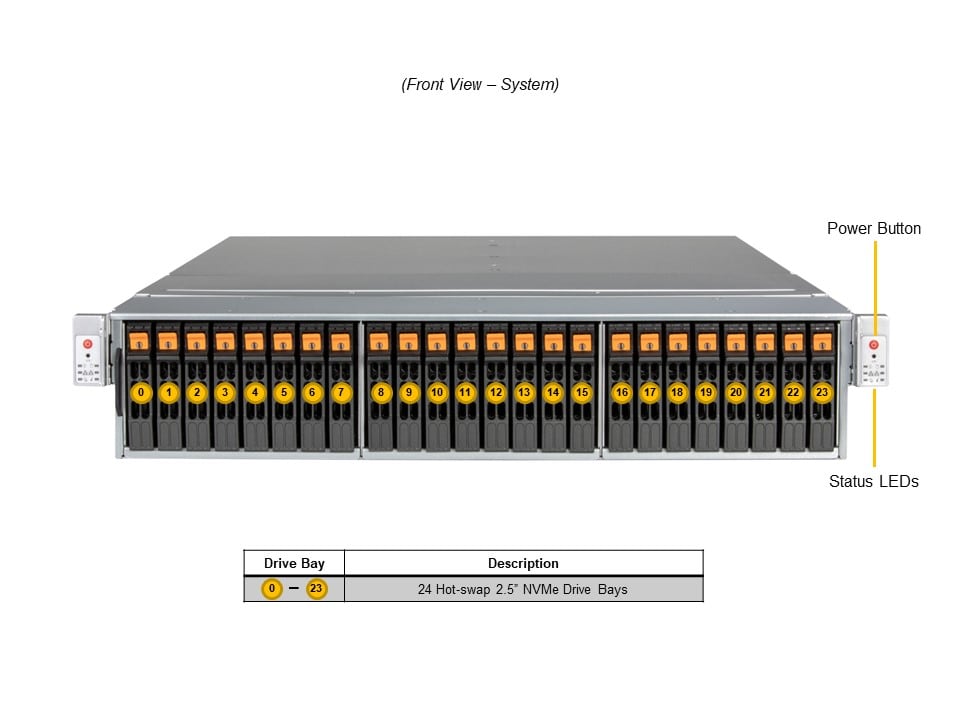

Front Panel
Buttons
  • Power On/Off button
  • UID button
LED
  • HDD activity
  • LAN1 activity
  • LAN2 acticity
  • Power Fail
  • Power status
  • System information (overheat/UID)
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration
  • Default2 PCIe 5.0 x16 HHHL slots 2 PCIe 5.0 x8 HHHL slots
  • 2 PCIe 5.0 x16 HHHL slots
  • 2 PCIe 5.0 x8 HHHL slots
M.2
  • 2 M.2 PCIe 3.0 x4 NVMe slots (M-key)
Drive Bays / Storage (per Node)
Drive Bays Configuration
  • Default: Total 24 bays24 front hot-swap 2.5″ PCIe 5.0 NVMe drive bays
  • 24 front hot-swap 2.5″ PCIe 5.0 NVMe drive bays
M.2
  • 2 M.2 NVMe slots (M-key 2280/22110)
  • View M.2 Options
System Cooling
Fans
  • Up to 6 Heavy Duty 6cm Fan(s)
Air Shroud
  • 2 Air Shrouds
Power Supply
  • 2x 2000W 2x 2000W Redundant Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 203 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vdc 2000W: 220-240Vac 2000W: 230-240Vac 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for China only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Max: 3.5A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 73.5 x 40 x 203 mm
Input
  • 1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vdc 2000W: 220-240Vac 2000W: 230-240Vac 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for China only)
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac)
12V SB
  • Max: 3.5A / Min: 0A Max: 3.5A
Output Type
  • Backplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% ()
  • Non-operating Relative Humidity: 5% to 95% ()
  • 2x 2000W 2x 2000W Redundant Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 203 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vdc 2000W: 220-240Vac 2000W: 230-240Vac 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for China only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Max: 3.5A Output TypeBackplanes (gold finger)
Optional Parts List
