Supermicro SuperServer SSG-540P-E1CTR45H

Favorite
Compara

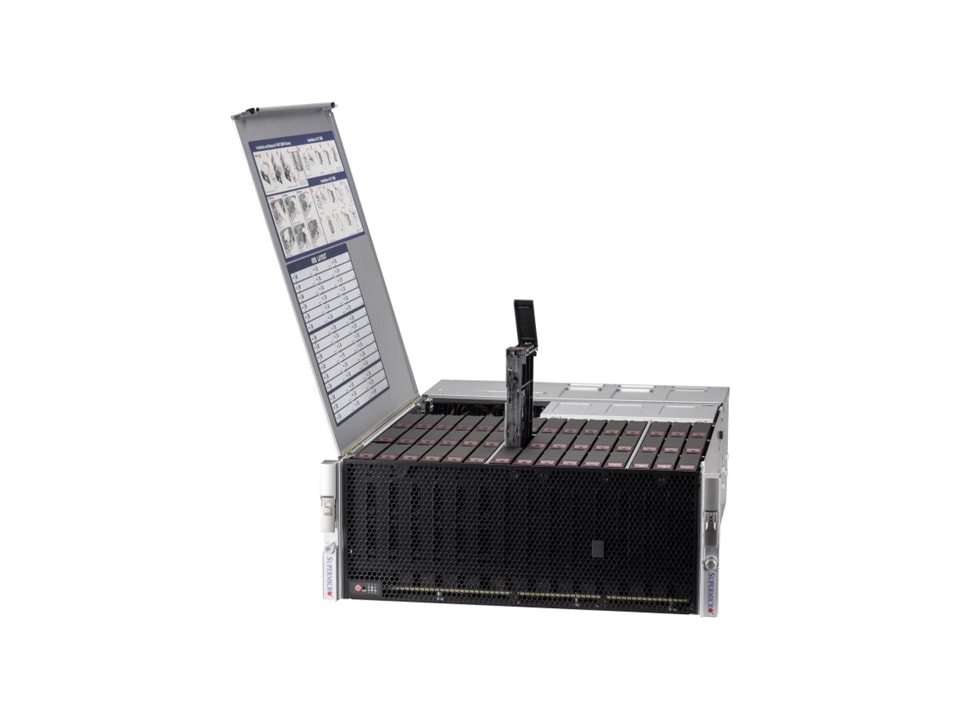

4U UP top-loading storage server with 45 hot-swap 3.5″ SAS/SATA bays (SAS hardware RAID) and PCIe 4.0

Pretul afisat contine TVA (21%).

SuperServer SSG-540P-E1CTR45H

4U UP top-loading storage server with 45 hot-swap 3.5″ SAS/SATA bays (SAS hardware RAID) and PCIe 4.0

Key Features

  1. 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® Intel® DCPMM
  2. 2 PCIe 4.0 x16 (LP) slots, 2 PCIe 4.0 x8 (LP) slots
  3. Intel® Ethernet Controller X550 2x 10GbE RJ45
  4. 45x Top-loading hot-swap 3.5″ SAS3/SATA3 drive bays, 2x Hot-swap 2.5″ SATA drive bays (rear), Onboard 1x NVMe/SATA M.2; 2x Hot-swap 2.5″ SATA3/NVMe (rear, optional)
  5. Redundant Platinum 1600W Power Supply

Specifications

Product SKUs
  • SuperServer SSG-540P-E1CTR45H

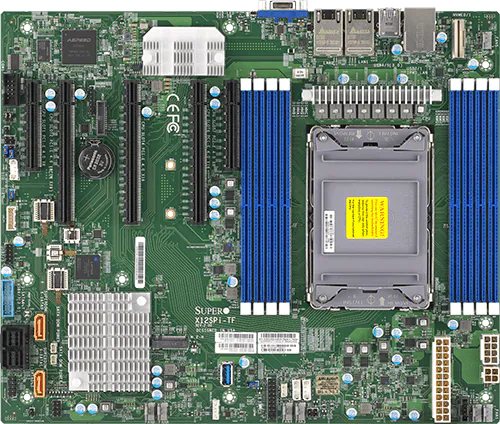

Motherboard
  • Super X12SPi-TF
Processor
CPU
  • Single Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 8 DIMM slots/8 Channels
  • Max Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • Supports Intel® Optane™ persistent memory 200 series
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps) via Intel® C621A; RAID 0/1/5/10 support
SAS
  • SAS (12Gbps) via Broadcom® 3908; RAID 0/1/5/6/10/50/60 support
NVMe
  • NVMe; RAID 0/1 support(Intel® VROC RAID key required)

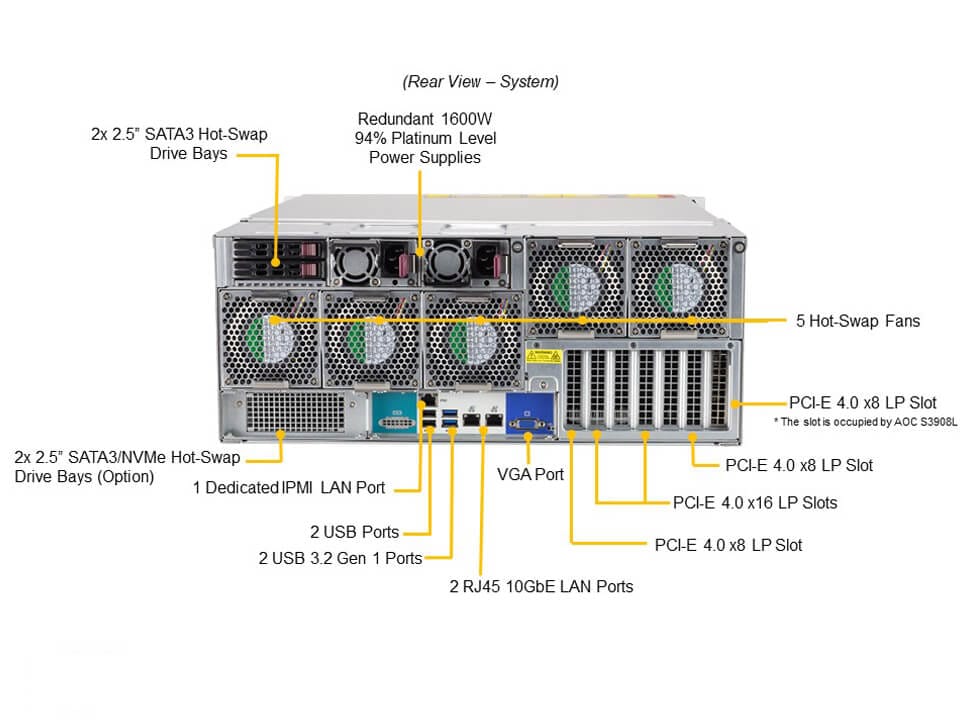

Network Connectivity
  • 2 RJ45 10GbE with Intel® X550
Input / Output
LAN
  • 2 RJ45 10 GbE LAN ports (Intel® X550)
  • 1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1)
USB
  • 2 USB 2.0 ports(header)
  • 2 USB 3.2 Gen1 Type-A ports(rear)
  • 2 USB 2.0 Type-A ports(rear)
  • 2 USB 3.2 Gen1 ports(Header)
  • 1 USB 3.2 Gen1 Type-A port
Video
  • 1 VGA port
Serial
  • 1 COM port(Header)
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 7+1 Phase-switching voltage regulator module (VRM)
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • SuperServer SSG-540P-E1CTR45H
  • Super X12SPi-TF
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-946LTS-R1K66P1
Dimensions and Weight
Height
  • 7″ (178 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 30.2″ (660 mm)
Package
  • 22″ (H) x 28″ (W) x 42″ (D)
Weight
  • Gross Weight: 120 lbs (54.43 kg)
  • Net Weight: 100 lbs (45.36 kg)
Available Color
  • Black

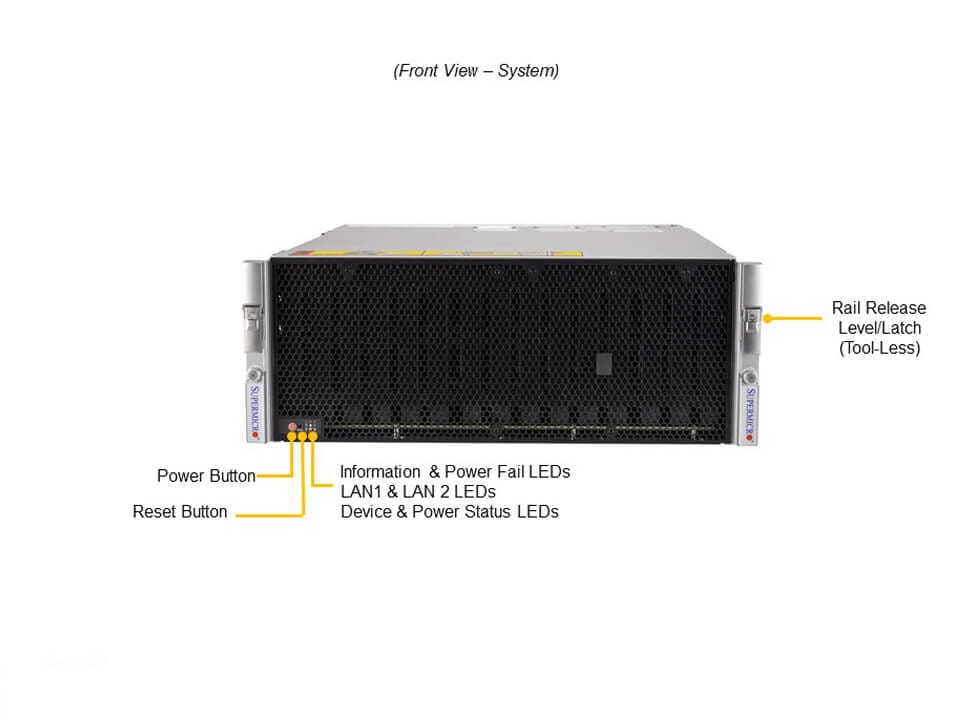

Front Panel
Buttons
  • Power On/Off
  • System Reset
LED
  • Device Activity
  • LAN 1 Activity
  • LAN 2 Activity
  • Power Failure LED
  • Power status
  • System information
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default2 PCIe 4.0 x8 LP slots 2 PCIe 4.0 x16 LP slots
  • 2 PCIe 4.0 x8 LP slots
  • 2 PCIe 4.0 x16 LP slots

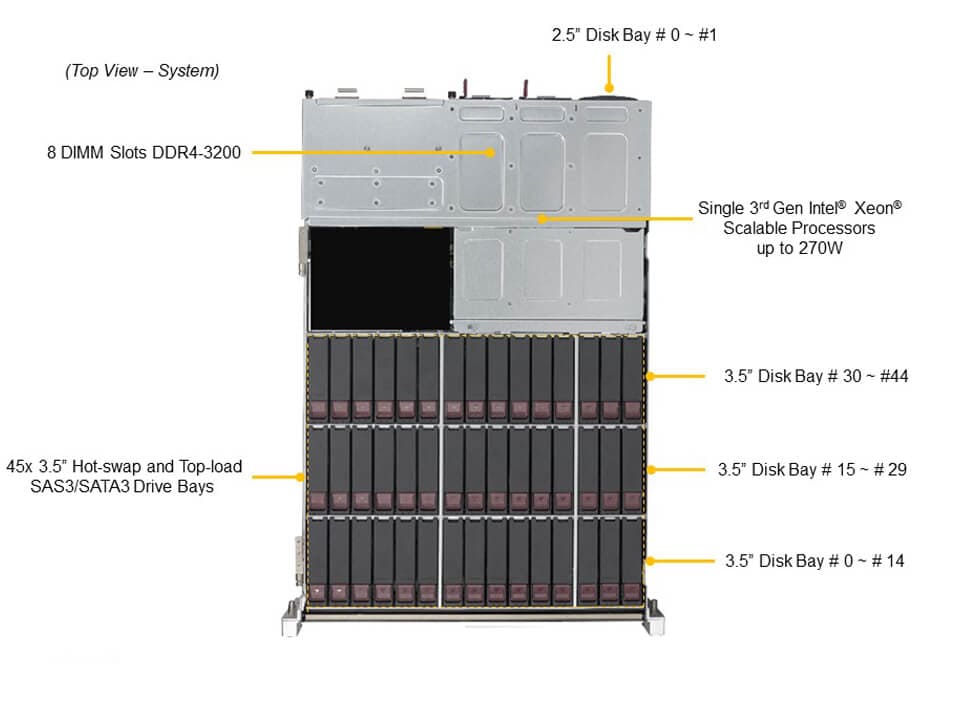

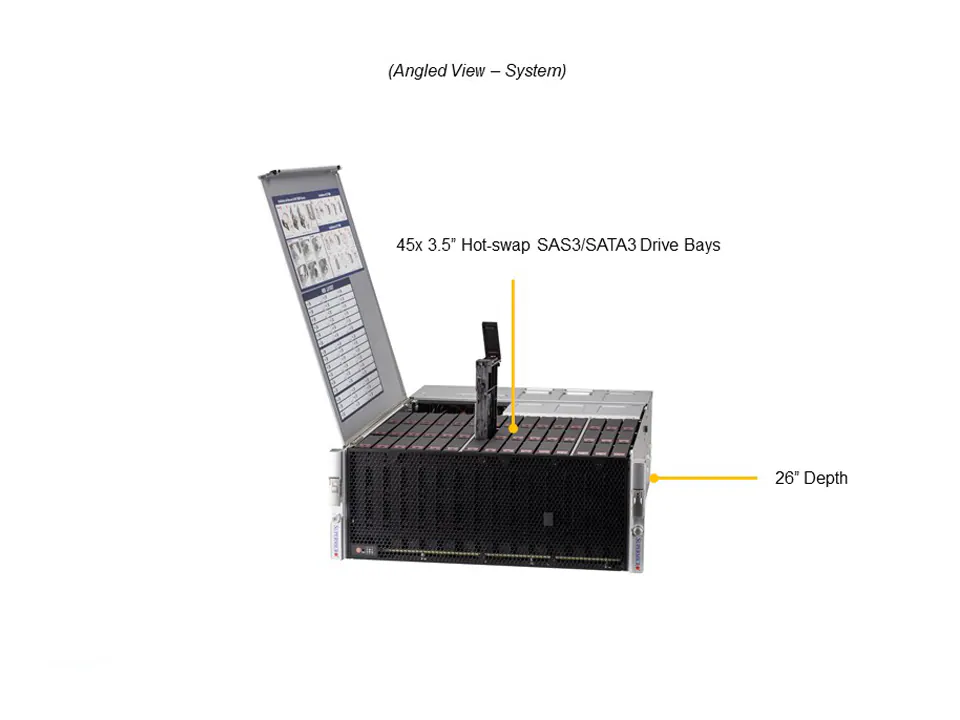

Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 47 bays45 top-loading hot-swap 3.5″ SAS/SATA drive bays 2 rear hot-swap 2.5″ SATA drive bays
  • 45 top-loading hot-swap 3.5″ SAS/SATA drive bays
  • 2 rear hot-swap 2.5″ SATA drive bays
  • Option A: Total 49 bays2 rear hot-swap 2.5″ SATA drive bays 2 rear hot-swap 2.5″ PCIe 4.0 NVMe*/SAS*/SATA* drive bays 45 top-loading hot-swap 3.5″ SAS/SATA drive bays
  • 2 rear hot-swap 2.5″ SATA drive bays
  • 2 rear hot-swap 2.5″ PCIe 4.0 NVMe*/SAS*/SATA* drive bays
  • 45 top-loading hot-swap 3.5″ SAS/SATA drive bays
  • (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
  • 1 M.2 PCIe 3.0 x4 NVMe/SATA slot (M-key 2280/22110)
  • View M.2 Options
System Cooling
Fans
  • Up to 5 Heavy Duty PWM 80x80x38mm Fan(s)
Air Shroud
  • 1 Air Shroud
Power Supply
  • 2x 1600W 2x 1600W Redundant (1 + 1) Platinum Level (94%) power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac / 50-60Hz +12VMax: 82A / Min: 0.1A (100Vac-120Vac)Max: 132A / Min: 0.1A (200Vac-240Vac) 12V SBMax: 2A / Min: 0.2A Output TypeBackplanes (gold finger) Certification Platinum Level
Dimension (WxHxL)
  • 73.5 x 40 x 265 mm
Input
  • 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac / 50-60Hz
+12V
  • Max: 82A / Min: 0.1A (100Vac-120Vac)Max: 132A / Min: 0.1A (200Vac-240Vac)
12V SB
  • Max: 2A / Min: 0.2A
Output Type
  • Backplanes (gold finger)
Certification
  • Platinum Level
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • 2x 1600W 2x 1600W Redundant (1 + 1) Platinum Level (94%) power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac / 50-60Hz +12VMax: 82A / Min: 0.1A (100Vac-120Vac)Max: 132A / Min: 0.1A (200Vac-240Vac) 12V SBMax: 2A / Min: 0.2A Output TypeBackplanes (gold finger) Certification Platinum Level
Optional Parts List
