Supermicro SuperServer SSG-542B-CE1CR60L

Favorite
Compara

4U Storage server with 60 hot-swap 3.5″ SAS/SATA bays and PCIe 5.0

Pretul afisat contine TVA (21%).

SuperServer SSG-542B-CE1CR60L

4U Storage server with 60 hot-swap 3.5″ SAS/SATA bays and PCIe 5.0

Key Features

  1. HBA by Broadcom® SAS3816 on main drive bays
  2. Single Intel® Xeon® 6700/6500 series processor up to 350W TDP
  3. Up to 2TB DDR5-6400MT/s registered ECC in 8 DIMM slots (1DPC)
  4. 2 onboard 10GbE ports via Intel® X550 and 1 GbE port for BMC via Aspeed AST2600
  5. Six total PCIe slots: 3 PCIe 5.0 x8 + 3 PCIe 5.0 x16 slots ** Slot 1 is occupied by system’s default controller

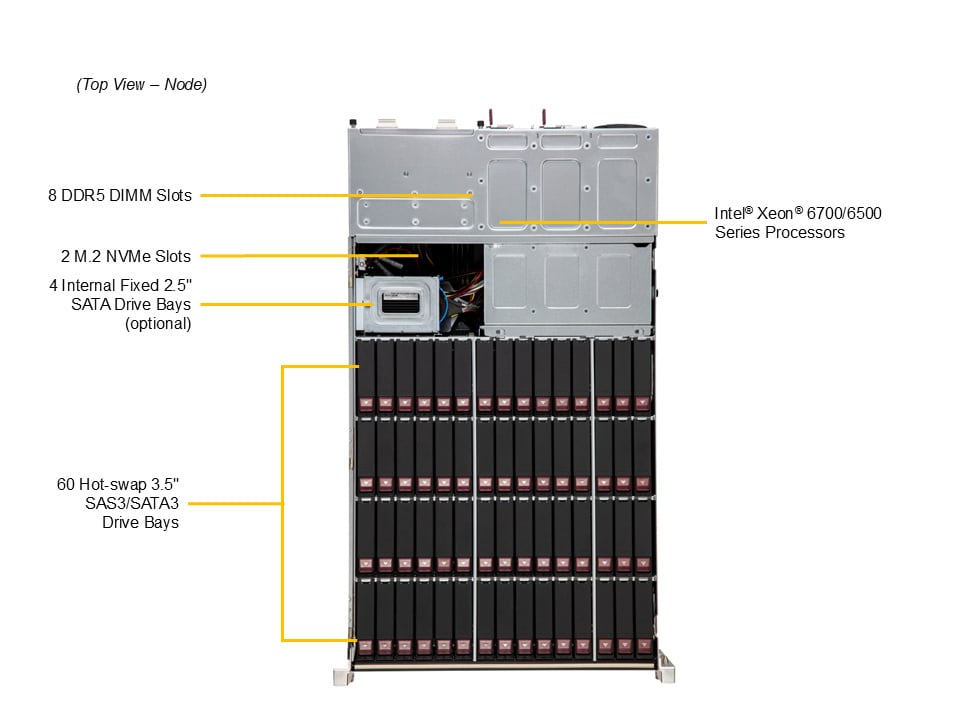

  6. Up to 60 top-loading hot-swap 3.5″ SAS/SATA drive baysOptional 4 hot-plug NVMe or SATA SSDs
  7. 2 Redundant 1600W Titanium Level Hot-plug power supplies

Specifications

Product SKUs
  • SuperServer SSG-542B-CE1CR60L
Motherboard

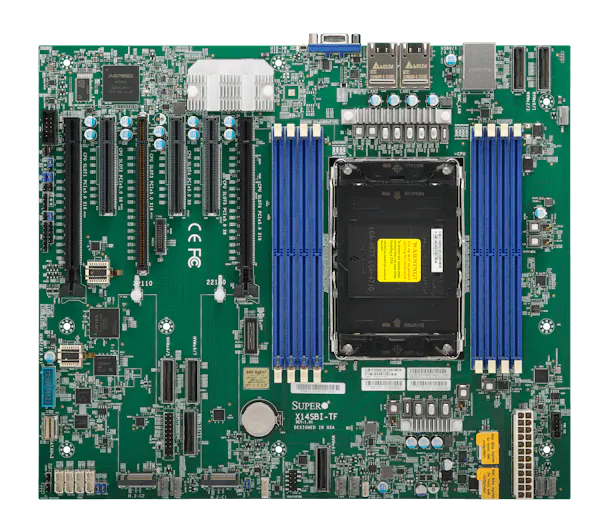

  • Super X14SBI-TF
Processor
CPU
  • Single Socket E2 (LGA-4710)
  • Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores
Core Count
  • P-cores: Up to 86C/172T; Up to 336MB Cache
  • E-cores: Up to 144C/144T; Up to 108MB Cache
Note
  • Supports up to 350W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 8 DIMM slots
  • Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • SATA (6Gbps)
NVMe
  • NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)
Chipset
  • intel System on Chip
Network Connectivity
  • 2 RJ45 10GBASE-T with Intel® X550
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
  • 2 RJ45 10 GBASE-T LAN ports
USB
  • 2 USB 3.2 Gen1 ports(Header)
  • 2 USB 3.2 Gen1 ports(Rear)
Video
  • 1 VGA port
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 64MB UEFI
BIOS Features
  • ACPI 6.5
  • SMBIOS 3.7 or later
  • UEFI 2.9
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
  • Runtime BMC Protections
  • Supply Chain Security: Remote Attestation
PC Health Monitoring
CPU
  • 8 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • CPU thermal trip support, Monitoring for CPU and chassis environment, PECI
  • SuperServer SSG-542B-CE1CR60L
  • Super X14SBI-TF
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-946STS-R1K63LPP
Dimensions and Weight
Height
  • 7″ (178 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 26″ (767.08 mm)
Package
  • 33.25″ (H) x 28″ (W) x 42.5″ (D)
Weight
  • Gross Weight: 169.5 lbs (76.9 kg)
  • Net Weight: 117 lbs (53 kg)
Available Color
  • Black

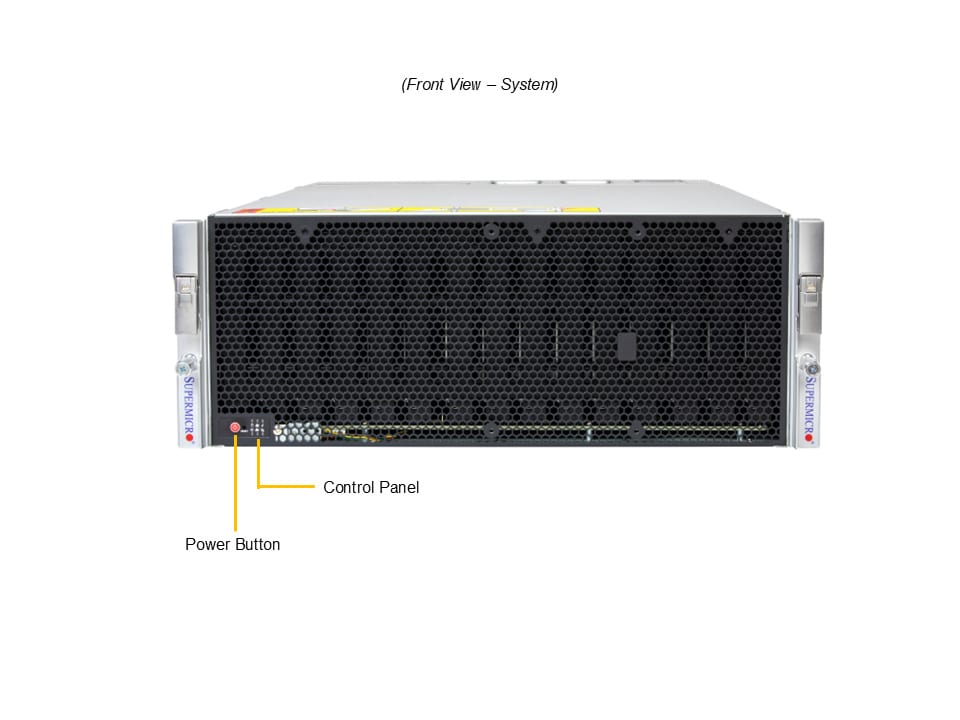

Front Panel
Buttons
  • Power On/Off button
  • Unit Identification (UID) button
LED
  • Network activity LEDs
  • Power Fail LED
  • Power status LED
  • System Information LED
Expansion Slots

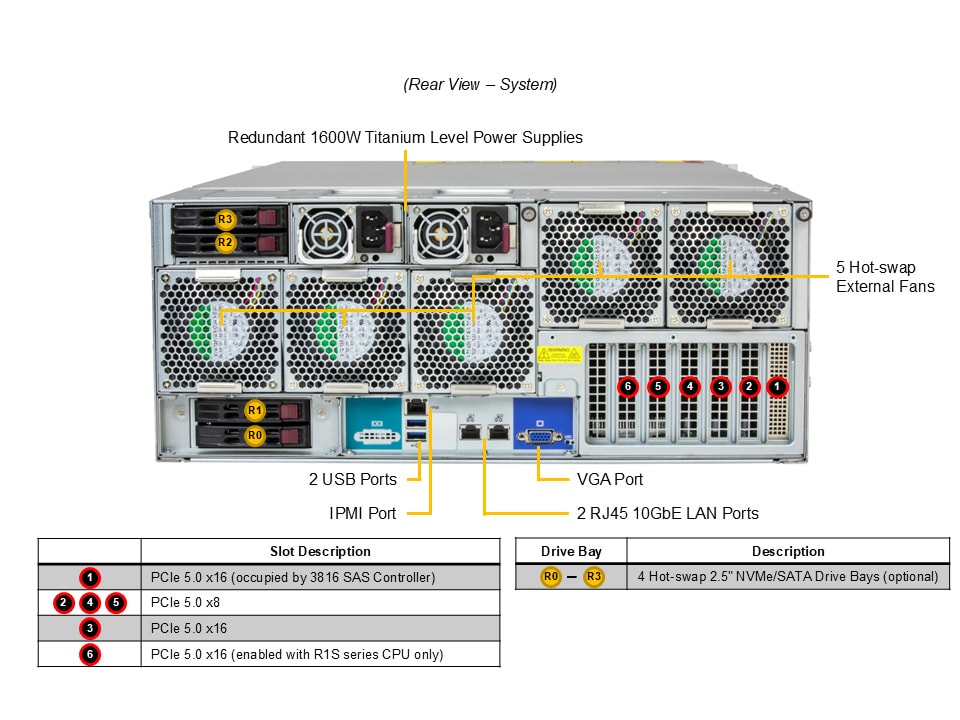

PCI-Express (PCIe) Configuration
  • Default3 PCIe 5.0 x16 (in x16) LP slots 3 PCIe 5.0 x8 (in x8) LP slots
  • 3 PCIe 5.0 x16 (in x16) LP slots
  • 3 PCIe 5.0 x8 (in x8) LP slots
Drive Bays / Storage
Drive Bays Configuration

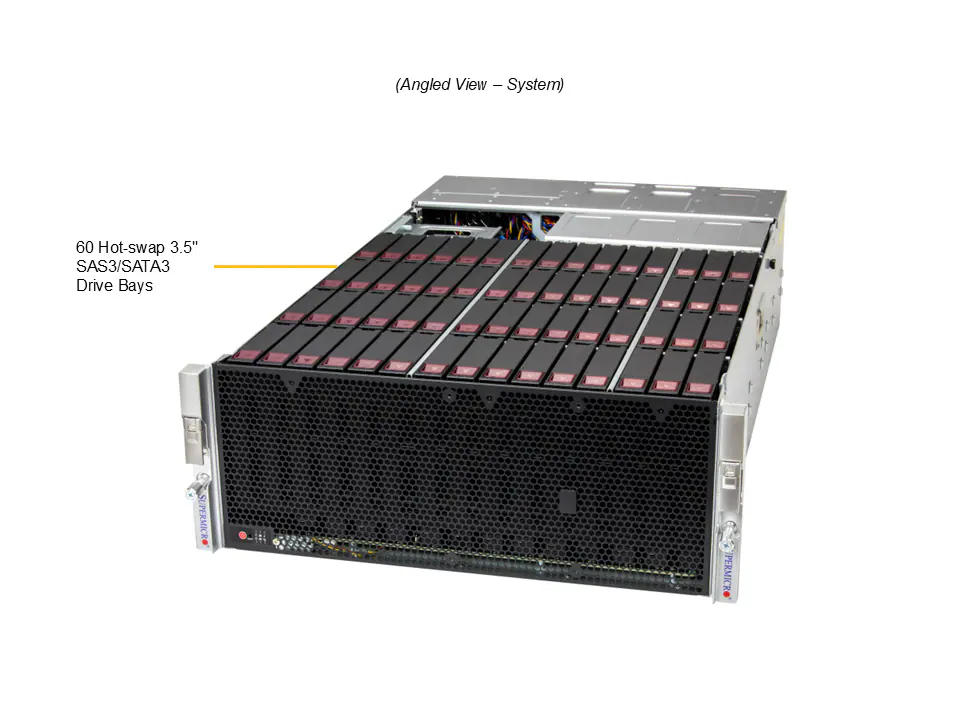

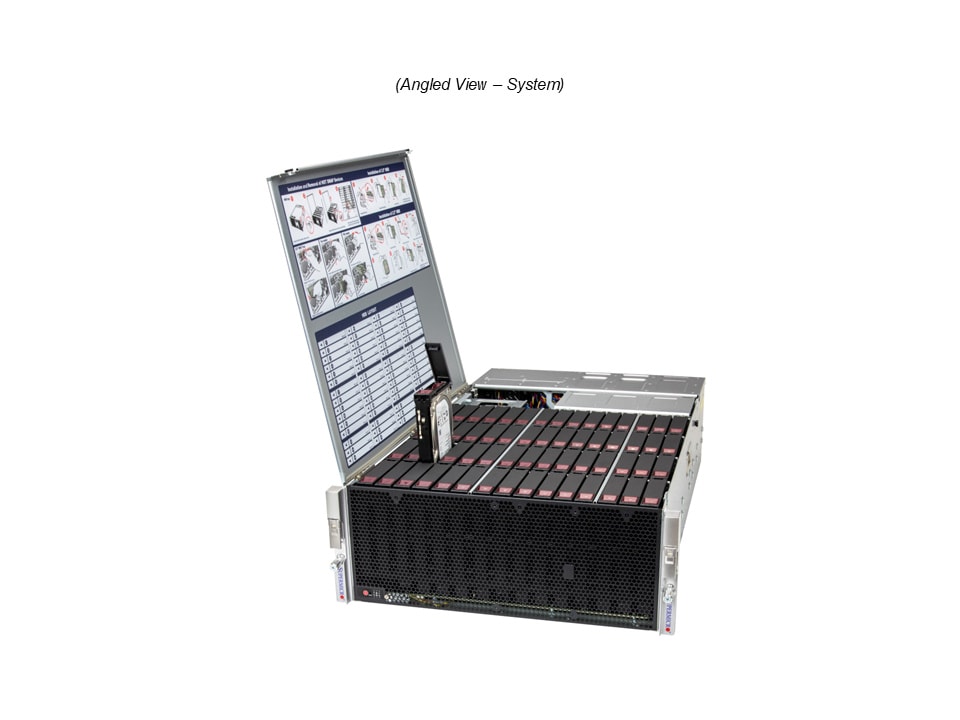

  • Default: Total 60 bays60 top-loading hot-swap 3.5″ SAS/SATA drive bays
  • 60 top-loading hot-swap 3.5″ SAS/SATA drive bays
  • Option A: Total 4 bays4 rear hot-swap 2.5″ PCIe 5.0 x8 NVMe* drive bays
  • 4 rear hot-swap 2.5″ PCIe 5.0 x8 NVMe* drive bays
  • Option B: Total 4 bays4 rear hot-swap 2.5″ SATA* drive bays
  • 4 rear hot-swap 2.5″ SATA* drive bays
  • (*NVMe/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
  • 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 22110(default))
  • View M.2 Options
System Cooling
Fans
  • Up to 5 Heavy Duty 8cm Fan(s)
Air Shroud
  • 1 Air Shroud
Power Supply
  • 2x 1600W 2x 1600W Redundant Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz 1600W: 200-240Vdc / 50-60Hz (for CQC only) +12VMax: 83.3A / Min: 0A (100Vac-127Vac)Max: 133.3A / Min: 0A (200Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Max: 3.5A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 73.5 x 40 x 265 mm
Input
  • 1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz 1600W: 200-240Vdc / 50-60Hz (for CQC only)
+12V
  • Max: 83.3A / Min: 0A (100Vac-127Vac)Max: 133.3A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 3.5A / Min: 0A Max: 3.5A
Output Type
  • Backplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% ()
  • Non-operating Relative Humidity: 5% to 95% ()
  • 2x 1600W 2x 1600W Redundant Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz 1600W: 200-240Vdc / 50-60Hz (for CQC only) +12VMax: 83.3A / Min: 0A (100Vac-127Vac)Max: 133.3A / Min: 0A (200Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Max: 3.5A Output TypeBackplanes (gold finger)
Optional Parts List
