Supermicro SuperServer SSG-620P-ACR12L

Favorite

Compara

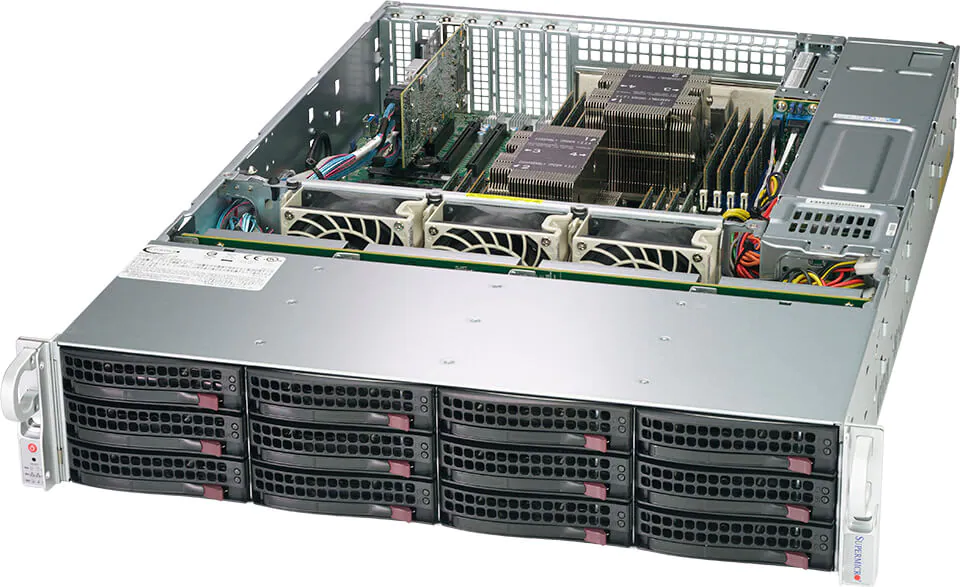

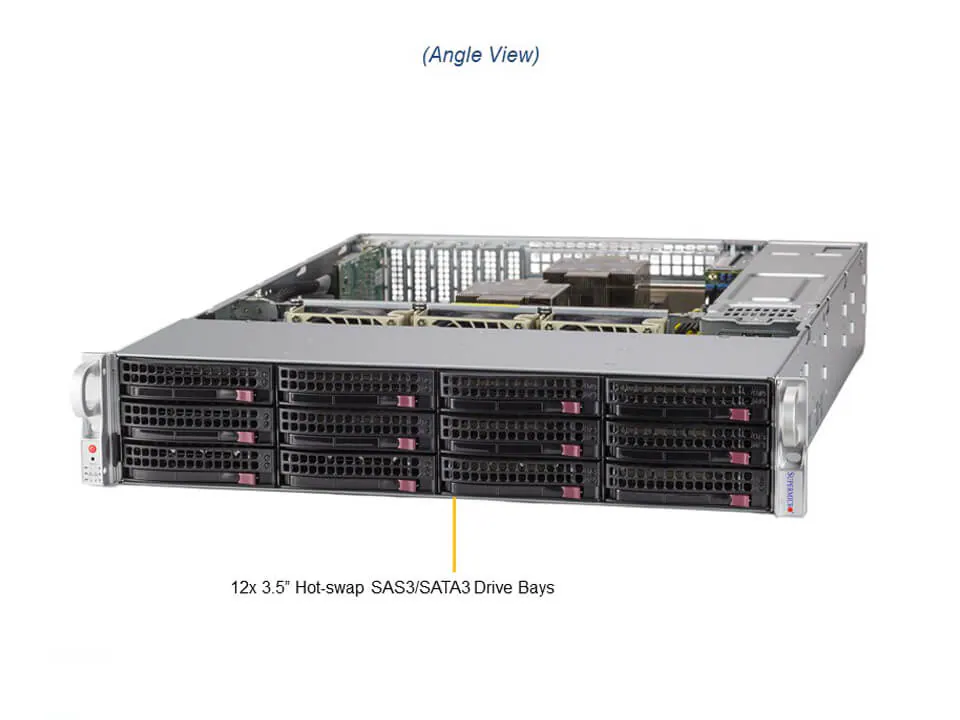

2U front-loading storage server with 12 hot-swap 3.5″ hybrid SAS/SATA bays and PCIe 4.0

Pretul afisat contine TVA (21%).

SuperServer SSG-620P-ACR12L

2U front-loading storage server with 12 hot-swap 3.5″ hybrid SAS/SATA bays and PCIe 4.0

Key Features

Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
16 ECC DDR4-3200: LRDIMM/RDIMM + 2 Intel® Optane™ Persistent Memory Dedicated Slots
2x 10Gbe

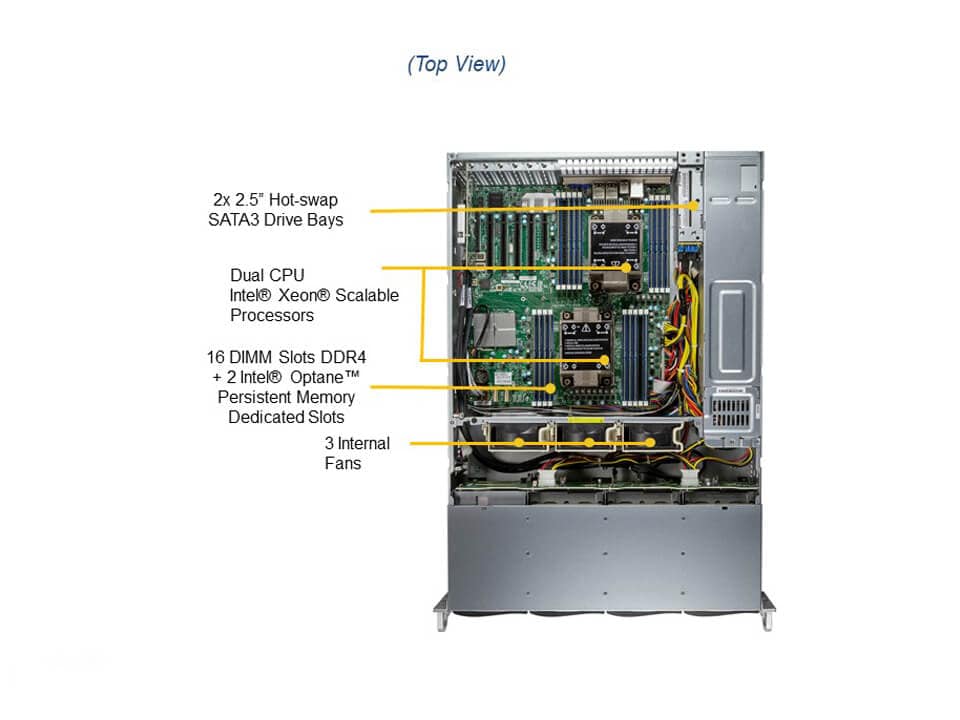

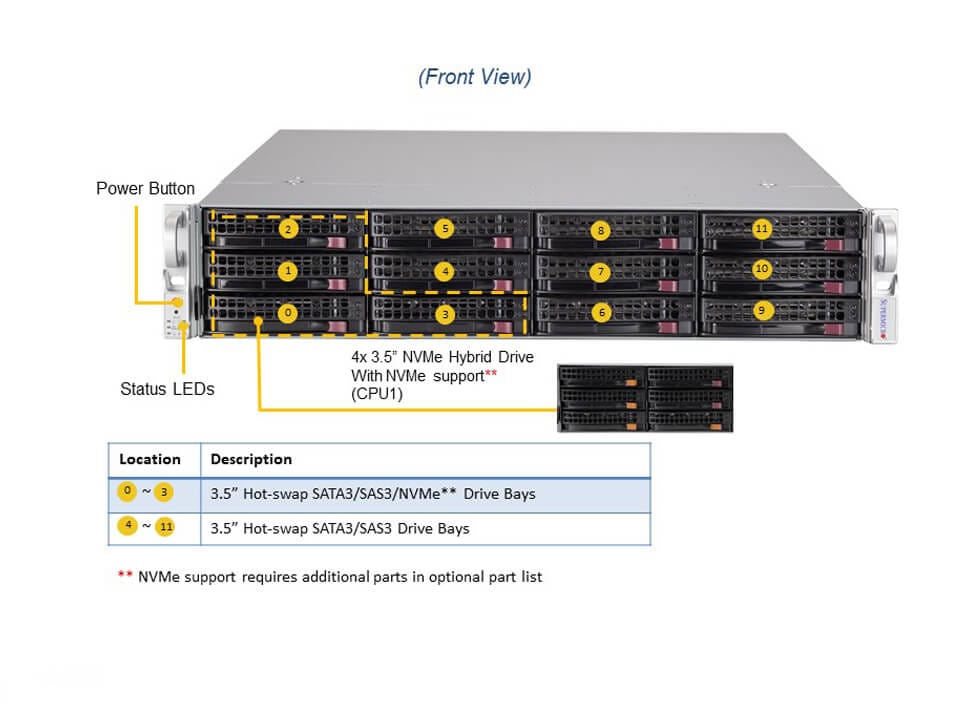

12x 3.5″ hot-swap hybrid SATA/SAS drive bays (4 NVMe Hyprid Ports); 2 rear SATA 2.5″ slots; onboard 1 M.2 NVMe
3 heavy duty fans with optimal fan speed control; 1 Air Shroud
Broadcom® 3816 Controller

Specifications

Product SKUs
SuperServer SSG-620P-ACR12L
Motherboard

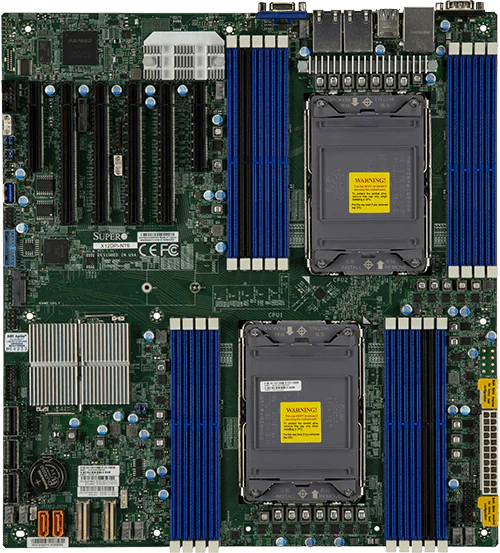

Super X12DPi-NT6
Processor
CPU	Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Core Count	Up to 38C/76T; Up to 57MB Cache per CPU
Note	Supports 120W – 270W TDP CPUs (Air Cooled)
System Memory
Memory	Slot Count: 16 DIMM slots Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 Supports Intel® Optane™ persistent memory 200 series
Memory Voltage	1.2V
On-Board Devices
Network Connectivity	2 RJ45 10GBASE-T with Intel® X550
Input / Output

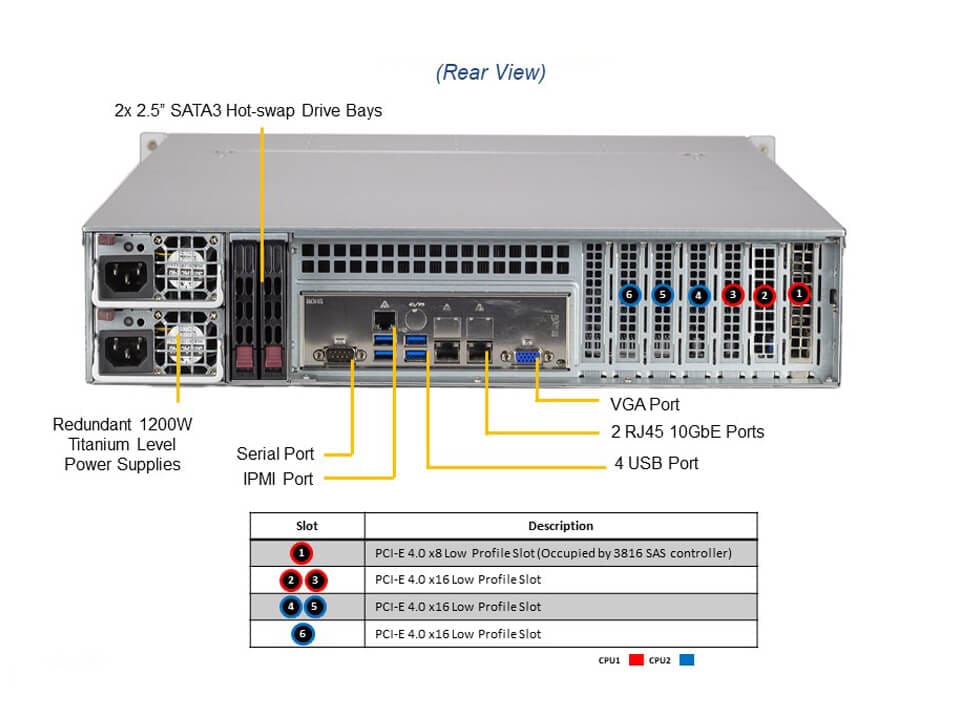

LAN	1 RJ45 1 GbE Dedicated BMC LAN port 2 RJ45 10 GBASE-T LAN ports
USB	4 USB 3.0 ports(rear)
Video	1 VGA port
DOM	2 SuperDOM (Disk on Module) ports
System BIOS
BIOS Type	AMI 128MB SPI Flash EEPROM
Management
Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown
PC Health Monitoring
CPU	4+1 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
SuperServer SSG-620P-ACR12L
Super X12DPi-NT6
Chassis
Form Factor	2U Rackmount
Model	CSV-826BTS-R1K23LPBP2
Dimensions and Weight
Height	3.5″
Width	17.3″
Depth	25.5″
Package	12″ (H) x 27″ (W) x 35″ (D)
Weight	Gross Weight: 61 lbs (27.7 kg) Net Weight: 34 lbs (15.4 kg)
Available Color	Black
Front Panel
Buttons	Power On/Off
LED	HDD activity Network activity Power status System information (overheat/UID)
Expansion Slots
PCI-Express (PCIe) Configuration	Default4 PCIe 4.0 x16 LP slots 1 PCIe 4.0 x8 LP slot 4 PCIe 4.0 x16 LP slots 1 PCIe 4.0 x8 LP slot
Drive Bays / Storage
Drive Bays Configuration	Default: Total 14 bays8 front hot-swap 3.5″ SAS/SATA drive bays 4 front hot-swap 3.5″ NVMe/SAS/SATA drive bays 2 rear hot-swap 2.5″ SAS/SATA drive bays 8 front hot-swap 3.5″ SAS/SATA drive bays 4 front hot-swap 3.5″ NVMe/SAS/SATA drive bays 2 rear hot-swap 2.5″ SAS/SATA drive bays (*NVMe/SAS support may require additional storage controller and/or cables)
M.2	1 M.2 NVMe slot (M-key) View M.2 Options
System Cooling
Fans	Up to 3 Heavy Duty 8cm Fan(s)
Air Shroud	1 Air Shroud
Power Supply
2x 1200W 2x 1200W Redundant Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)76 x 40 x 336 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (200Vdc-240Vdc) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)	76 x 40 x 336 mm
Input	1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12V	Max: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (200Vdc-240Vdc)
5V SB	Max: 4A / Min: 0A
Output Type	Backplanes (gold finger)
Operating Environment
ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% () Non-operating Relative Humidity: 5% to 95% ()
2x 1200W 2x 1200W Redundant Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)76 x 40 x 336 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (200Vdc-240Vdc) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
Standard Parts (Parts Included)
Optional Parts List

SKU: ssg-620p-acr12l Categorii: BRAND, Server&Storage, storage, SUPERMICRO

Product SKUs
SuperServer SSG-620P-ACR12L
Motherboard
Super X12DPi-NT6
Processor
CPU	Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Core Count	Up to 38C/76T; Up to 57MB Cache per CPU
Note	Supports 120W – 270W TDP CPUs (Air Cooled)
System Memory
Memory	Slot Count: 16 DIMM slots Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 Supports Intel® Optane™ persistent memory 200 series
Memory Voltage	1.2V
On-Board Devices
Network Connectivity	2 RJ45 10GBASE-T with Intel® X550
Input / Output
LAN	1 RJ45 1 GbE Dedicated BMC LAN port 2 RJ45 10 GBASE-T LAN ports
USB	4 USB 3.0 ports(rear)
Video	1 VGA port
DOM	2 SuperDOM (Disk on Module) ports
System BIOS
BIOS Type	AMI 128MB SPI Flash EEPROM
Management
Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown
PC Health Monitoring
CPU	4+1 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
SuperServer SSG-620P-ACR12L
Super X12DPi-NT6
Chassis
Form Factor	2U Rackmount
Model	CSV-826BTS-R1K23LPBP2
Dimensions and Weight
Height	3.5″
Width	17.3″
Depth	25.5″
Package	12″ (H) x 27″ (W) x 35″ (D)
Weight	Gross Weight: 61 lbs (27.7 kg) Net Weight: 34 lbs (15.4 kg)
Available Color	Black
Front Panel
Buttons	Power On/Off
LED	HDD activity Network activity Power status System information (overheat/UID)
Expansion Slots
PCI-Express (PCIe) Configuration	Default4 PCIe 4.0 x16 LP slots 1 PCIe 4.0 x8 LP slot 4 PCIe 4.0 x16 LP slots 1 PCIe 4.0 x8 LP slot
Drive Bays / Storage
Drive Bays Configuration	Default: Total 14 bays8 front hot-swap 3.5″ SAS/SATA drive bays 4 front hot-swap 3.5″ NVMe/SAS/SATA drive bays 2 rear hot-swap 2.5″ SAS/SATA drive bays 8 front hot-swap 3.5″ SAS/SATA drive bays 4 front hot-swap 3.5″ NVMe/SAS/SATA drive bays 2 rear hot-swap 2.5″ SAS/SATA drive bays (*NVMe/SAS support may require additional storage controller and/or cables)
M.2	1 M.2 NVMe slot (M-key) View M.2 Options
System Cooling
Fans	Up to 3 Heavy Duty 8cm Fan(s)
Air Shroud	1 Air Shroud
Power Supply
2x 1200W 2x 1200W Redundant Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)76 x 40 x 336 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (200Vdc-240Vdc) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)	76 x 40 x 336 mm
Input	1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12V	Max: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (200Vdc-240Vdc)
5V SB	Max: 4A / Min: 0A
Output Type	Backplanes (gold finger)
Operating Environment
ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% () Non-operating Relative Humidity: 5% to 95% ()
2x 1200W 2x 1200W Redundant Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)76 x 40 x 336 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (200Vdc-240Vdc) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
Standard Parts (Parts Included)
Optional Parts List
