Supermicro SuperServer SSG-640SP-DE1CR90

Favorite
Compara

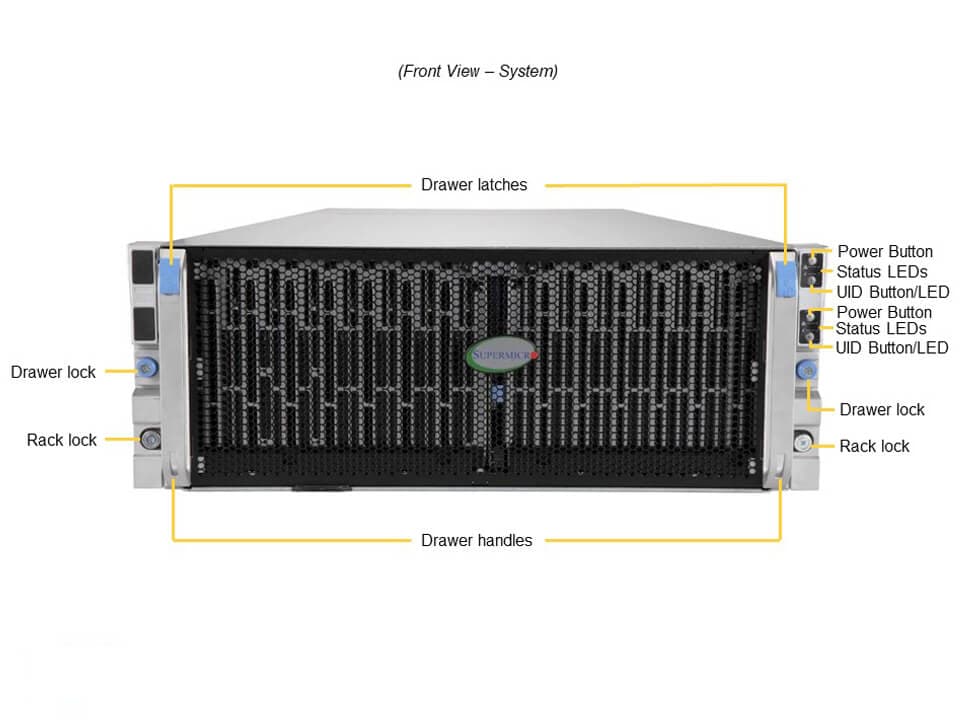

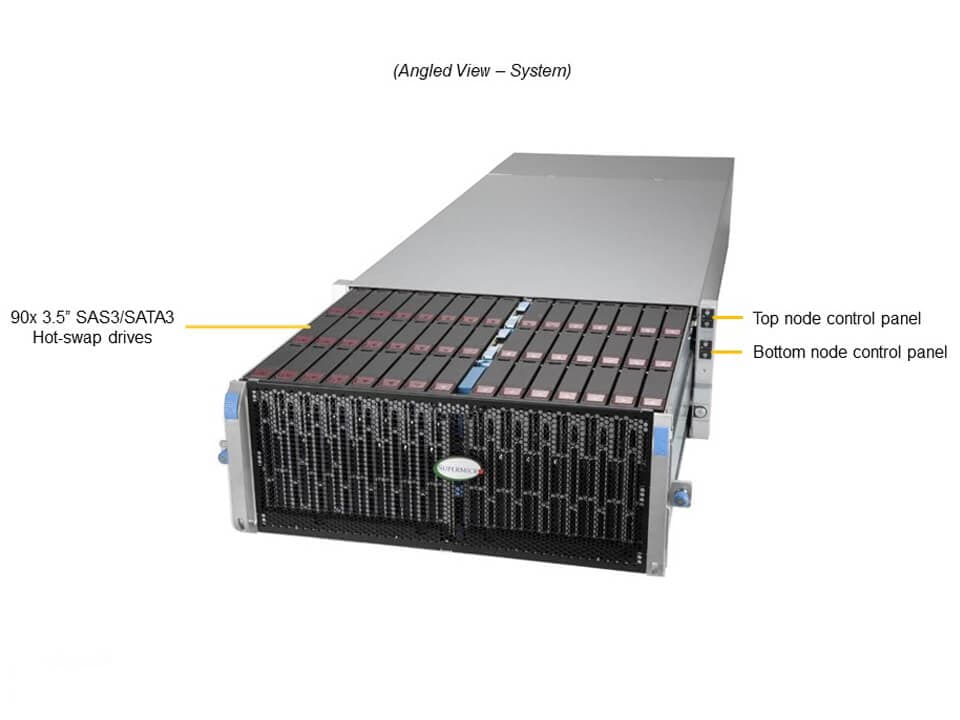

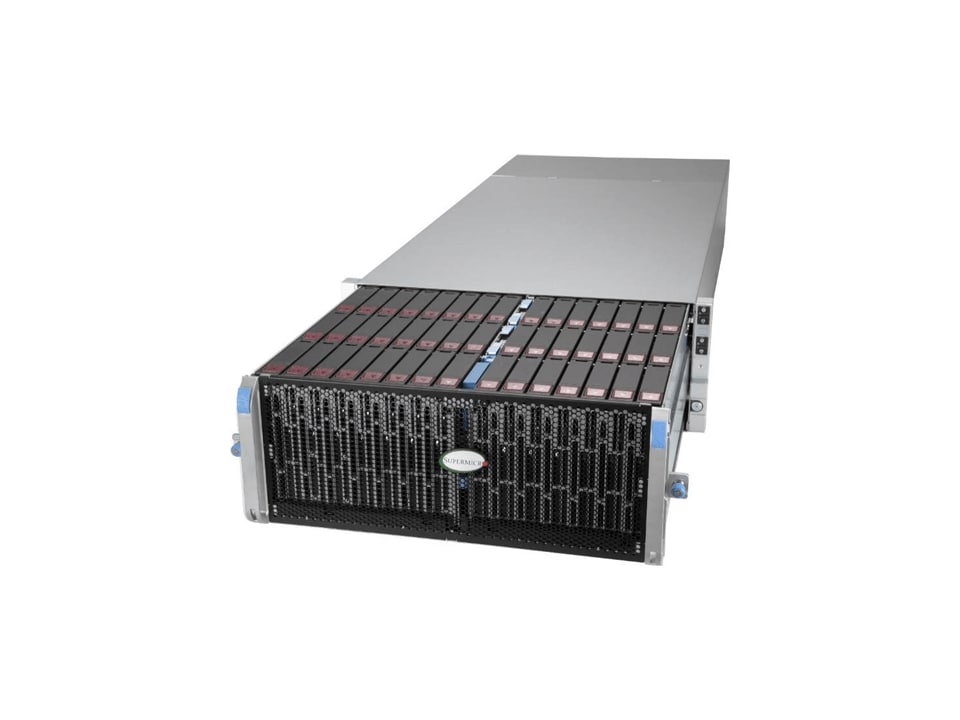

4U 2-node top-loading storage server with 90 hot-swap 3.5″ SAS/SATA bays and PCIe 4.0

Pretul afisat contine TVA (21%).

SuperServer SSG-640SP-DE1CR90

4U 2-node top-loading storage server with 90 hot-swap 3.5″ SAS/SATA bays and PCIe 4.0

Key Features

  1. Dual socket 3rd Gen Intel® Xeon® Scalable processors, up to 72 Cores Per Node
  2. 16 ECC DDR4-3200: LRDIMM/RDIMM
  3. 3 x PCIe 4.0 x16 HHHL PCIe slots

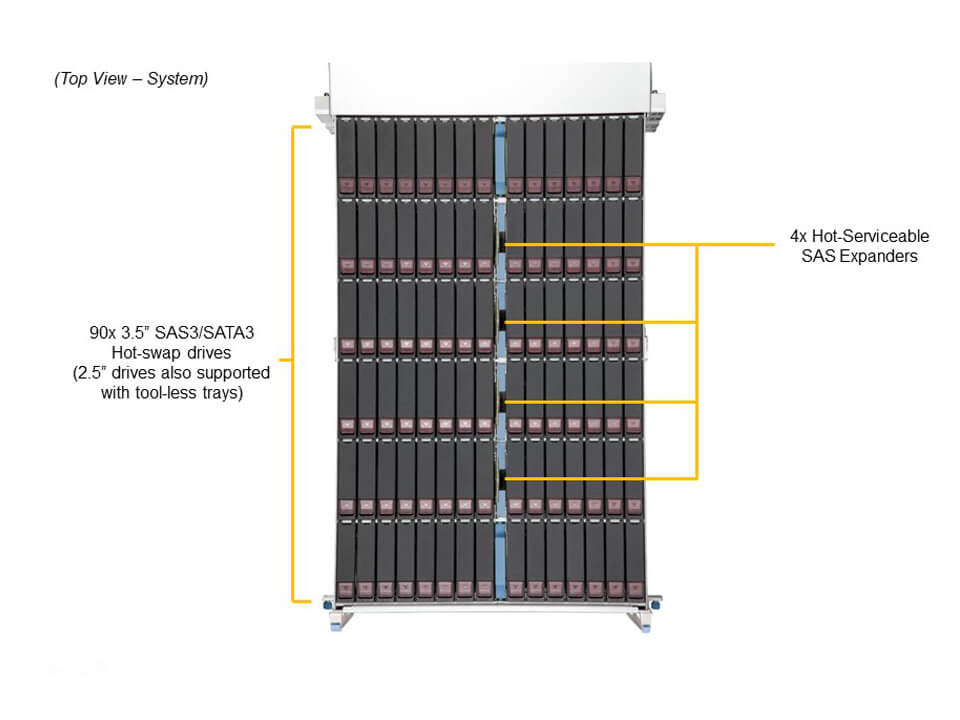

  4. 90 3.5″/2.5″ Hot-swap SAS3/SATA3 drives (Each node controls 45 drives)

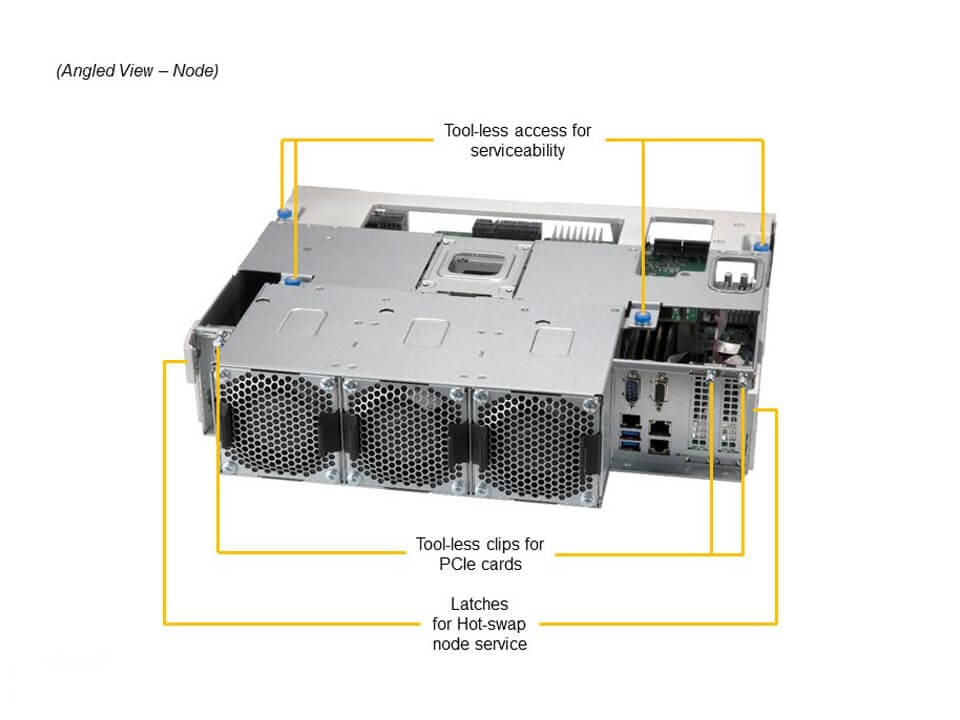

  5. 6x 8cm hot-swap counter-rotate redundant PWM cooling fans
  6. 2600W Redundant Power Supplies Titanium Level (96%)
  7. Server remote management: IPMI 2.0 / KVM over LAN / Media over LANDrive Controller support via Broadcom® 3916 or 3616
  8. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
  9. Drive Controller support via Broadcom® 3916 or 3616

Specifications

Product SKUs
  • SuperServer SSG-640SP-DE1CR90
Motherboard

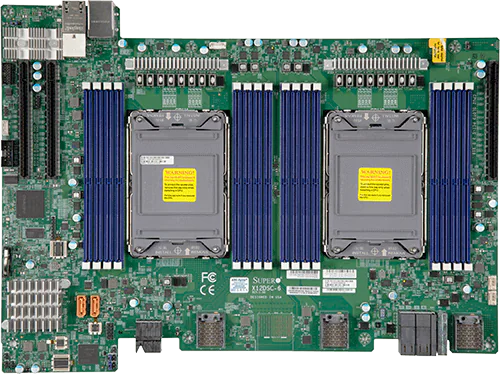

  • Super X12DSC-6
Processor (per Node)
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 36C/72T; Up to 54MB Cache per CPU
Note
  • Supports 120W – 205W TDP CPUs (Air Cooled)
System Memory (per Node)
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Memory Voltage
  • 1.2V
On-Board Devices (per Node)
Network Connectivity
  • 2 RJ45 10GBASE-T

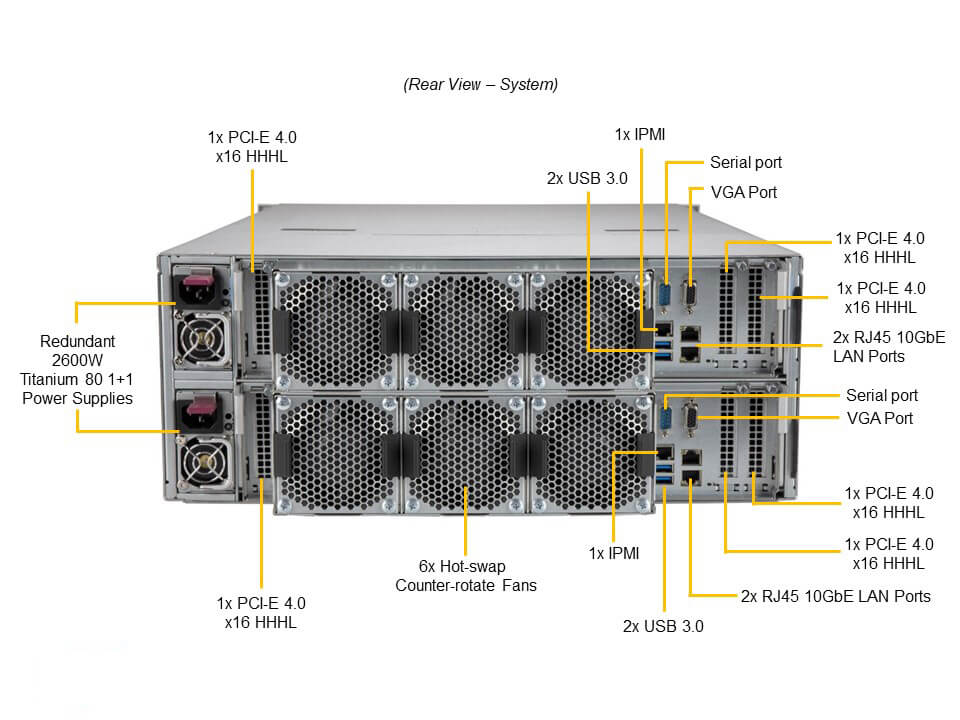

Input / Output (per Node)
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
  • 2 RJ45 10 GBASE-T LAN ports
USB
  • 2 USB 3.0 ports(rear)
Video
  • 1 VGA port
DOM
  • 2 SuperDOM (Disk on Module) ports
System BIOS
BIOS Type
  • AMI 128MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 4+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • SuperServer SSG-640SP-DE1CR90
  • Super X12DSC-6
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-947HTS-R2K63P
Dimensions and Weight
Height
  • 6.96″ (177 mm)
Width
  • 17.6″ (447 mm)
Depth
  • 43.3″ (1099 mm)
Package
  • N/A
Weight
  • Gross Weight: 225 lbs (102.06 kg)
  • Net Weight: 130 lbs (58.97 kg)
Palletized Packing (W x H x L)
  • 35.82″ (910 mm) x 29.92″ (755 mm) x 53.15″ (1345 mm)
Available Color
  • N/A
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration
  • Default3 PCIe 4.0 x16 LP slots
  • 3 PCIe 4.0 x16 LP slots
Drive Bays / Storage (per Node)
Drive Bays Configuration
  • Default: Total 47 bays2 internal fixed 2.5″ SATA drive bays 45 top-loading hot-swap 3.5″/2.5″ SAS/SATA drive bays
  • 2 internal fixed 2.5″ SATA drive bays
  • 45 top-loading hot-swap 3.5″/2.5″ SAS/SATA drive bays

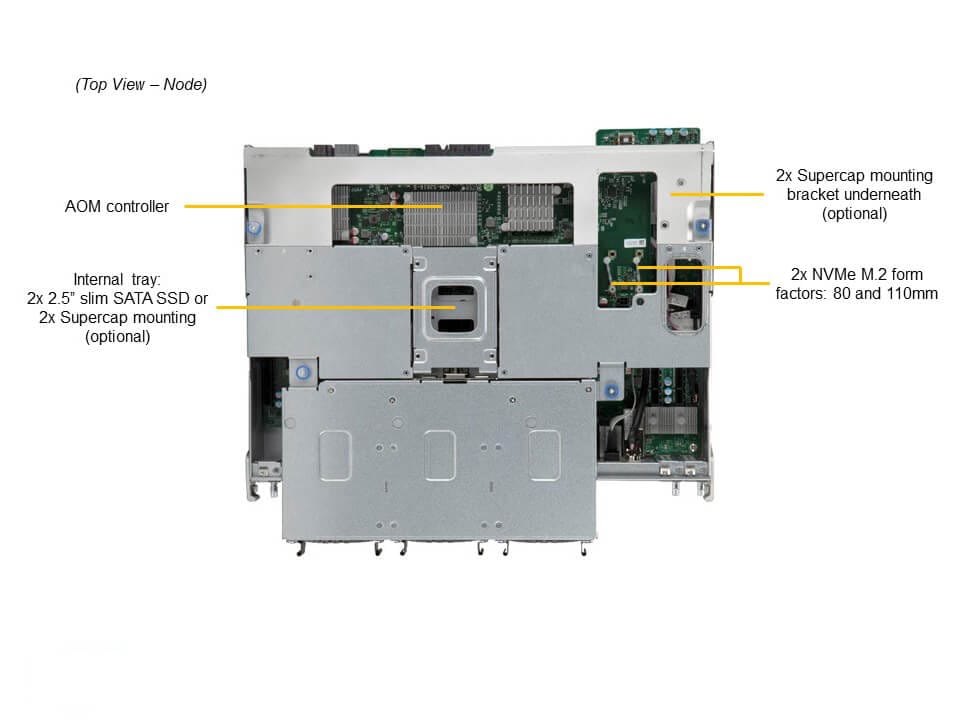

M.2
  • 2 M.2 NVMe slots (M-key)
  • View M.2 Options
System Cooling
Fans
  • Up to 6 Heavy Duty 8cm Fan(s)
Air Shroud
  • 1 Air Shroud
Power Supply
  • 2x 2600W 2x 2600W Redundant Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input2600W: 200-240Vac 2600W: 200-240Vdc (For CQC Only)2600W: 200-240Vac / 50-60Hz 2600W: 200-240Vdc / 50-60Hz (for CQC only) +12VMax: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output)Max: 216A / Min: 0A (200Vac-240Vac) 12V SBMax: 3.5A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 73.5 x 40 x 265 mm
Input
  • 2600W: 200-240Vac 2600W: 200-240Vdc (For CQC Only)2600W: 200-240Vac / 50-60Hz 2600W: 200-240Vdc / 50-60Hz (for CQC only)
+12V
  • Max: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output)Max: 216A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 3.5A
Output Type
  • Backplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
  • 2x 2600W 2x 2600W Redundant Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input2600W: 200-240Vac 2600W: 200-240Vdc (For CQC Only)2600W: 200-240Vac / 50-60Hz 2600W: 200-240Vdc / 50-60Hz (for CQC only) +12VMax: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output)Max: 216A / Min: 0A (200Vac-240Vac) 12V SBMax: 3.5A Output TypeBackplanes (gold finger)
Optional Parts List
