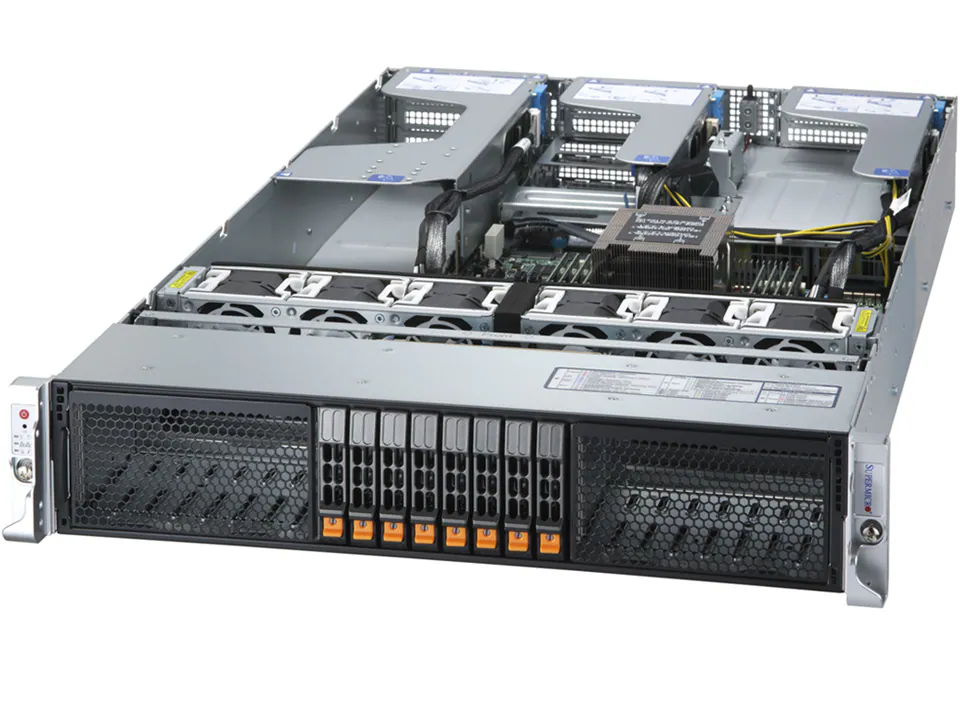

Supermicro SuperServer AS -2115HV-TNRT
Supermicro SuperServer AS -2115HV-TNRT - imagine 2
Supermicro SuperServer AS -2115HV-TNRT - imagine 3
Supermicro SuperServer AS -2115HV-TNRT - imagine 4
Supermicro SuperServer AS -2115HV-TNRT - imagine 5
Supermicro SuperServer AS -2115HV-TNRT - imagine 6
, , ,

Supermicro SuperServer AS -2115HV-TNRT

Favorite
Compara

2U UP rackmount workstation with 8 hot-swap NVMe/SAS/SATA drive bays and PCIe 5.0

Pretul afisat contine TVA (21%).

SuperServer AS -2115HV-TNRT

2U UP rackmount workstation with 8 hot-swap NVMe/SAS/SATA drive bays and PCIe 5.0

Key Features

  1. 2600W Redundant Power Supplies Titanium Level CertifiedOptional Configuration: 1600W and 2000W Redundant Power Supplies (*Full redundancy based on configuration and application load)
  2. 2600W Redundant Power Supplies Titanium Level Certified
  3. Optional Configuration: 1600W and 2000W Redundant Power Supplies (*Full redundancy based on configuration and application load)
  4. AMD Ryzen™ Threadripper™ PRO 9000WX/7000WX series up to 350W TDP Processors, CPU and Memory Overclocking supported
  5. 8 DDR5 ECC Registered RDIMM/3DS RDIMM, DDR5-6400MT/s Up to total 2TB
  6. 1 AIOM/OCP NIC 3.0 Slot (Optional parts required for 2nd AIOM slot)Up to 4 PCIe 5.0 x16 FHFL slots or 8 PCIe 5.0 x8 FHFL slots
  7. 1 AIOM/OCP NIC 3.0 Slot (Optional parts required for 2nd AIOM slot)
  8. Up to 4 PCIe 5.0 x16 FHFL slots or 8 PCIe 5.0 x8 FHFL slots
  9. 8 Hot-swap 2.5″ NVMe/SAS/SATA (Optional parts required for NVMe/SAS/SATA configurations)M.2 Interface: 2 PCIe 4.0 x4 (RAID 0, 1)M.2 Form Factor: 2280/22110M.2 Key: M-Socket
  10. 8 Hot-swap 2.5″ NVMe/SAS/SATA (Optional parts required for NVMe/SAS/SATA configurations)
  11. M.2 Interface: 2 PCIe 4.0 x4 (RAID 0, 1)M.2 Form Factor: 2280/22110M.2 Key: M-Socket

Specifications

Product SKUs
  • A+ Workstation AS -2115HV-TNRT
Motherboard
  • Super H13SRH
Processor
CPU
  • Single Socket sTR5 (LGA-4844)
  • AMD Ryzen™ Threadripper PRO 9000WX/7000WX series
Core Count
  • Up to 96C/192T; Up to 384MB Cache
Note
  • Supports up to 350W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 4 double-width or 8 single-width GPUs
Supported GPU
  • NVIDIA PCIe: H200 NVL (141GB), L4, L40S, NVIDIA RTX PRO™ 4000 Blackwell, NVIDIA RTX PRO™ 4500 Blackwell, NVIDIA RTX PRO™ 5000 Blackwell, NVIDIA RTX PRO™ 6000 Blackwell Max-Q Workstation Edition, RTX 4000 Ada Generation, RTX 4500 Ada, RTX 5000 Ada, RTX 6000 Ada Generation, RTX A6000
  • AMD PCIe: Instinct™ MI210, Radeon™ AI PRO R9700, Radeon™ AI PRO R9700S
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • PCIe
System Memory
Memory
  • Slot Count: 8 DIMM slots
  • Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM
Memory Voltage
  • 1.1V
On-Board Devices
Network Connectivity
  • Via AIOM
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports(rear)
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 256MB SPI Flash
BIOS Features
  • UEFI 2.8
  • SMBIOS 3.5 or later
  • UEFI 2.9
  • Plug and Play (PnP)
  • USB Keyboard support
  • ACPI 6.5
  • SMBIOS 3.6 or later
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • ACPI Power Management
  • Power-on mode control for AC power loss recovery
  • Power button override mechanism,
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Voltage
  • System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
  • A+ Workstation AS -2115HV-TNRT
  • Super H13SRH
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-HS201-R000NFP
Dimensions and Weight
Height
  • 3.5″ (88.9 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 31.74″ (806.2 mm)
Package
  • 9.96″ (H) x 26.46″ (W) x 43.31″ (D)
Weight
  • Gross Weight: 75 lbs (34 kg)
  • Net Weight: 45 lbs (20.5 kg)
Available Color
  • Silver

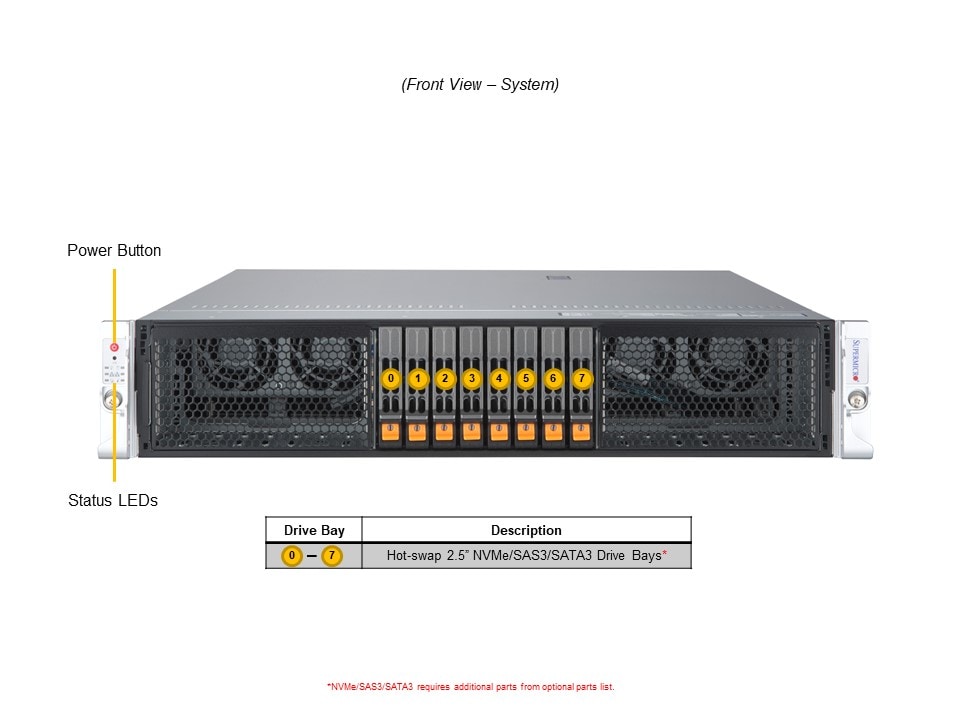

Front Panel
Buttons
  • Power On/Off
  • UID button
LED
  • HDD activity
  • LAN1 activity
  • Power status
  • System information

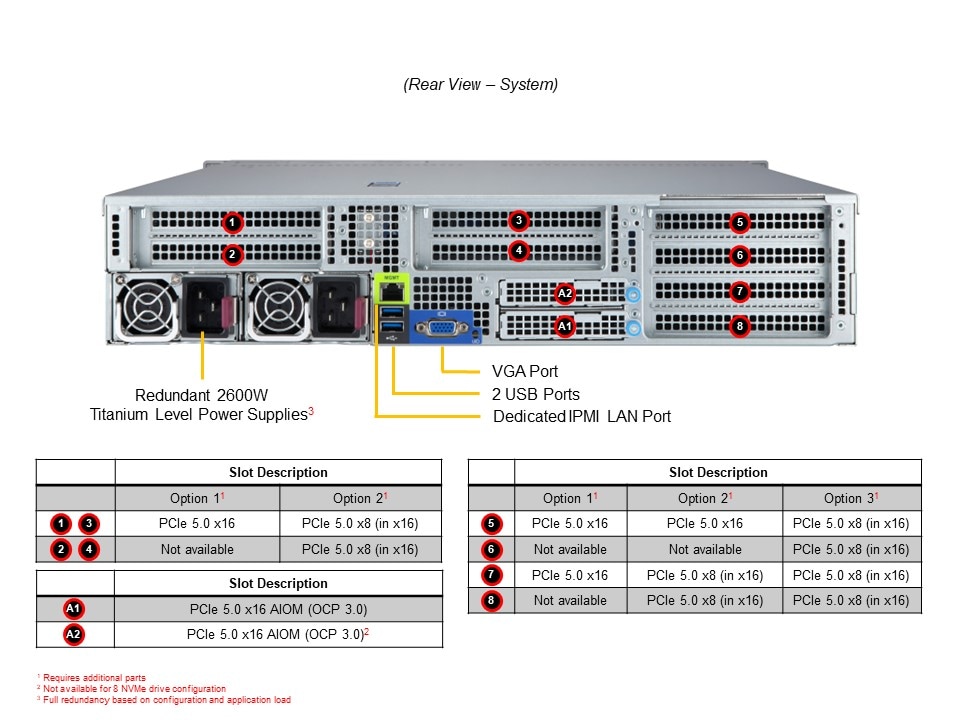

Expansion Slots
PCI-Express (PCIe) Configuration
  • Default4 PCIe 5.0 x16 (in x16) FH/10.5″L double-width slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
  • 4 PCIe 5.0 x16 (in x16) FH/10.5″L double-width slots
  • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
  • Option A8 PCIe 5.0 x8 (in x16) FHFL slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
  • 8 PCIe 5.0 x8 (in x16) FHFL slots
  • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
M.2
  • 2 M.2 PCIe 4.0 x4 NVMe slots (M-key 22110(default)/2280)

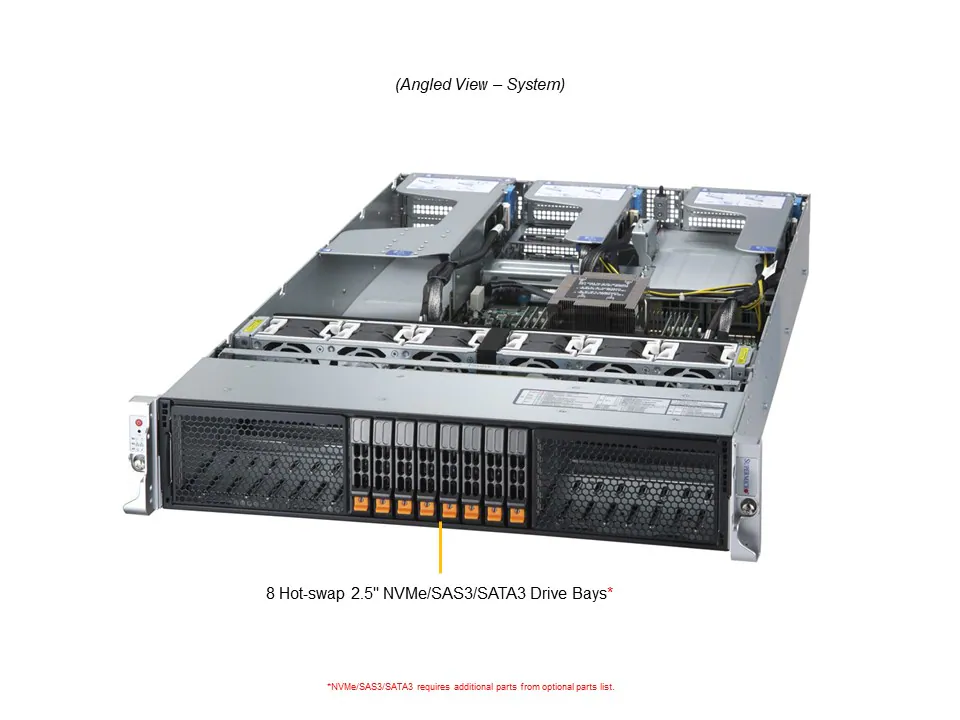

Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bays8 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
  • 8 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
  • (*NVMe/SAS/SATA support may require additional storage controller and/or cables)
M.2
  • 2 M.2 PCIe 4.0 x4 NVMe slots (M-key 22110(default)/2280)
  • View M.2 Options

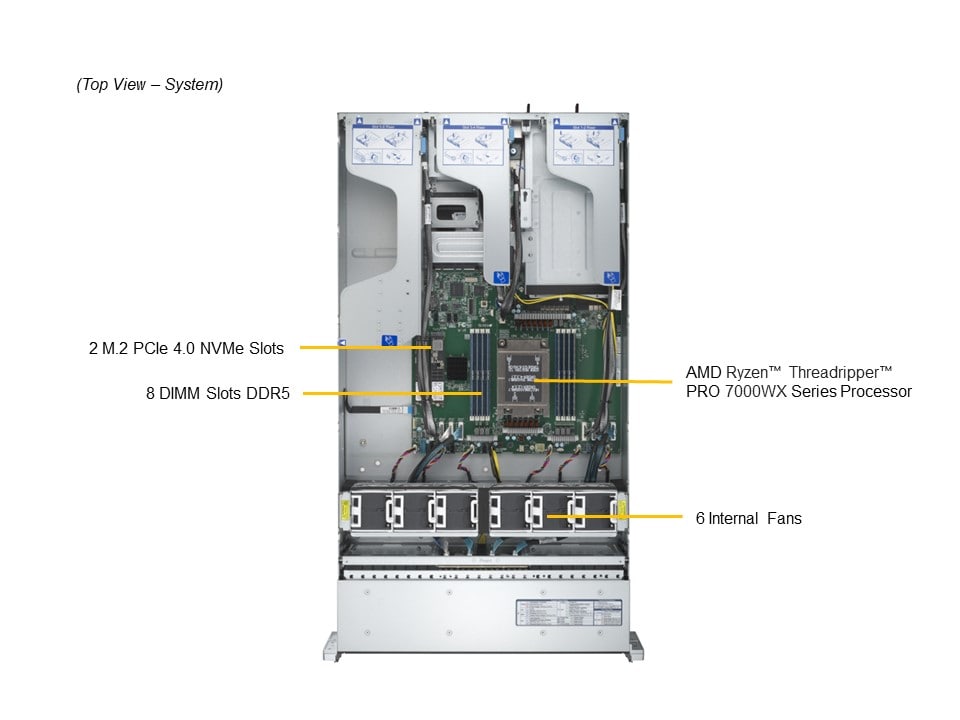

System Cooling
Fans
  • Up to 6x 6cm heavy duty fans with optimal fan speed control
Air Shroud
  • 1 Air Shroud
Power Supply
  • 2x 2600W 2x 1600W 2x 2000W 2x 2600W 2x 2600W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input2600W: 200-240Vac 2600W: 200-240Vdc (For CQC Only)2600W: 200-240Vac / 50-60Hz 2600W: 200-240Vdc / 50-60Hz (for CQC only) +12VMax: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output)Max: 216A / Min: 0A (200Vac-240Vac) 12V SBMax: 3.5A Output TypeBackplanes (gold finger) 2x 1600W 2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz 1600W: 200-240Vdc / 50-60Hz (for CQC only) +12VMax: 83.3A / Min: 0A (100Vac-127Vac)Max: 133.3A / Min: 0A (200Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Max: 3.5A Output TypeBackplanes (gold finger) 2x 2000W 2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for CQC only)2700W: 200-240Vac +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac)Max: 225A / Min: 0A (200Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 73.5 x 40 x 265 mm
Input
  • 2600W: 200-240Vac 2600W: 200-240Vdc (For CQC Only)2600W: 200-240Vac / 50-60Hz 2600W: 200-240Vdc / 50-60Hz (for CQC only)
+12V
  • Max: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output)Max: 216A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 3.5A
Output Type
  • Backplanes (gold finger)
Input
  • 1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz 1600W: 200-240Vdc / 50-60Hz (for CQC only)
+12V
  • Max: 83.3A / Min: 0A (100Vac-127Vac)Max: 133.3A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 3.5A / Min: 0A Max: 3.5A
Input
  • 1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for CQC only)2700W: 200-240Vac
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac)Max: 225A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 3.5A / Min: 0A
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • 2x 2600W 2x 1600W 2x 2000W 2x 2600W 2x 2600W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input2600W: 200-240Vac 2600W: 200-240Vdc (For CQC Only)2600W: 200-240Vac / 50-60Hz 2600W: 200-240Vdc / 50-60Hz (for CQC only) +12VMax: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output)Max: 216A / Min: 0A (200Vac-240Vac) 12V SBMax: 3.5A Output TypeBackplanes (gold finger) 2x 1600W 2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz 1600W: 200-240Vdc / 50-60Hz (for CQC only) +12VMax: 83.3A / Min: 0A (100Vac-127Vac)Max: 133.3A / Min: 0A (200Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Max: 3.5A Output TypeBackplanes (gold finger) 2x 2000W 2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for CQC only)2700W: 200-240Vac +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac)Max: 225A / Min: 0A (200Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Output TypeBackplanes (gold finger)
Optional Parts List
SKU: as-2115hv-tnrt Categorii: , , ,
