UP mid-tower workstation for SMB and content creation

Pretul afisat contine TVA (21%).

SuperServer AS -3015A-I

UP mid-tower workstation for SMB and content creation

Key Features

  1. AMD EPYC™ 4004 / 4005 or Ryzen™ 7000 / 9000 series LGA1718 up to 170W TDP Processors
  2. 4 Dual channel ECC/Non-ECC DDR5 unbuffered DIMM slots supporting up to 192GB memory
  3. 2 PCIe 5.0 x16 (16/NA or 8/8) high-throughput slots and 2 PCIe 5.0×4 M.2 slots
  4. Dual 1GbE LAN (Intel® I210-AT)

Specifications

Product SKUs
  • A+ Server AS -3015A-I
Motherboard

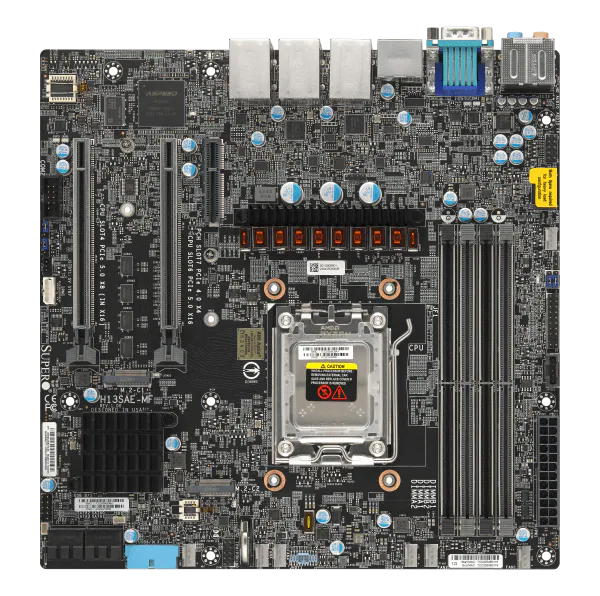

  • Super H13SAE-MF
Processor
CPU
  • Single processor(s)
  • AMD EPYC™ 4004 / 4005 or AMD Ryzen™ 7000 / 9000 Series Processors
Core Count
  • Up to 16C/32T
Note
  • Supports up to 170W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 1 double-width GPU
Supported GPU
  • NVIDIA PCIe: RTX 2000 Ada, RTX 4000 Ada Generation, RTX 4070, RTX 6000 Ada Generation, RTX A2000, RTX A4000
  • AMD PCIe: Radeon Pro W7500, Radeon Pro W7800
System Memory
Memory
  • Slot Count: 4 DIMM slots
  • Max Memory (2DPC): Up to 192GB 5200MT/s ECC/non-ECC DDR5 UDIMM
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1 support
NVMe
  • NVMe; RAID 0/1 support(Native)
Network Connectivity
  • 1 RJ45 1GbE with Realtek RTL8211F PHY (dedicated IPMI)
  • 2 RJ45 1GbE with Intel® I210-AT
Input / Output
Video
  • 1 VGA port
  • 1 HDMI 2.0b port
  • 1 DisplayPort 1.4a port
Audio
  • Rear Audio
System BIOS
BIOS Type
  • AMI 32MB SPI Flash
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • ACPI 6.0 Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
PC Health Monitoring
Voltage
  • +1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM temperature
  • A+ Server AS -3015A-I
  • Super H13SAE-MF
Chassis
Form Factor
  • Mini-Tower
Model
  • CSE-731i-668B

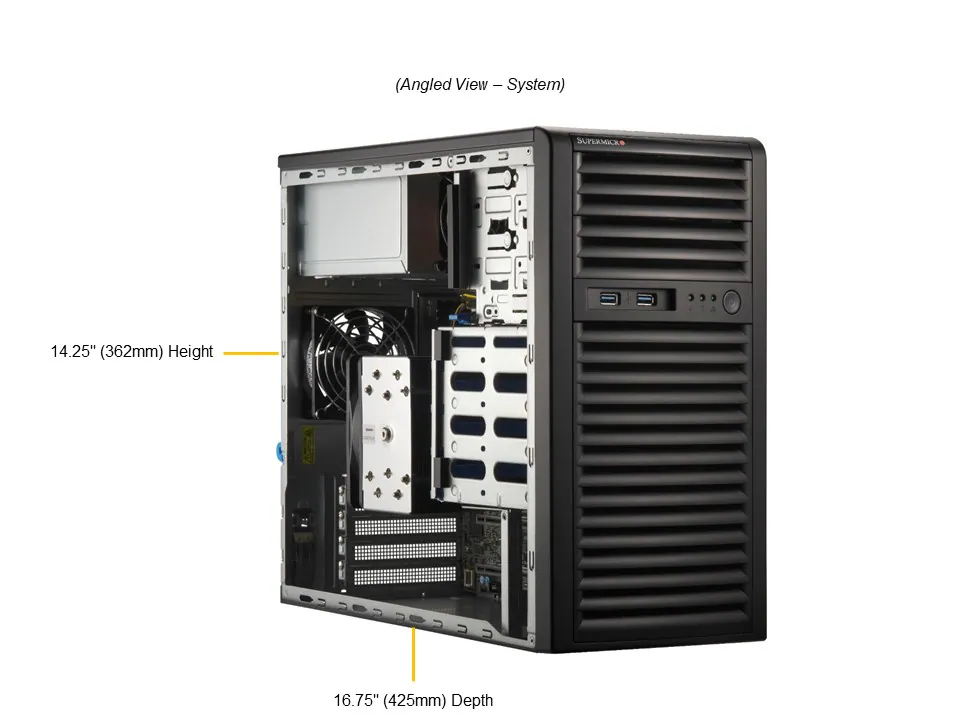

Dimensions and Weight
Height
  • 14.25″ (362 mm)
Width
  • 7.25″ (184 mm)
Depth
  • 16.75″ (425 mm)
Package
  • 20″ (H) x 11″ (W) x 21″ (D)
Weight
  • Gross Weight: 22 lbs (9.98 kg)
  • Net Weight: 18 lbs (8.16 kg)
Available Color
  • Black

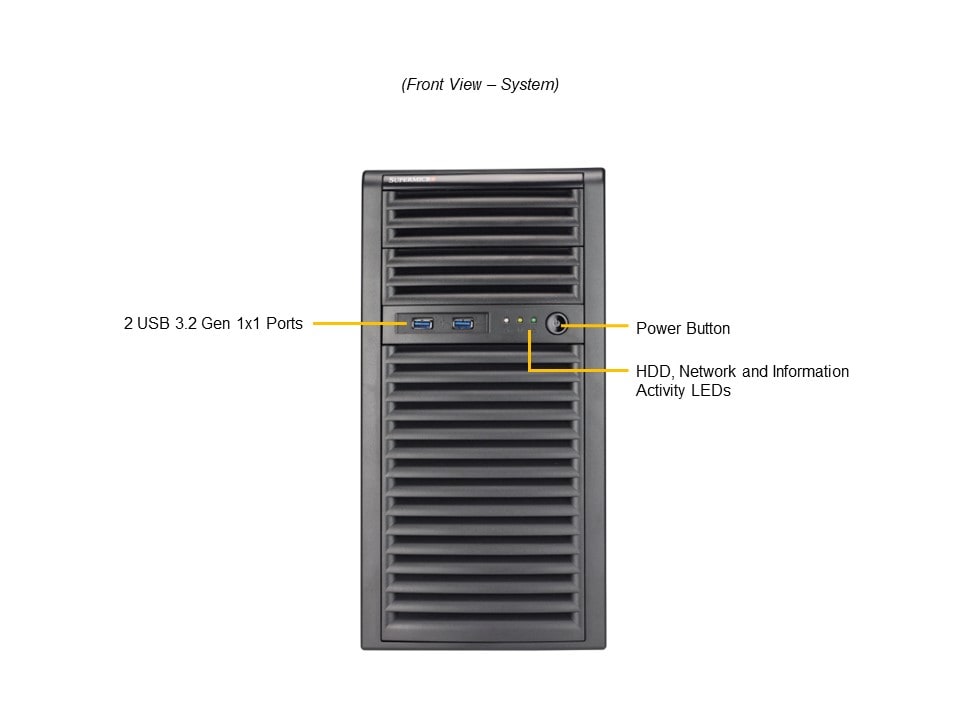

Front Panel
Buttons
  • Power On/Off button
LED
  • HDD activity LED
  • Network activity LEDs
  • Power LED
  • System Overheat LED
Port
  • USB 3.0 Port(s)

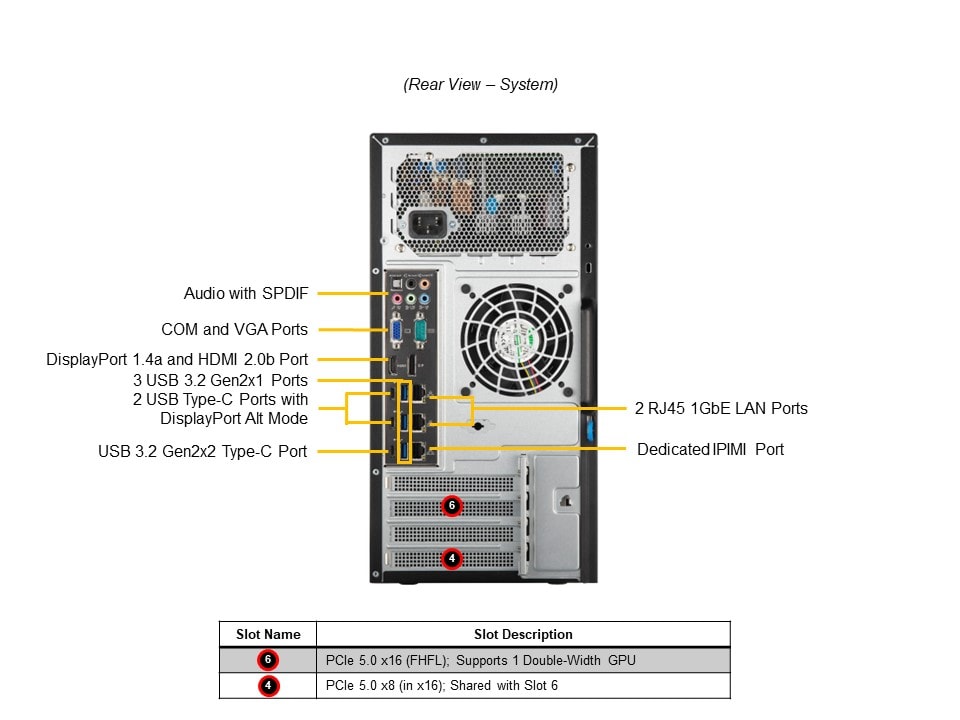

Expansion Slots
PCI-Express (PCIe) Configuration
  • Default1 PCIe 5.0 x16 FHFL slot
  • 1 PCIe 5.0 x16 FHFL slot
  • Option A2 PCIe 5.0 x8 FHFL slots
  • 2 PCIe 5.0 x8 FHFL slots
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 4 bays4 front fixed 3.5″ SATA drive bays
  • 4 front fixed 3.5″ SATA drive bays
  • Option A: Total 4 bays4 front fixed 2.5″ SATA drive bays
  • 4 front fixed 2.5″ SATA drive bays
M.2
  • 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280/22110)
  • View M.2 Options
Peripheral Bays
  • 2 5.25″ peripheral bays
System Cooling
Fans
  • Up to 1x 90mm Fan(s)
  • Up to 1x 80mm Fan(s)
Air Shroud
  • 1 Air Shroud
Power Supply
  • 1x 668W 1x 668W Platinum Level (92%) power supply Dimension (WxHxL)150 x 86 x 185 mm Input100-240Vac 668W: 100-240Vac / 50-60Hz +12VMax: 54A (100Vdc-240Vdc)Max: 54A / Min: 0.2A (100Vac-240Vac) 5V SBMax: 2A / Min: 0A Output Type24pin ATX
Dimension (WxHxL)
  • 150 x 86 x 185 mm
Input
  • 100-240Vac 668W: 100-240Vac / 50-60Hz
+12V
  • Max: 54A (100Vdc-240Vdc)Max: 54A / Min: 0.2A (100Vac-240Vac)
5V SB
  • Max: 2A / Min: 0A
Output Type
  • 24pin ATX
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
  • 1x 668W 1x 668W Platinum Level (92%) power supply Dimension (WxHxL)150 x 86 x 185 mm Input100-240Vac 668W: 100-240Vac / 50-60Hz +12VMax: 54A (100Vdc-240Vdc)Max: 54A / Min: 0.2A (100Vac-240Vac) 5V SBMax: 2A / Min: 0A Output Type24pin ATX
