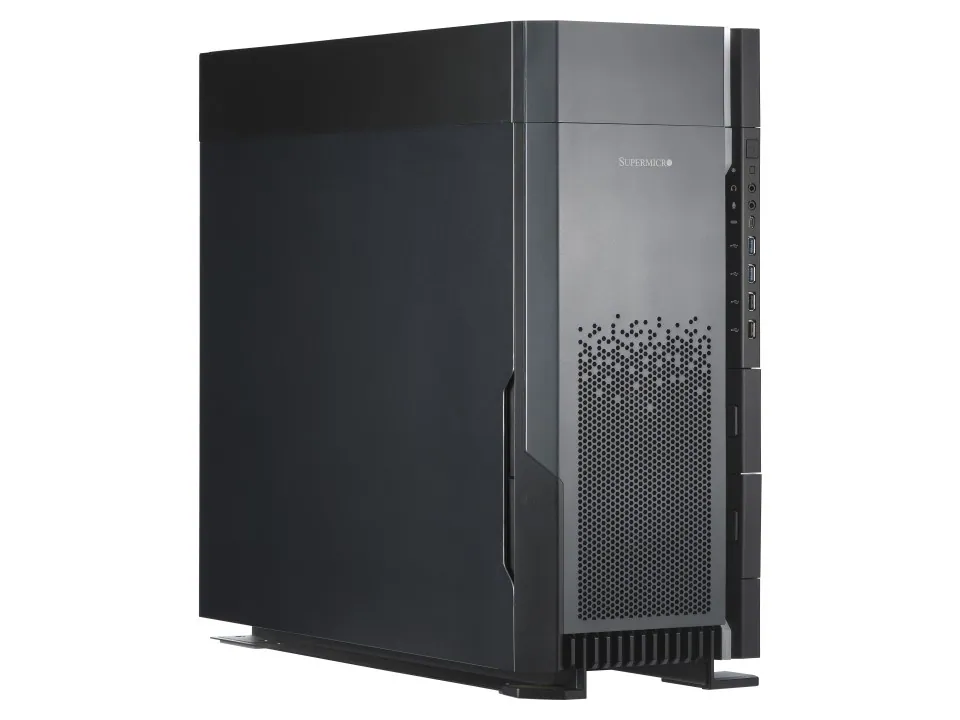

Supermicro SuperServer AS -5014A-TT

Favorite

Compara

UP full-tower workstation for AI, design, simulation and media

Pretul afisat contine TVA (21%).

SuperServer AS -5014A-TT

UP full-tower workstation for AI, design, simulation and media

Key Features

2000W Platinum Power Supply
AMD Ryzen™ Threadripper™ PRO 5000WX/3000WX Series Processor, up to 64 Cores
8 DIMMs; up to 1TB Registered ECC DDR4 3200-MHz Memory
6 PCIe 4.0 x16 slots4 M.2 slots: PCIe 4.0 x4 (Software RAID 0, 1, 5 & 10)2 U.2 Interface: PCIe 4.0 x4 (Software RAID 0,1)
6 PCIe 4.0 x16 slots
4 M.2 slots: PCIe 4.0 x4 (Software RAID 0, 1, 5 & 10)
2 U.2 Interface: PCIe 4.0 x4 (Software RAID 0,1)
Single 10GBase-T LAN port, Single 1GbE LAN port (shared with IPMI)

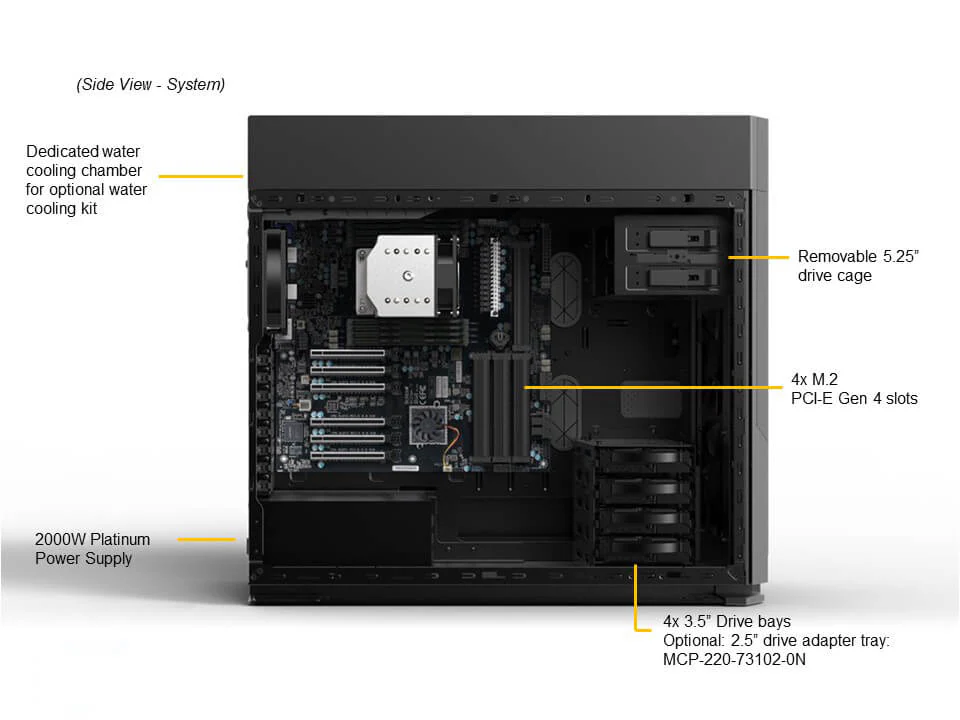

4 fixed internal 3.5″/2.5″ SATA drive bays, 2 fixed front 2.5″ SATA drive bays

Specifications

Product SKUs
A+ Workstation AS -5014A-TT

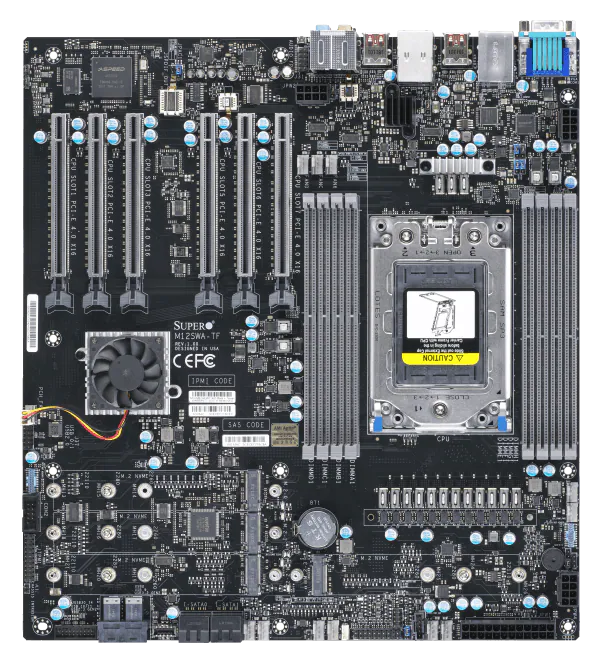

Motherboard
Super M12SWA-TF
Processor
CPU	Single processor(s) AMD Ryzen™ Threadripper™ PRO 3000/5000 WX-Series
Core Count	Up to 64C/128T; Up to 256MB Cache
Note	Supports up to 280W TDP CPUs (Air Cooled) Supports up to 280W TDP CPUs (Liquid Cooled)
GPU
Max GPU Count	Up to 1 quad-width or 2 triple-width or 4 double-width or 4 single-width GPUs
Supported GPU	NVIDIA PCIe: RTX 3090, RTX 4000 Ada Generation, RTX 4080, RTX 4090, RTX 5000 Ada, RTX 6000 Ada Generation, RTX A2000, RTX A4000, RTX A4500, RTX A5000, RTX A6000 NVIDIA: GeForce RTX 5080 AMD PCIe: Radeon Pro W6800, Radeon Pro W7500, Radeon Pro W7800
System Memory
Memory	Slot Count: 8 DIMM slots Max Memory (1DPC): Up to 1TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Memory Voltage	1.2V
On-Board Devices
Network Connectivity	1 RJ45 10GbE with Marvell® AQC113C 1 RJ45 1GbE with Intel® I210-AT
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

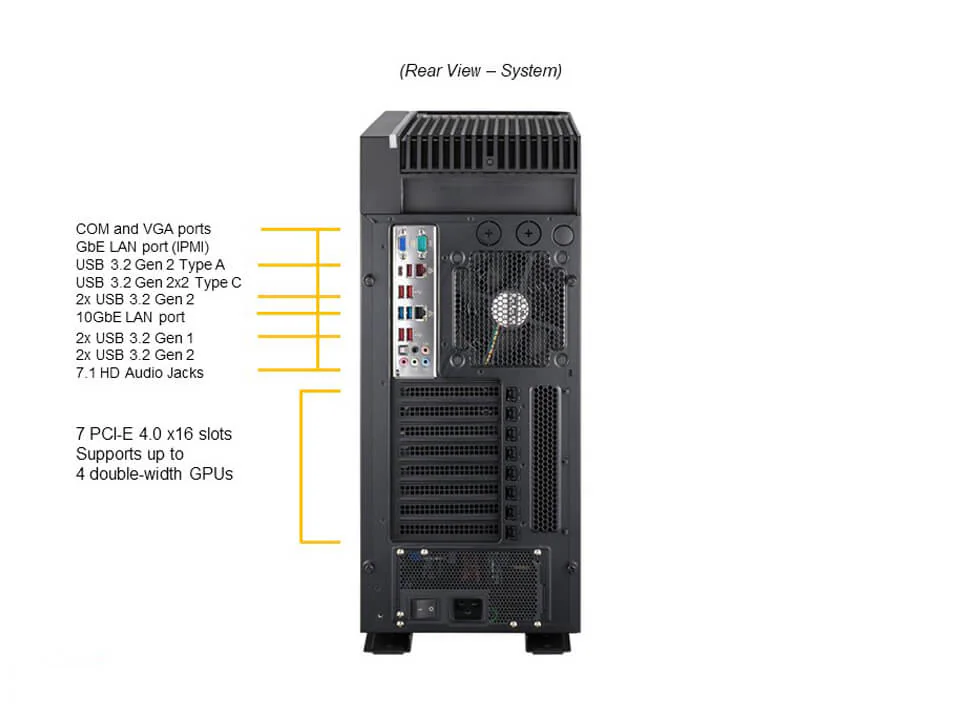

Input / Output
LAN	1 RJ45 10 GbE LAN port 1 RJ45 1 GbE LAN port (Intel® I210-AT) (IPMI shared on LAN port 1)
USB	2 USB 3.2 Gen1 Type-A ports(rear) 2 USB 3.2 Gen1 Type-A ports(front) 1 USB 3.2 Gen2 Type-C port(Rear) 5 USB 3.2 Gen2 Type-A ports(Rear) 2 USB 3.2 Gen2 Type-A ports(Front) 1 USB 3.2 Gen2 Type-C port(Front)
Video	1 VGA port
Serial	1 COM port(rear)
Audio	7.1 HD Audio
TPM	1 TPM header
System BIOS
BIOS Type	AMI 256MB SPI Flash
Management
Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! IPMICFG SMCIPMITool IPMIView
Power configurations	ACPI 6.0 Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0
PC Health Monitoring
FAN	Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment; CPU Thermal Trip Support; I²C Temperature Sensing Logic
Voltage	Monitors CPU Core Voltages, +3.3V, +12V, +3.3Vstb, +5Vstb, Vcore, Vmem
A+ Workstation AS -5014A-TT
Super M12SWA-TF
Chassis
Form Factor	5U (Full Tower) Rackmount
Model	CSE-GS7A-2000B

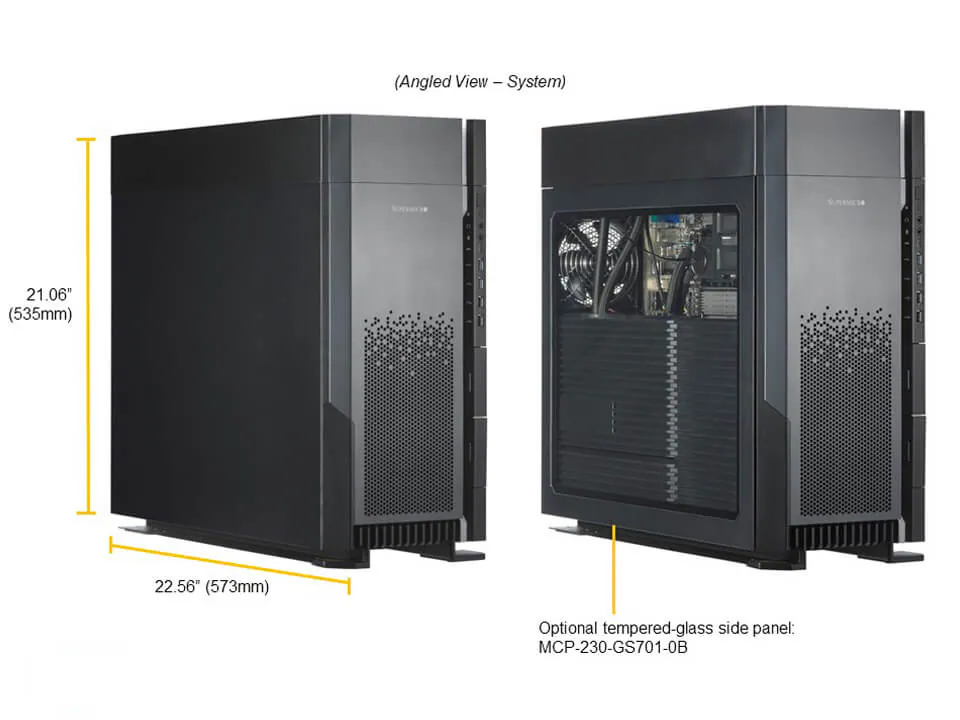

Dimensions and Weight
Height	21.06″ (535 mm)
Width	8.74″ (222 mm)
Depth	22.56″ (573 mm)
Package	27.8″ (H) x 14.6″ (W) x 28.5″ (D)
Weight	Gross Weight: 39 lbs (17.74 kg) Net Weight: 20 lbs (14.9 kg)
Available Color	Black

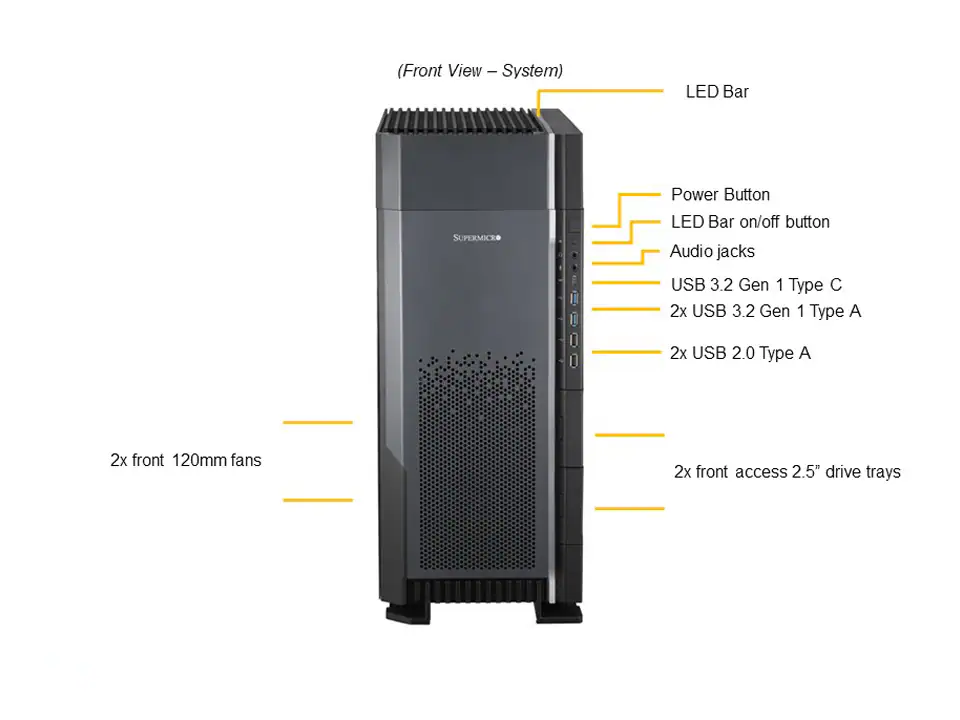

Front Panel
Buttons	LED light bar ON/OFF Power On/Off button
LED	Power status LED
Port	Audio Jacks USB 2.0 USB 3.0 Gen 1-Type-A USB 3.0 Gen 1-Type-c
Expansion Slots
PCI-Express (PCIe) Configuration	Default6 PCIe 4.0 x16 (in x16) FHFL slots 6 PCIe 4.0 x16 (in x16) FHFL slots
M.2	4 M.2 PCIe 4.0 x4 NVMe slots (M-key 22110(default)/2280)
Drive Bays / Storage
Drive Bays Configuration	Default: Total 6 bays2 front fixed 2.5″ SATA* drive bays 4 internal fixed 3.5″ SATA* drive bays 2 front fixed 2.5″ SATA* drive bays 4 internal fixed 3.5″ SATA* drive bays (*SATA support may require additional storage controller and/or cables)
M.2	4 M.2 PCIe 4.0 x4 NVMe slots (M-key 22110(default)/2280) View M.2 Options
Peripheral Bays	2 5.25″ bays
System Cooling
Fans	Up to 1 Rear Exhaust Fan 120mm Fan(s) Up to 2 Front Intake 120mm Fan(s)
Liquid Cooling	Direct to Chip (D2C) Cold Plate (optional)
Power Supply
1x 2000W 1x 2000W Platinum Level (92%) power supply Dimension (WxHxL)150 x 86 x 200 mm Input100-240Vac 1200W: 100-115Vac / 50-60Hz 1500W: 115-200Vac / 50-60Hz 2000W: 200-264Vac / 50-60Hz +12VMax: 100A / Min: 0.1A (100Vac-115Vac)Max: 100A / Min: 0.1A (100Vdc-240Vdc) ((100-115Vac))Max: 125A / Min: 0.1A (100Vdc-240Vdc) ((115-120Vac))Max: 125A / Min: 0.1A (115Vac-120Vac)Max: 166.6A / Min: 0.1A (100Vdc-240Vdc) ((200-264Vac))Max: 166.6A / Min: 0.1A (200Vac-264Vac) 5V SBMax: 4A / Min: 0A Output Type24pin ATX
Dimension (WxHxL)	150 x 86 x 200 mm
Input	100-240Vac 1200W: 100-115Vac / 50-60Hz 1500W: 115-200Vac / 50-60Hz 2000W: 200-264Vac / 50-60Hz
+12V	Max: 100A / Min: 0.1A (100Vac-115Vac)Max: 100A / Min: 0.1A (100Vdc-240Vdc) ((100-115Vac))Max: 125A / Min: 0.1A (100Vdc-240Vdc) ((115-120Vac))Max: 125A / Min: 0.1A (115Vac-120Vac)Max: 166.6A / Min: 0.1A (100Vdc-240Vdc) ((200-264Vac))Max: 166.6A / Min: 0.1A (200Vac-264Vac)
5V SB	Max: 4A / Min: 0A
Output Type	24pin ATX
Operating Environment
ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
1x 2000W 1x 2000W Platinum Level (92%) power supply Dimension (WxHxL)150 x 86 x 200 mm Input100-240Vac 1200W: 100-115Vac / 50-60Hz 1500W: 115-200Vac / 50-60Hz 2000W: 200-264Vac / 50-60Hz +12VMax: 100A / Min: 0.1A (100Vac-115Vac)Max: 100A / Min: 0.1A (100Vdc-240Vdc) ((100-115Vac))Max: 125A / Min: 0.1A (100Vdc-240Vdc) ((115-120Vac))Max: 125A / Min: 0.1A (115Vac-120Vac)Max: 166.6A / Min: 0.1A (100Vdc-240Vdc) ((200-264Vac))Max: 166.6A / Min: 0.1A (200Vac-264Vac) 5V SBMax: 4A / Min: 0A Output Type24pin ATX
